LINSHANG LS173/175 Colorimeter Smart

• Name: Multi-function Colorimeter
• Model: LS173 / LS175 (optional)
• Measuring caliber: 8mm / 20mm (optional)
• Data interface: USB, Bluetooth
• Illumination light source: full spectrum LED light source
• Measuring conditions: light source D65, field of view 10°
• Measurement time: about 1s
• Color space: CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex
• Color difference formula: △E*ab, △E*uv, △E*94, △E*cmc(2:1), △E*cmc(1:1), △E*00
• Repeatability: Standard deviation △E*ab, within 0.03 (Measurement condition:
• Measure the average value of 30 times on the white board at 3s intervals
• after preheating and calibration)
• Battery power: rechargeable lithium battery 3.7V@4000mAh,
• single full can be 10000 times continuous measurement
• System language: Chinese, English
• Charging interface: USB (Type-C)
• Operating temperature range: 0~45℃, 0~85%RH (no condensation)
• Storage temperature range: -25~55℃, 0~85%RH (no condensation)
• Display: 3.5-inch touch color screen
• Operation interface: Touch screen + APP + PC software
• APP use requirements: only support 7.0 and above Android or IOS operating system
• Size: 86mm X 62.5mm X 158mm

Package Included:

• Colorimeter*1 (optional)
• English Manual*1
• USB Cable*1

Versions:

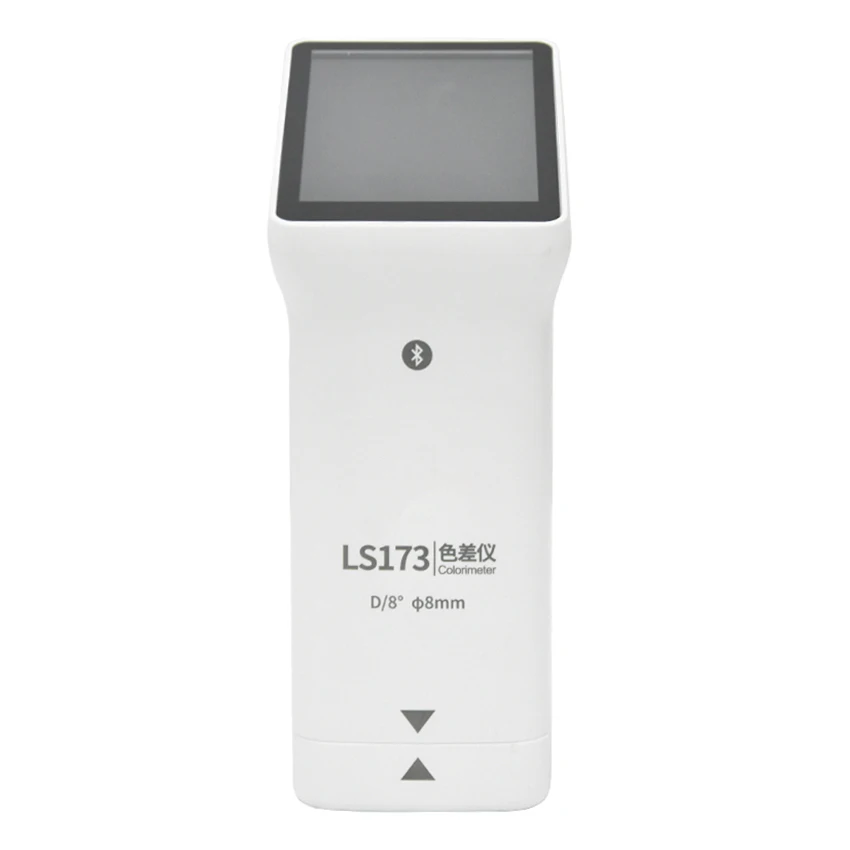

Model: LS173

• Measuring caliber: 8mm
• Illumination mode: D/8, including specular reflected light (SCI)
• Applications:
• Such as plastics, paints and coatings, metal products, ceramics, etc

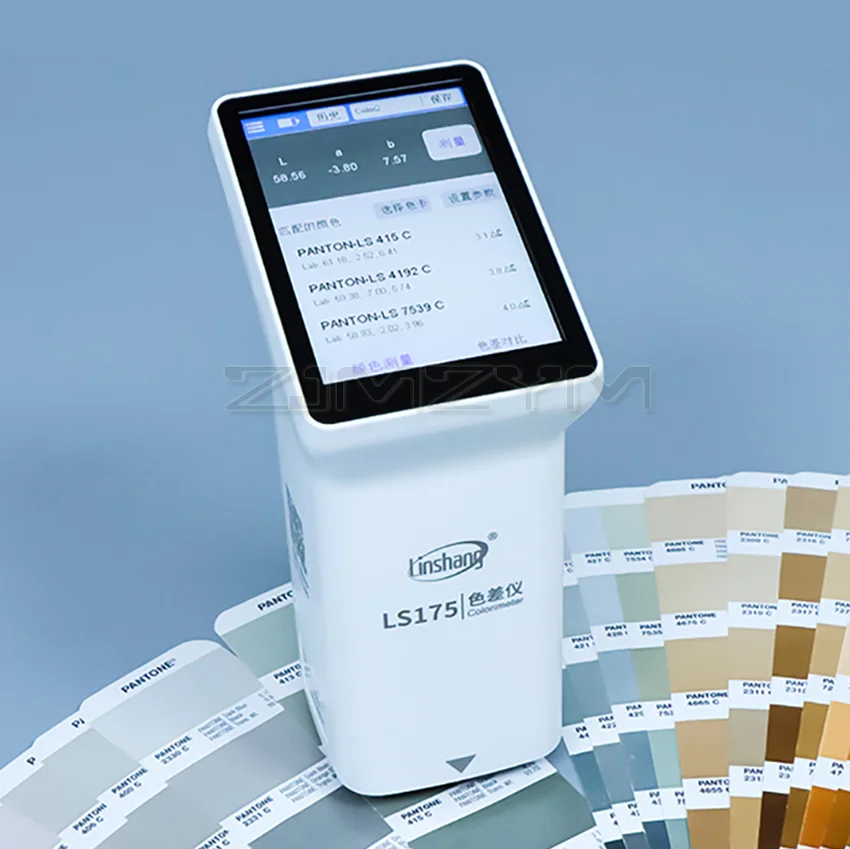

Model: LS175

• Measuring caliber: 20mm
• Illumination mode: 45/0 (45°ring illumination, 0°reception)
• Applications:

Surface textured or rough materials, such as fabric, leather, wood, etc
