Magene P505-S1108/ S1103/ R110X/ S1078 Spider Power Meter – 110BCD, 4/5 Arm, 8-Bolt Crankset

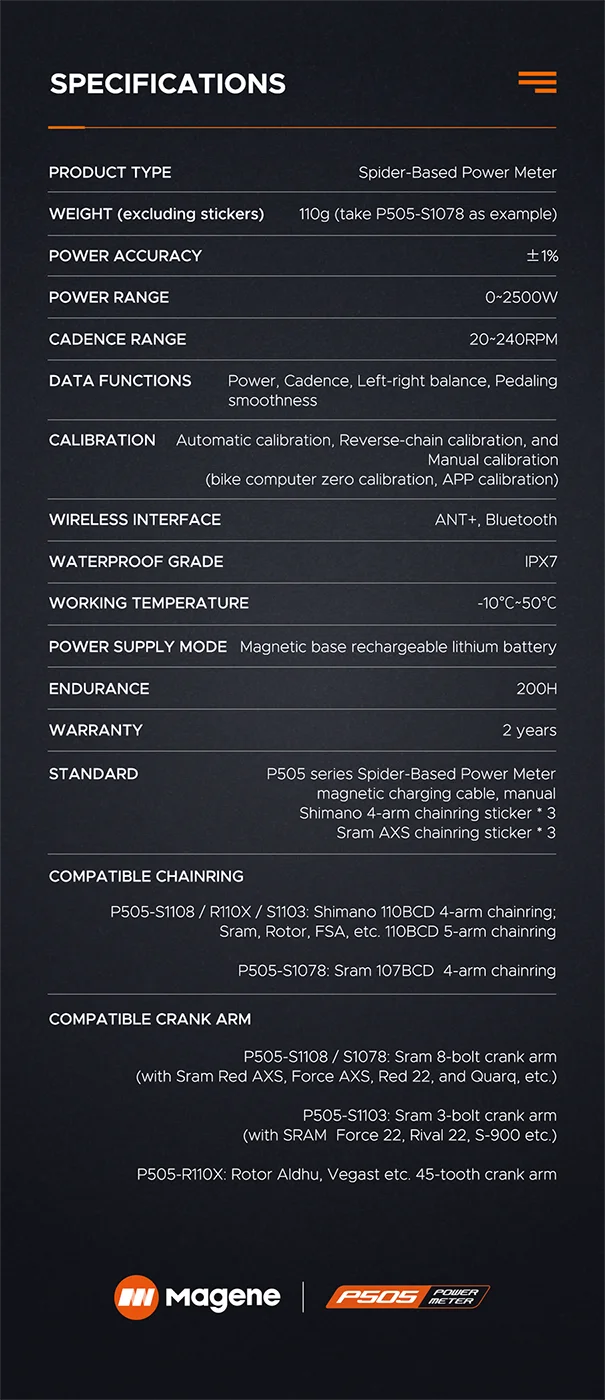

• Type: WireLess
• Model Number: P505-S1108/ S1078
• Stopwatch and Accessories: Wireless Stopwatch
• Brand Name: Magene
• Origin: Mainland China
• Certification: CE
• Item: P505-S1108/S1103/R110X/S1078
• Weight: 110g
• Power Range: 0~2500W
• Cadence Range: 20~24ORPM
• Data Functions: Power, Cadence, Pedal balance, Pedal smoothness
• WIRELESS INTERFACE: ANT+, Bluetooth
• WATERPROOF GRADE: IPX7
• WORKING TEMPERATURE: -10°C~50°C
• POWER SUPPLY MODE: Magnetic base rechargeable lithium battery
• ENDURANCE: 200H

Buy-this-product-on-Aliexpress

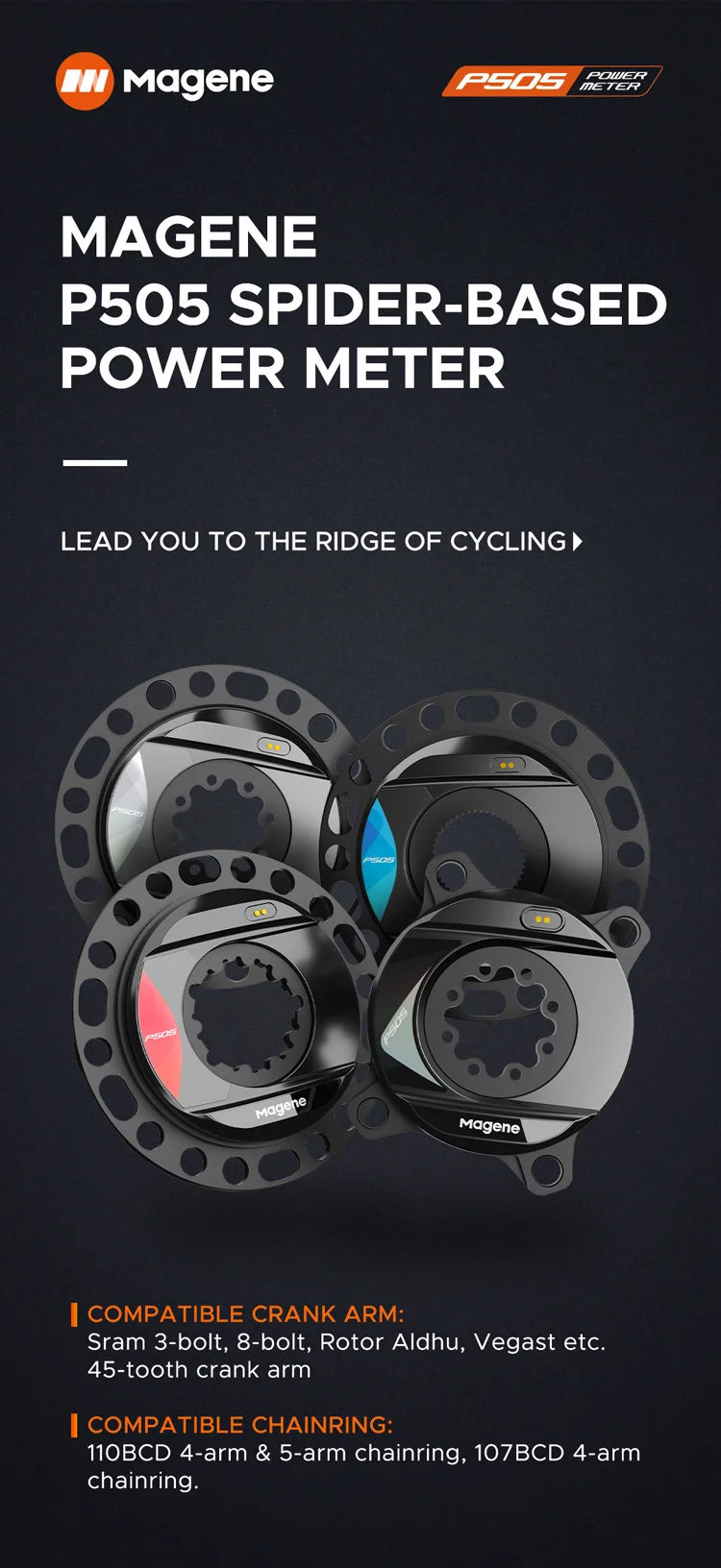

P505 SPIDER-BASED POWER METER

RIGOROUS ALGORITHM
Extensive environmental testing.
Real-time temperature compensation algorithm.
The strain gauge curve is coupled with the acceleration sensor curve to detect the cadence without magnet induction, and the bumpy road condition is also accurate.
Cadence and strain gauge curve coupling algorithm

EASY CALIBRATION OPERATION

Automatic calibration: auto calibration without any operation.
Reverse chain calibration: reverse the chain for 5 turns and the calibration is done.
Manual calibration: support APP calibration and zero-point calibration of bike computer.

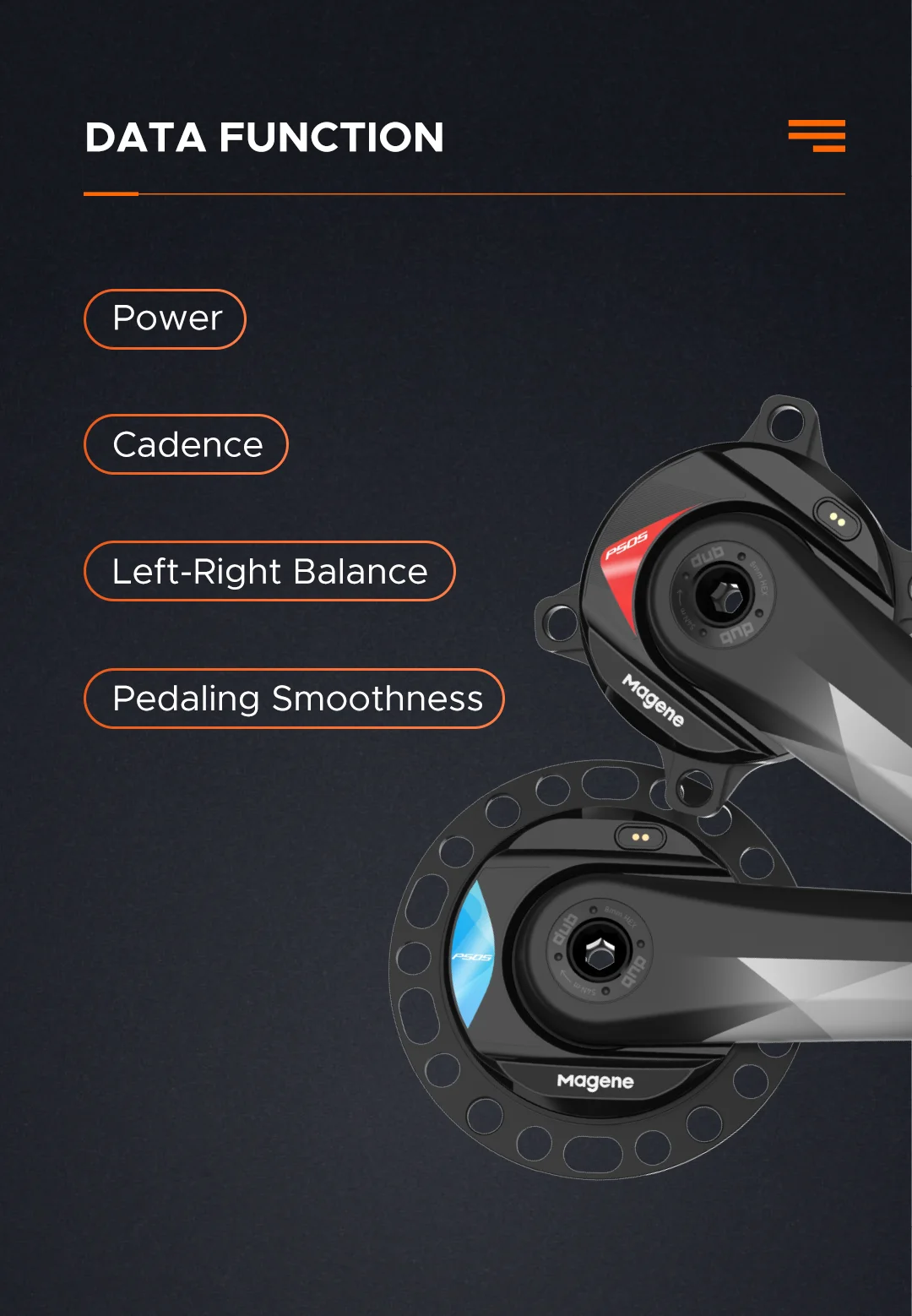

DATA FUNCTION

Power
Cadence
Left-Right Balance
Pedaling Smoothness

Buy-this-product-on-Aliexpress

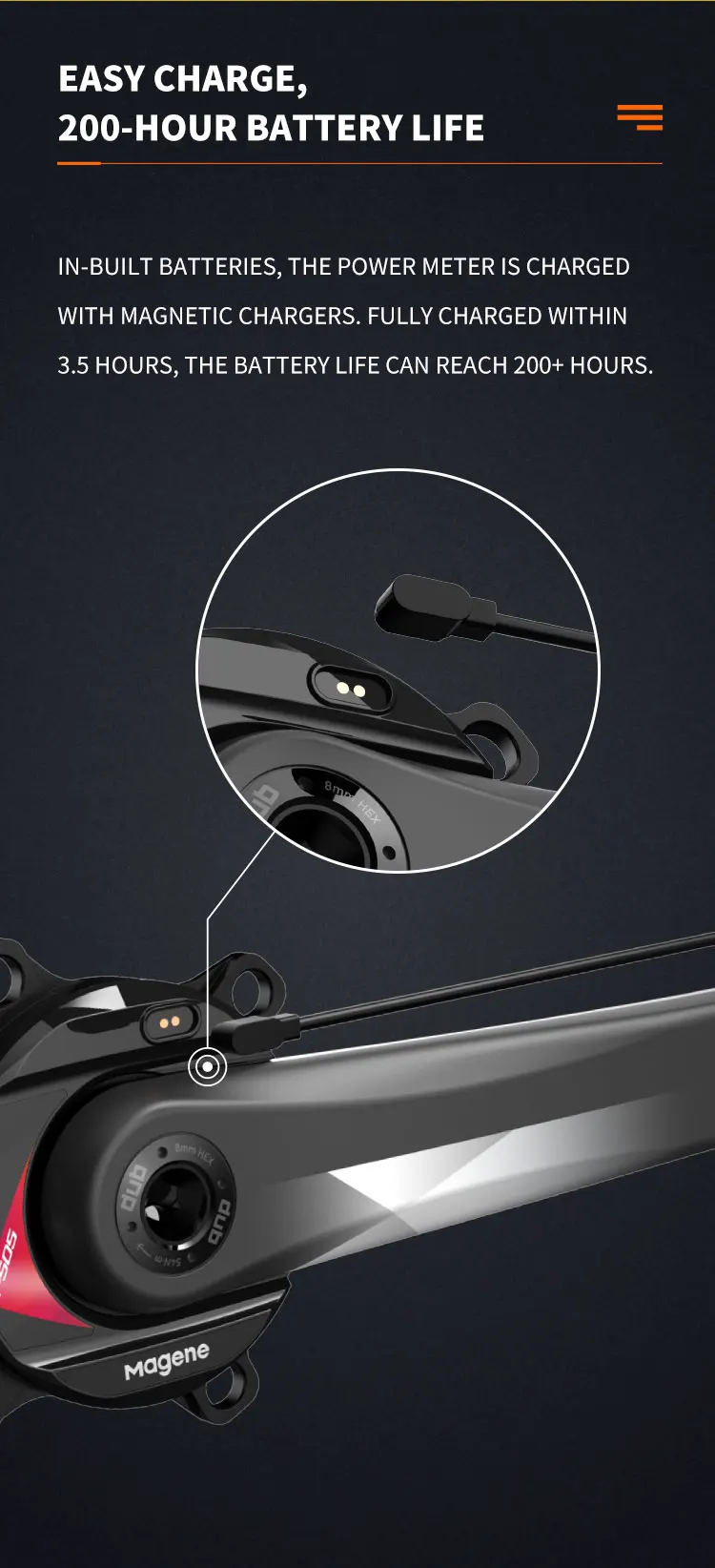

EASY CHARGE, 200-HOUR BATTERY LIFE

In-built batteries, the power meter is charged with magnetic chargers. Fully charged within 3.5 hours, the battery life can reach 200 hours.

COLORFUL STICKERS, MATCHING TO CUSTOMIZED BIKES

In the package, we provide A & B of 6 laser stickers.
A recommends for Shimano 4-arm chainring users
B recommends for Sram AXS series chainring users

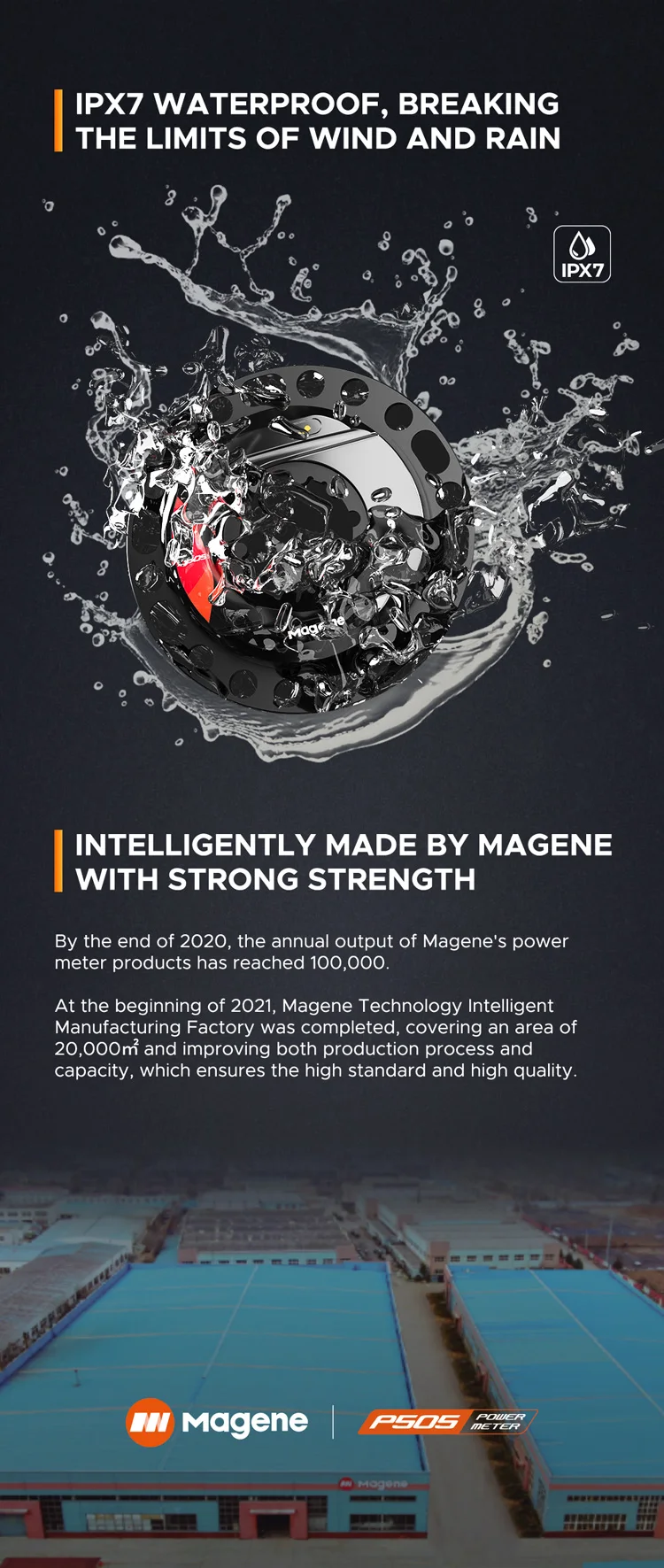

IPX7 WATERPROOF, BREAKING THE LIMITS OF WIND AND RAIN
