ME-055 Endoscope Camera and light source
- Model Number: ME-055
- Brand Name: Medeasy
- Origin: Mainland China
- Product Name: Full HD Endoscope Camera and light source
- Resolution: 1920 x 1080P
- Sensor: 1/2.8” Sony CMOS
- Output: DVI+HDMI+SDI+CVBS
- AWB/Freeze: Support
- Endoscope mode: PTED/ Fiber/ Arthroscope/ Cystoscope /Hysteroscope/ Laparoscope /ENT
- Light Source: 100W
- Light cable: 1.8m

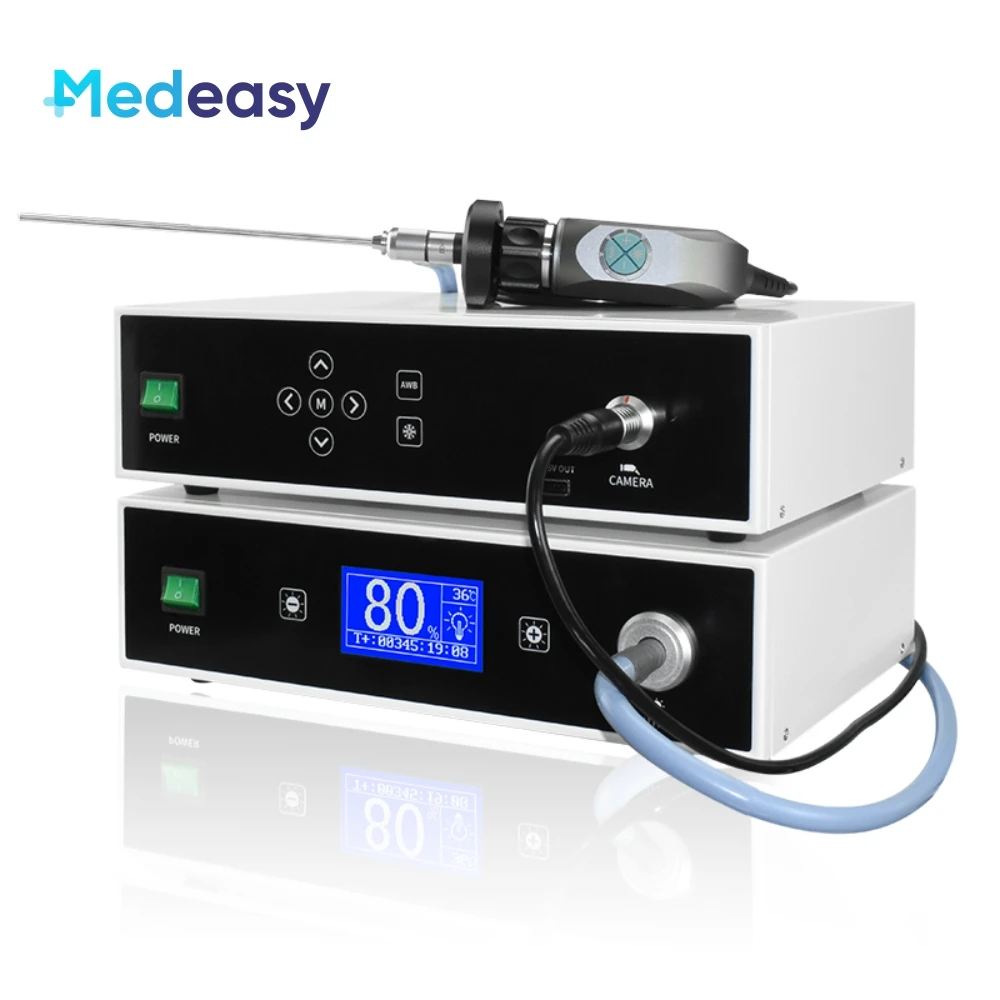

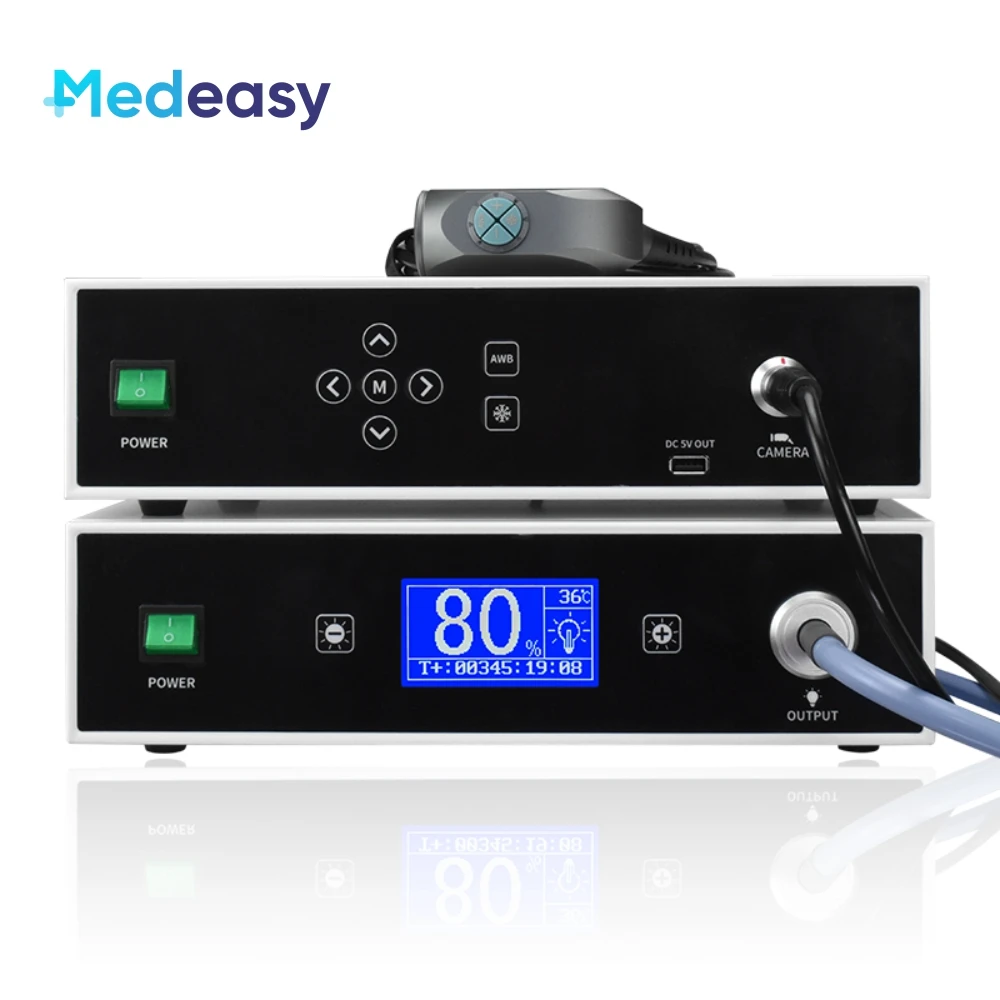

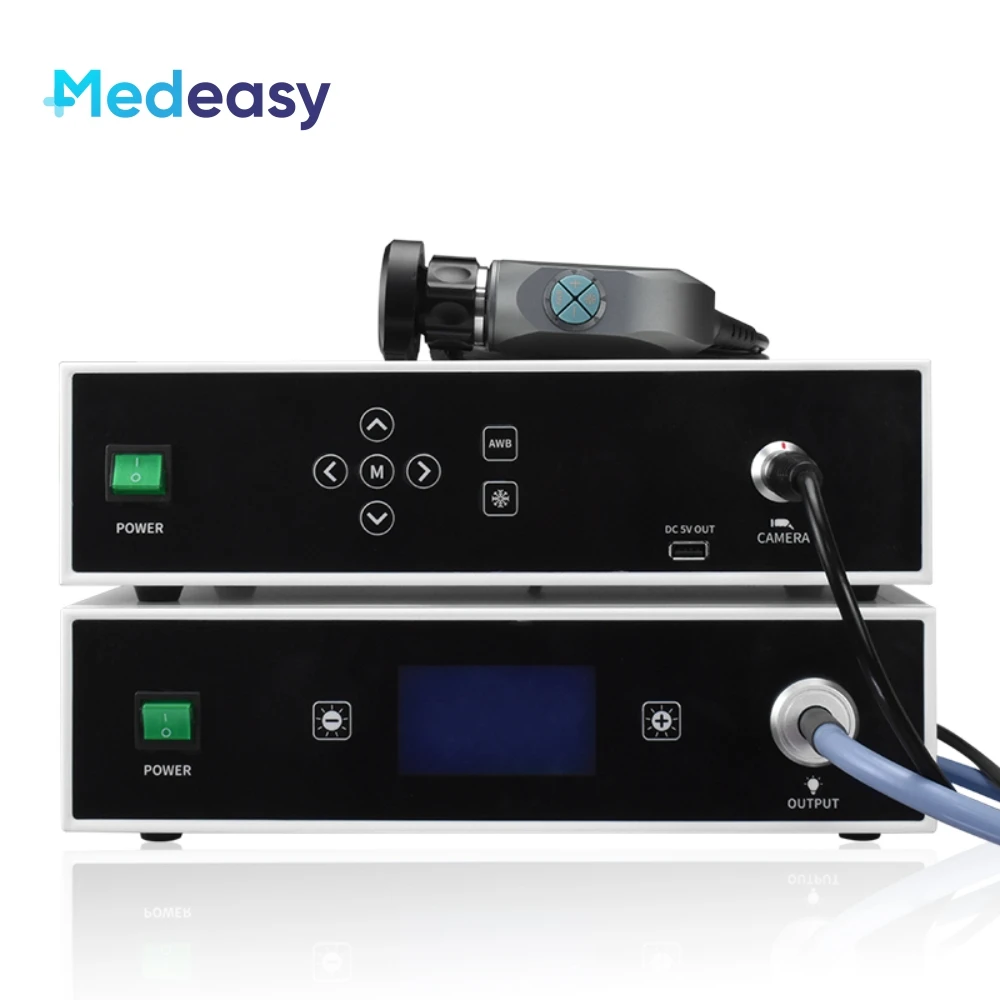

1080P Full HD Endoscope Camera and 100W Led Cold Light Source with 1.8m Fiber Optical Cable
DO NOT INCLUDE ENDOSCOPE WHICH IS FOR DISPLAY.

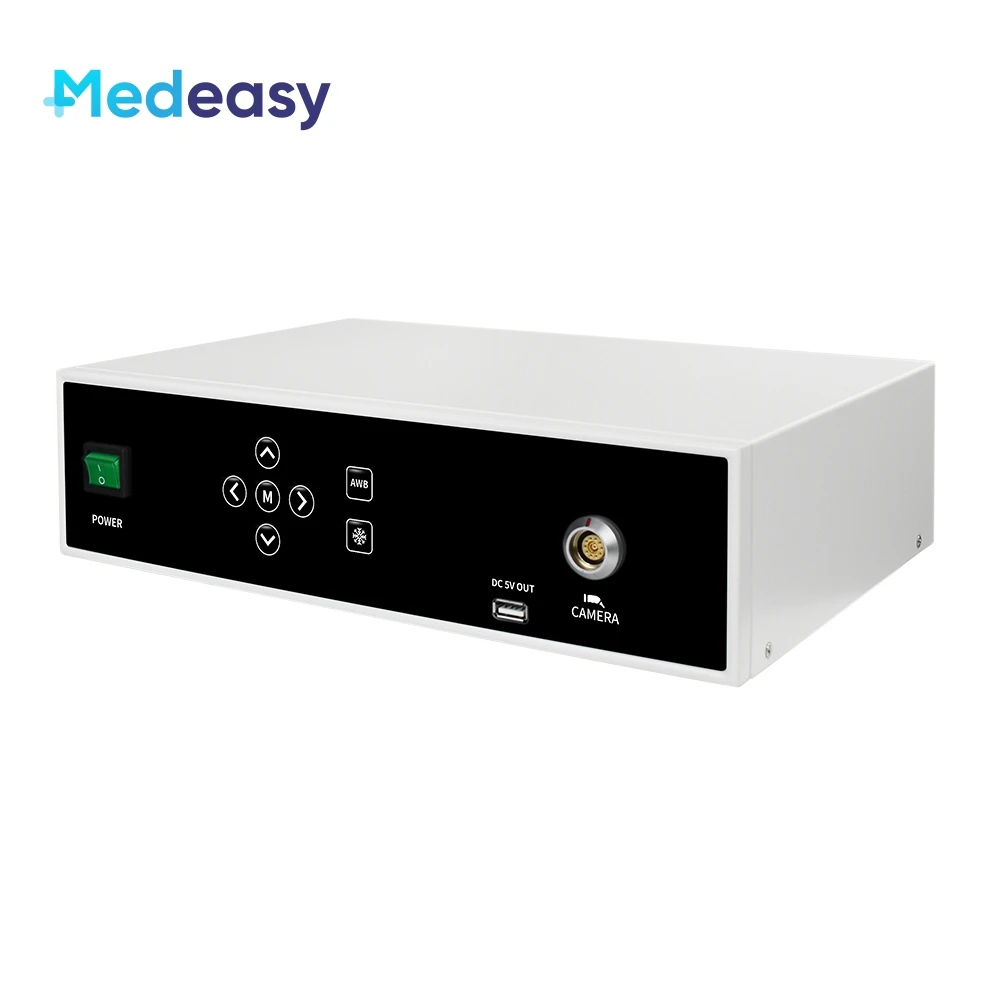

Endoscope camera system is fully functional endoscopy solutions of specifically designed for industrial medical.
1080P resolution, DVI+HDMI+SDI+CVBS output, there are control menu and shortcut key function. Widely used in medical industry.
Features：
- 1/2.8″ SONY CMOS, 1080p resolution;
- 1-20 steps brightness adjustment, 1-20 steps sharpness, 1-10x D-zoom;
- FRESS, AWB, Multi- languages;
- It can be used for Arthroscopy, ENT, PTED(percutaneous transforaminal endoscopic discectomy), Cystoscope, Laparoscope, Hysteroscopy, Fiber nasopharyngoscope, fiber choledochoscopy, fber bronchoscope, fiber ureteroscope.
|
Parameters
|
|
|
Resolution
|
SDI:1080P@30fps,1080P@60fps
|
|
Output
|
DVI+HDMI+SDI+CVBS
|
|
Effective Pixels
|
1845(H) × 1097(V)Approx. 2.13M pixels
|
|
SDI
|
HD-SDI/EX-SDI switchable
|
|
IMAGE SENSOR
|
1/2.8”CMOS
|
|
BRIGHTNESS
|
1-20 steps
|
|
SHARPNESS
|
1-20 steps
|
|
BACKLIGHT
|
OFF/BLC/HLC/WDR
|
|
AWB
|
Preset/Purshing
|
|
FREZZ
|
SUPPORT
|
|
D-ZOOM
|
Image zoom in /out
|
|
Endoscope mode
|
PTED/Fiber/Arthroscope/Cystoscope/Hysteroscope/Laparoscope/ENT
|
|
Working temperature
|
-10℃-+75 ℃
|
|
LANGUAGE
|
CHINESE/ENGLISH….etc
|
|
Color ADJ
|
User Define:
Yellow gain 1-250 Bule gain 1-250 Green gain 1-250 Red gain 1-250 Yellow Hue 1-250 Bule Hue 1-250 Green Hue 1-250 Red Hue 1-250 |
|
Power Supply
|
DC12V ±10%<1.7W
|
|
Power consumption
|
1 .2 W（≤100mA ）
|
|
Working Current
|
140mA±10mA
|
|
Processor Size
|
2000x1700x170mm
|
|
Product Color
|
Black and blue colors are available.
|

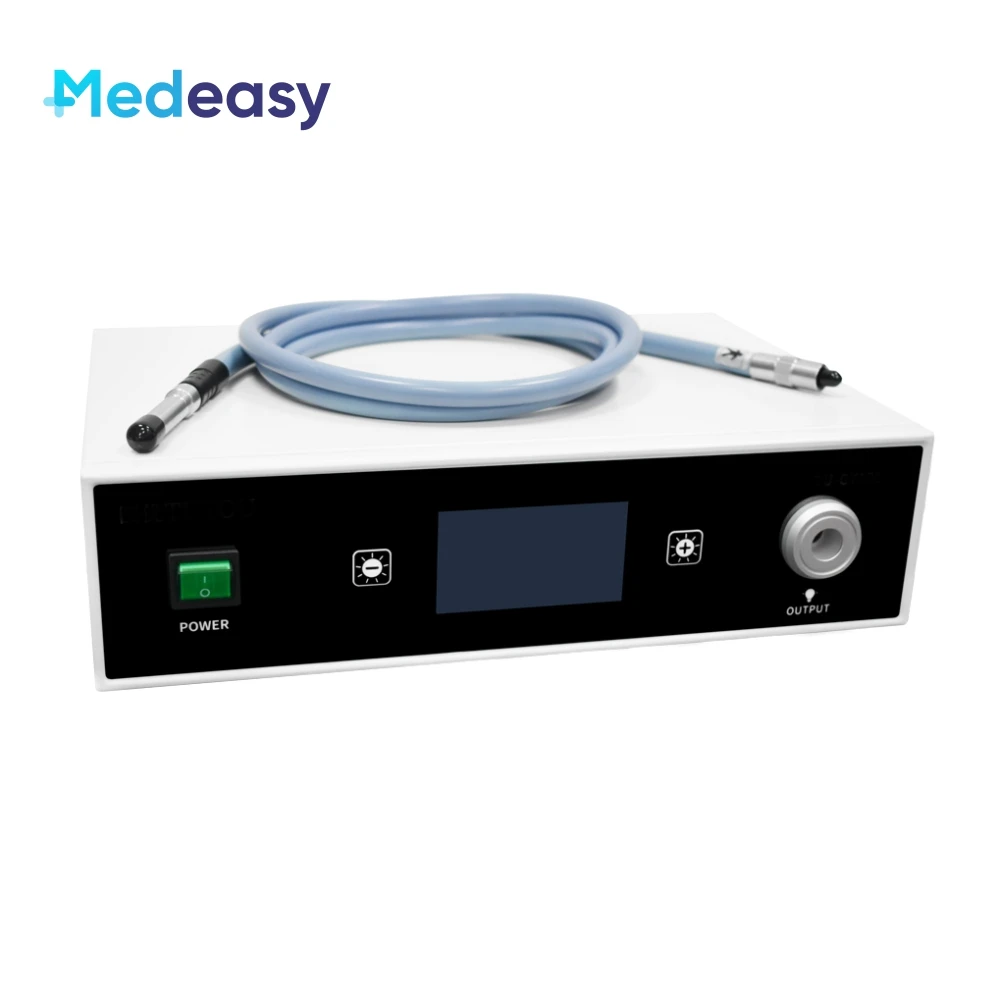

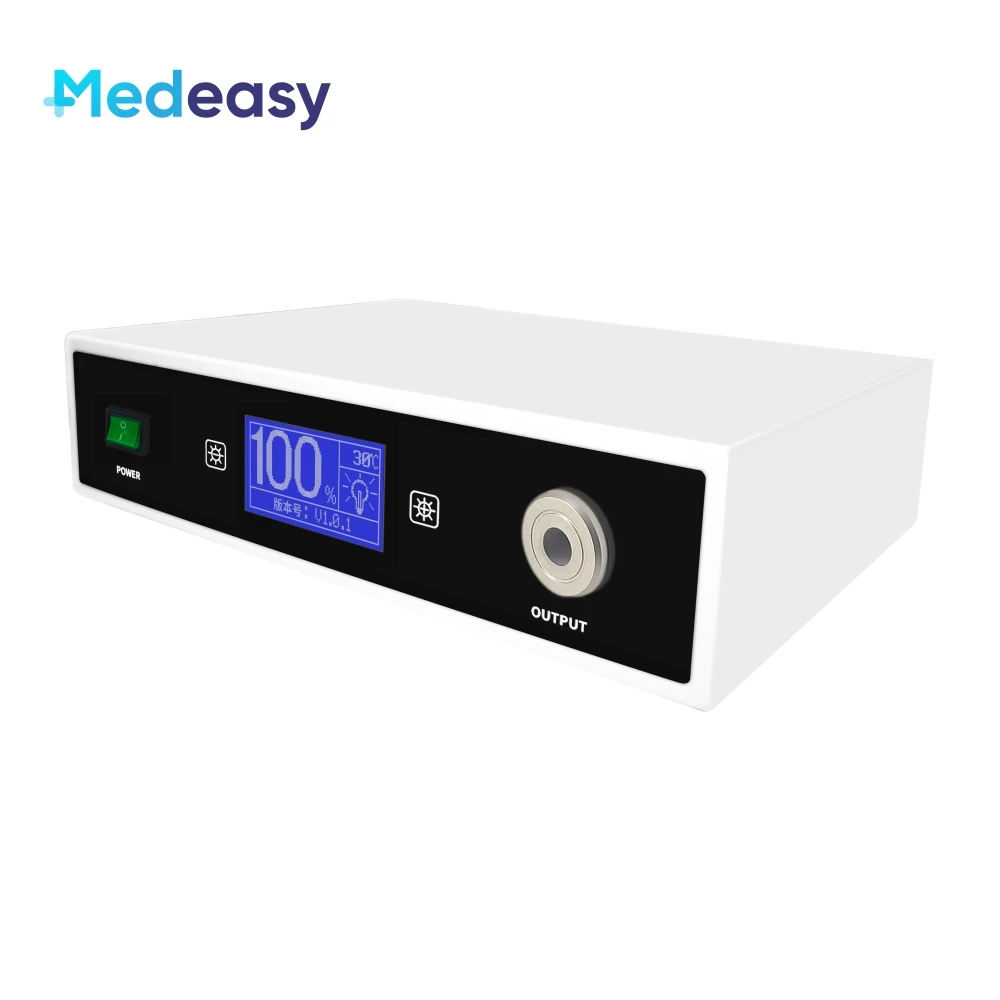

100W Light Source
|
Light Type
|
LED
|
|
Light Source Rated Power
|
100W
|
|
Illuminance
|
400W LUX
|
|
Color Temperature
|
5800~6500K
|
|
Bightness Adjustment
|
0~100
|
|
Light Emitting Area
|
7.7mm
|
|
Color Rendering Index C RI
|
80/92
|
|
Light Source Maxmum Current
|
13A
|
|
System Power
|
100-220V
|
|
Operating Temperature
|
-10℃~60℃
|
|
Lifetime
|
30000h
|
|
Dimension
|
L336 x W330 x H116mm
|
Detail Image
