MECHANIC MOS-4K/4K Pro/510 55MP 51MP 4K Full HD Trinocular Microscope Camera for Mobile Phone Computer PCB Motherboard Electronics Soldering Repair Micro-imaging
MECHANIC RX-4K 48MP 4K Industrial Grade HD Camera Support Photo/video/Microscopic Magnification Detection Repair
Mechanic RX-4K 4800W 4K HD Industrial Microscope Camera for Mobile Phone PCB CPU Repair Tool.
Note:
1. The microscope camera must be through HDMI or USB interface only then can work
2. The microscope camera core component is CMOS, which is either Sony or Panasonic.
Sony or Panasonic, all of them are CMOS.
Can refer to our video for reference:
https://www.youtube.com/watch?v=eTDUxYcFpn0&t=17s
Features:
Sony sensor/4K video recording/1080P image output/48-megapixel photo/support TF card 64G storage.
Equipped with a 1/2.8-inch Sony image sensor with high sensitivity for rich picture effects.
HDMI/Type-C image output, connected to the display, HD viewing, clear details, very smooth.
HD image output, no need to pass through the computer host, general computer monitor connection can be used.
Video resolution up to 1920*1080, picture resolution up to 8000*6000px, images come to life.
With intelligent remote control, easy to operate and quick to apply.

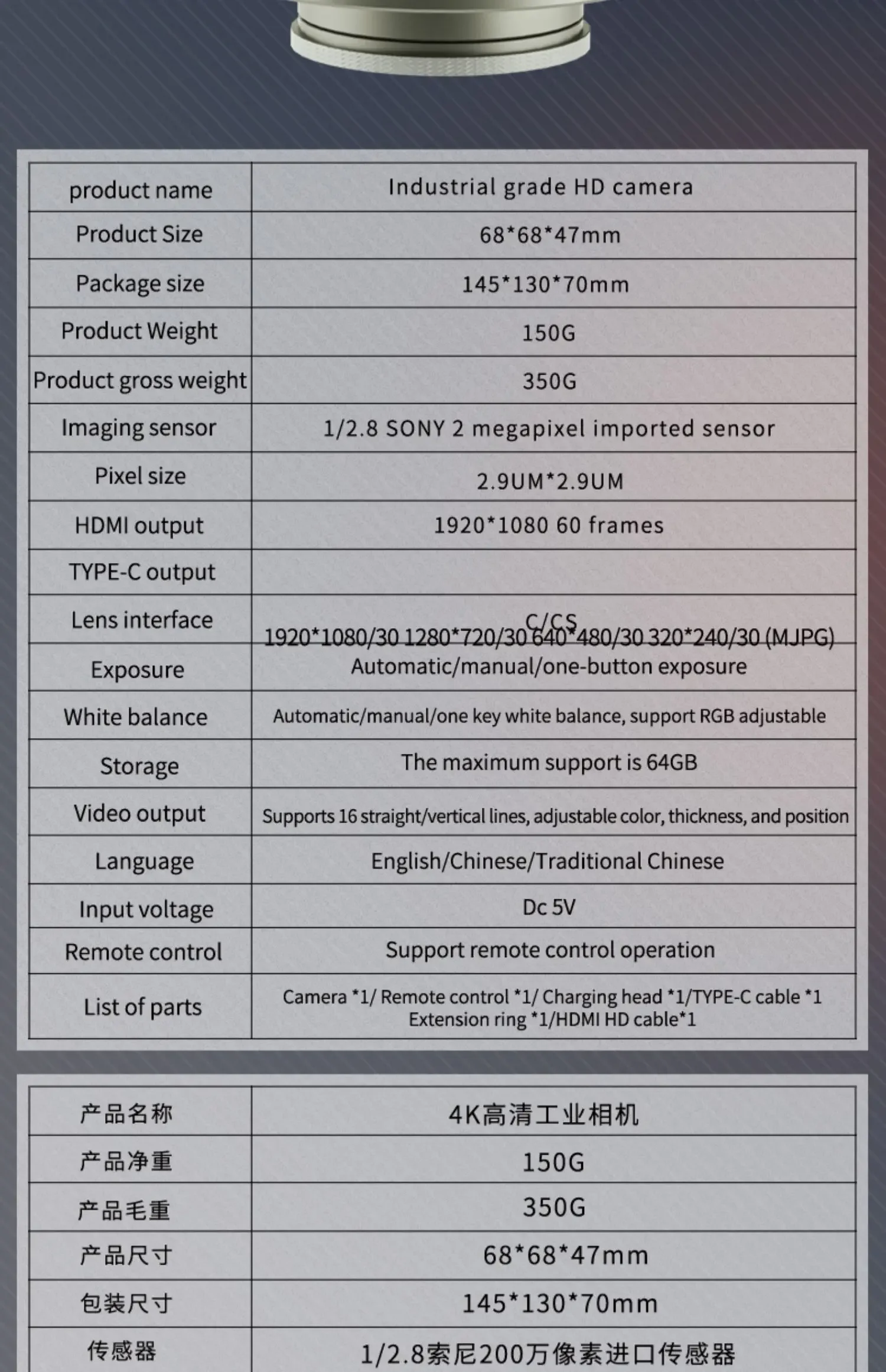

- Specification
Product Name: 4K HD Industrial Camera / MS4K Pro
Product Net Weight: 150G
Gross weight: 350G
Product size: 68*68*47mm
Package size: 145*130*70mm
Sensor:1/2.8 Sony 2.0 megapixel imported sensor
Pixel size: 2.9UM*2.9UM
HDMI output:1920*108060 fps
TYPE-C output: 1920*1080@30; 1280*720@30; 640*480@30; 320*240@30(MJPG)
Lens interface: C/CS
Exposure”: Auto/Manual/One Touch Exposure
White Balance: Auto/Manual/One Touch White Balance, RGB adjustable
Storage: Max. support 64GB
Video Output: 16 straight/vertical lines, adjustable colour, thickness and position
Menu language: English/Chinese/Traditional Chinese
Input voltage: DC 5V
Remote control: Support remote control operation
Note：
If you encounter any problems or have any questions with the purchased product, you can contact us.
