Nohawk NK-200 Coating Thickness Gauge
- Model Number: NK-200 Coating Thickness Gauge
- With Backlight Or Not: YES
- Brand Name: Nohawk
- Origin: Mainland China
- Certification: CE,FCC,RoHS,weee

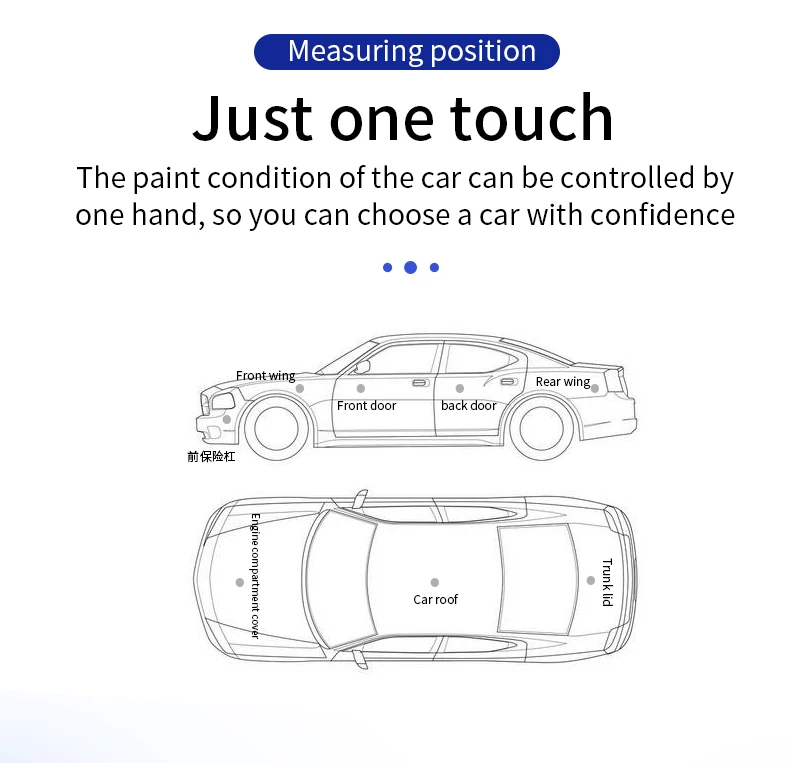

- Application: Automobile paint coating thickness tester
- Power: USB Chargable
- Detection object: Fe/NFe
Color Screen Car Coating Thickness Gauge Best Digital Meter for Automotive Paint Thickness Measurement F/NF Automatic Detection
Power: USB Chargable

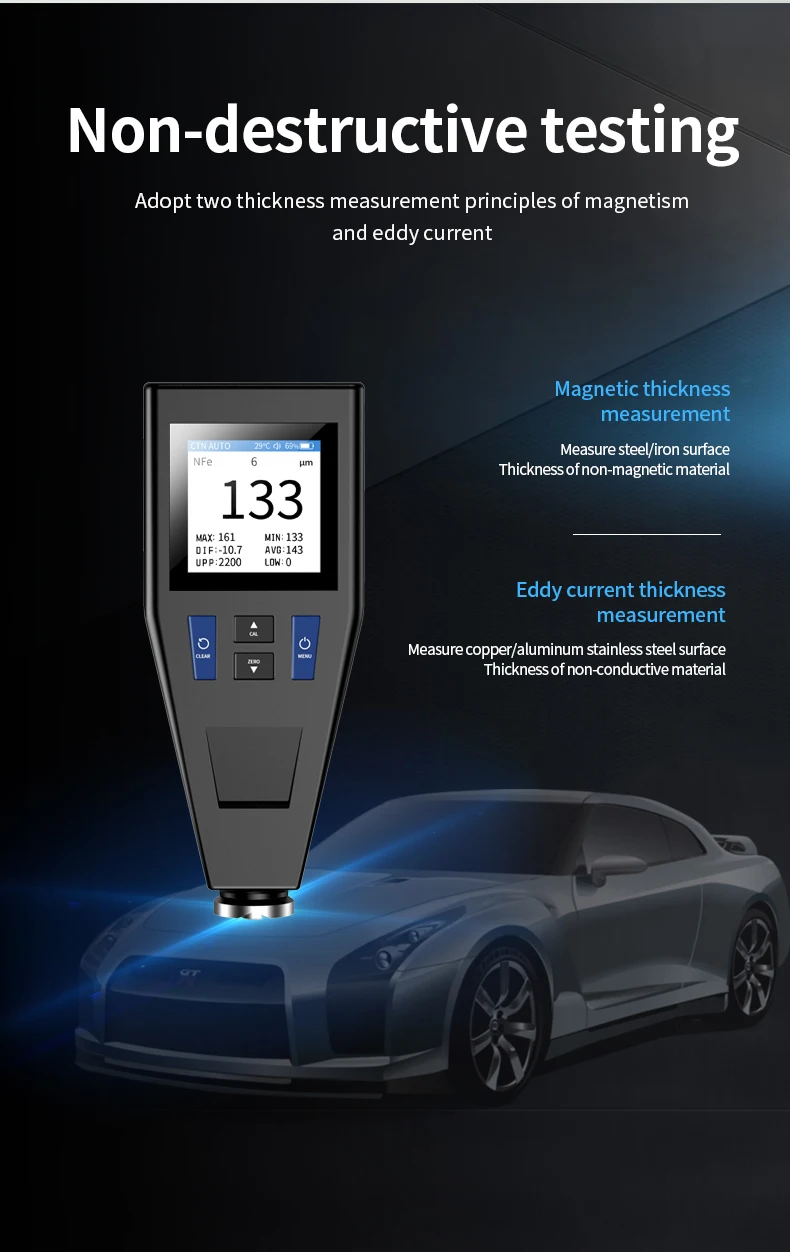

Product Introduction：Nohawk NK-200 coating thickness gauge durable and accurate thickness gauge that adopts magnetic induction ( steel, iron etc.) or eddy current method (zinc, aluminium etc.) to take non-destructive measurements of coating and dry film thickness on various substrates.
Buy-this-product-on-Aliexpress
|
Item |
Value |
|
Principle |
Magnetic induction/eddy current |
|
Measurement range |
0-2000um |
|
Error |
±（2.5%+2um) |
|
Display accuracy |
0.1um(0-99.9um); 1um( ≥100um) |
|
Unit |
um, mm, mils |
|
Min.convex radius of curvature |
5mm |
|
Min.concave radius of curvature |
25mm |
|
Min. measurement area diameter |
20mm |
|
Min. substrate thickness |
0.2mm/0.05mm |
|
Calibration |
Infinite pointscalibration, zero calibration, multiple points calibration |
|
Battery |
3.7V/750mAh lithium battery |
|
Charging voltage/current |
5V/500mA |
|
USB port |
Micro B |
|
Working climate |
Temperature:0-50℃（32-122℉）；humidity:20%-90%RH; no strong magnetic field; no strong electromagnetic interference |
|
Storage condition |
Temperature:-10-60℃（-14-140℉） |
|
Dimension |
110*50*21mm (4.33*1.96*0.83inch) |
|
Material & weight |
ABS plastic, silica gel, Plexiglass, weight:70g(3.24oz) |
|
Standard configuration |
Main instrument 1set, substrates 2pcs (Fe, nFe 1 pc each), calibration sheet (100um) 3pcs; cable 1pc, user manual 1pc, certificate 1pc, soft bag 1pc, packing box 1pc |
Features

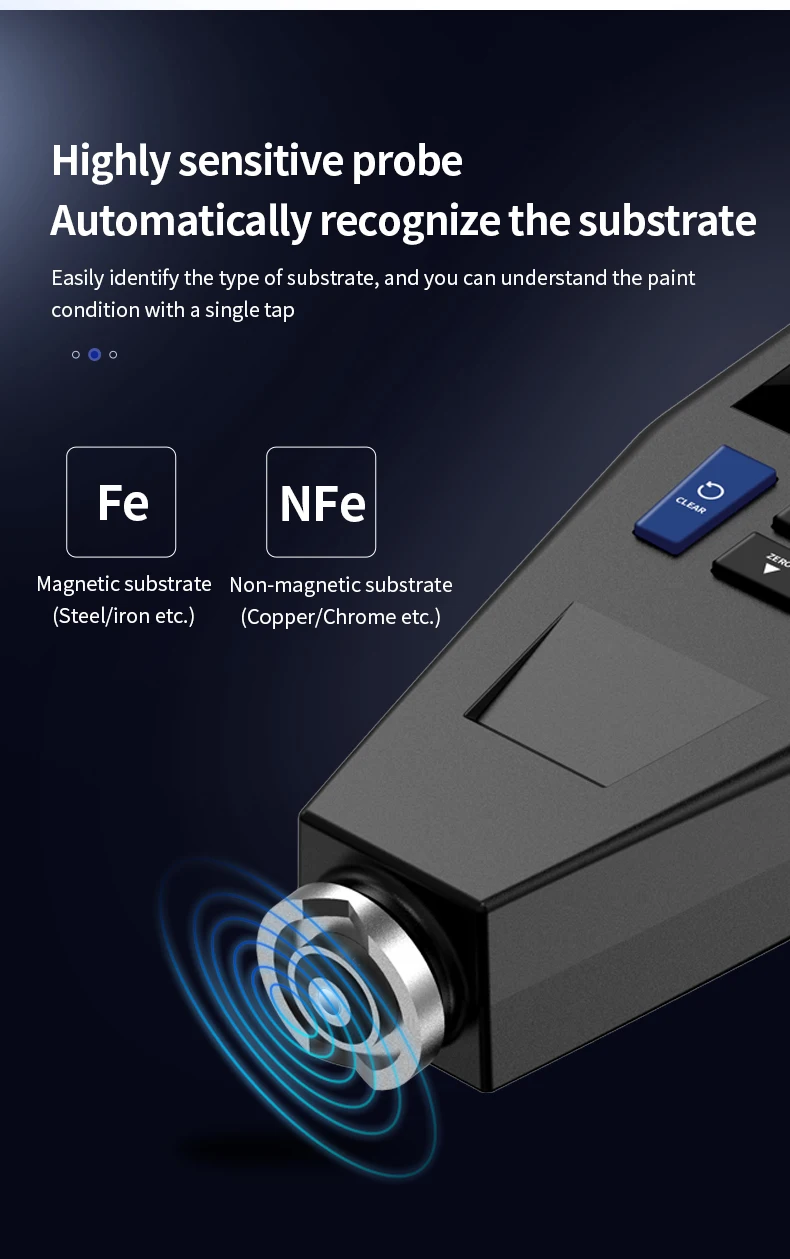

* Highly sensitive probe, automatically identify the substrates

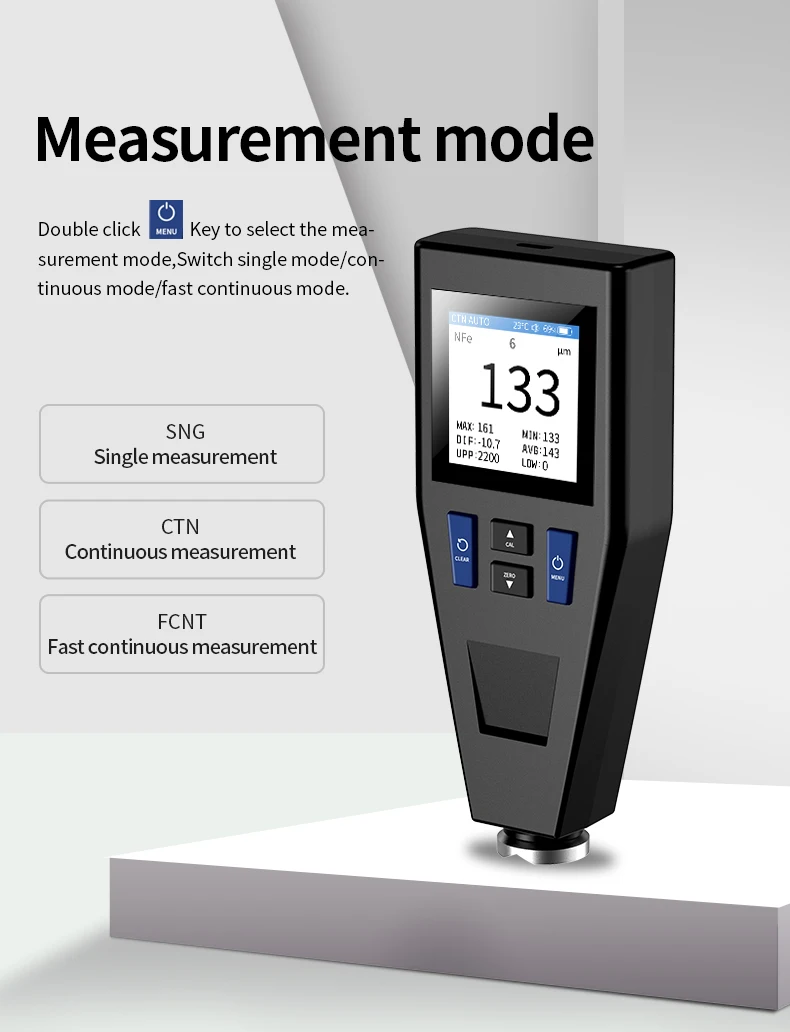

* Three measurement modes, single measurement, continuous measurement, fast continuous measurement;

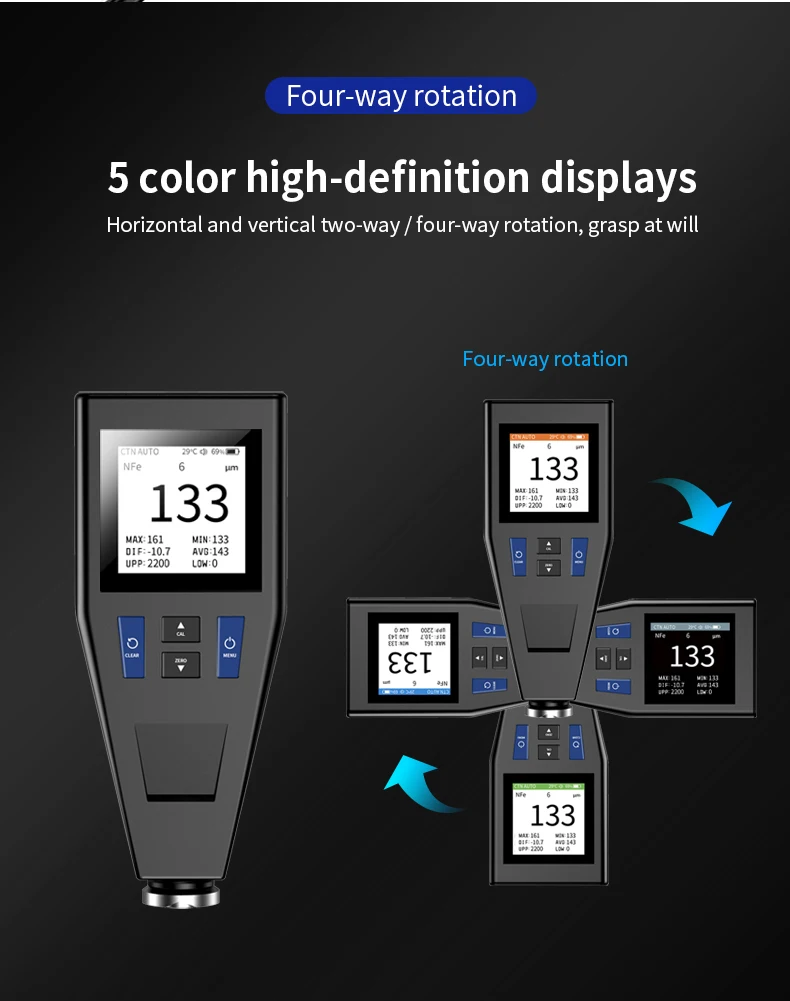

* IPS High-definition large color screen with clear and easy reading, more settings of brightness, color, screen rotation;

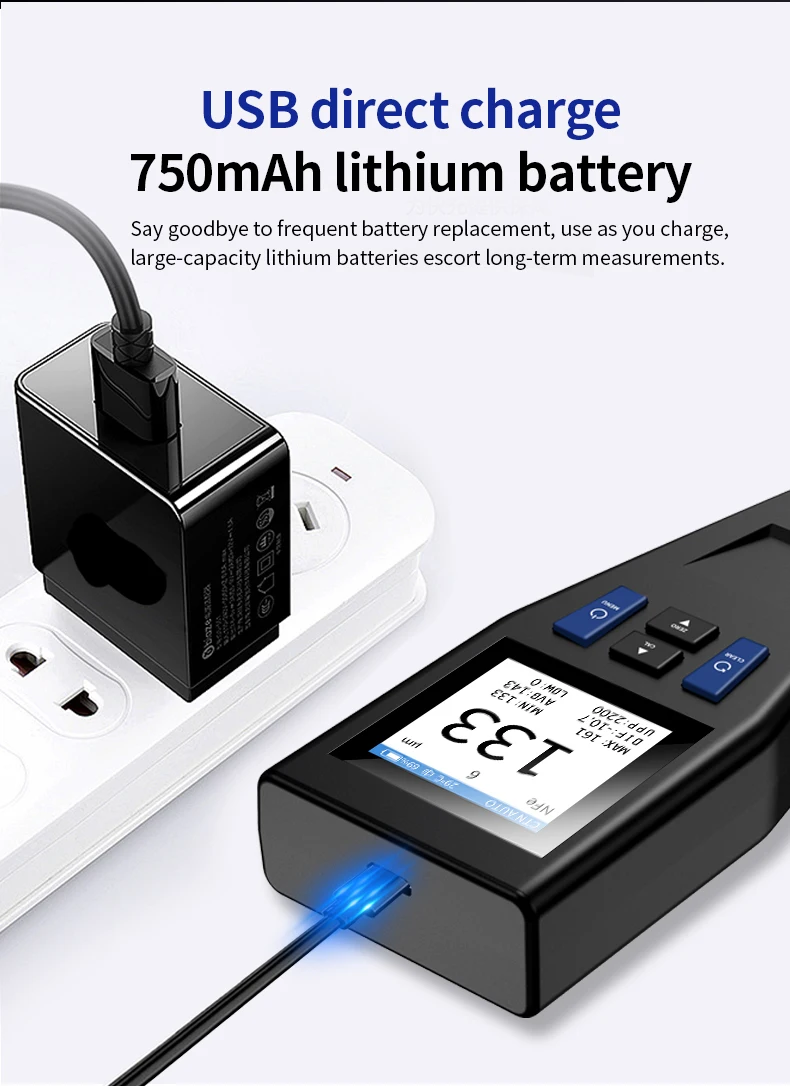

* Built-in lithium battery, USB direct charging, eco-friendly and durable;
* Multiple calibration modes (automatic probe calibration, manual zero calibration, manual multiple points calibration), better decreasing the measurement errors and secure the accurate measurement;
* 2S fast switch on, 50 data can be stored; high and low alarm value can be set;
Automotive Paint Thickness Gauge Calibration Video TutorialPlease contact me individually. Failed to upload video to website
