Nohawk NK-600 600M /1000Y Golf Laser Rangefinder

• Certification: CE,FCC,RoHS,weee
• Origin: Mainland China
• Power Type: Battery-Powered
• Size: 110x76x38mm
• Brand Name: Nohawk
• Model Number: Golf Range Finder
• Measurement Accuracy: 0.1
• NOHAWK Model: NP
• Function: Golf/Multifunctional Rangefinder for Hunting
• Power: CR-2(3V)/lithium battery
• Laser Wavelength: 905 nm
• Lens: Multilayer coated
• Ranging Display Mode: Transmissive LCD display
• Protection Class: IP54
• Telescope Magnification: 6.5X
• Product Weight: 145g
• Working Temperature: -20~50℃
• Ranging Scope: 5-600m/1000m
• Ranging Error: ±1m
• Lens Quality: Multilayer coated

Buy-this-product-on-Aliexpress

Thank you very much for your order. The product warranty period is one year, please send me a message if you have any questions. I will provide after-sales service to you.

Please contact us for any question before you leave a negative feedback, we will solve all problems, which will definitely satisfy you, thanks.

Golf version:

1. Angle switch manual control

2. Linear distance measurement

3. Slope compensation function

4. Flagpole scanning and locking function

3. Vibration mode: Vibration after the flagpole is locked

Multifunctional version:

1. Linear distance measurement

2. All-in-one machine mode (angle/height/horizontal distance)

3. Scan mode

4. Two-point height measurement mode

5. Speed measurement mode

6. Golf mode (with slope compensation but NO Angle switch!)

7. Data storage function

Power supply: According to the picture.

USB rechargeable lithium battery version

CR-2(3V) version, it is recommended to purchase rechargeable CR batteries in advance for long-term use.

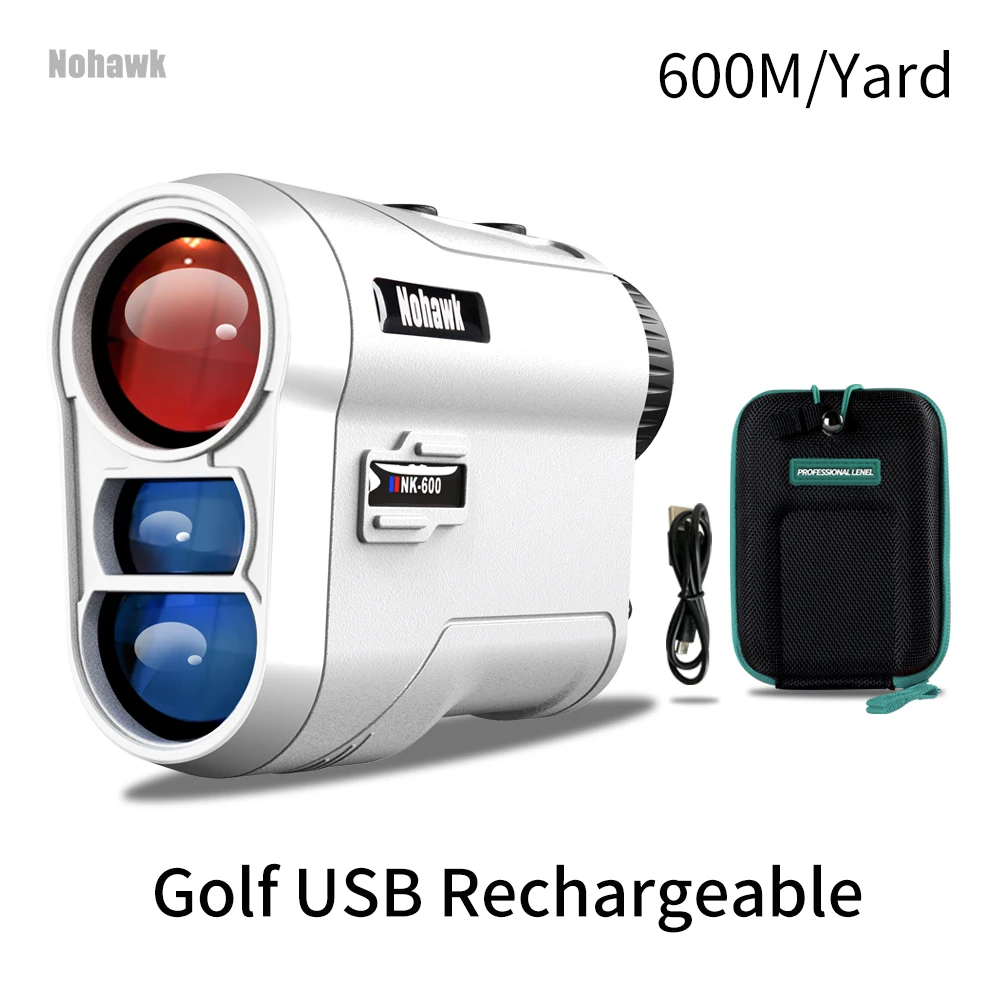

600M/Yard Golf Rechargeable-Professional golf version – cost-effective, with zip bag

Buy-this-product-on-AliexpressBuy-this-product-on-Aliexpress

Buy-this-product-on-Aliexpress

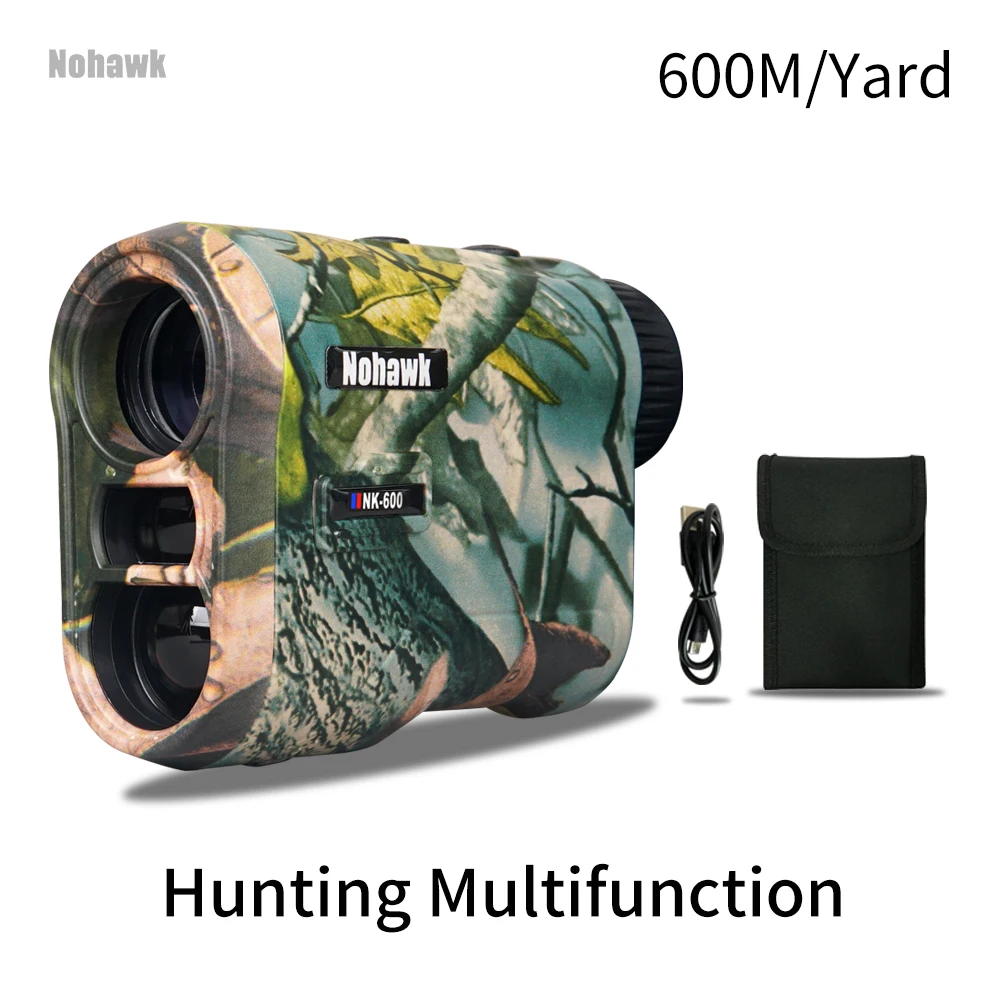

Hunting NKM-600M Rechargeable, built-in lithium battery USB charging

Unit: M/Yard (press and hold the measurement button and the M button for 2 seconds to switch)

Suitable for hunting outdoor sports camping. Camouflage appearance, high cost performance hunting rangefinder.

Product Size:96x34x67MM/3.78×1.34×2.64in

① Measuring distance mode

②All-in-one machine mode (angle/height/horizontal distance)

③ Scan mode

④ Two-point height measurement mode

⑤ Speed measurement mode

⑥Golf Slope Compensation Mode

⑦Data storage function

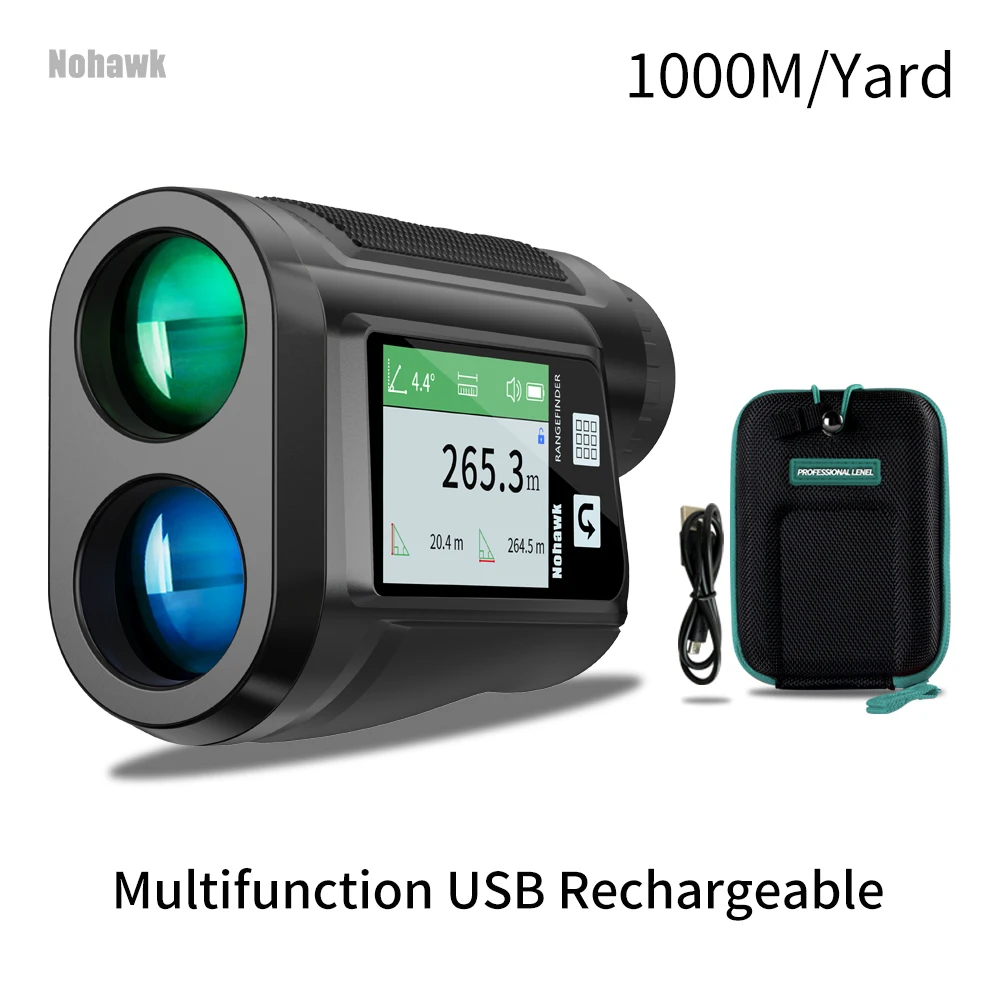

Buy-this-product-on-AliexpressMultifunction Rangefinder：

Black-NP-1000M with zipper bag:Large-size color side screen, customizable start-up screen, more convenient touch button operation, intelligent voice broadcast, you can get measurement data without watching the screen, three versions in English, Chinese and Japanese are optional, multiple measurement modes (area, volume measurement, measurement High angle measurement speed), multi-function can meet a variety of industrial scenariosProduct

Size:109x40x70MM/4.30×1.58×2.76in

① Distance measurement mode

② Vertical distance

③ Horizontal distance

④ Speed measurement mode

⑤ Tow-point height measurement

⑥ Closest distance mode

⑦Longest distance mode

⑧Golf mode with slope compensation mode with vibration⑨Data storage functionArea measurement mode/volume measurement mode. These two modes need to read the instructions carefully, and you can consult me if you have any questions.Rangefinder Operating Manual, Multifunction Version:

Unit M/Yard switching method: Press and hold the two keys at the same time for about 2 seconds to switch between meters and yards

The machine has a total of two keys: power button, mode button, after power on, the power button is used as a measurement button

The first mode: single ranging

Press the power button to turn on the machine. After the machine is turned on, this key is used as a measurement key. The target is aligned with the target object. Press the measurement key to directly measure the distance from the objective lens to the target object.

After power on, press the mode button to switch to the second mode

The second mode: all-in-one mode

Aim at the target and press the measurement button, the data from top to bottom are angle, slant distance (M), vertical height (High) between the target and the measuring point (machine position), horizontal distance between the target and the measuring point (Level )

After booting, press the mode button twice

The third mode: SCAN scanning mode

In this mode, press the measurement button once to continuously measure different targets without repeatedly pressing the measurement button, and the measurement results will be continuously updated on the display

Press the mode button three times after power on:

The fourth mode: H2 two-point height measurement

In this mode, aim at the lowest point of the target and press the measurement button, the data under the target will flash, then press the measurement button at the highest point of the target, the data from top to bottom are angle, slant distance (M), target The height of the object (High), the horizontal distance between the target object and the measuring point (Level)

Press the mode button four times after powering on:

The fifth mode: SP speed measurement mode

The speed measurement mode can measure the speed of the radial moving object, and use the distance of the object to be measured twice and the measurement time interval information to calculate the speed of the target object, which cannot be measured in parallel.

Press the mode key five times after powering on:

The sixth mode: flagpole mode (golf distance correction mode)

In this mode, measure the flagstick to calculate the best hitting distance

Press the mode key six times after powering on:

The seventh mode: LB mode: measurement records can save 10 sets of measurement data

Angle calibration: Press the power button, and then long press the power button, the angle flashes once a second at 0.0 degrees, put the rangefinder on the horizontal desktop or the tripod with the adjusted horizontal angle, press the mode button to complete Calibration, at this time, the angle display of the device should be 0.0 degrees in the horizontal state
