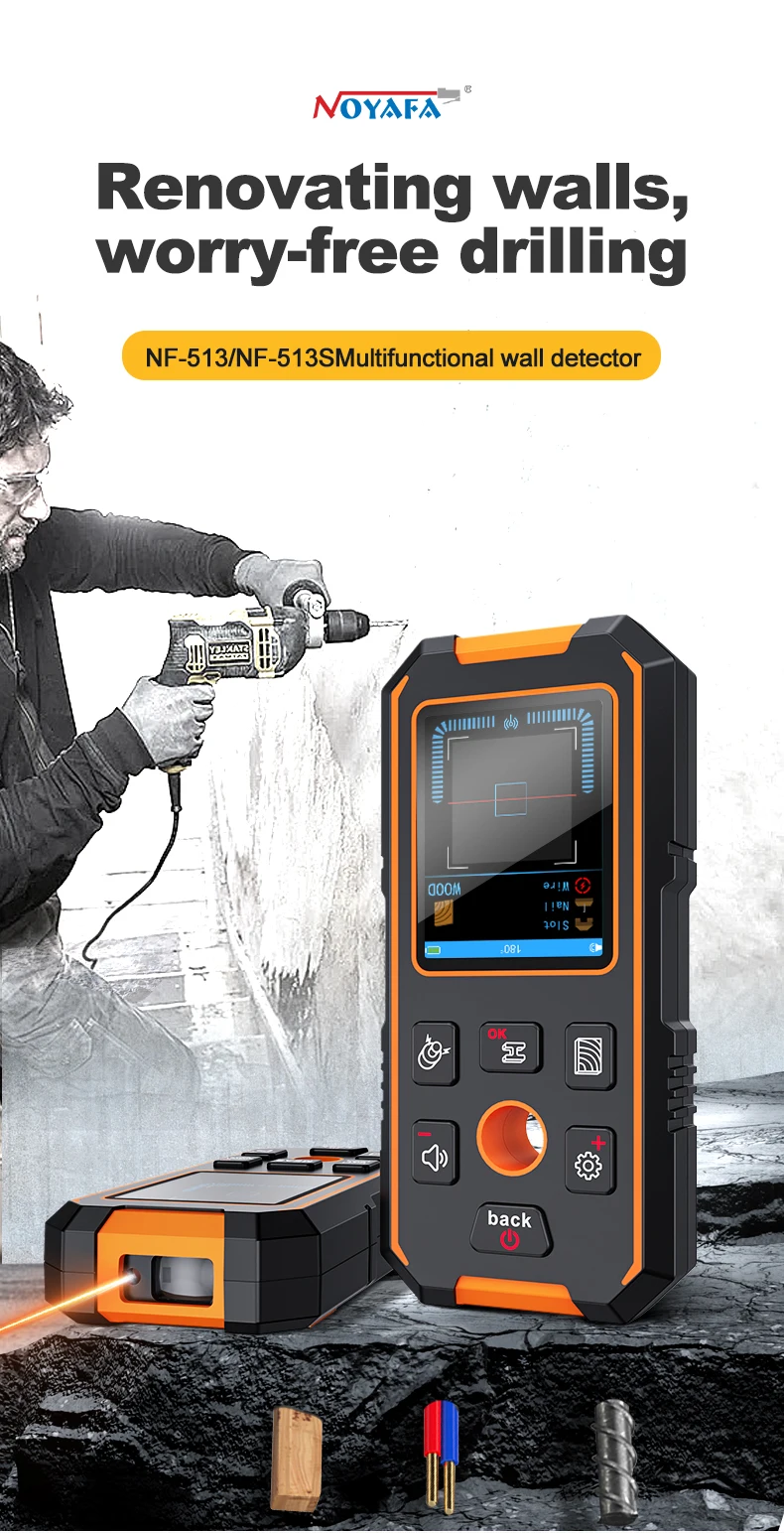

NOYAFA NF-513 Metal Detector Wall Scanner
Product overview

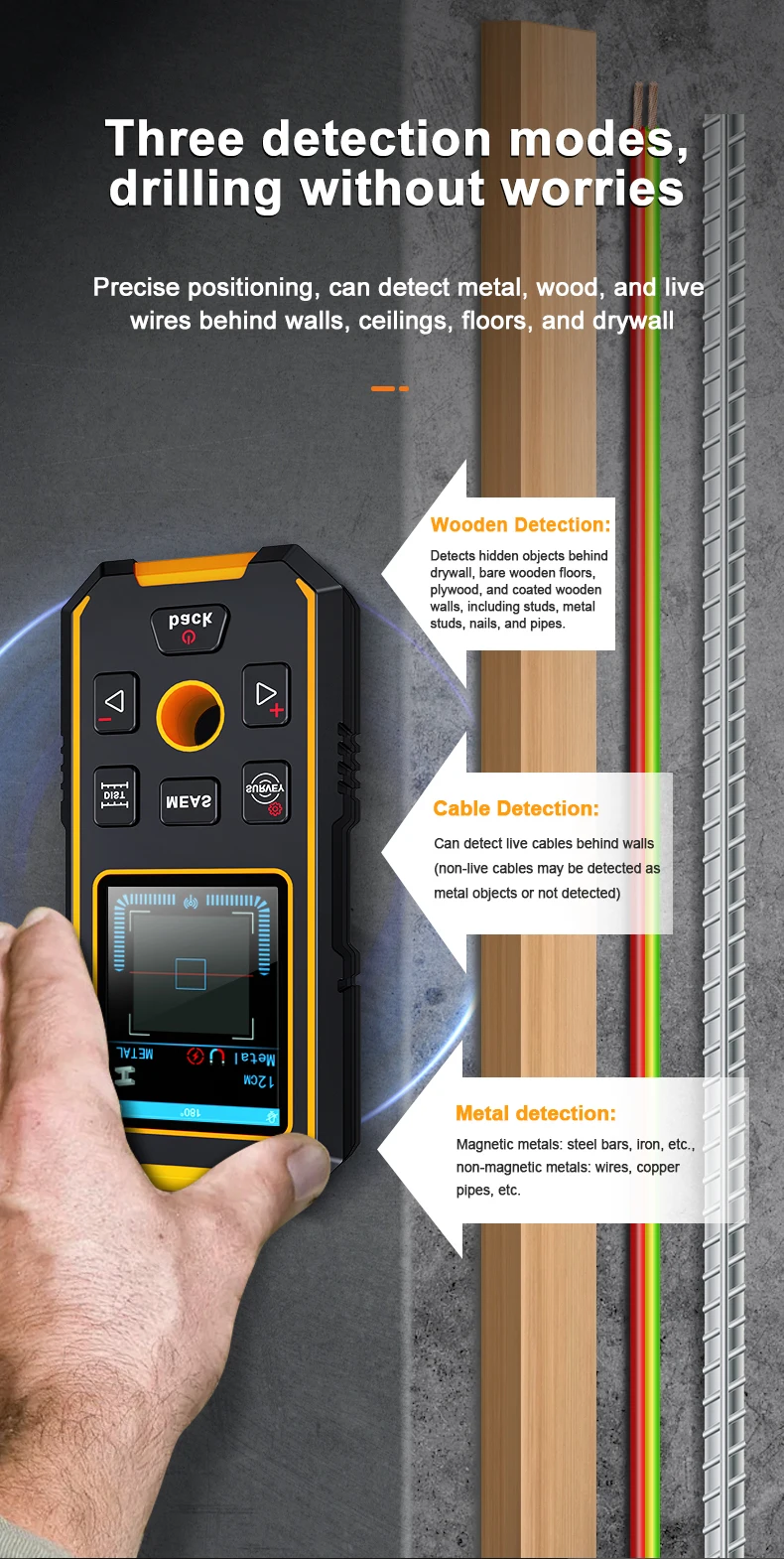

The instrument can detect metal (rebar, copper pipe) hidden in walls,
ceilings and floors, live wires, bone positions under wooden walls, etc. Its widely used in interior decoration, home installation and other
industries, all kinds of construction can be carried out safely.
Technical parameter
- Product model：NF-513
- Product function：Wall detection function
- Product appearance：Two-color mold, tough
- Screen type2.4-inch high-definition color screen, Resolution 240*320
- Charging method
- Support Type-C charging
- Battery type
- Polymer lithium battery(390mAh)
- Voice broadcast
- Live voice broadcast
- Product size
- 63*25*139 (mm)
- Product weight
- 200 ( g )
Buy-this-product-on-Aliexpress
Wall detection function

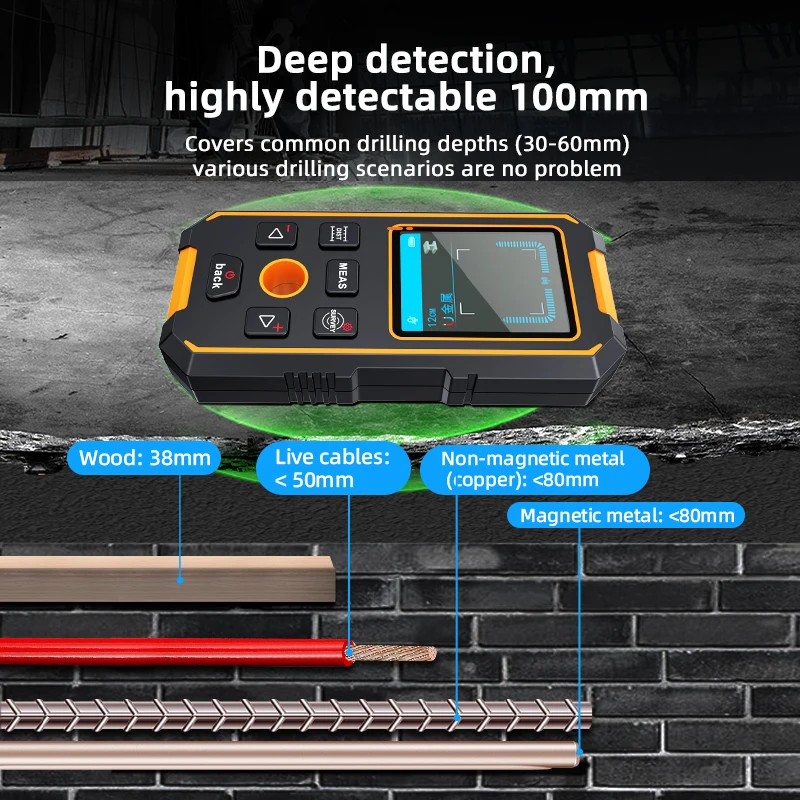

① Depth measurement
1.Magnetic metal: 8cm
2.Non-magnetic metal: 8cm
3.Live(AC)wire: 5cm
4.Wood: 3.8cm
② Metal detection：Depth value is based on the p20mm standard steel pipe. Only for reference(Note: The error of the depth indication is for reference only)
③ Non-metal detection：√
④ AC detection：√
⑤ Automatic shutdown：5 minutes
⑥ Operating temperature：0°C~50°C
⑦ Storage temperature：-10°C~60°C

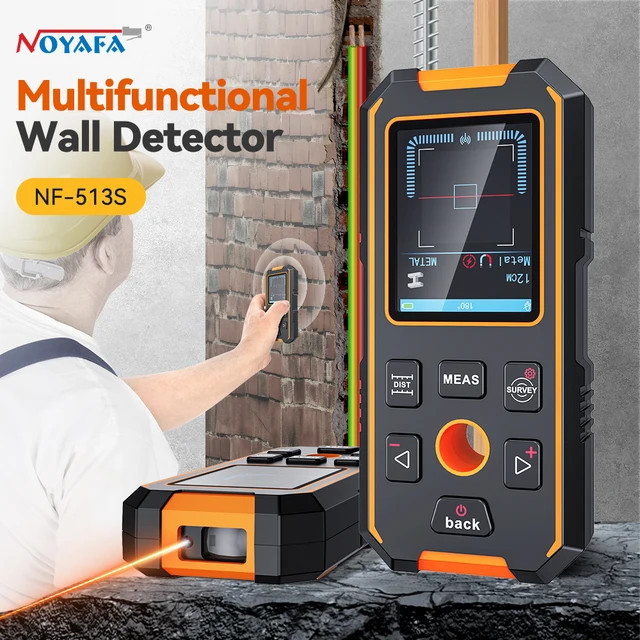

Product number：NF-513S
- Applicability
：NF-513S wall detecting function can detect metal (magnetic or non-mag netic), wooden power cable etc behind wall, ceiling, floor etc. - Function：Laser distance+ Wall Detection+ Digital level
- Appearance：2 colors, solid shape

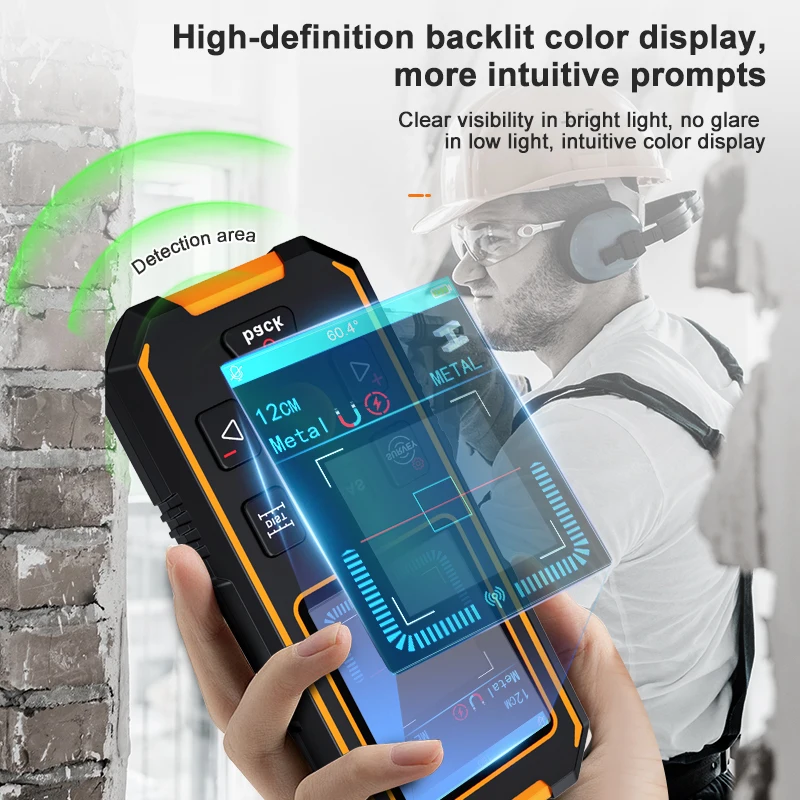

- Screen Type：2.4 HD screen, 240*320 resolution

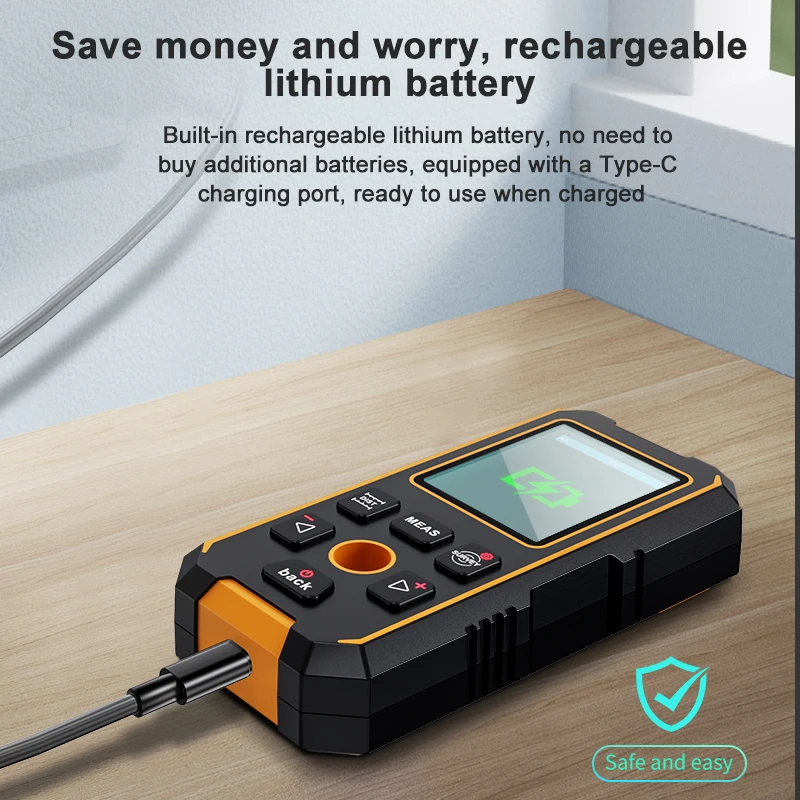

- Charging：Type-C charging
- Battery Type：Lithium Battery(390mAh)
- Protect Lever：IP54
- Audio Broadcast：Live Broadcast
- Dimension(mm)：63*25*139 (mm)
- Net. Weight(g)：200 ( g )
Laser Meter Function
1）Distance：40 m
2）Accuracy：1.5mm+ D*5 out ofhundred thousand
3）Laser Type：630-670nm,<1mW
4）Laser Cat：Level 2
5）Auto OFF：3minutes
6）Unit Switch：m/ft/in/ft+in
7）Benchmark Switch：Front/Bottom
8）Continuously Measurement：Max/ Min value
9）Single Measurement：√
10）Area Measurement：√
11）Volume Measurement：√
12）Pythagoras theorem：√
13）Secondary Pythagoras theorem 1：√
14）Secondary Pythagoras theorem 2：√
15）Triangle area measurement：√
16）Trapezoid measurement：√
17）Auto Horizon measurement：√
18）Auto Vertical measurement：√
19）Countdown measurement：√

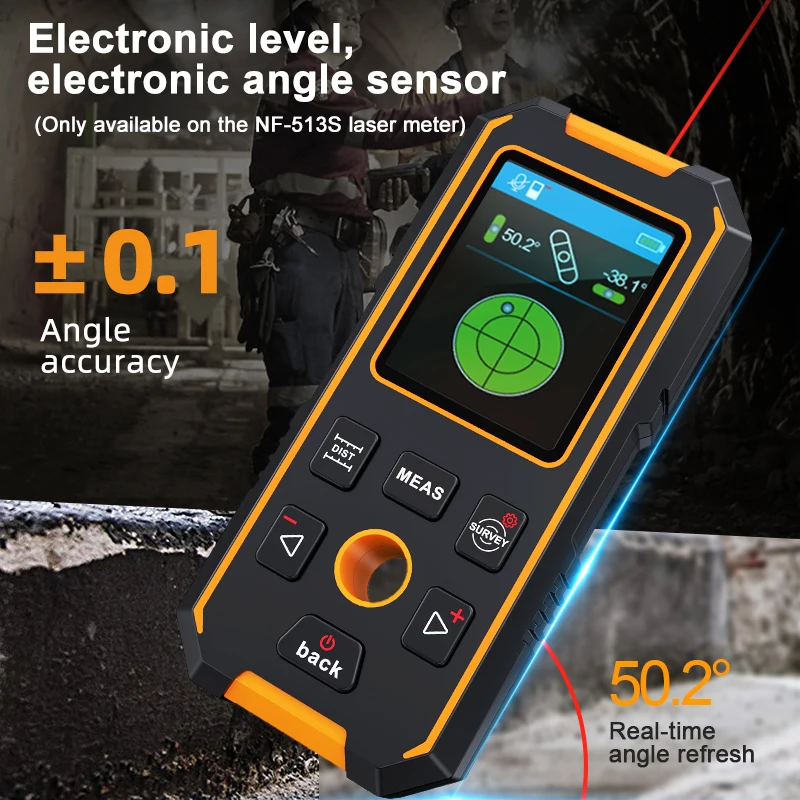

20）Digital level measurement：√
21）Plus/Minus：√

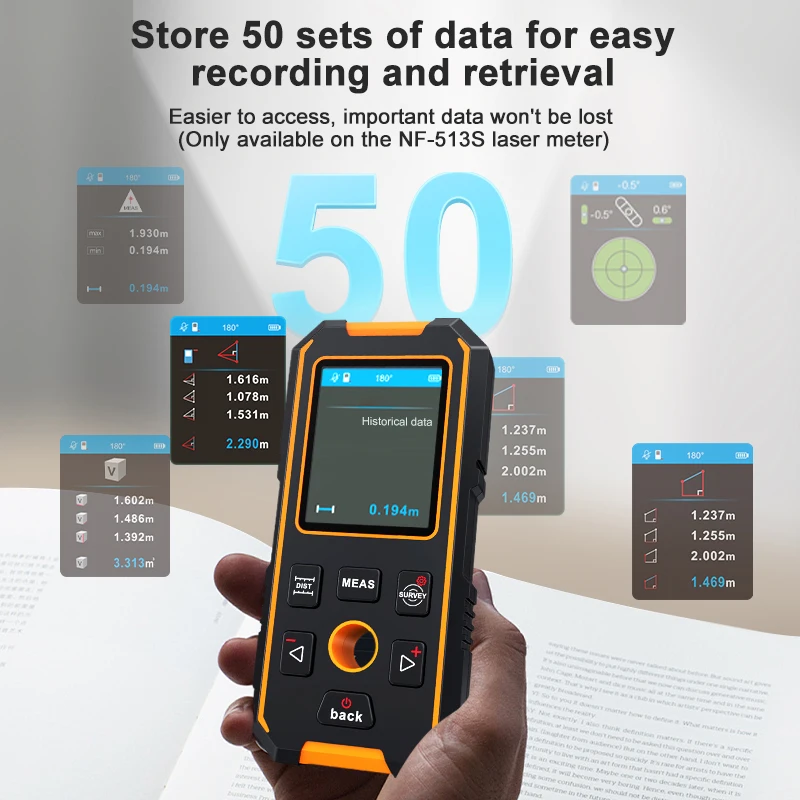

22）History Record Storage：50
23）Self collaboration：√
24）Operation Temperature：0-40°C
25）Storage Temperature：-10-60°C
Wall detection function
① Depth measurement
1.Magnetic metal: 8cm
2.Non-magnetic metal: 8cm
3.Live(AC)wire: 5cm
4.Wood: 3.8cm
② Metal detection：Depth value is based on the p20mm standard steel pipe. Only for reference(Note: The error of the depth indication is for reference only)
③ Non-metal detection：√
④ AC detection：√
⑤ Automatic shutdown：5 minutes
⑥ Operating temperature：0°C~50°C
⑦ Storage temperature：-10°C~60°C
Buy-this-product-on-Aliexpress
