NOYAFA NF-8601S Network Cable Tester
Functions:

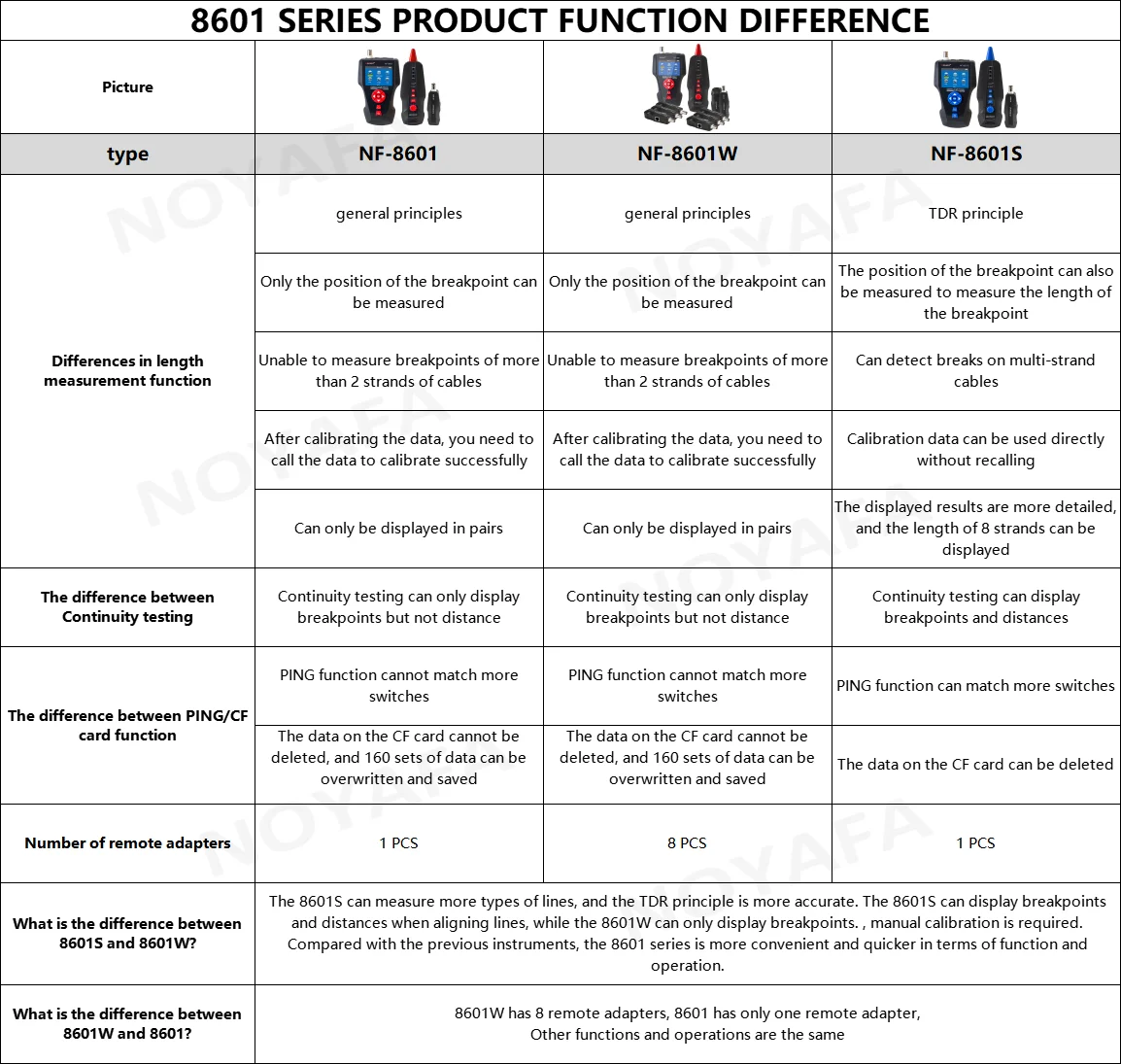

1. TDR theory to measure length of cat5e, cat6 and cat7 cable, coaxil cable, telephone cable.
2. Wiremapping with length and provide the distance to fault information.
3. PoE function: identify which pins are providing power and detect how much voltage.
3. PoE function: identify which pins are providing power and detect how much voltage.
4. PING function to test network performance, data packet, MIN&MAX time.
5. Quickly find the targeted cable without stripping isolation among unknown cables.
6. Hub blinks for locating network port by the flashing port light on Hub / Switch.
7. Voltage detector: included in receiver (90~1000V)
Benefits:

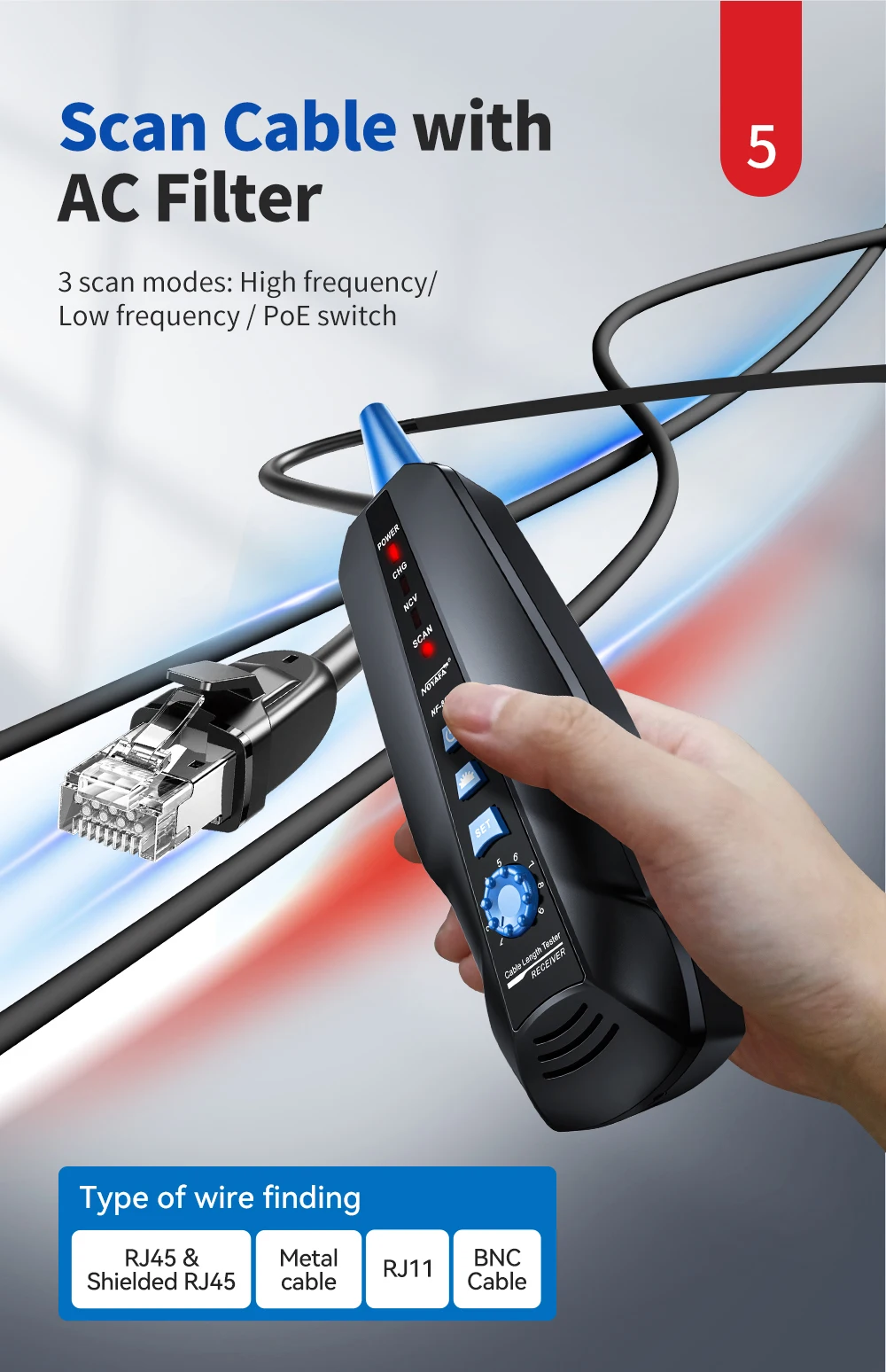

1. Tone traces cable with complete AC fliter.
2. TF card function to export data from computer (50sets, TXT format)
3. 2 scan modes: common switch and PoE switch
4. 3.7V lithium battery for power supply and 2.8 inch color screen
Technical indexes:
- NF-8601S Transmitter specifications
- IndictorLCD 320×240 mm, with backlight
- Cable test typesSTP/UTP 5E,6E network , telephone , coaxial cable.
- Max. distance of wiremap1000 m
- Max. distance of tracing1000m
- Max. distance of cable length1000 m
- Min. distance of calibration50 m
- Accuracyup to 98% ( after calibration )
- Compatible connectorsRJ11, RJ45, PING/POE, BNC
- Cable map indicationLCD (#1-#8)
- Battery Type3.7V lithium battery 1800mAh
- Work temperature / humidity10℃ ~ -60℃ / 0℃~70℃
- Dimension(LxWxD)173x92x34mm
- NF-8601S Receiver specifications
- Cable huntingRJ11，RJ45, BNC
- Types of cable≥ 2 cores
- Battery Type3.7V lithium battery 1800mAh
- Dimension(LxWxD)183x58x35 mm
- NF-8601S Remote unit specifications
- Compatible connectorsRJ11，RJ45, BNC
- Dimension(LxWxD)106x32x30mm
Accessories Included:
- Bulit-in battery x 2 set
- Adapted telephone line x 1 set
- Adapted network cable x 1 set
- Cable clips x 1 set
- Charging adaptor x 1 set
- Toolkit x 1 set
