R&D INSTRUMENTS PT180/ PT181 Laser Digital Protractor Angle
- Model Number: PT180/ PT181
- Brand Name: R&D INSTRUMENTS
- Origin: Mainland China
- Certification: CE,FCC,RoHS
- Color: Black
- Dropshipping: Yes
- Applications: Construction/Woodworking Angle Slope Measurement
- Style: PT180no laser -PT181 with laser
R&D PT180 PT181 Laser Digital Protractor Angle Measure Inclinometer 3 in 1 Laser Level Box Type-C Charging Angle meter for home
Style No.1 PT181 with laser (PT180 without laser please check Style No. 2)
|
Technical Parameter |
|
|
Measurement accuracy |
±0.2° |
|
Display resolution |
±0.01° |
|
Measuring range |
4X90° |
|
Working temperature |
0℃-50℃ |
|
Operating humidity |
0-85%RH |
|
Automatic shutdown time |
10 minute |
|
Continuous working time |
about 5 hours |
|
Battery |

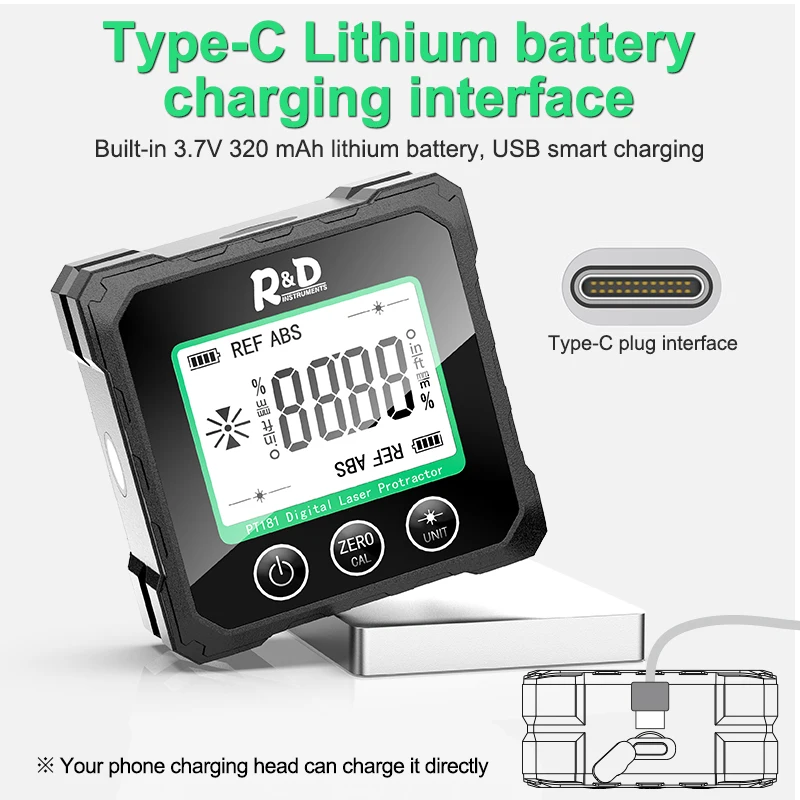

3.7V 320mAh lithium battery |
|
Weight |
108g |
|
Size |
65*65*30mm |
Product Features-
1.Relative/absolute measurement interchange at any position; .
2.Angle and slope readout conversion;
3.Strong magnetism on 5 sides/Bidirectional Laser/Unit switching/Type-c charging
4. The product will automatic turn off if you don’t operate it device within 10 minutes.
5.Compact and portable, wide application: construction/woodworking/car repair/railway/home decoration angle slope measurement
The unique feature is the TWO side LASER design! you can turn on both lasers on the left and right sides when doing the measuring, which make the measurement more accurate!
-Kindly Reminder-

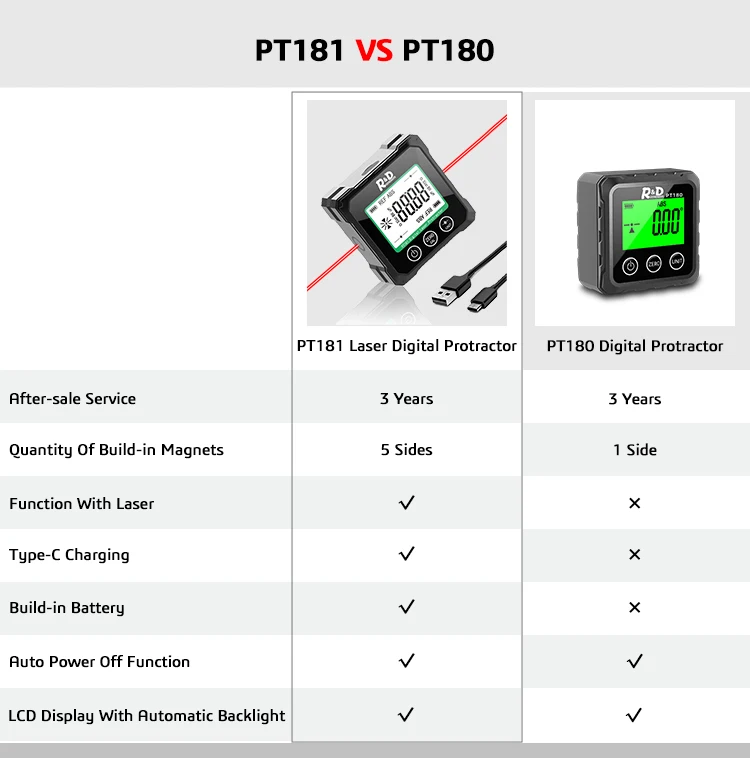

Style No. 2: PT180 without laser
Features:
- Clear illuminated LCD display with automatic backlight
- Magnetic base
- Simple operation by just 3 buttons
- Absolute & relative measurement
- Zero set to any position to find the relative angle between 2 planes
- See-saw figure on the display to show the tilted direction
- No Temperature drift
- Auto power off function
- Aluminum framework
- Handy easy to carry anywhere
- Pre-calibrated at the factory
Applications:
Setting pitch angles for helicopters, adjusting the blade angle of miter saws, table saws and circular saws, setting up the tool settings on lathes, assessing drainage angles and run off slopes, and aligning graders and tractors.
Parameter:
- Accuracy: 0° and 90° : ±0.1°, the rest : ±0.2°
- Resolution: 0.1°Working Range: 4 x 90°
- Power Supply: 2 x AAA battery
- Working Temperature: 32℉ to 122℉ (0 ℃ to 50 ℃)
- Working Humidity: ≤85%
Features:
ABS: Indicates that the level is working in absolute angle mode
REF: Indicates that the level is working in relative angle mode
ZERO KEY: Switch ABS / REF modes

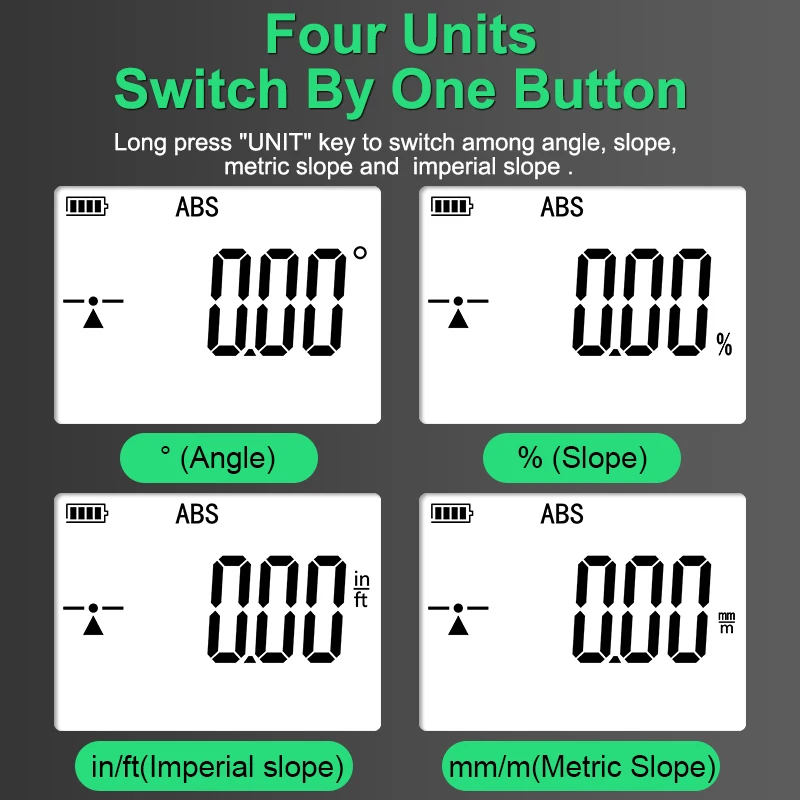

UNIT KEY: Switch Degree/% units
%: Percentage of slope conversion
Erro: Warning of the vertical axis deviation
