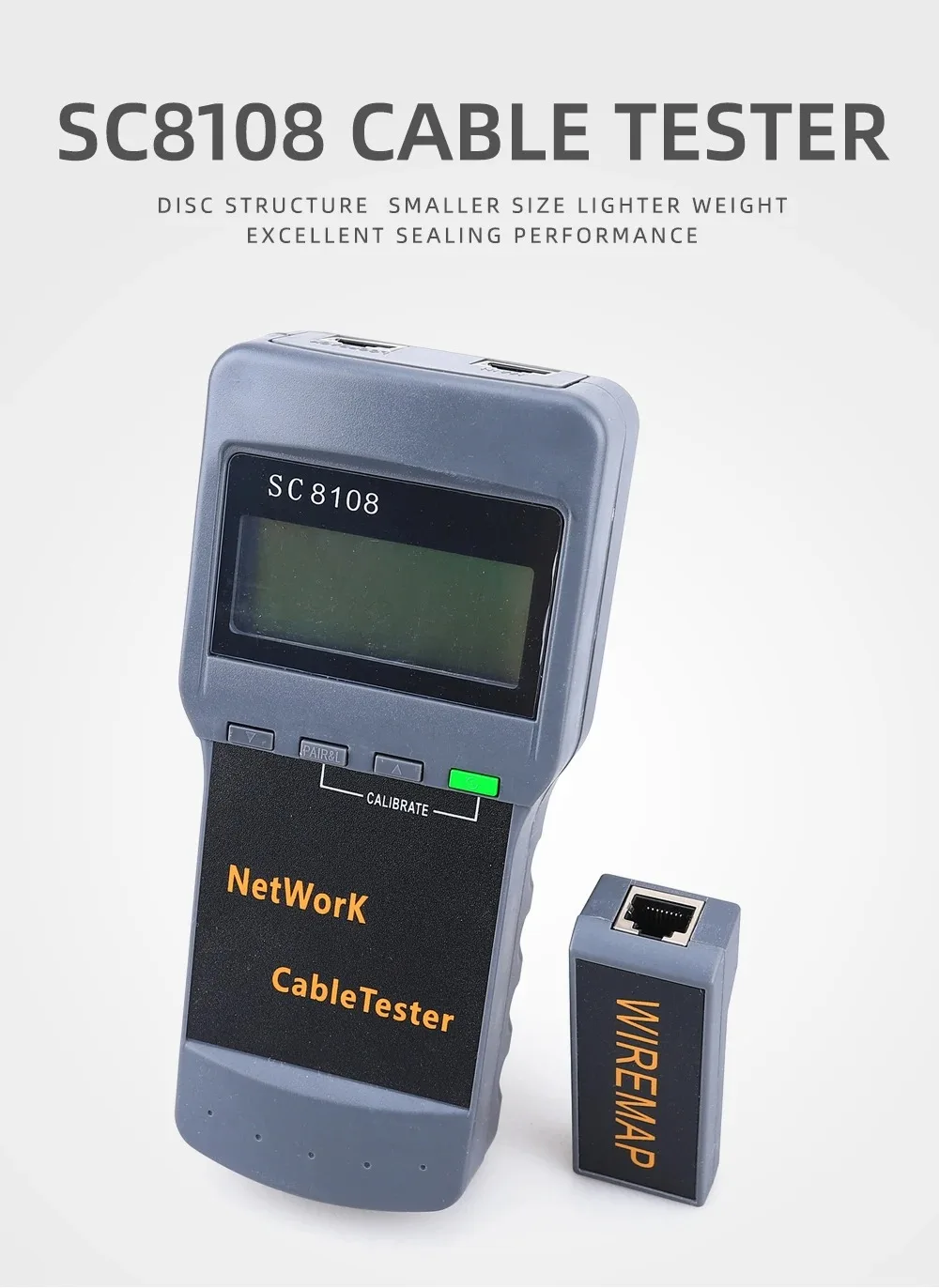

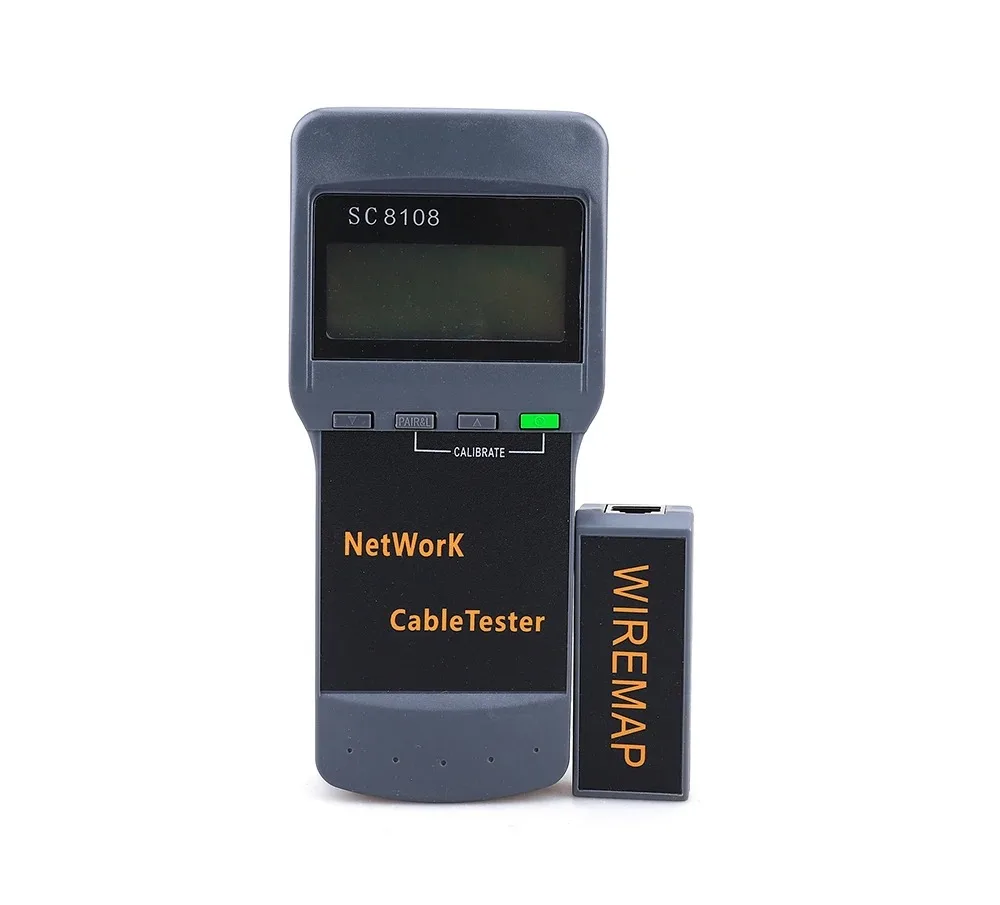

SC8108 Cable Tester

SC8108 LCD Digital PC Data Network CAT5 RJ45 LAN Phone Cable Tester Meter Portable Multifunction Wireless Network Tester

• The main function characteristics:
• The connectivity test can be carried out, single cable

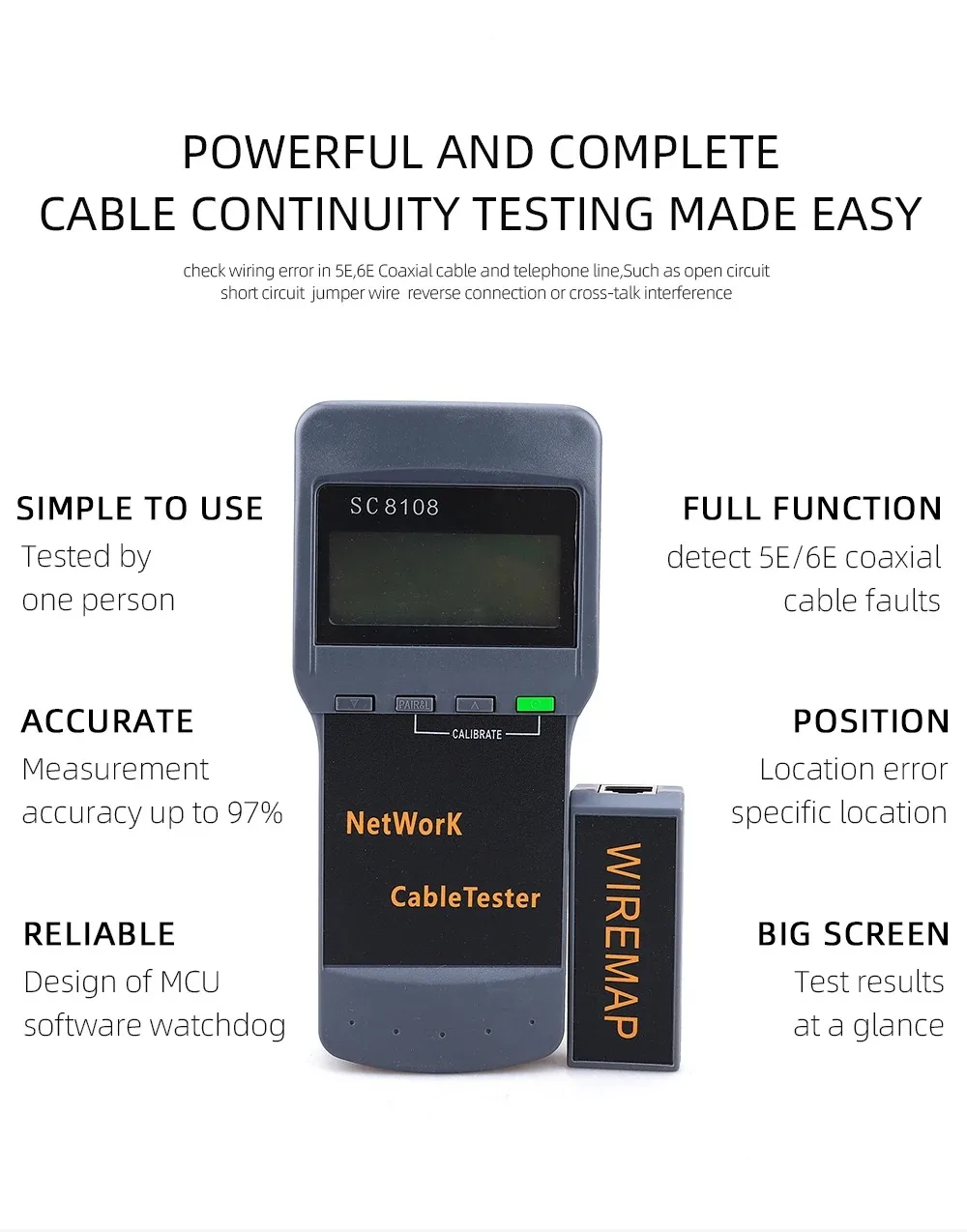

• And can detect 5E, 6E coaxial cable and telephone line wiring fault, open circuit,short circuit, including: cross connection, reverse connection and series wound
• Localization and connection / connection error.
• And measuring cable length, and location of the specific location of open circuitshort circuit

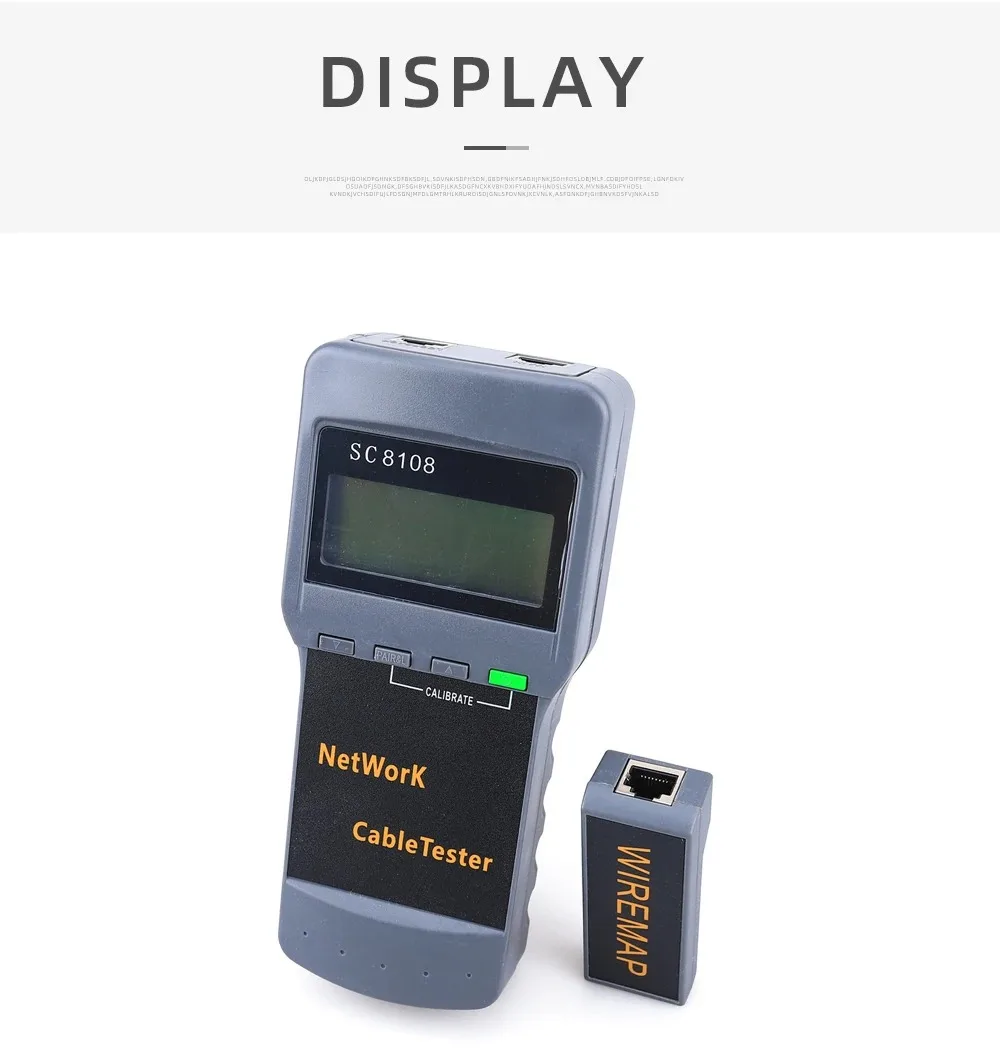

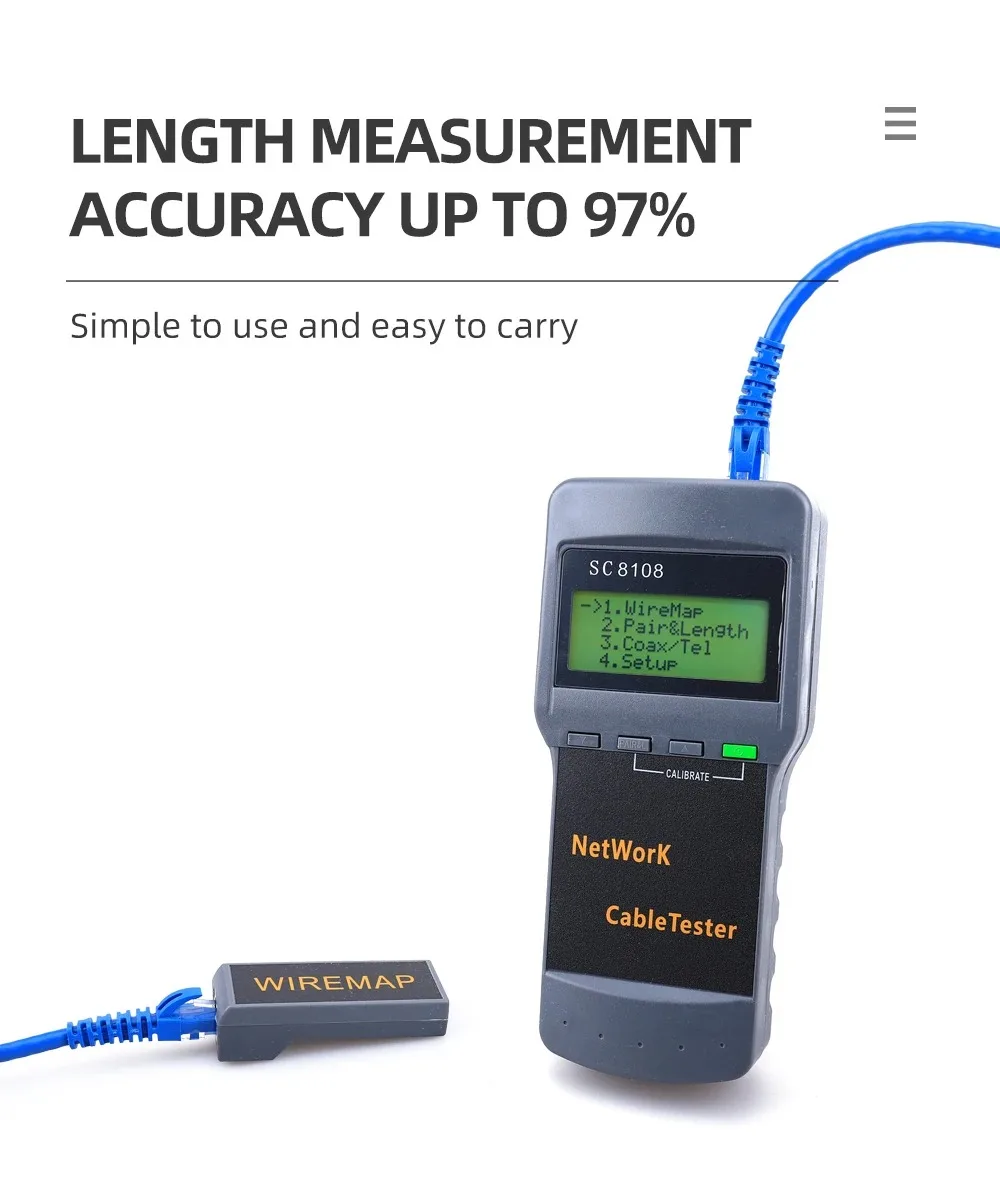

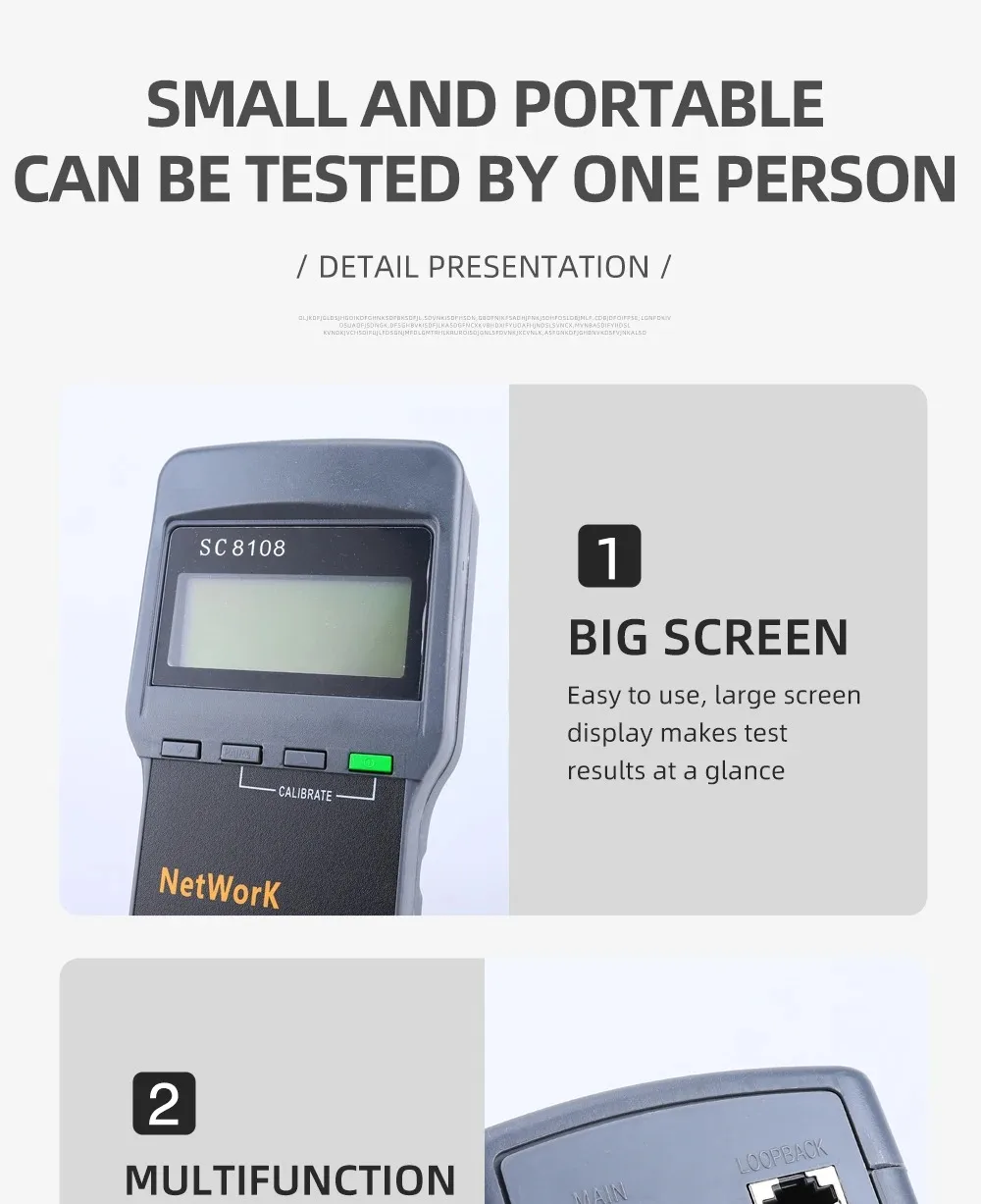

• And the length of the cable dynamic calibration function, make the lengthmeasuring accuracy is as high as 97% – easy to use, large screen display the test results stick out a mile
• And easy to carry, long battery life (50 hours of standby time)
• Automatic delay shutdown
• And there are no length measurement and matched pairs were inserted on distalrecognizer can

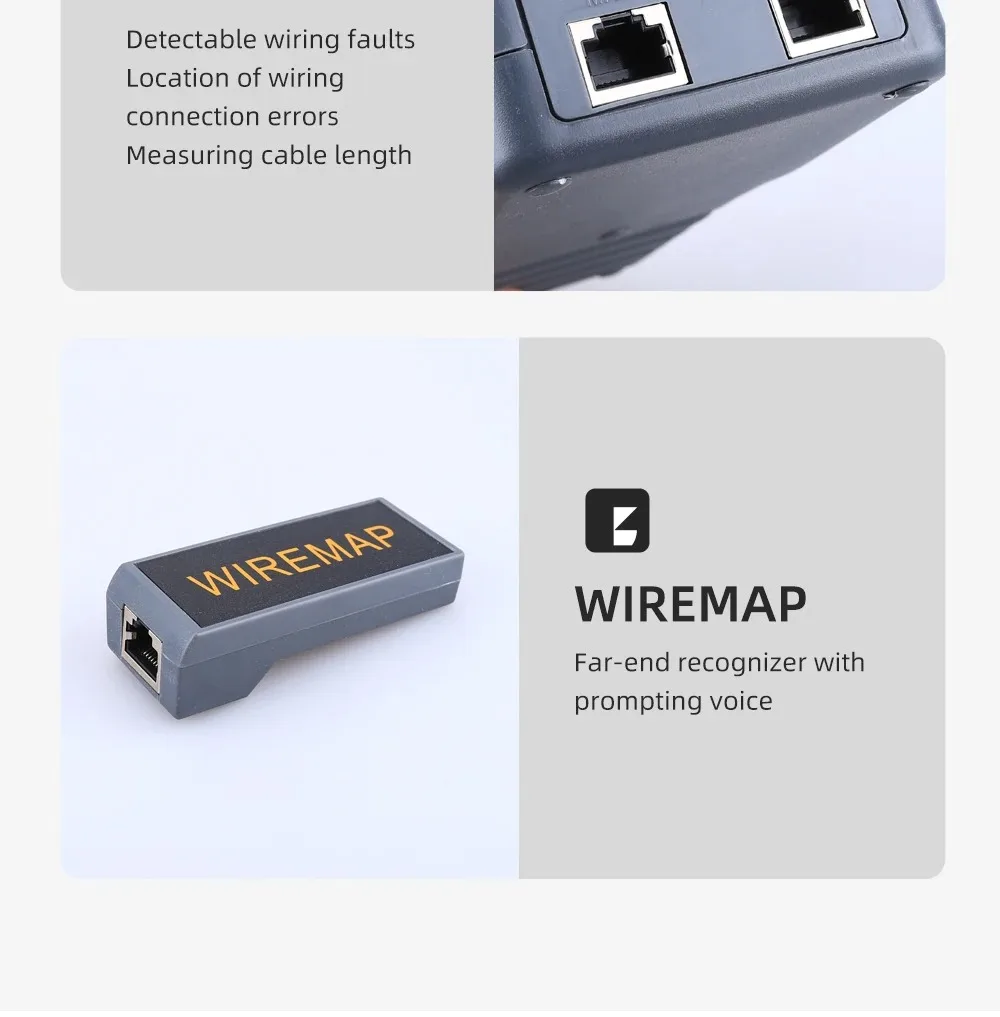

• And cable location, 8 distal passive testing socket (identification number ID1-ID8)
• And the distal identification appliance audio prompt function
• And self checking function, can automatically compensate the variation of the battery power, the influence of environmental temperature change
• And MCU software watchdog design, reliable operation

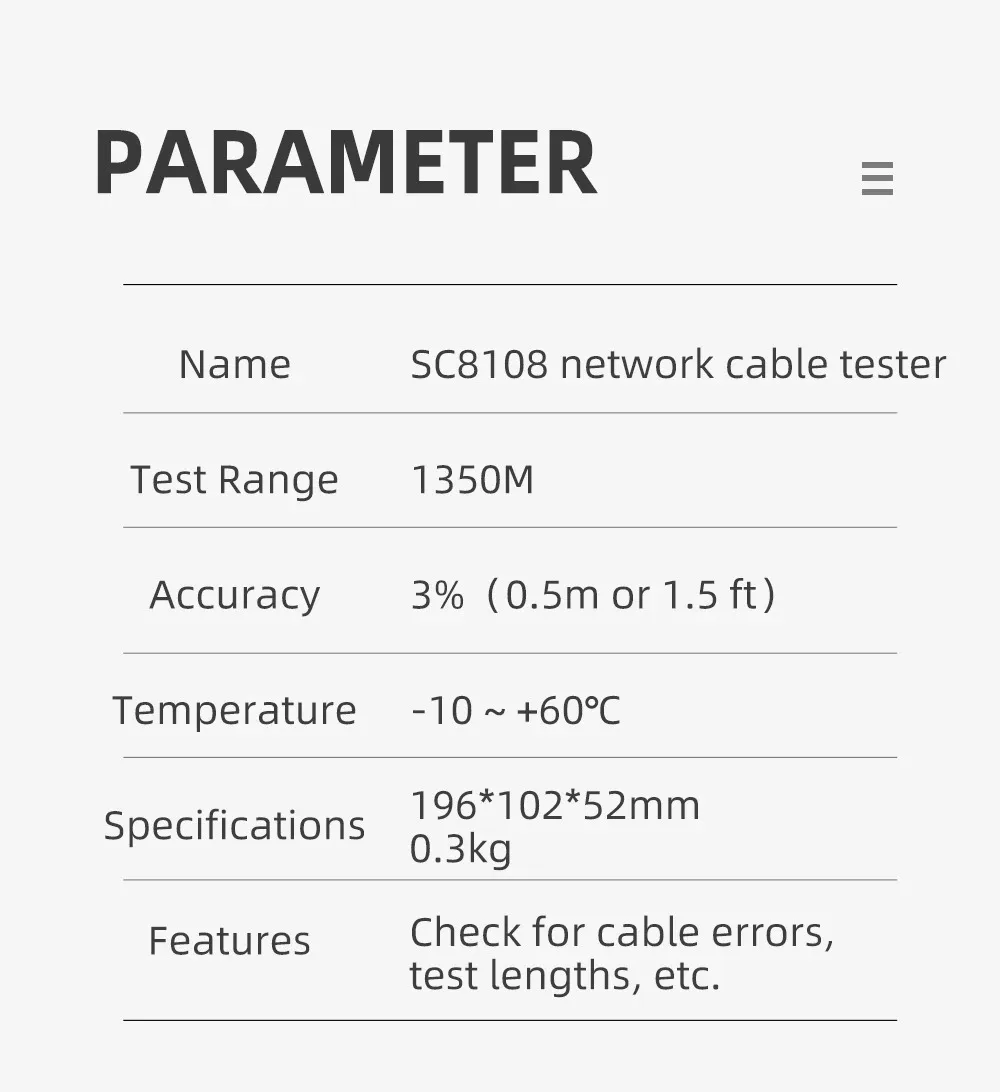

• Length measurement of twin twisted cable:
• Scope : 1350M (31,200 FT)
• Calibration accuracy : 3% (± 0.5m or ± 1.5 ft) (calibrating cable > 5 M)
• Shipment accuracy : 5% (± 0.5m or ± 1.5 ft) (AMP, AT&T Class 5 cable)
• Display: M or FT
• Length calibration: User can set calibration factor by himself by a given length cable. The length of calibrating cable is more than 5m.
• Working temperature: -10°C to 60°C
• Powered by 4 AA batteires (NOT included)
