SHAHE 5202-25/5203-25/5204-25 Electronic Outside Micrometer 0-25mm / 0.001mm
- Hign-concerned Chemical: None
- Model Number: 5202-25/5203-25/5204-25
- Accuracy: 0.001mm
- Micrometer Type: Outside Micrometers
- Display Type: DIGITAL
- DIY Supplies: Metalworking
- Brand Name: Shahe
- Origin: Mainland China
- Certification: CE,RoHS

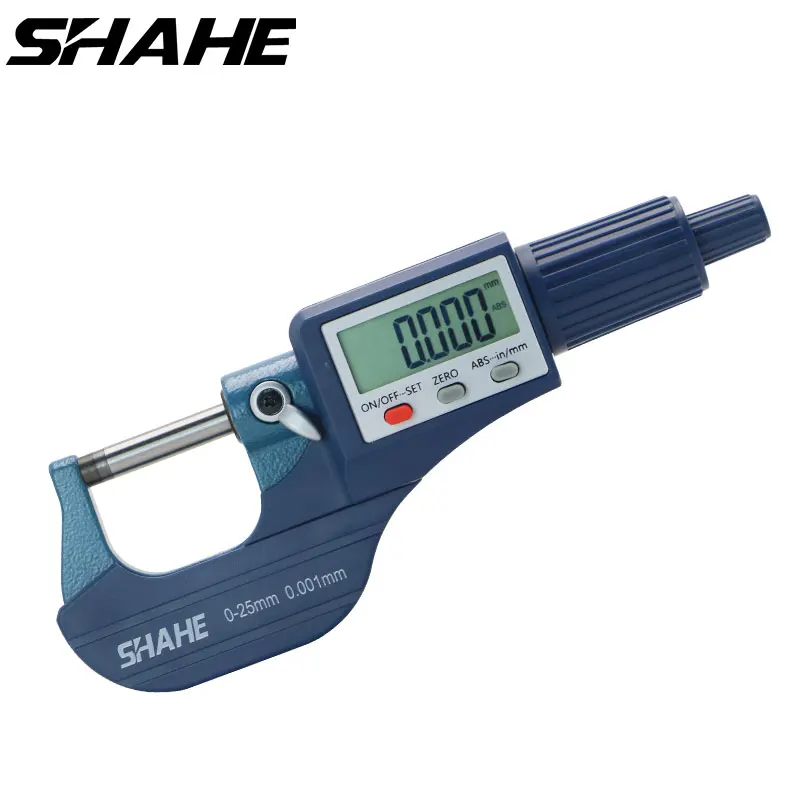

Type 1:5202-25 Digital Outside Micrometer 0.001mm
Characteristic and Function
2.Large LCD display,clear display screen
3.Two Kinds of Measurement Units Optional: Metric or Inch, More Convenient for Daily Use
4.Relative/absolute measurement interchange at any position(ABS function)
5.Automatic power off after 5 minutes inactivity
Measuring range : 0-25 mm
Resolution:0.001 mm
Accuracy:±0.003 mm
Battery: 3V CR2032(not included)
Measuring Force:5-10N
Power consumption :≤20uA
Storage temperature :-20-60°C
Operation temperature:0-40°C
service humidity: ≤ 80%
Button function
1. ON OFF SET: ONO FF and set button. Press the button briefly, switch the device on and off, press this button for a long time and set the zero to “0.25,50,75”. “Hold down the button to alternately display several zero values Key when one of the zero values is displayed The zero value is the currently displayed value.
2. ZERO: Zero button. Press the button. The data will be used as default starting value (0.25,50,75).
3. ABS … in / mm: Relative and absolute scale conversion key, metric and inch conversion key. Press this button briefly to perform the absolute measurement and the relative dimension conversion “In” and small font “5”, it will be displayed in inches.
Buy-this-product-on-Aliexpress
Buy-this-product-on-Aliexpress
Type 2:5203-25 Digital Outside Micrometer 0.001mm IP65 Waterproof
Characteristic and Function
1.IP65 Waterproof and dustproof
2.Large LCD display,clear display screen
3.Two Kinds of Measurement Units Optional: Metric or Inch, More Convenient for Daily Use
4.Relative/absolute measurement interchange at any position(ABS function)
5.Data hold
6.With Satin-chrome scale
7.High quality heat insulation grip
8.Measuring faces is made of tungsten carbide
9.Constant force ratchet on thimble
10.Packed in plastic case
Specification
Measuring range : 0-25 mm
Resolution:0.001 mm
Accuracy:±0.003 mm
Battery: 3V CR2032(not included)
Measuring Force:5-10N
Power consumption : ≤ 20uA
Storage temperature :-20-60°C
Operation temperature:0-40°C
Buy-this-product-on-Aliexpress
Type 3:5204-25 Digital Outside Micrometer 0.001mm with Scale Line
Characteristic and Function
1.Both LCD display and cursor scale line
2.Durable carbide measuring head
3.Two Kinds of Measurement Units Optional: Metric or Inch, More Convenient for Daily Use
4.Relative/absolute measurement interchange at any position(ABS function)
5.Data Hold function
6.Automatic power off for non-response within 5 minutes;
Specification
Measuring range : 0-25 mm
Resolution:0.001 mm
Accuracy:±0.003 mm
Battery: 3V CR2032(not included)
Measuring Force:5-10N
Power consumption :≤20uA
Storage temperature :-20-60°C
Operation temperature:0-40°C
service humidity: ≤ 80%
Buy-this-product-on-Aliexpress
Key operation
ZERO/ABS: relative and absolute measurement conversion keys and reset key. Short press to show “INC” for relative and absolute measurementconversion. Long press to reset data.
in / m m : metric and inch conversion keys.
HOLD/SET: data retention and setting keys. Short press: the current measurement data remains locked. When in the zero position, long press to set zero position value to “0,25,50,75”; press and hold to let these values be displayed in turn; release the press when the required value is displayed, and this zero position value is the value currently displayed.
ON/OFF: power supply switch.
Buy-this-product-on-Aliexpress
Buy-this-product-on-Aliexpress
