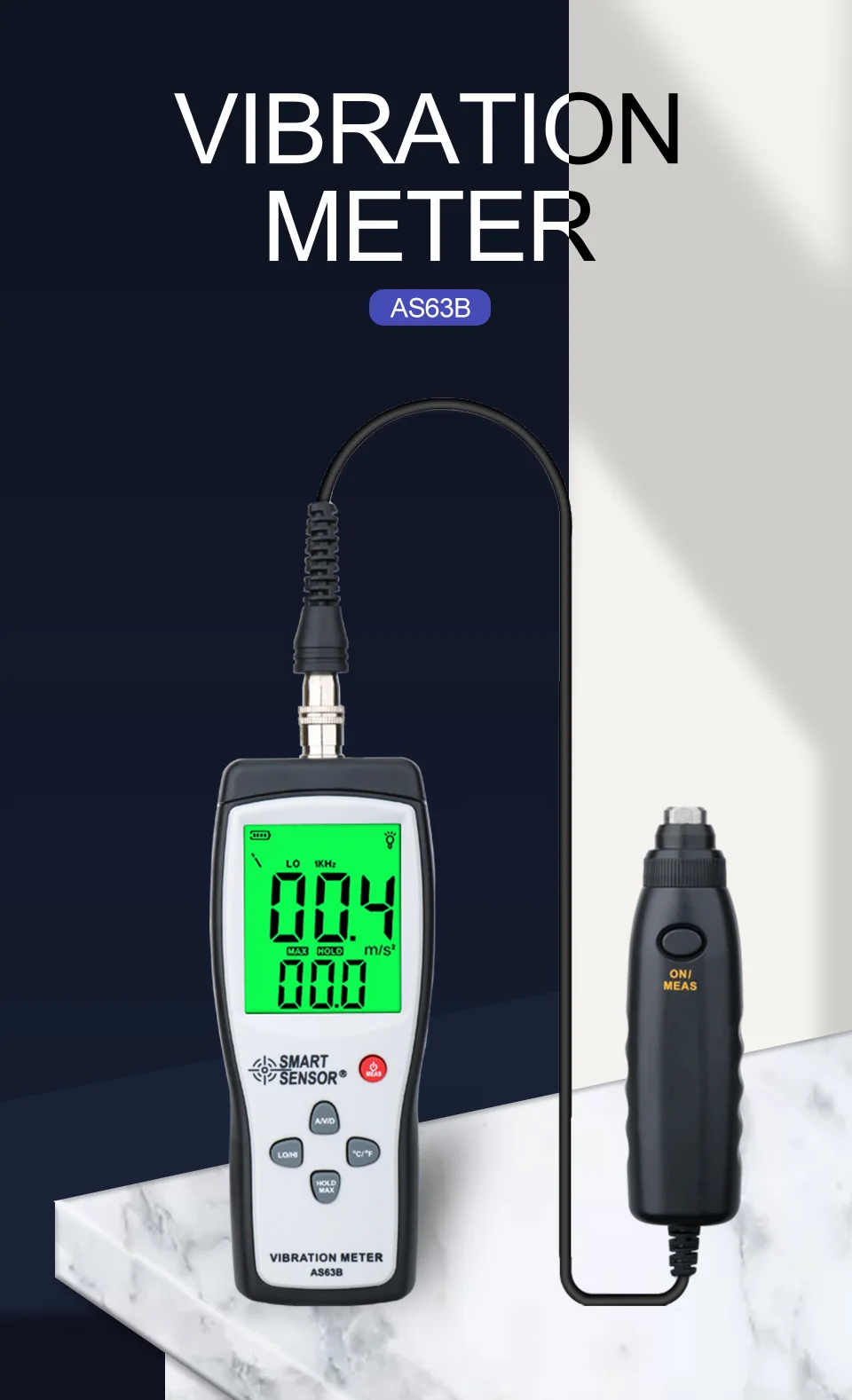

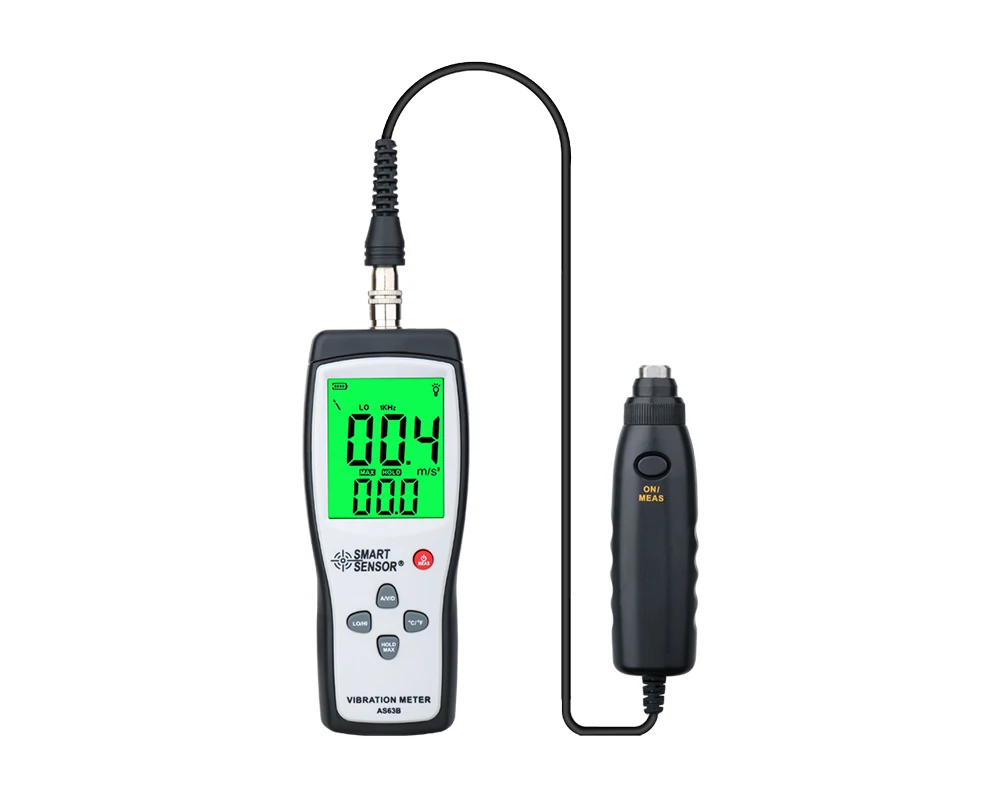

Smart Sensor AS63B Vibration meter

Smart Sensor Digital vibration meter 10HZ~1KHZ 0.1~199.9m/s

 1. All products with original packaging box, so that can protect the products well on the shipping way avoid damage.
2. The product does not contain the battery because of the limitation of the airline company.
 3. Warranty: All units are with Retail box. and we offer Long warranty period of 2 years,in two years will repair for free.
 4. Shipping Way: if you need it faster, you can choose Aliexpress standard shipping,also have China post airmail !

SMART SENSOR Vibration meter(also called vibration severity) uses Piezoelectric Acceleration Transducer transfer the vibration signal in to electrical signal, analyze the input signals, and show the Acceleration, speed, shift of the vibration. It is widely used in the lines of Power, petrochemical, machinery manufacturing, metallurgy, vehicles, etc.

1. LCD display measurement result and conditions directly
2. Measure acceleration(m/s2 peak), velocity ( mm/s ms(, and displacement (mm p-p)
3. Selective vibration characteristic
3. Uses hi-sense of vibration sensor, measuring accurately
4. Equipped two probes ( S and L) to adapt the different measurement requirement
5. Provides a magnetic probe to fit the condition uneasy hold on by hand
6. Low battery indication
7. Auto turn off button
8. LCD back light function
9. Maximum value hold function
10. Temperature unit °C / °F selection

Technical parameter		Technical specification
Vibration pickup		Piezoelectric ceramic accelerometer (shear-type)
Measurement range of acceleration		0.1~199.9m/s2 peak
Measurement range of velocity		0.1~199.9mm/s rms
Measurement range of displacement		0.001~1.999mm p-p (Velocity and displacement range is limited by acceleration199.9m/s2)
Measurement accuracy		±5%+2digits
Measurement frequency range of acceleration		10Hz～1KHz (LO) 1KHz～15KHz (HI)
Measurement frequency range of velocity		10Hz～1KHz (LO)
Measurement frequency range of displacement		10Hz～1KHz (LO)
Displays update cycle		1 seconds
LCD display		3 1/2 digits display
Single output		AC output 2 V peak (display full scale) Load impedance 10KΩor more earphones can be connected
Power supply		9V battery (not include)
Stand-by current		≤15μA
Operating current		≤25mA

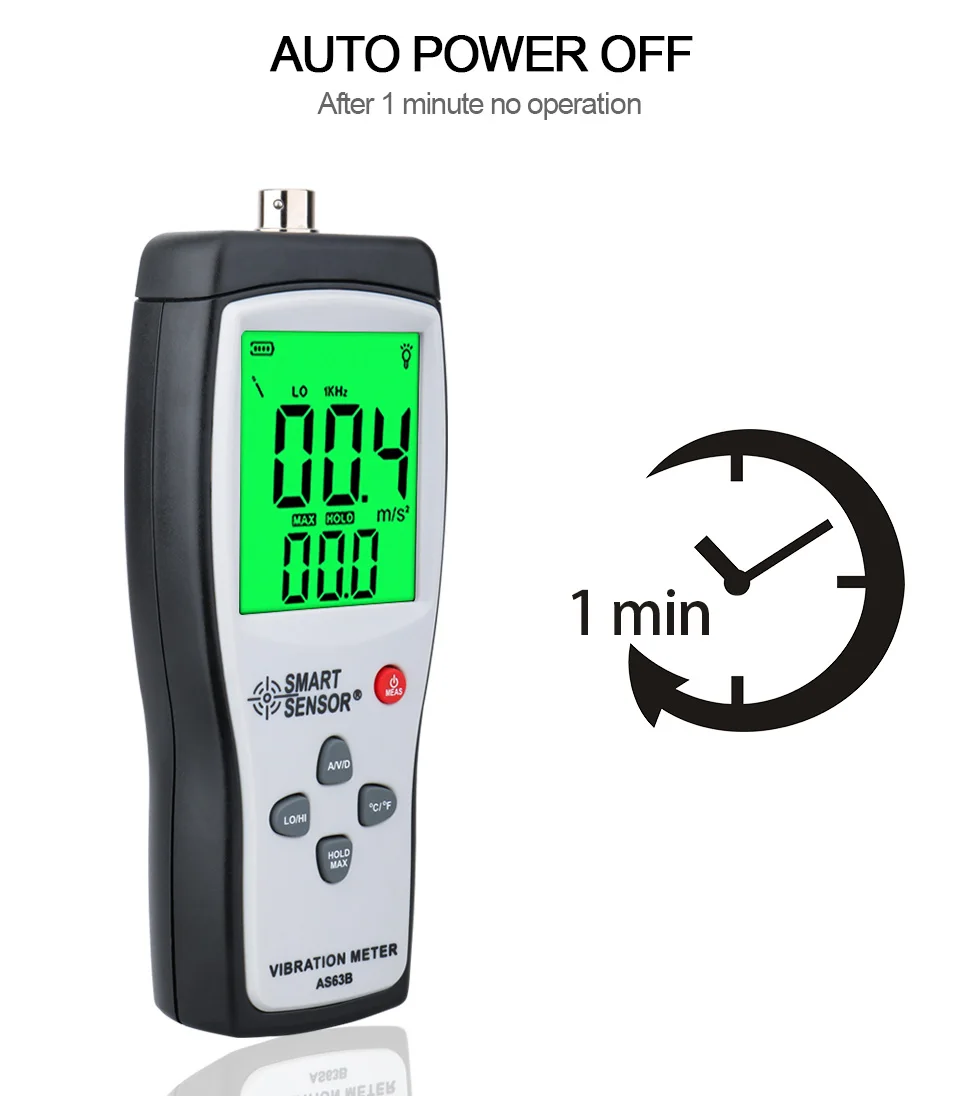

Auto power-off function		Turns off automatically after 60 seconds
LCD backlight function		7 seconds
Operating temperature range		0~40℃
Operating humidity range		30~90%RH
Low battery indication		6.4V±0.2V

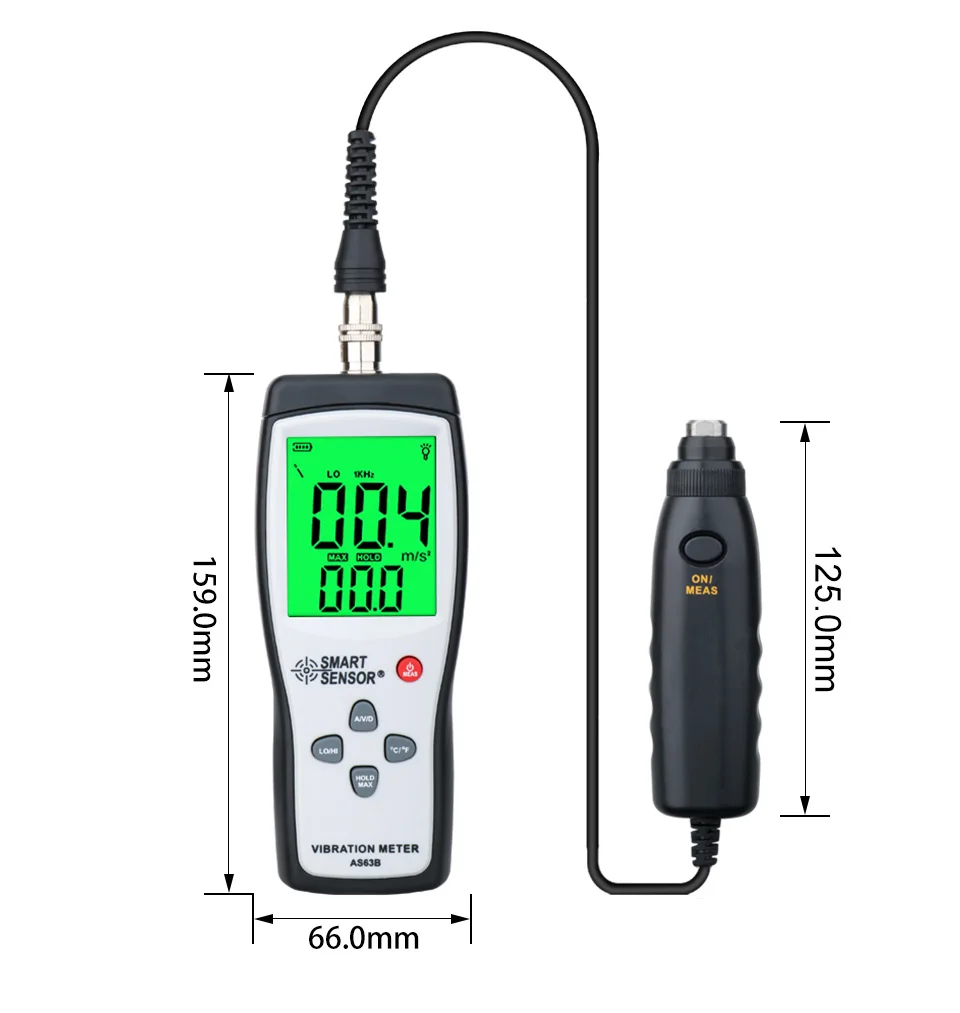

Product Dimensions		70x30x150mm
Product Weight		137g (not including battery)
Temperature range		-10C~80C
Temperature accuracy		±2C
Packing Contents		1pc Vibration meter 1pc handle sub-unit 1pc detector probe attachment “L” 1pc detector probe attachment “S” 1pc Magnetic probe 1pc English user’s manual 1pc Long probe 1pc Aluminum packing box
