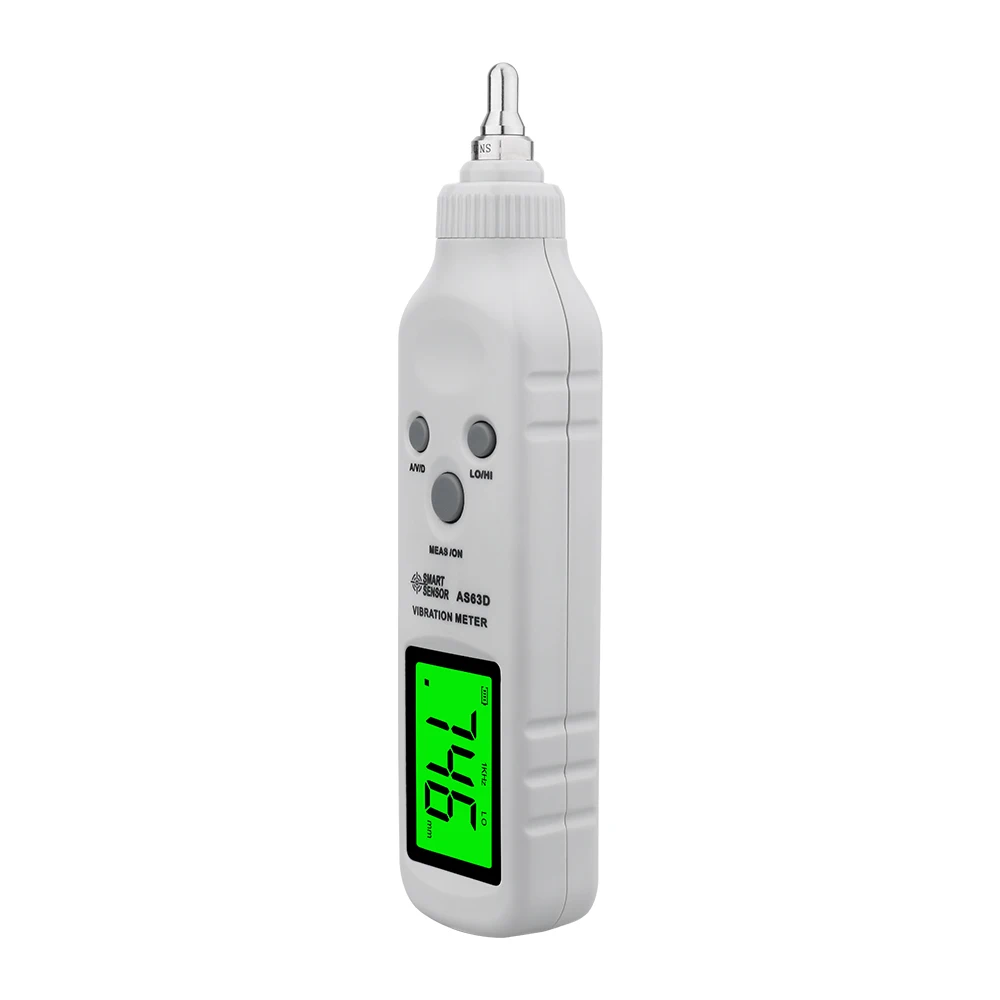

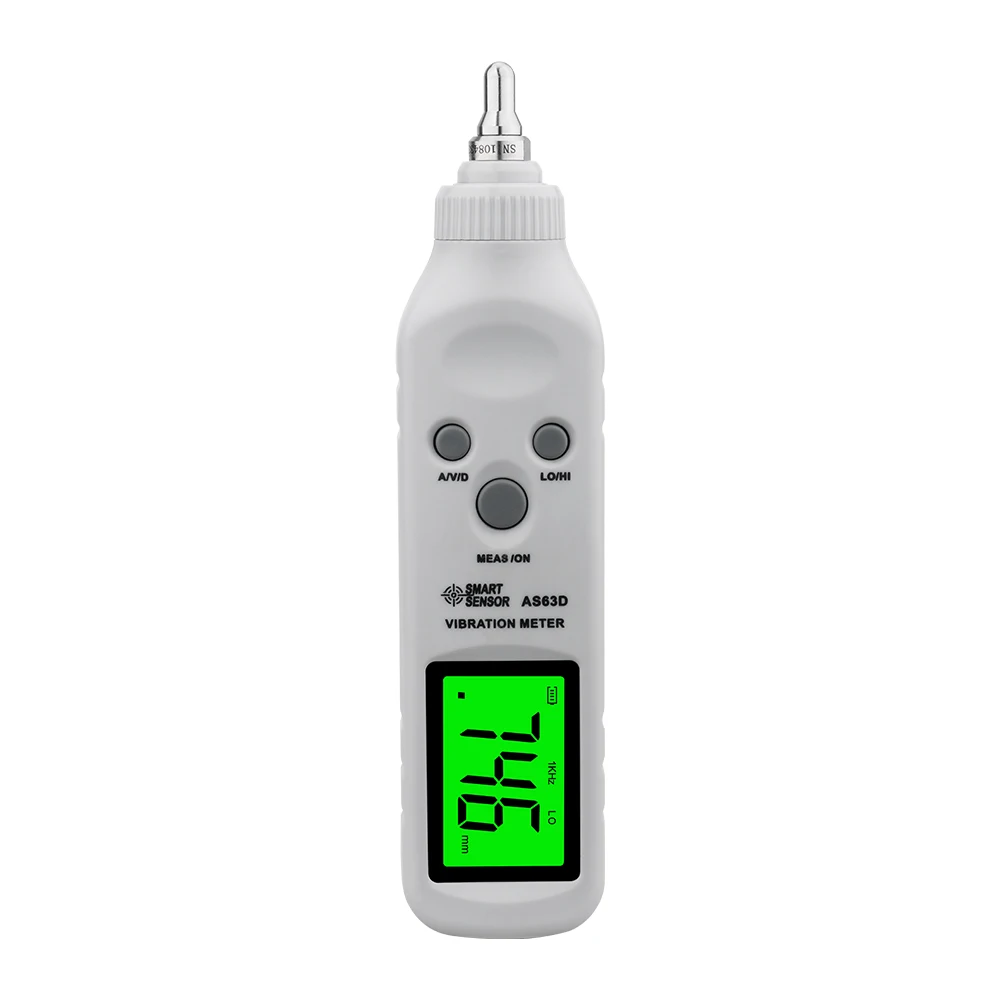

Smart Sensor AS63D Pocket vibrometer
- Smart Sensor AS63D Pocket vibrometer
- is_customized: Yes
- Model Number: AS63D
- Brand Name: SMART SENSOR
- Certification: CE,FCC
- Origin: Mainland China
Smart Sensor AS63D Pocket vibrometer
- is_customized: Yes
- Model Number: AS63D
- Brand Name: SMART SENSOR
- Certification: CE,FCC
- Origin: Mainland China
- Measuring Principle: Piezoelectric Ceramic Accelerometer (shear-type)
- Acceleration Range: 0.1~199.9m/s2
- Velocity Range: 0.1~199.9m/s
- Displacement Range: 0.001~1.999mm
- Acceleration Frequency Range: 10Hz~1KHz (LO) 1KHz~15KHz (HI)
- Velocity Frequency Range: 10Hz~1KHz
- Displacement Frequency Range: 10Hz~1KHz
- Accuracy: -10%H -2digits
- Power: 2*1.5V AA Battery (not include)
- Product Weight/Size: 115g/180*42.5*30mm
Vibrometer Pen Meter Measure Precision sensitivity accelerometers
1. All products with original packaging box, so that can protect the products well on the shipping way avoid damage.
2. The product does not contain the battery because of the limitation of the airline company.
3. Warranty: All units are with Retail box. and we offer Long warranty period of 2 years,in two years will repair for free.
4. Shipping Way: if you need it faster, you can choose Aliexpress standard shipping,also have China post airmail !
SMART SENSOR Vibration meter(also called vibration severity) uses Piezoelectric Acceleration Transducer transfer the vibration signal in to electrical signal, analyze the input signals, and show the Acceleration, speed, shift of the vibration. It is widely used in the lines of Power, petrochemical, machinery manufacturing, metallurgy, vehicles, etc.
| Measuring Princple | Piezoelectric Ceramic Accelerometer(shear-type) |
| Acceleration Range | 0.1~199.9m/s2 |
| Velocity Range | 0.1~199.9m/s |
| Displacement Range | 0.001~1.999mm |
| Acceleration Frequency Range | 10Hz~1KHz (LO) 1KHz~15KHz (HI) |
| Velocity Frequency Range | 10Hz~1KHz |
| Displacement Frequency Range | 10Hz~1KHz |
| Accuracy | ±10%H ±2 digits |
| Signal Output /Max Hold Function | —— |
| Temperature Measurement / ℃/℉ Selection | —— |
| Power Supply | 2*1.5V AA Battery (not include) |
| Product Net Weight / Size | 115g / 180*42.5*30mm |
