SMART SENSOR AS840/AS850/AS860 Ultrasonic Thickness Gauge Tester

SMART SENSOR Ultrasonic Thickness Gauge 1.2 to 225-300MM

1. All products with original packaging box, so that can protect the products well on the shipping way avoid damage.
2. The product does not contain the battery because of the limitation of the airline company.
 3. Warranty: All units are with Retail box. and we offer Long warranty period of 2 years,in two years will repair for free.
 4. Shipping Way: if you need it faster, you can choose Aliexpress standard shipping,also have China post airmail !

SMART SENSOR Ultrasonic Thickness Gauge This unit is an intelligent handheld product, which adopts ultrasonic measuring principle, and is controlled by micro processor, provides quick and precise measurement of thickness for most of industrial material. This unit is widely
used in various precise measurement for different hardware / parts in industrial realm; one of its important application is to monitor the level of thickness-decreasing during operation of various and pressure container. Diffusely
applied in manufacture fields, metal processing, and commercial inspection.

Scope of application
This unit is suitable for measuring materials that are good ultrasonic conductor such as metal, plastic, ceramic, glass etc.,as long as the measured part in two parallel surfaces for measurement of thickness. This unit is not suitable for cast iron
due to its big crystalloid composition.

Model	AS840	AS850	AS860

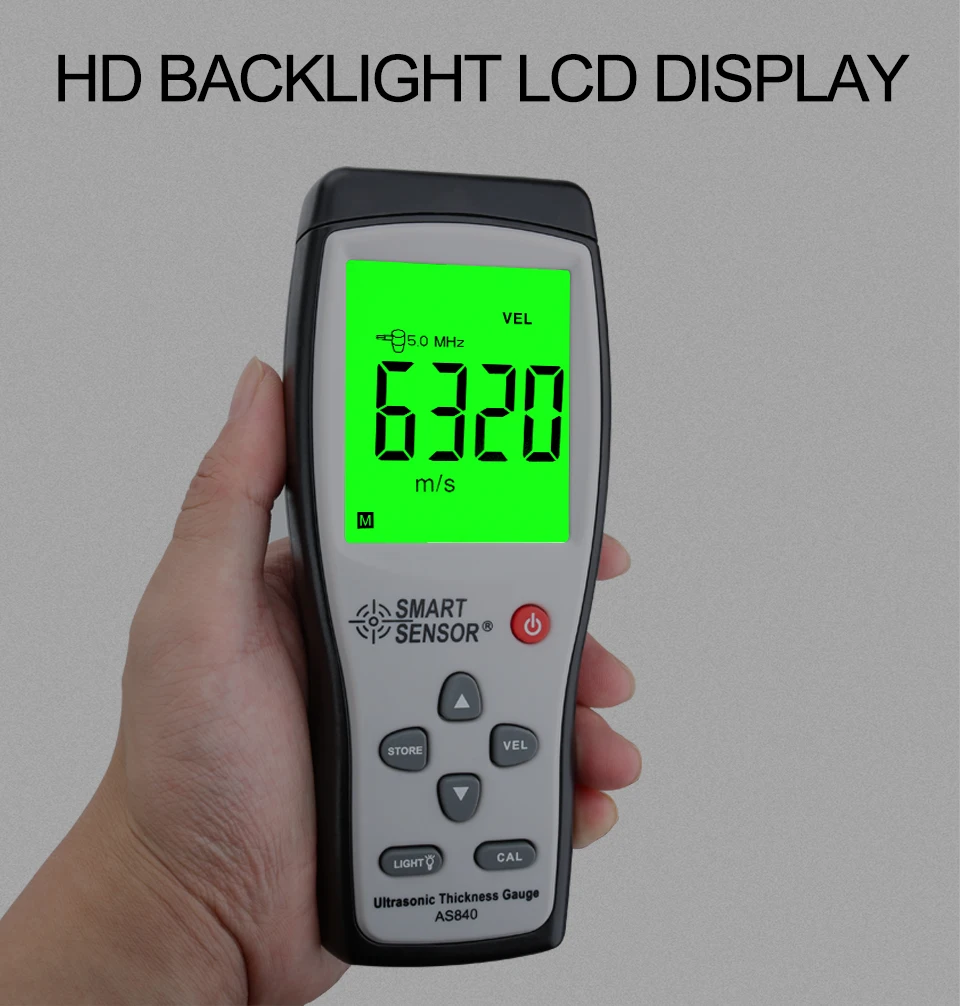

Display	4-digital LCD display	4-digital LCD display	4-digital LCD display
Minimum display unit:	0.1 mm	0.1 mm	0.1 mm
Measuring Probe:	∅10mm 5MHz	∅10mm 5MHz	∅10mm 5MHz
Measuring range	1.2 to 225.0mm (steel)	1.2~225mm(steel)	1.00 to 300.0mm(steel)
Working frequency	5MHz	5MHz	5MHz
Accuracy	(1%H+0.1)mm,H denotes the measured thickness.	±(1%H+0.1)mm,H denotes the measured thickness.	±(1%H+0.1)mm,H denotes the measured thickness.
Minimum limit for tube measuring	20*3mm (steel)	20*3mm (steel)	20*3mm (steel)
Sound velocity range	1000 to 9999 m/s Measuring sound velocity with a given thickness: measuring range:  1000 to 9999 m/s. When the given thickness >20mm, the accuracy is +/-5%; when the given thickness <20mm, the accuracy is +/-1mm/H*100%.
Operation temperature	0℃ to 40℃	0℃ to 40℃	0℃ to 40℃
Relative humidity:	<90%RH	<90%RH	<90%RH
Hardware/workpiece/material temperature:	<60°C	<60°C	<60°C
Power supply	3 * 1.5V AA Battery(Not Included)	3 * 1.5V AA Battery(Not Included)	3 * 1.5V AA Battery(Not Included)
Operation current:	Normal operation current: 50mA With Backlight turn on current: 120mA  Stand-by current: 20uA	Normal operation current: 50mA With Backlight turn on current: 120mA  Stand-by current: 20uA	Normal operation current: 50mA With Backlight turn on current: 120mA  Stand-by current: 20uA
Product Weight	152g	155g	191g
Product Size	161x66x31mm	160 x 66 x 32mm	163 x 70 x 34mm
Package Weight	670g	880g	850g
Package Size	25x21x6cm	29.5 x 19.5 x 7cm	29.5 x 19.5 x 7cm
Packing Contents	1 * Ultrasonic Thickness Gauge 1 * Φ10mm 5MHz Transducer 1 * 4mm Sampling Block 1 * Storage Box 1 * User Manual	1 * Ultrasonic Thickness Gauge 1 * Φ10mm 5MHz Transducer 1 * 4mm Sampling Block 1 * Storage Box 1 * User Manual	1 * Ultrasonic Thickness Gauge 1 * Φ10mm 5MHz Transducer 1 * 4mm Sampling Block 1 * Storage Box 1 * User Manual
Table of sound velocity   (Sound velocity of common materials)
Material	Velocity(m/s)	Material	Velocity(m/s)
Aluminum	6320	Acetate resin	2670
Zinc	4170	Phosphor bronze	3530
Silver	3600	Turpentine	4430
Glod	3240	Glass	5440
Tin	3230	Incoloy alloy	5720
Iron/Steel	5900	Magnesium	6310
Brass	4640	Monel alloy	6020
Copper	4700	Nickle	5630
SUS	5790	Steel 4330 mild	5850
Acrylic resin	2730	Steel 330	5660
Water 20C	1480	Titanium	6070
Glycerinl	1920	Zirconium	4650
Soluble glass	2350	Nylon	2620

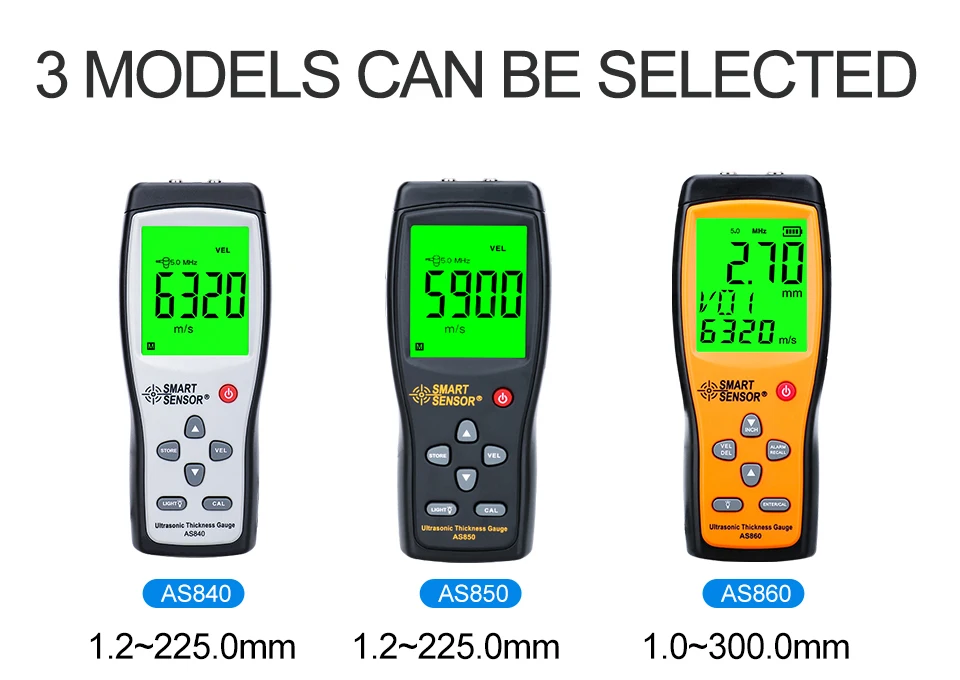

AS840(1.2~225mm)：

AS850(1.2~225mm)：

AS860(1.2~300mm)：
