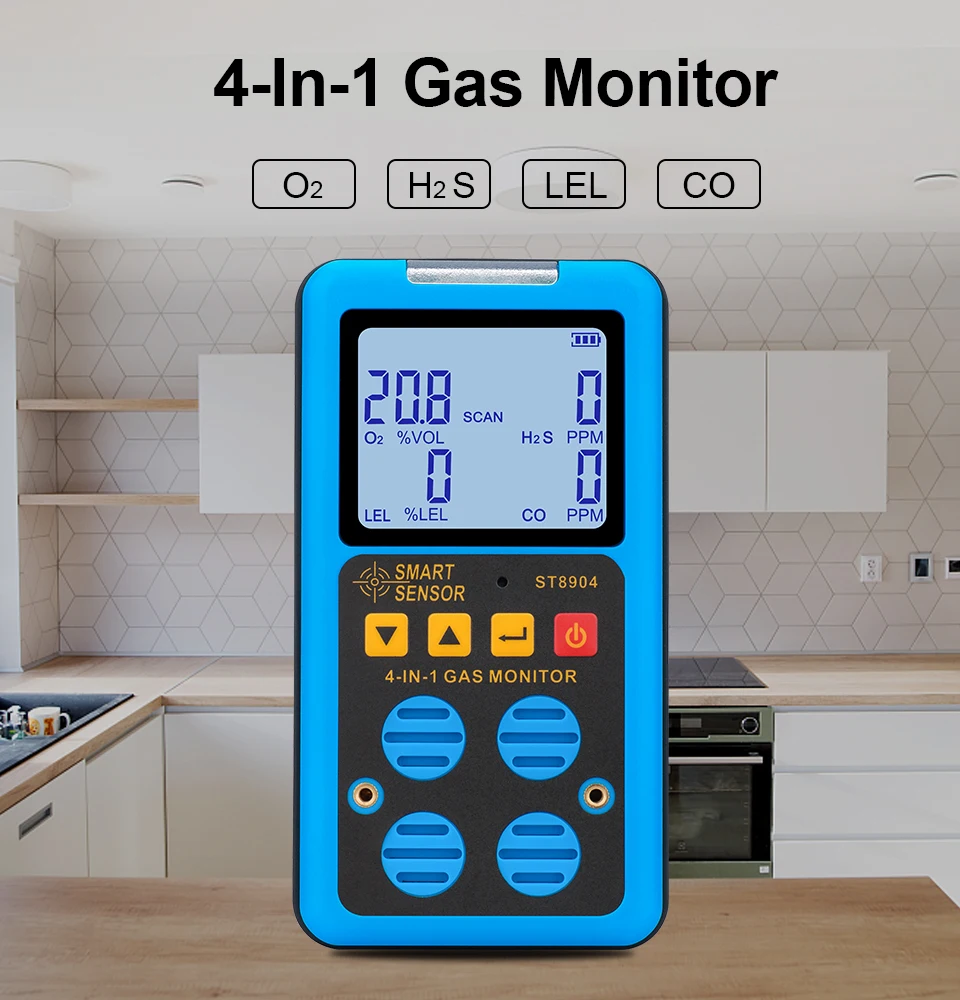

SMART SENSOR ST8904 Gas Monitor 4 in 1

SMART SENSOR ST8904 Gas Monitor 4 in 1

Professional Multifunctional Gas Detector Oxygen O2 Hydrogen Sulfide H2S Carbon Monoxide CO Combustible Gas LEL Gas Meter



1.Detect 4 kinds of gas: carbon monoxide(CO), hydrogen sulfide(H2S), oxygen(O2) and combustible gas(LEL).

2.Continuously monitor the CO, H2S, O2 and LEL gas concentration in the surrounding environment with professional and accurate measurement.

3.Sound & light vibration alarm works when one of the CO, H2S, O2 & LEL gas concentration reaches the level of the alarm.

4.Can set automatic shutdown time and concentration of alarm value.

5.Large color LCD display with backlight for easy reading.

6.Can connect to a sampling pump to operate in closed place.

7.Can be widely used in shipping, mining, oil exploitation, chemical, gas pipeline, tunnel construction, coal, metallurgy, paper, fire, municipal, textile and other industries.



1. Carbon Monoxide(CO): 0-999pm;Resolution: 1ppm

2. Hydrogen Sulfide(H2S): 0-500ppm;Resolution: 1ppm

3. Oxygen(O2): 0-30%;0.1%

4. Combustible Gas(LEL): 0-100%;1%

5. Operation current: 230mA

6. Operation voltage: 3.7V

7. Battery type(include): BL-9C Rechargeable battery

8. Operation humidity: 15%-95%

9. Storage temperature: 0-40°C

10. Short circuit current: ≤3A

11. Maximum open circuit voltage: ≤4.2V

12. Display Type: Segment type LCD

13. Operation temperature: -10°C-50°C

14. Battery working runtime: 6 hours(no alarm)

15. Detection Gas: Carbon Monoxide(CO, Hydrogen Sulfide(H2S), Oxygen(O2), Combustible Gas(LEL)

16. Warm up time: < 20 Seconds

17. Dimension: 75*138*43mm

18. Package

1*Multi-Gas meter

1*Instruction manual

1*USB cable

1*Cloth bag



Professional 4 in 1 gas detector: carbon monoxide(CO), hydrogen sulfide(H2S), oxygen(O2) and combustible gas(LEL)





Main functions: high accuracy sensor,sound and light alarm,low battery indication,backlight display,rechargeable battery etc.





High accuracy sensor

High sensitivity sensor with short response time and high accuracy measurement





4 modes alarm setting

Low alarm set points,high alarm set points,STEL alarm set points,TWA alarm set points





Sound light vibrate alarm





Appendix for carbon monoxide(CO), hydrogen sulfide(H2S), oxygen(O2) and combustible gas(LEL)





HD backlight display





Gas sample pump connect(Optional)

It can extract air to accelerate air flow,and can measure quickly.In addition, a hose can measure the concentration of gas in pipelines or narrow spaces





6 modes can be setting

Gases monitoring mode,View peak value display mode,View TWA mode,Zero calibration mode,CAL gas calibration mode,View STEL mode





3.7V 1800mAh rechargeable battery
