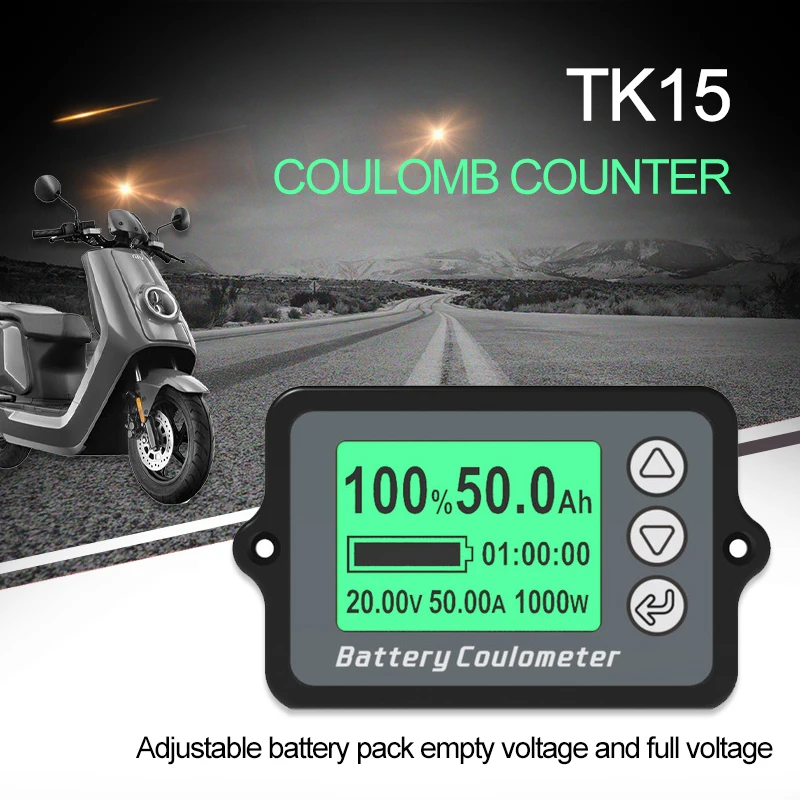

TK15 Coulomb Meter – 80V 50A/100A/350A Battery Capacity Tester

• Model Number: TK15
• Type: Vehicle Battery Tester
• DIY Supplies: ELECTRICAL
• Brand Name: TELEHILL
• Origin: Mainland China
• Certification: CE
• Working voltage: 8-100V
• Working dissipation: 10.0mA
• Standby dissipation: 50uA
• Backlight on current(50A): 30-60mA
• Temperature range: 0~35

80V 50A 100A 350A TK15 Coulomb Meter Vehicle Battery Capacity Tester Battery Coulometer for E-bike/Balance Car/Cleaning Machine

Note:
Please read the product manual carefully before use!

Description:
1. TK15 is a kind of high precision current type battery capacity tester(also known as coulometer),which can test the voltage,current and capacity of battery to help users know the state of battery in time. TK15 has memory function. It is suitable for mobile and portable equipment.e-bike.balance car.cleaning machine.instrument.ups and so on.
2. Application:
TK15 is suitable for lithium battery,lithium iron phosphate battery ,lead-acid battery and nickel-metal hydride battery, which working voltage is from 8V to 100V.

Features:
1.The empty and full voltage of battery can be adjusted.
2.The backlight automatic open when using.
3.Automatic memory function when power down.
4.Fast response rate.
5.Low power consumption, automatic wake-up.

Specification:
●Type: Battery tester
●Model: TK15
●Operating voltage range: DC8-80V
●Current: 50A/100A/350A
●Overall Size: 66x40x10mm
●Display area size: 32x23mm
●External normal Sampler Size:23x18x5mm
●Technical Parameters:
●Working power consumption: 8.0mA (Max:10.0mA)
●Standby power consumption: 0.5mA (Max:0.8mA)
●Sleep power consumption: 50uA (Max:60uA)
●Voltage acquisition accuracy: +/-1.0%
●Current acquisition accuracy: +/-1.0%
●Using ambient temperature rang: 0-35C
●Backlight turn-on current: 40mA (Max:50mA)
●Backlight off current: 30mA (Max: 40mA)
●Battery capacity setting value: 0-590A
●External normal sampler working current:30.0A (Max:50A)
●External big sampler working current:50.0A (Max:100A)
●Attention:The min voltage of the battery pack should higher than the min working voltage of the coulometer.

Display:
1.Residual capacity of battery (Ah or mAh)
2.Capacity percentage and totem pole display
3.Battery voltage
4.Battery current
5.Powe output
6.Remaining time of charge and discharge

Package List:
1*TK15 Tester
1 x Sampler
1 x 1M shielded wire
1 x User Manual
