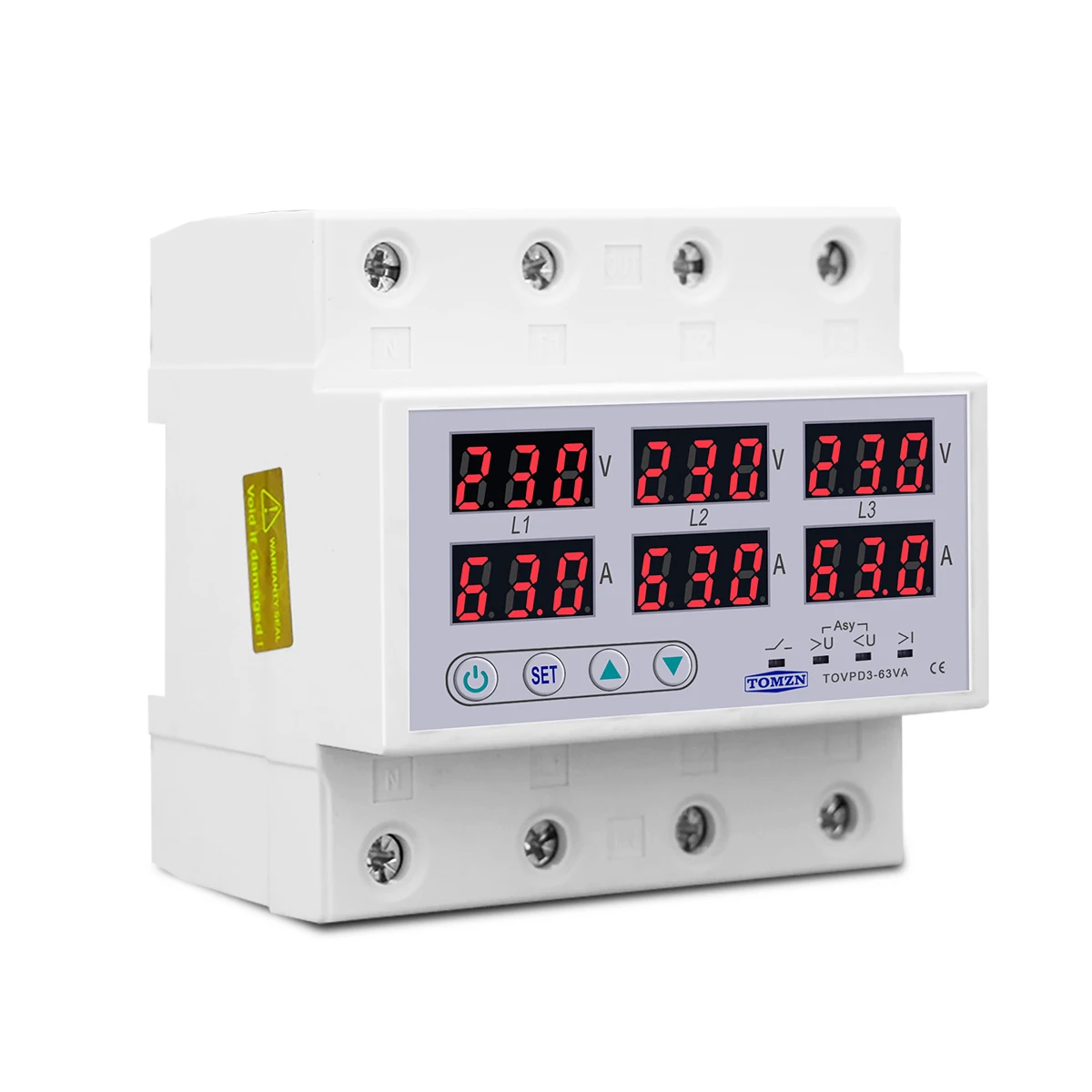

TOMZN TOVPD3-63VA/100VA 3-Phase Adjustable Voltage & Current Protector (Din Rail, 3×220V/380V)
- Hign-concerned Chemical: None
- Type: Voltage protector
- Model Number: TOVPD3-63VA/ 100VA
- is_customized: Yes
- Brand Name: TOMZN
- Origin: Mainland China
- Certification: CE
Please noted:

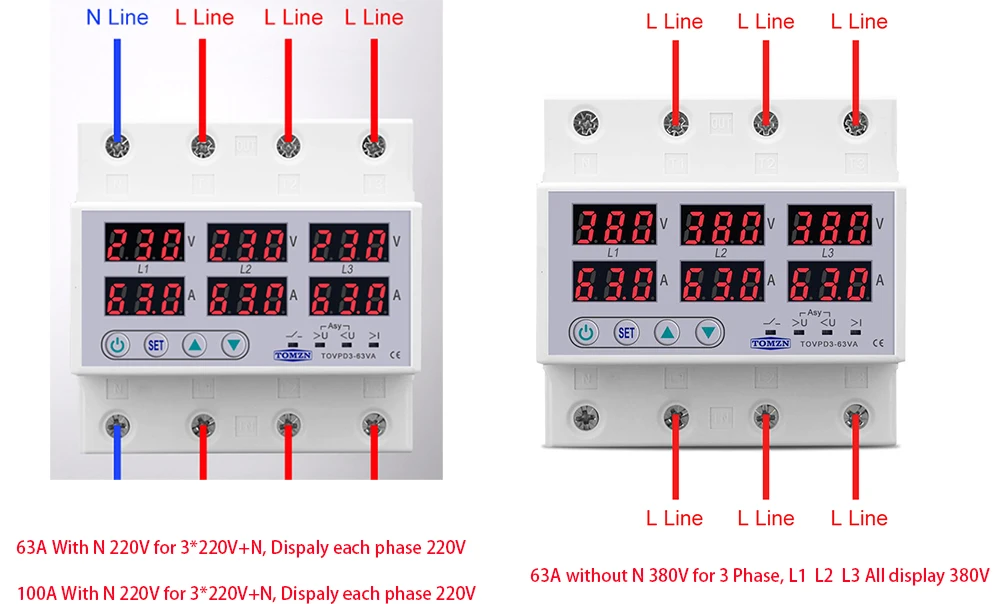

63A With N 220V for 3*220V+N, Dispaly each phase 220V
63A without N 380V for 3 Phase, L1 L2 L3 All display 380V
100A With N 220V for 3*220V+N, Dispaly each phase 220V

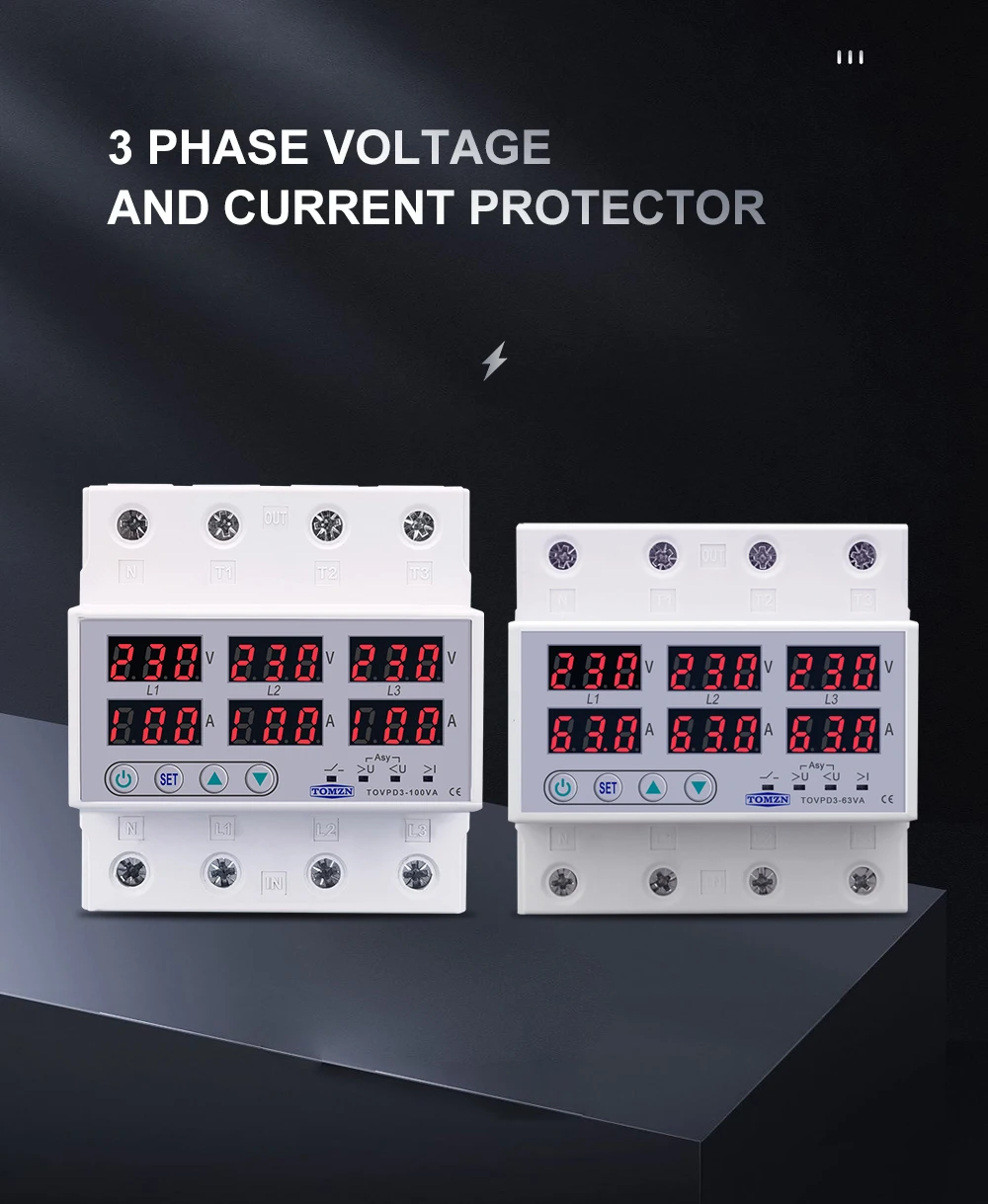

Three phase Voltage Current Relay Protector 63A 60A 100A 220V 3P+N Over Under Voltage Relay Current limiter adjustable
1.Over-voltage protection: Adjustable
2.Under-voltage protection: Adjustable
3.Over-Current protection: Adjustable
4. Asymmetry protection
5.Phase squence protection
6. Active time and reconnect time adjsutable
7. Voltage and current can be manually calibrated
| Code | Parameter | Value |
| P1 | Power On Time | 1-500S |
| U1 | Over Voltage | 230-300V |
| U2 | Recovery Voltage | 220-295V |
| U3 | Recovery Time | 1-500S |
| U4 | Power Off delay Time | 0.1-30S |
| U5 | Under Voltage | 140-210V |
| U6 | Recovery Voltage | 145-215V |
| U7 | Recovery Time | 1-500S |
| U8 | Power Off delay Time | 0.1-30S |
| U9 | Voltage Deviation | -9.5 to 9.5% |
| U10 | Asymmetry | 20-99V |
| U11 | Phase squence protect | on/off |
| C1 | Over Current | 3-63A |
| C2 | Recovery Time | 1-500S |
| C3 | Power Off delay Time | 0.1-30S |
| C4 | Current Deviation | -9.5 to 9.5% |
| C5 | Continues Over Current Times | 1-20 off |
