TOMZN TOVPD3-63VAS 3-Phase 63A Adjustable Voltage & Current Protection Relay
- Hign-concerned Chemical: None
- Type: Voltage protector
- Model Number: TOVPD3-63VAS
- is_customized: Yes
- Brand Name: TOMZN
- Origin: Mainland China
- Certification: CE
Three phase Voltage Current Relay Protector 63A 60A 100A 220V 3P+N Over Under Voltage Relay Current limiter adjustable
- ASY+SYN Two Work Mode
- Model number: TOVPD3-63VAS
- Rated voltage: 3*230V
- Current: 1-63A
- Synchronous (SYN): Three phase Relay Open Close at same time.
- Asynchronous (ASY):Three Phase Relay Work Seperately
1.Over-voltage protection: Adjustable
2.Under-voltage protection: Adjustable
3.Over-Current protection: Adjustable
4.Three-phase unbalance protection
5. Phase sequence protection
6. Active time and reconnect time adjustable

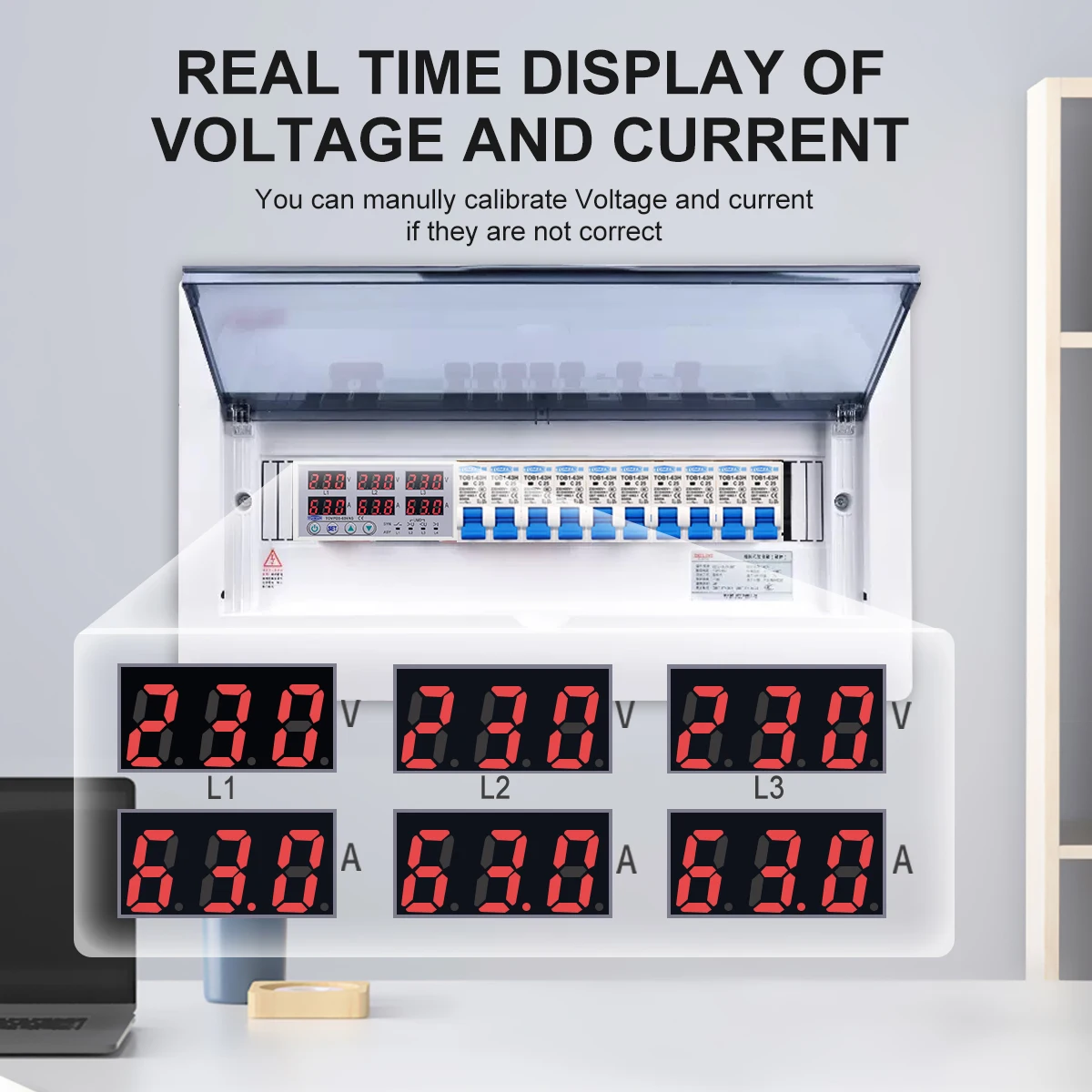

7. Voltage and current can be manually calibrated
Buy-this-product-on-Aliexpress
| Code | Parameter | Value |
| P1 | Power-on delay time | 1-500S |
| U1 | Overvoltage protection value | 230-300V |
| U2 | Overvoltage recovery value | 220-295V |
| U3 | Overvoltage recovery delay time | 1-500S |
| U4 | Over-voltage protection action time | 0.1-30S |
| U5 | Undervoltage protection value | 140-210V |
| U6 | Undervoltage recovery Voltage | 145-215V |
| U7 | Undervoltage recovery dalay time | 1-500S |
| U8 | Under-voltage protection action time | 0.1-30S |
| U9U9 | Voltage Deviation Voltage Deviation | -9.5 to 9.5% |
| U10 | Three phase unbalance value | 20-99V |
| U11 | Three-phase voltage imbalance recovery value | 15-94V |
| U12 | Phase sequence protection | ON/OFF |
| C1 | Overcurrent protection value | 1-63A/1-100A/OFF |
| C2 | Over-current recovery delay time | 1-500S |
| C3 | Over-current protention action time | 0.1-30S |
| C4 | Current error value | -9.5 to 9.5% |
| C5 | Continues Over Current Times | 1-20/OFF |
| CEL | Synchronizing or asynchronous control | SAY/SYN |
