TOOLTOP ET2202/ET2201 – 12V/24V Car Battery Load & Resistance Tester

ET2202: temperature test, charging capacity test, battery test (battery voltage, internal resistance, discharge current), starts-test (discharge performance), and load test (generator performance)

Overview

This Battery lnternal Resistance Tester is for starter lead-acid battery testing. lt can test 12V / 24V batteries. lt can check out the battery health, battery level, internal resistance, charging and discharging capabilities. lt have overload protection, bad contact indications, reversepolarity protection. The advantages of this meter are easy touse, precise, save to users and also save to batteries.

Features:

[Multiple Test Function]: Support for battery test (battery voltage, internal resistance, discharge current), starts-test (discharge performance), and load test (generator performance) function.

[Continuously Test]: Can check the battery status and the discharging ability, by applying low frequency signal it will not damage the battery by applying large loading for discharging, support continuously.

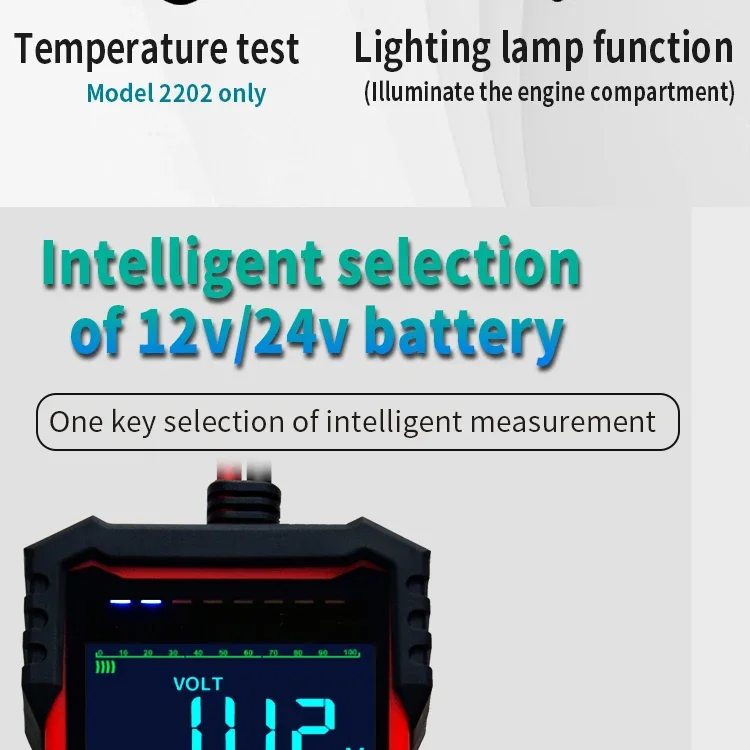

[12.0V and 24.0V Battery Test] : Automatically identify 12.0V or 24.0V batteries, one button selection of intelligent measurement.

[Multiple Protections]: Support input overvoltage, reverse polarity connection, high voltage connection protections and poor contacts of test clip.

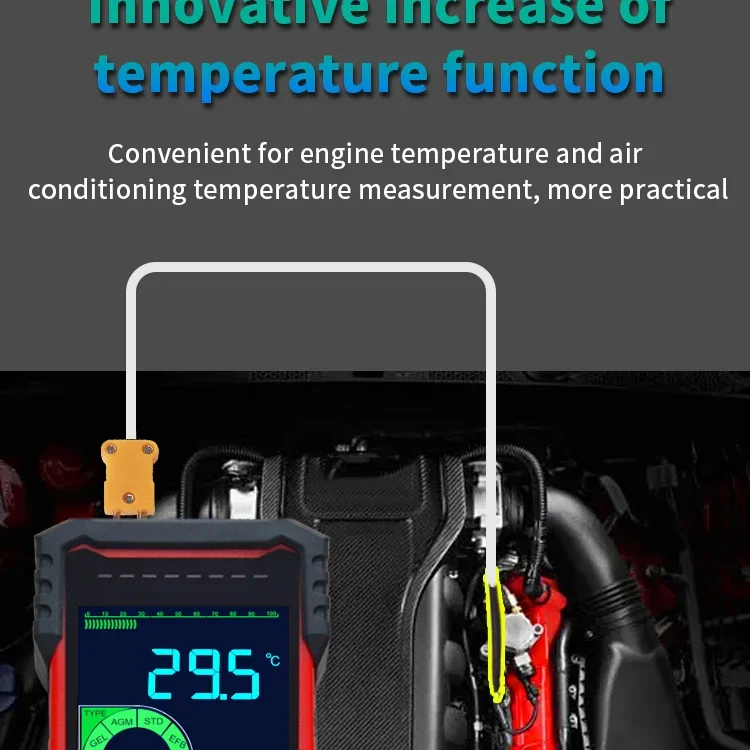

[Innovative Temperature Function] (ET2202 only): Convenient for engine temperature and air conditioning temperature measurement, more practical.

[Color LCD Display]: 3.2inch large LCD color screen for display functions status measuring results, analogue bargraph shows the battery lifespan after finishing tests.

[Superior Materials]: The housing is made of TPR materials, more comfortable to use and more comprehensive protections.

[Easy Operation]: Allow to connect batteries in cars, It do not need to take the battery out for test.

[High Compatibility]: Various types of batteries EN, IEC, CCA, SAE, DIN.

[Copper Wire Clip]: All copper material of red and black wire clamp, more than 10000 occlusion tests, more reliable to use.

Buy-this-product-on-Aliexpress

Specifications:
Name: Intelligent Battery Tester
Material: TPR+plastics+metal
Type: ET2201, ET2202 (optional)
Battery support: 12.0V/24.0V activated leadacid battery

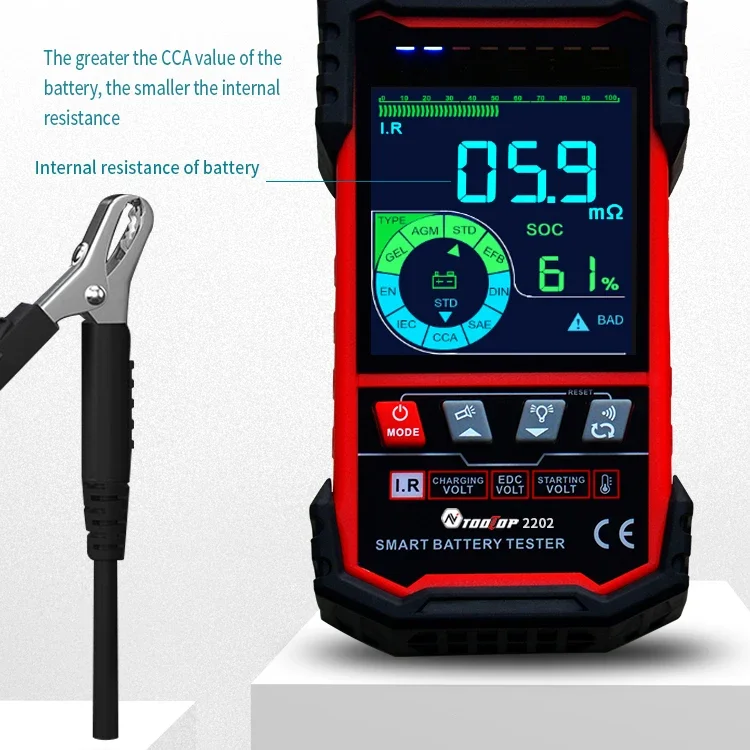

Internal resistance measurement: Support
Current of discharge: Support
Analysis of lifespan: Support
Electric quantity detection: Support
Ability to starts: Support
Quality of battery: Support
Function of lighting: Support
Car starting test: Support
Temperature detection: ET2202 Only
Vehicle charging capacity: ET2202 Only
Vehicle load measurement: Support
Range CCA: 100-1999
Range of capacity: ЗАН-250AH
Test method: Four-wire Kelvin test
Battery selection criteria: STD/AGM/GEL/EFB/EN/IEC/CCA/SAE/DIN
Power supplys: supplied by the tested battery or type-c power supply（ type-c power supply only for ET2202 when using temperature detection）
Other: White backlight, overvoltage protections, reverse input protections
Screen size: 55 * 57mm / 2.17 * 2.24in
Package size: 216 * 145 * 49mm / 8.50 * 5.71 * 1.93in
Package weight:
ET2201: 489g / 1.08lb
ET2202: 524g / 1.16lb

Packing List (ET2201):
1 * Intelligent Battery Tester
1 * Guideline

Packing List (ET2202):
1 * Intelligent Battery Tester
1 * Temperature Probe
1 * Power Line
1 * Storage Bag
1 * Guideline

Note: The power supply method of the product is through the measured battery. If the measured battery voltage is below 8V and the product cannot work, please fully charge the battery before conducting the measurement

Detail Pictures:
