TopDiag P100 Automotive Power Circuit Probe Kit Circuit Tester

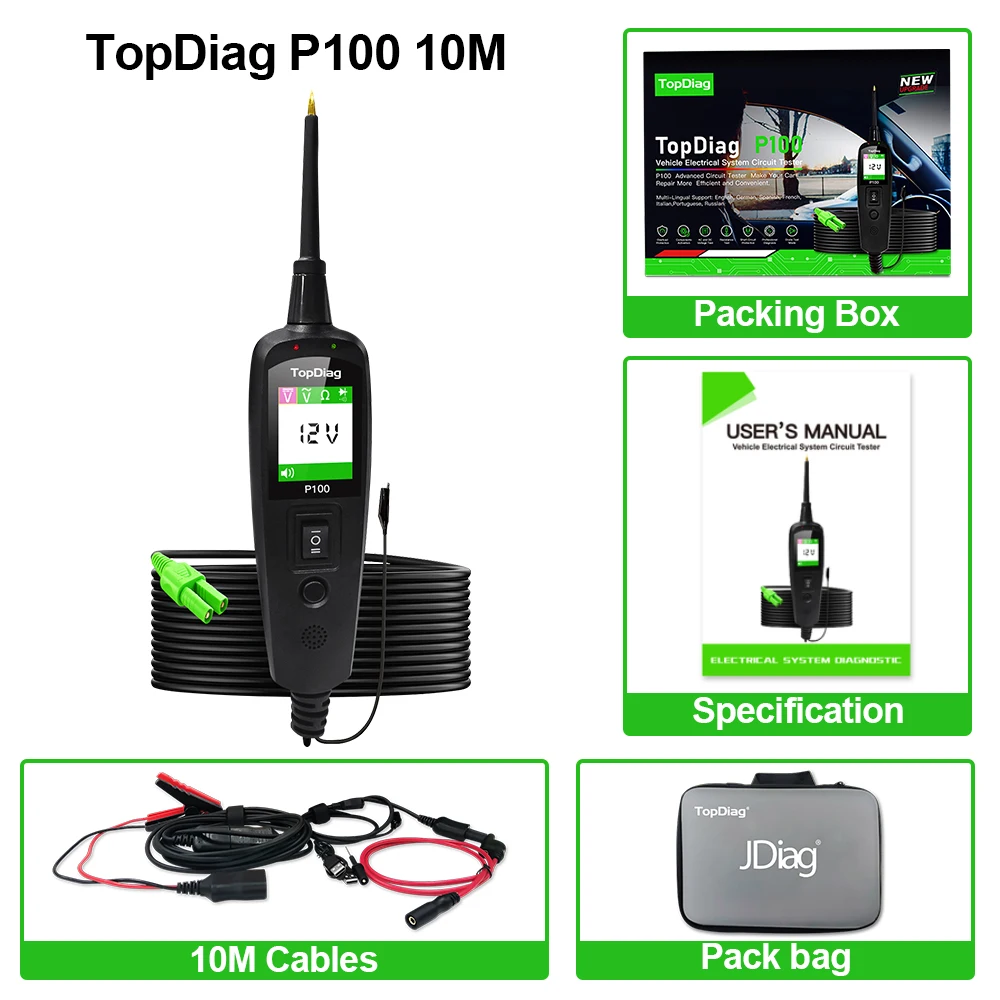

2M don’t come with bag ,10M come with bag,show on link video is 10M，if you want bag ,please buy 10m Specification
General description tool is the best electrical tester, reducing diagnostic time in all 6-30V at vehicle electrical systems after a simple hook-up of the tool to the vehicles’s battery, you can:
1. Determine at a glance if a circuit is positive, negative or open without having to reconnect clips from one battery pole to another.
2. Test for continuity with its built -in auxiliary ground lead.
3. By depressing the own switch of tester electric, conduct a positive or negative battery current to the probe tip for testing the function of an electrical component without the use of jumper wires.
4. Test for poor ground contacts of this circuit tracer instantly without performing voltage drop tests, the tool is also short-circuit protected its internal circuit break will trip if it becomes over loaded.
About P100 Automotive Circuit Tester:
Red/Green Polarity Indicator (Positive/negative and tests in different modes will show red/green indicator lights).
LCD HD Color Display (Adopt LCD color screen, the screen is clearer and the data is more intuitive).

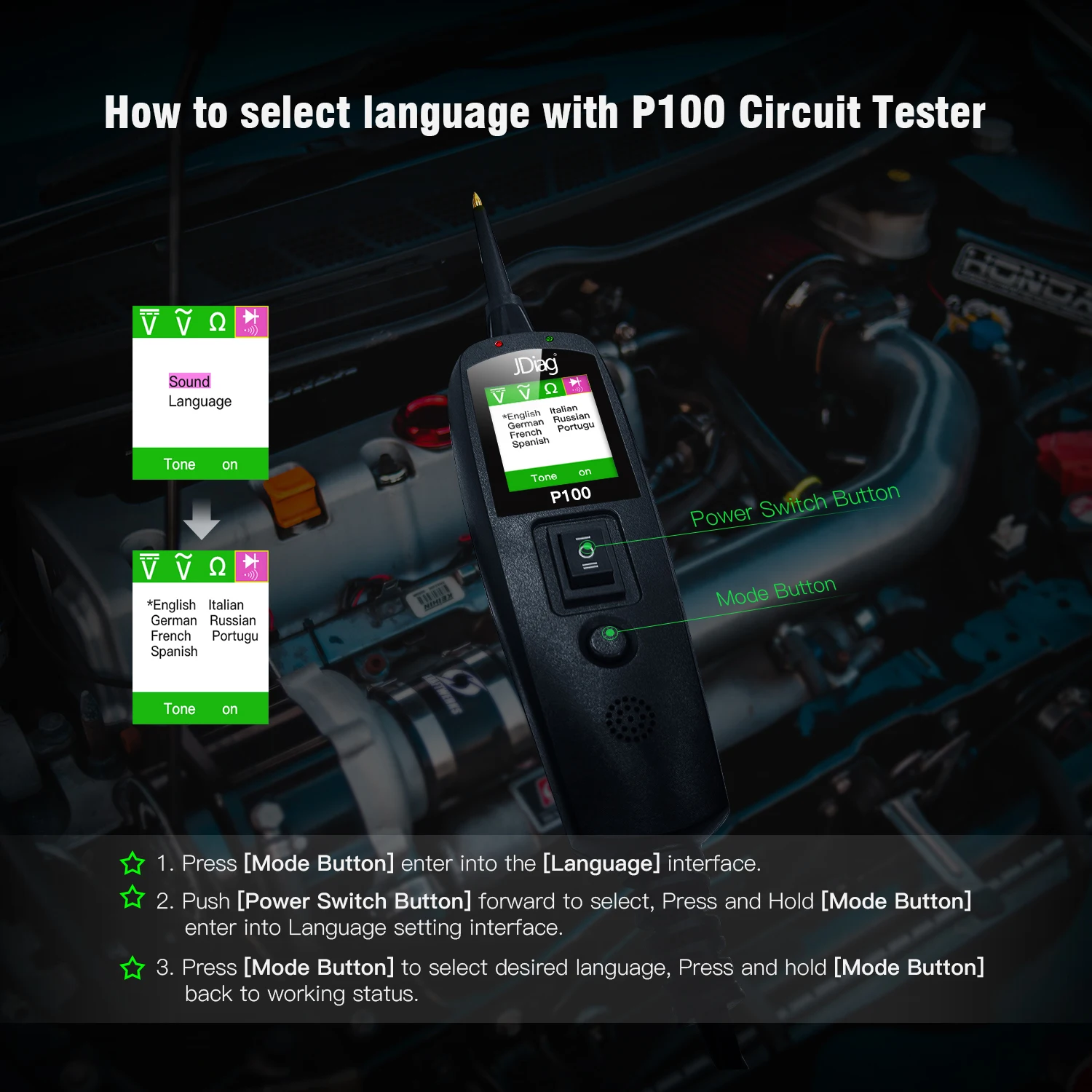

Multi Languages Support : English, German, French, Spanish, Italian, Russian, Portuguese.
Buy-this-product-on-Aliexpress

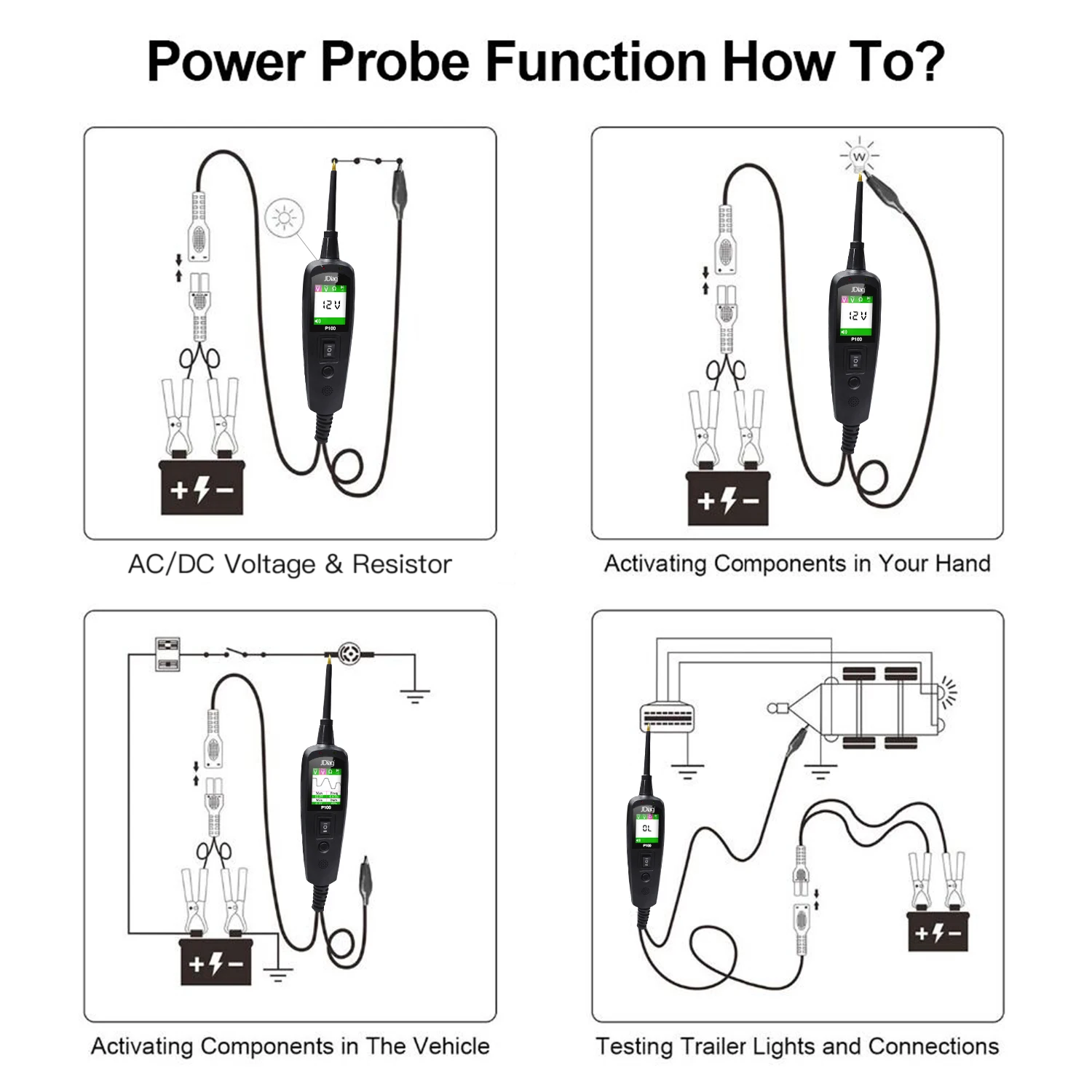

1. Voltage & Polarity Testing-Determine DC/AC Voltage and Postive/Negative quickly.
2. Resistance Continuity Testing- LCD Screen display the value of resistance.
3. AC Circuit Singal Testing- Fast to trubleshoot the sensors circuit problem.
4. Components Activation in your hand, in the vehicle or W/Ground.
5. Testing Trailer Lights and Connections-10M extension cable allow your to test Cars or Trucks.
6. Checking for Bad Ground Contacts and Locating Short Circuits.
What are the advantages of the product？
Purpose of the P100 Power Circuit Probe Kit :
* Diagnose battery Status
* AC/DC voltage, resistance, diode test
* Componet activation
* Find short circuit
* Find the broke wire
* Find the bad ground
* Testing trailer lights
* Check continuity
* 20Ft extension cable
Specifications:
1. Display: TFT color display (160 x 128 dpi)
2. Operating Temperature: 0 to 60°C (32 to 140 F°)
3. Storage Temperature: -40 to 70°C (-40 to 185 F°)

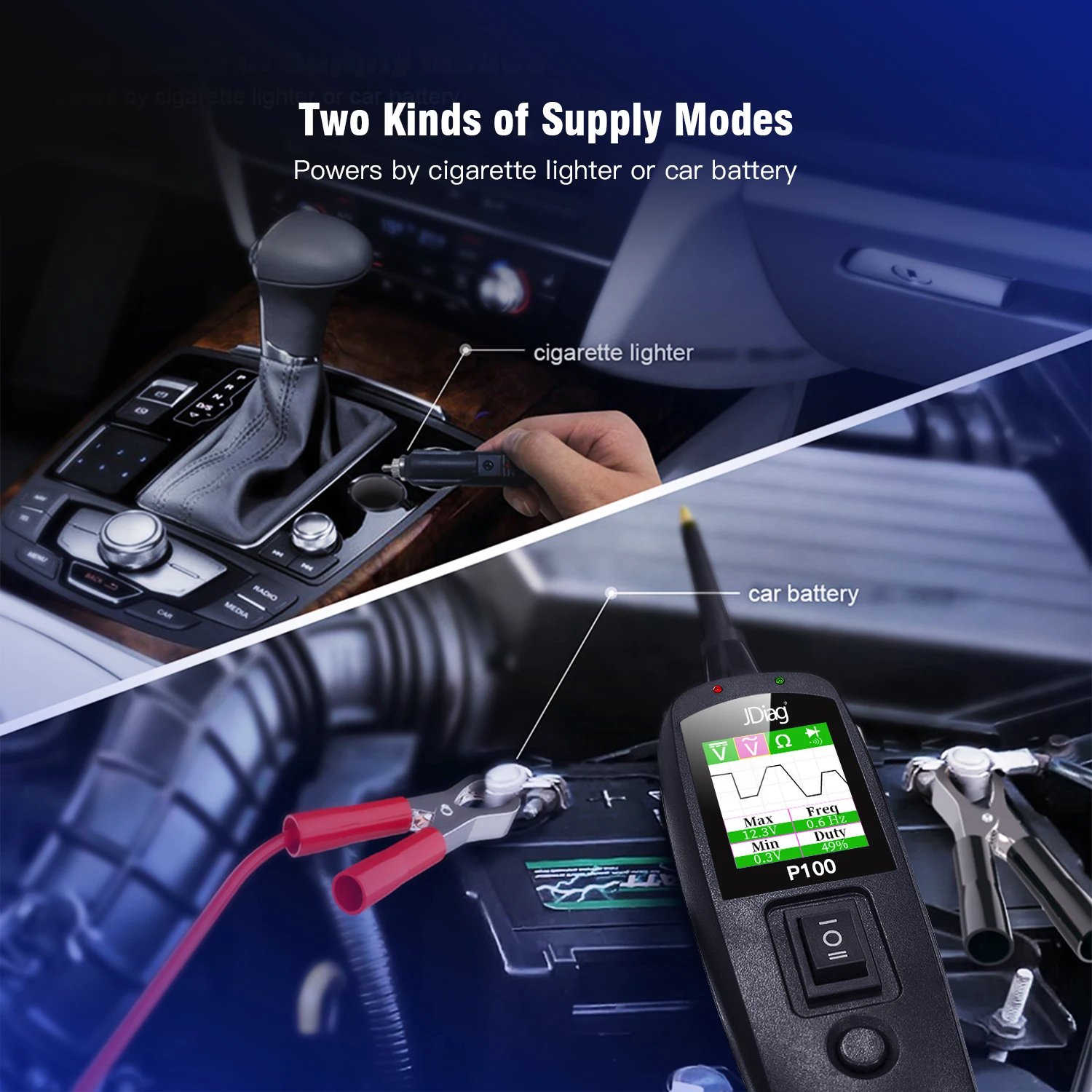

4. External Power: 12.0 or 24.0V power provided via vehicle battery
5. Dimensions: Length 165 mm * Width 40 mm * Height 27 mm
Test Tool Specifications:
DC voltage range : 0-65V +1 digit
Resistance range : 0-200 K ohm
Frequency response of tone pass through
0Hz to 10K hz.
Circuit Breaker
Rating current: 1-10 Amp
Testing Standard:
100% current : no trip
150% current : trip in one hour
200% current : trip in 3-30 seconds.
300% current : trip in 0.5-4.0 seconds.
Buy-this-product-on-Aliexpress
contents the circuits or component to be tested
illuminate dark work areas or work areas at night
identifies positive, negative or open circuits the red indicator lights when the probe tip is contacting a positive circuit the green indicator lights when the probe tip is contacting a negative circuit
indicates test results
allows you to conduct a positive or negative battery current to the tip for activating and testing the function of electrical components

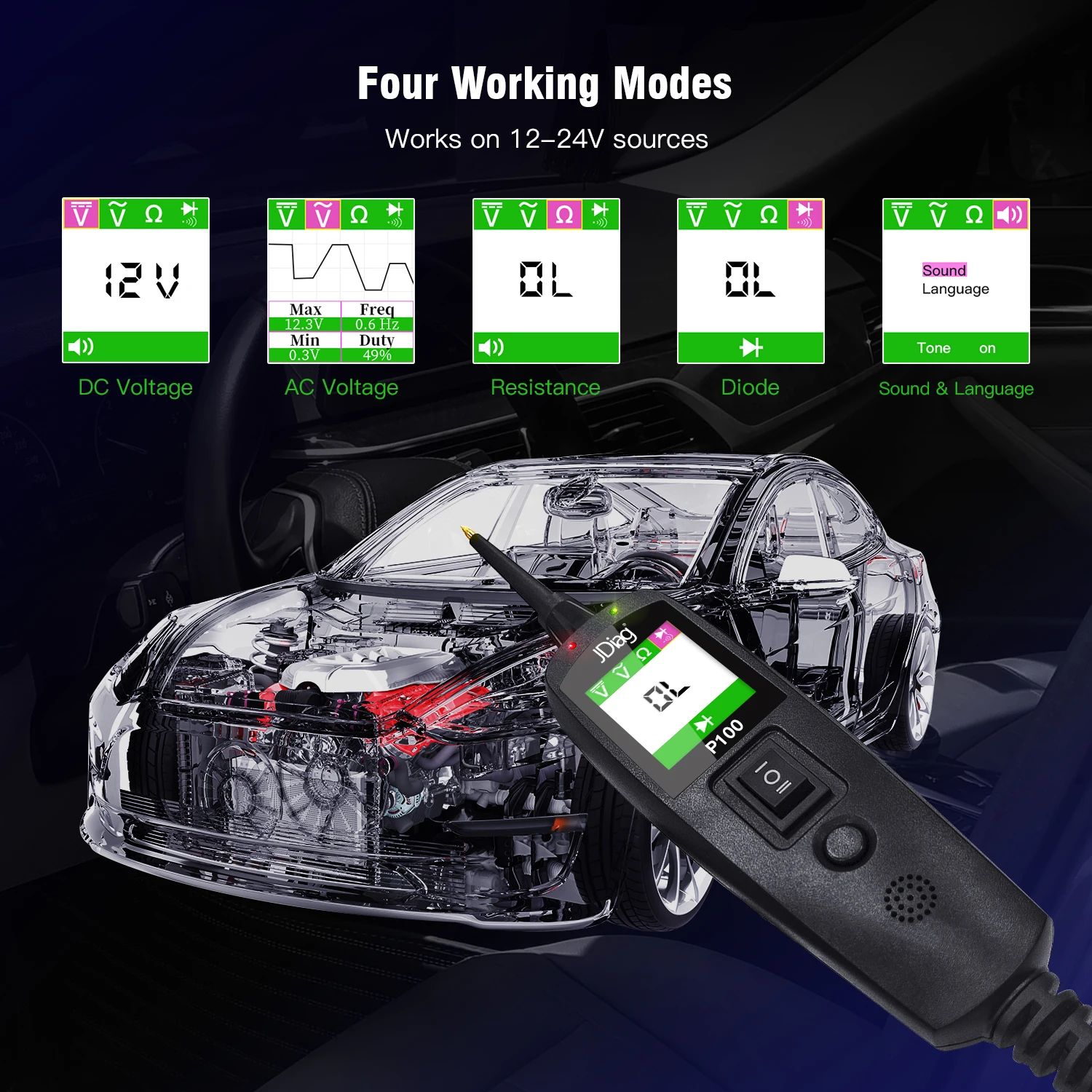

selects the work mode: AC voltage, DC voltage, resistance, Diode
when the audio tone is turn on a beep will be heard
assist test as a ground lead
connects to the battery
