Ultrasonic Thickness Gauge LS211

Ultrasonic Thickness Gauge LS211

Model Number: LS211
Brand Name: Kaalee
Origin: Mainland China
Certification: CE
Model Number: LS211
Measuring Range: 0.8-600mm(45#steel)
Resolution: 0.8-10mm:0.001mm;10-100mm:0.01mm;100-600mm:0.1mm
Accuracy: 0.8-10mm:±0.05mm;10-600mm:±0.5% reading

Mô tả
Đánh giá (0)

Ultrasonic Thickness Gauge LS211 5 cập nhật mới

Model Number: LS211
Brand Name: Kaalee
Origin: Mainland China
Certification: CE
Model Number: LS211
Measuring Range: 0.8-600mm(45#steel)
Resolution: 0.8-10mm:0.001mm;10-100mm:0.01mm;100-600mm:0.1mm
Accuracy: 0.8-10mm:±0.05mm;10-600mm:±0.5% reading
Sound Velocity Range: 1000~9999m/s
Probe: 5MHz diameter=10; double-crystal probe
Unit: mm/inch

0.001mm Ultrasonic Thickness Gauge LS211 Ultrasound UT Gauge for Metal Plastic Glass Ceramics
Overview

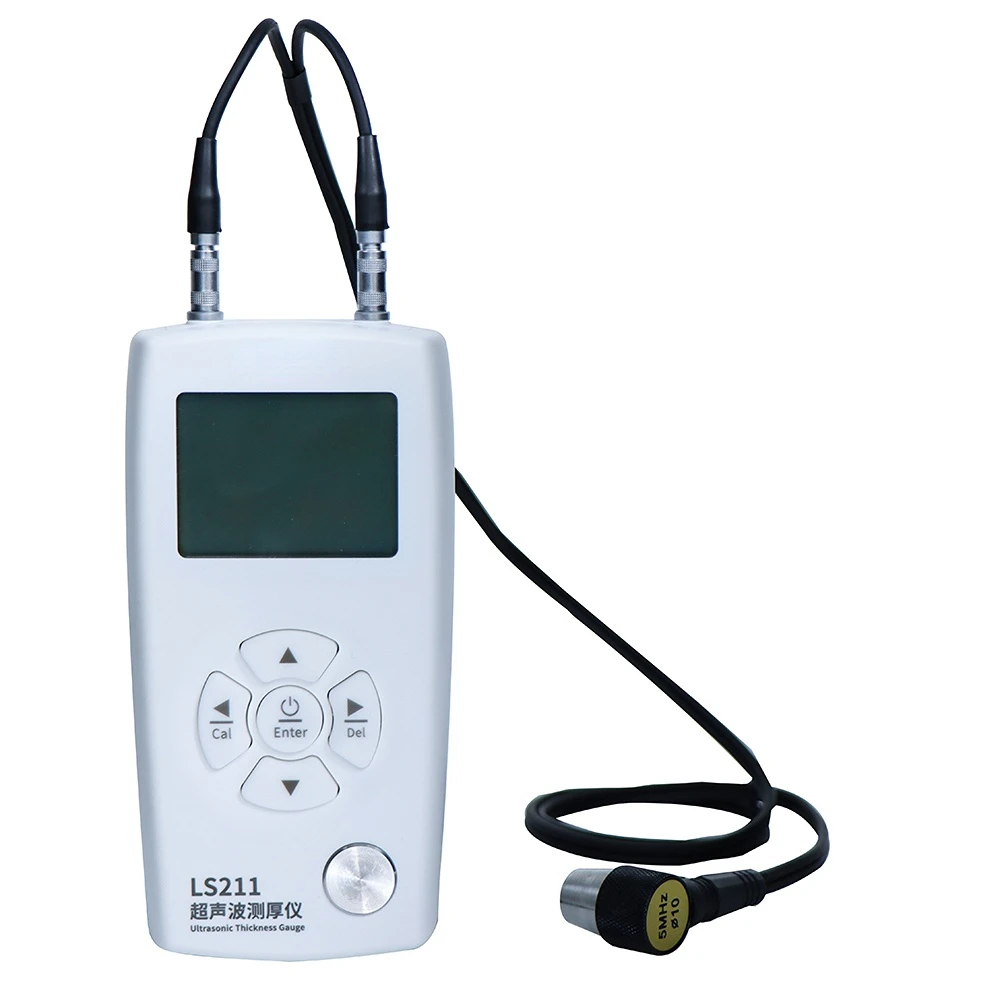

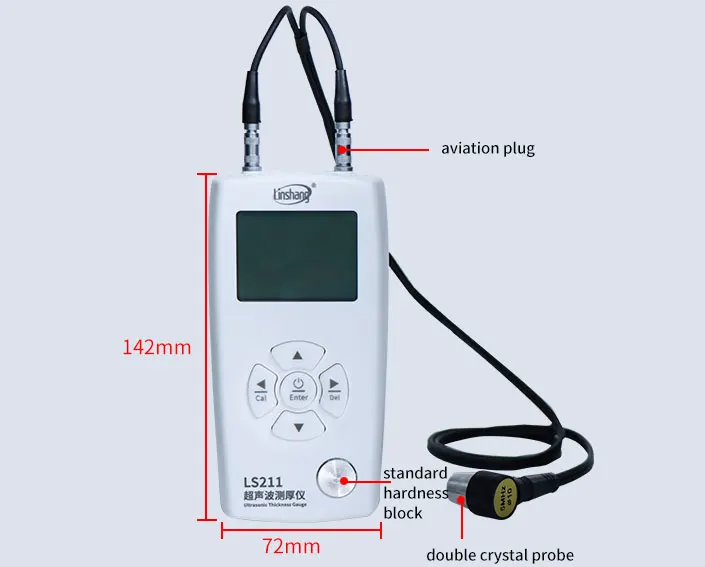

LS211 Ultrasonic Thickness Gauge

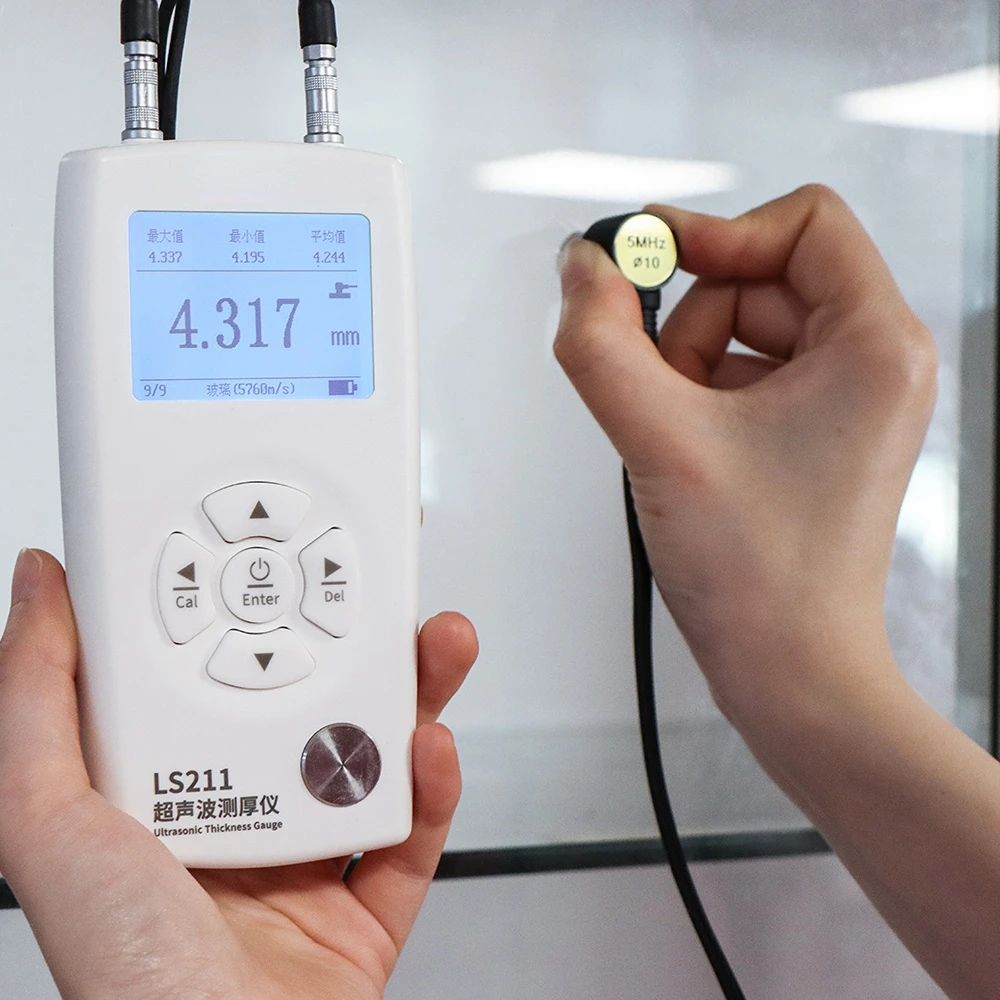

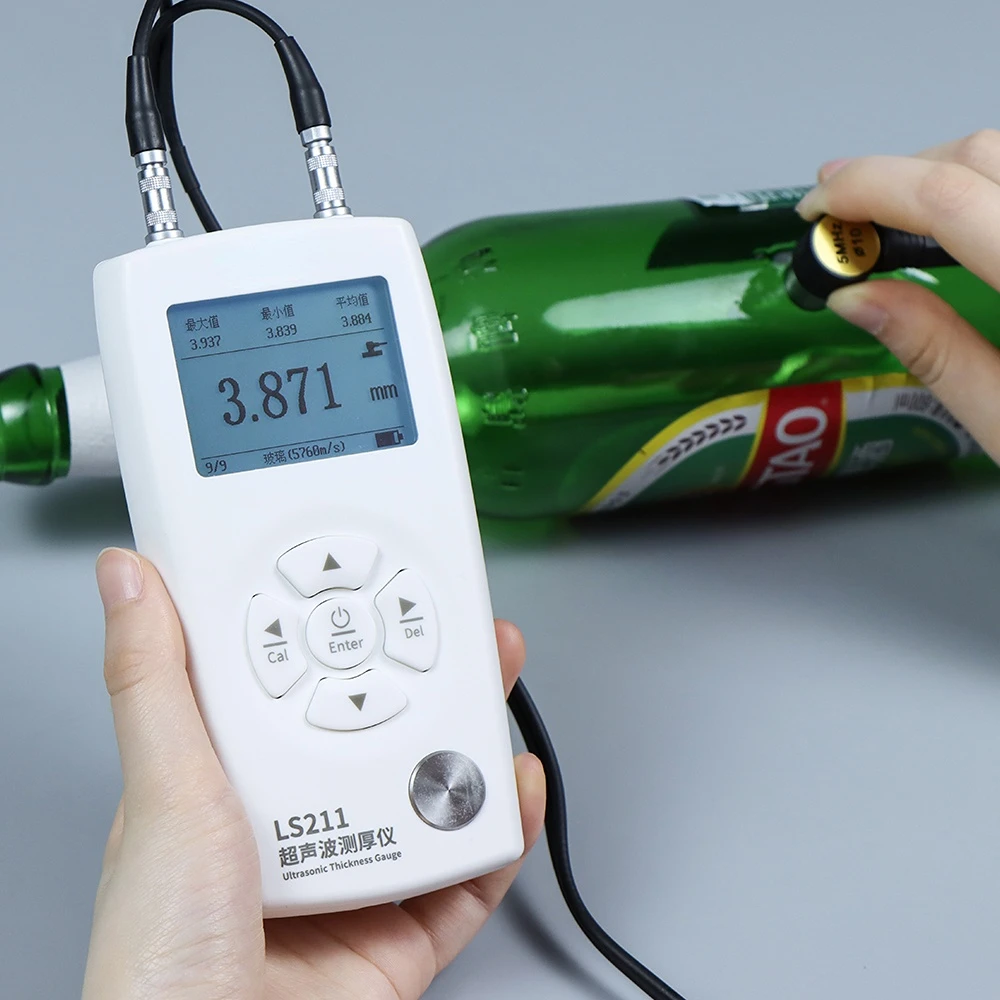

LS211 Ultrasonic thickness tester measures the wall thickness of metallic (cast iron, steel and aluminum) and non-metallic (ceramics, plastics and glass) substrates and any other ultrasonic wave-conductor using ultrasonic technology.

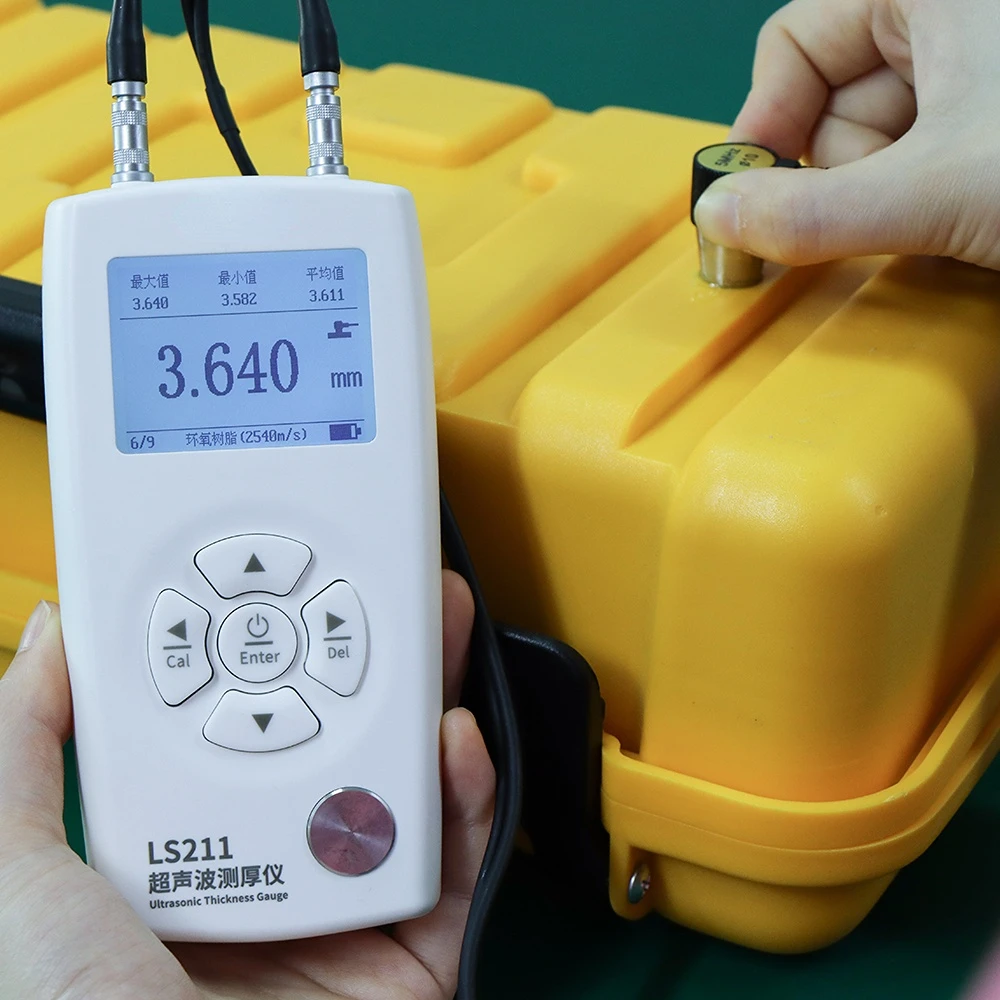

The measuring range of the thickness of LS211 is 0.8mm-600mm and ideal for measuring the effects of corrosion or erosion on tanks, pipes, or any structure where access is limited to one side.

Ultrasonic Thickness Gauge Ultrasound UT Gauge for Metal Plastic Glass Ceremics

Ultrasonic Thickness Gauge Application

In many industries, It is essential to mesure the wall thickness to confirm the condition of the material for the normal running of the items or structure safety.
LS211 ultrasonic thickness meter can be widely used in testing the thickness of various accessories or metallic structure to check them whether to be repaired or changed such as ships, tanks, pipes or steel structure.
The gauge is applicable for petroleum, chemical, metallurgical, shipbuilding, aviation and aerospace various fields.

Features

1. Excellent Timer chips provide fast, accurate readings

LS211 ultrasonic thickness gauge calculates the material thickness by sound velocity and the time taken between the emitted pulse and the detected echo, a precision timing chip can bring the user the accurate time to get the accurate data

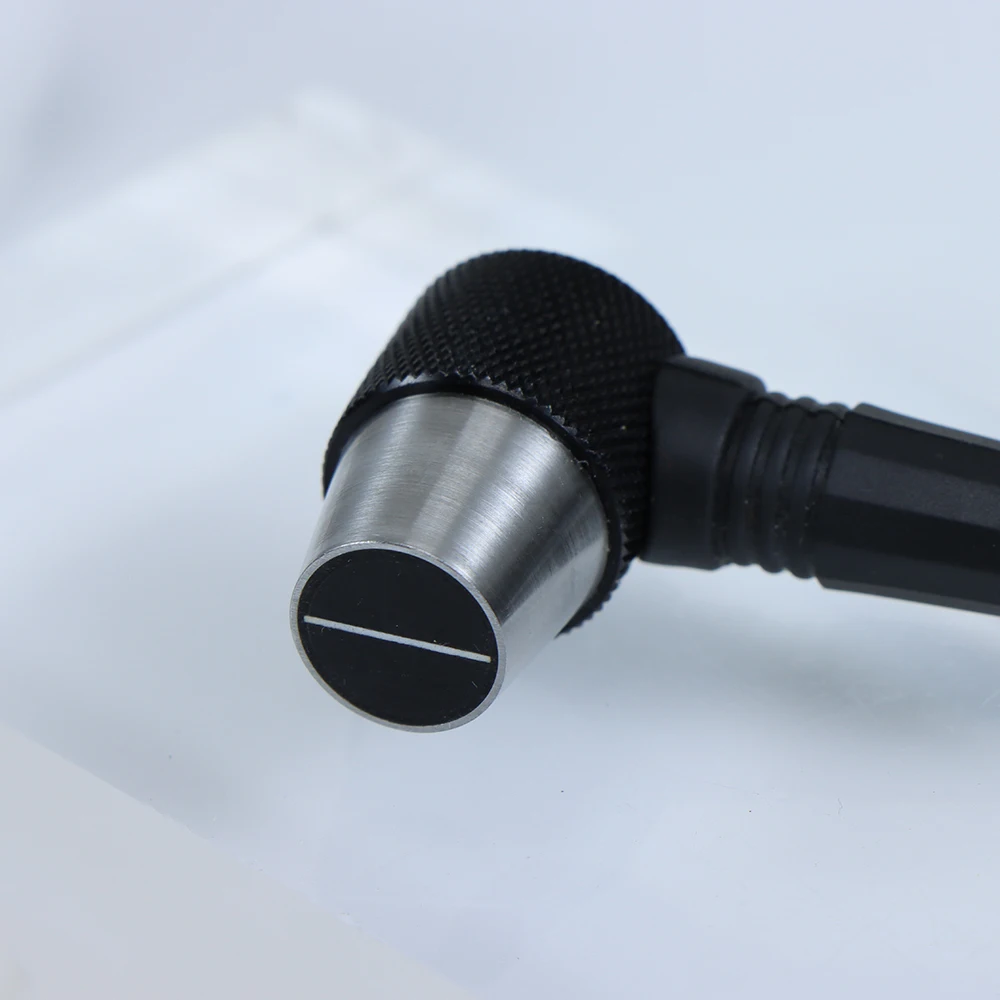

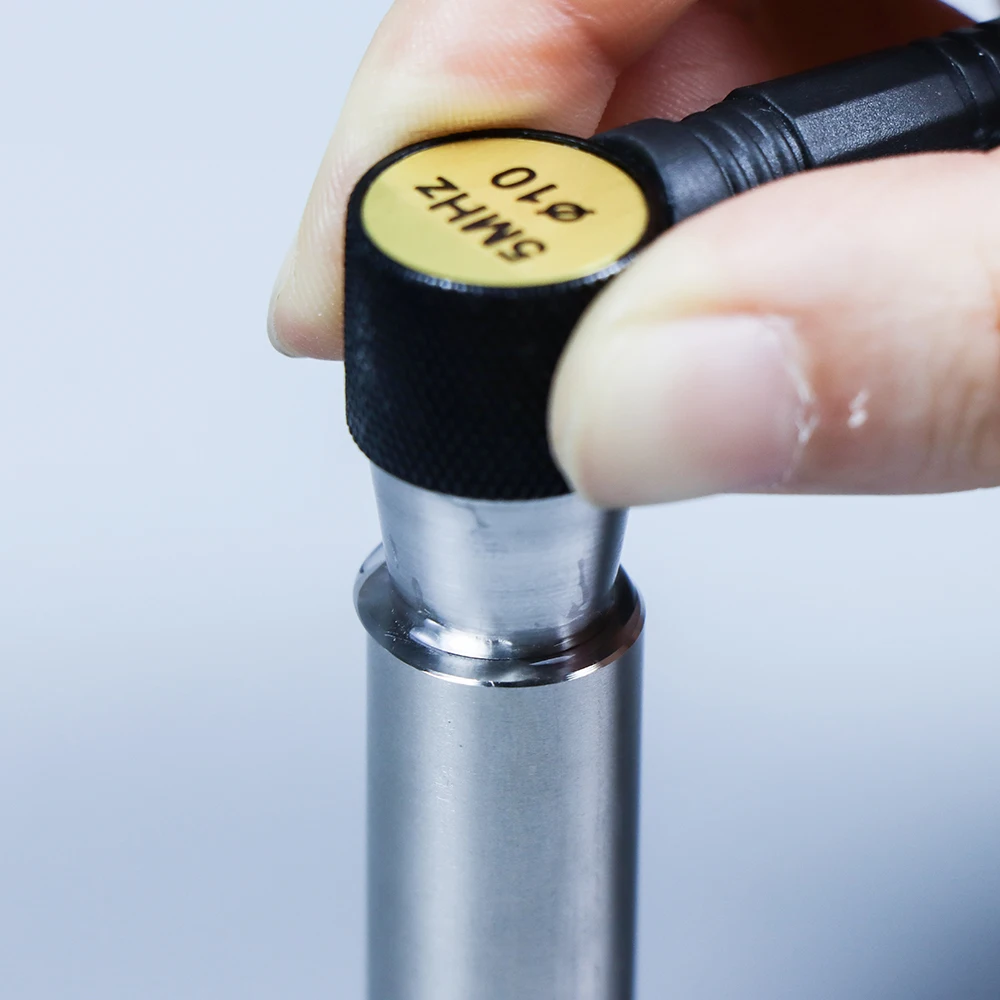

2. Ultrasonic double crystal probe

The gauge probe employs a double crystal transducer consisted of two independent crystals separated by an acoustic barrier. One crystal sends ultrasonic pulses, and another is responsible for receiving them.
The probe is highly sensitive and can effectively reduce clutter, and the probe housing is made of stainless steel, which is hard and durable

3. Automatic Gain switchable

Some materials are good conductors of sound and some are not. For the latter, the meter can switch the Gain freely which is to amplify the ultrasonic signal so that the emitted pulse is accurately captured by the transducer as it propagates, and obtains accurate data

4. Two measurement modes: QC Mode/Statistics Mode

LS211 ultrasonic thickness tester features two measurement mode: QC mode and statistics mode. Allowing to set upper and lower limits to check the problem areas by prompting NG under the QC mode.

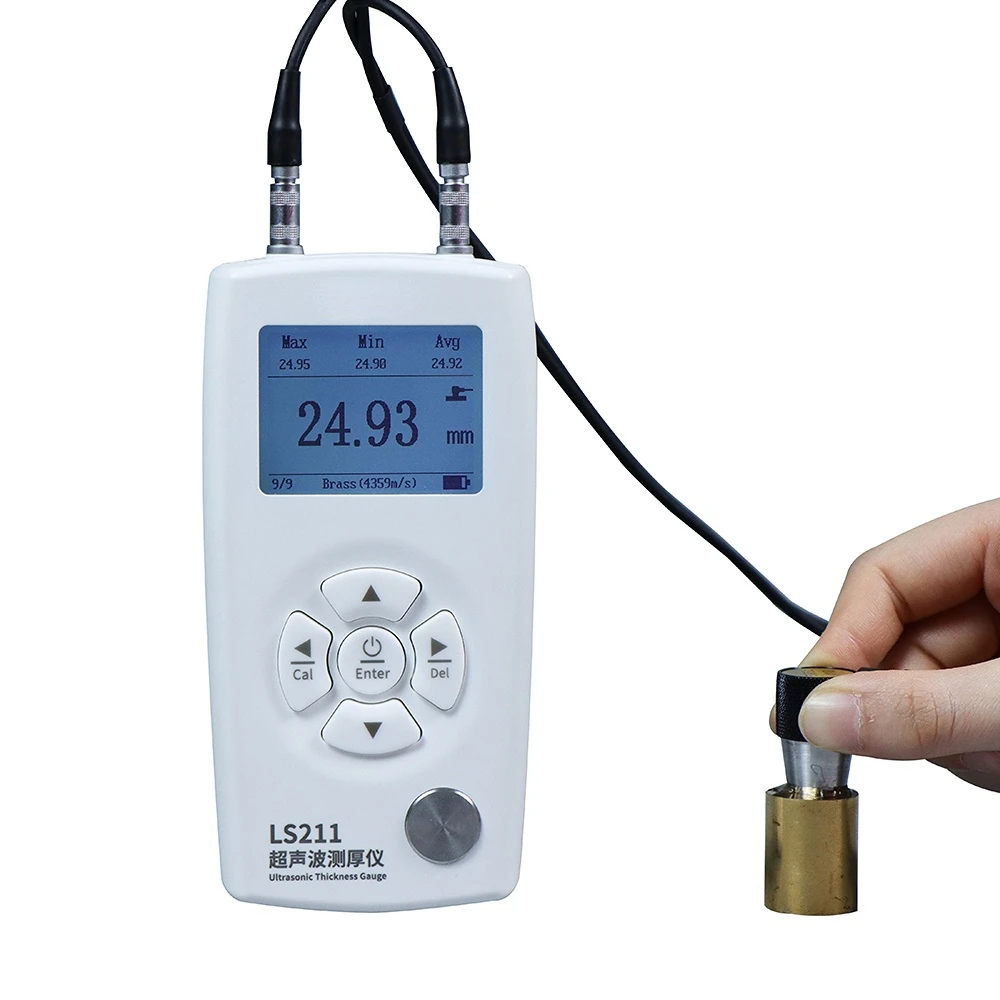

It will count maximum, minimum and average values of data in Statistics mode.

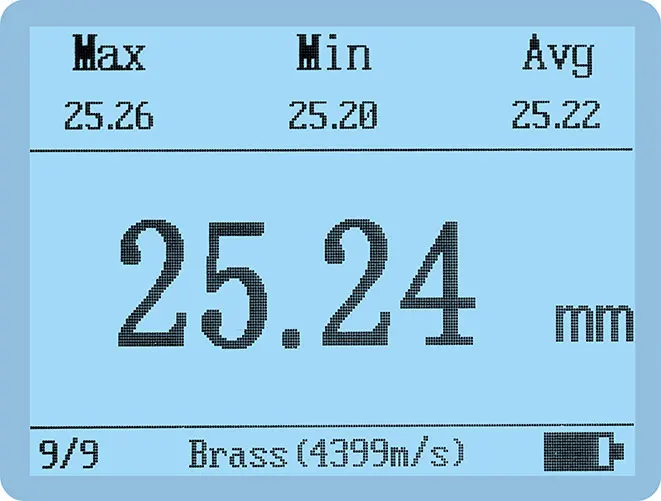

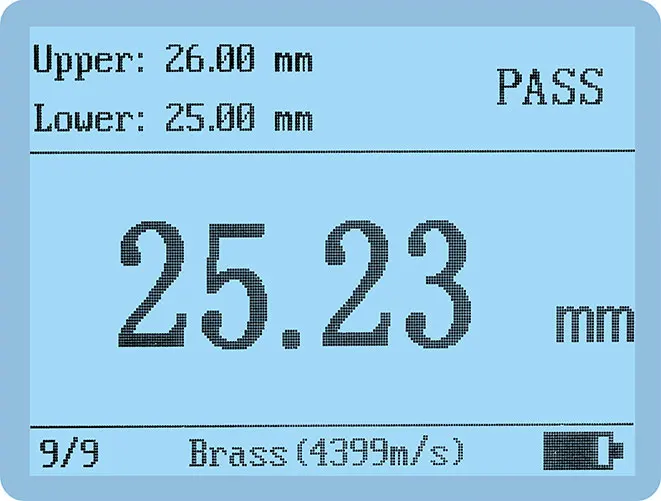

Statistics mode QC mode

5. Built-in sound velocity of multiple materials

LS211 already contains the velocities of several common metallic (such as iron, copper, aluminum) and non-metallic materials (plastics, ceramics, plexiglass) as well as other objects and the user are not required to find them separately

6. Sound velocity can be measured according to thickness

The tester can reverse the sound velocity of the material based on the known thickness and measurement results. And the instrument can test irregular materials of the same components as the materail whose thickness can be measured

7. Large measuring range of thickness

With a wide mesuring range of material, the LS211 can detect materials from as thin as 0.8 mm to 600 mm. Its resolution can reach to 0.001mm when measuring the objects 0.8mm-10mm

Paramenters
