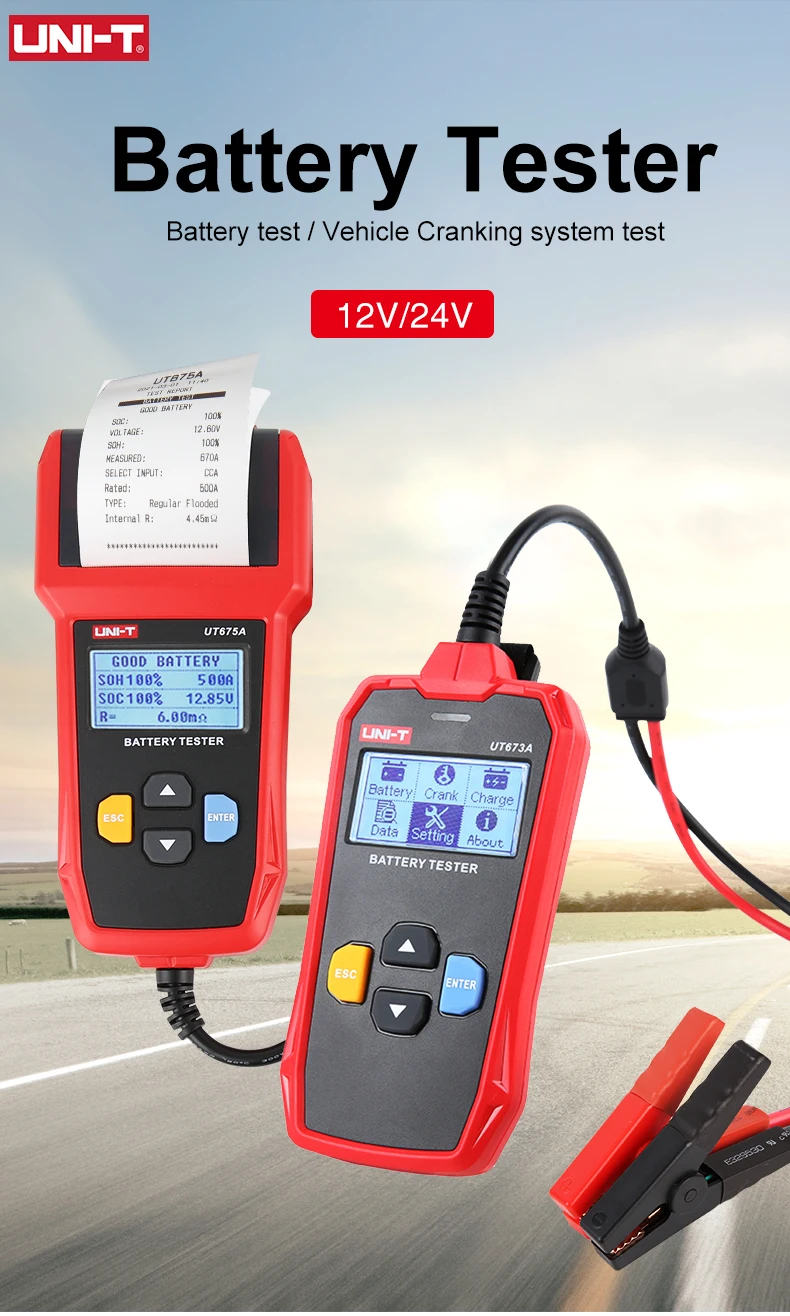

UNI-T Battery Tester UT673A / UT675A
- Model Number: UT673A UT675A Automotive Battery Tester
- Type: Vehicle Battery Tester
- DIY Supplies: ELECTRICAL
- Brand Name: UNI-T
- Origin: Mainland China
- Certification: CE,FCC
- 12V/24V cranking system test: 7~30V DC
- Over voltage protection: Yes
- Automotive Tester: Voltage tester
- Battery test: Battery capacity indicator
UT673A / UT675A Battery Tester
UT673A/UT675A battery testers can be used to analyze the battery health of automobile batteries, suitable for battery capacities from 3 to 250Ah. These CE certified testers can rapidly and accurately detect common faults caused by battery. UT675A also includes USB communication and built-in printer for report generation.
Features
1. 12V cranking lead acid battery test
2. 12/24V charging or cranking system test
3. Display battery capacity, voltage, resistance and life
4. Four-termina Kelvin test
5. 10 types of battery standards
6. Language option (Chinese/English)
7. Test without battery disassembly
8. LED color indication for test result (UT673A)
9. Print on-line and real-time test reports (UT675A)
10. USB data transfer (UT675A)

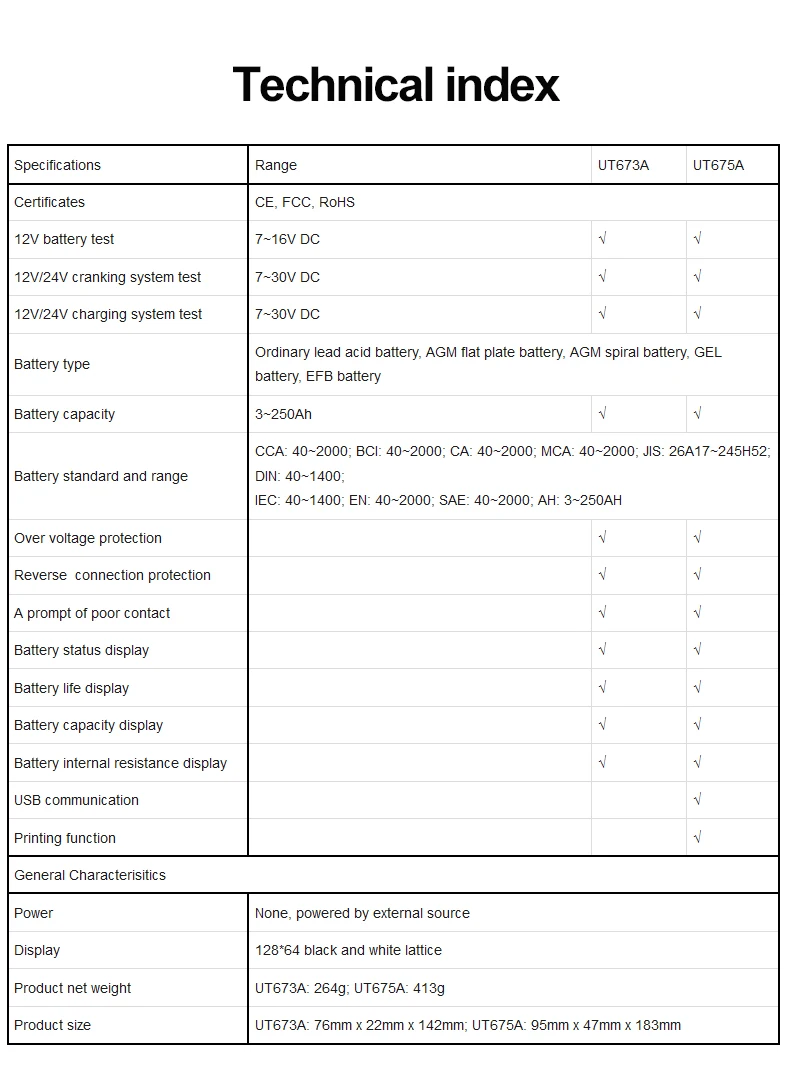

Parameter
Specifications | Range |
UT673A |
UT675A |
Certificates | CE, FCC,RoHS | ||
12V battery test | 7~16V DC | √ | √ |
12V/24V cranking system test | 7~30V DC | √ | √ |
12V/24V charging system test | 7~30V DC | √ | √ |
Battery type | Ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, GEL battery,EFB battery | ||
Battery capacity | 3~250Ah | √ | √ |
Battery standard and range | CCA:40~2000; BCI: 40~2000; CA: 40~2000; MCA: 40~2000; JIS: 26A17~245H52; DIN:40~1400; | ||
IEC: 40~1400; EN: 40~2000; SAE: 40~2000; AH: 3~250AH | |||
Over voltage protection | √ | √ | |
Reverse connection protection | √ | √ | |
A prompt of poor contact | √ | √ | |
Battery status display | √ | √ | |
Battery life display | √ | √ | |
Battery capacity display | √ | √ | |
Battery internal resistance display | √ | √ | |
USB communication | √ | ||
Printing function | √ | ||
General Characterisitics | |||
Power | None,powered by external source | ||
Display | 128*64 black and white lattice | ||
Product net weight | UT673A: 264g; UT675A: 413g | ||
Product size | UT673A: 76mm x 22mm x 142mm; UT675A: 95mm x 47mm x 183mm |
![UNI-T Battery Tester UT673A / UT675A 1 UNI-T Battery Tester UT673A / UT675A](https://ae01.alicdn.com/kf/H8d51c7a292a342f7b5d872904f01cd15o.jpg)

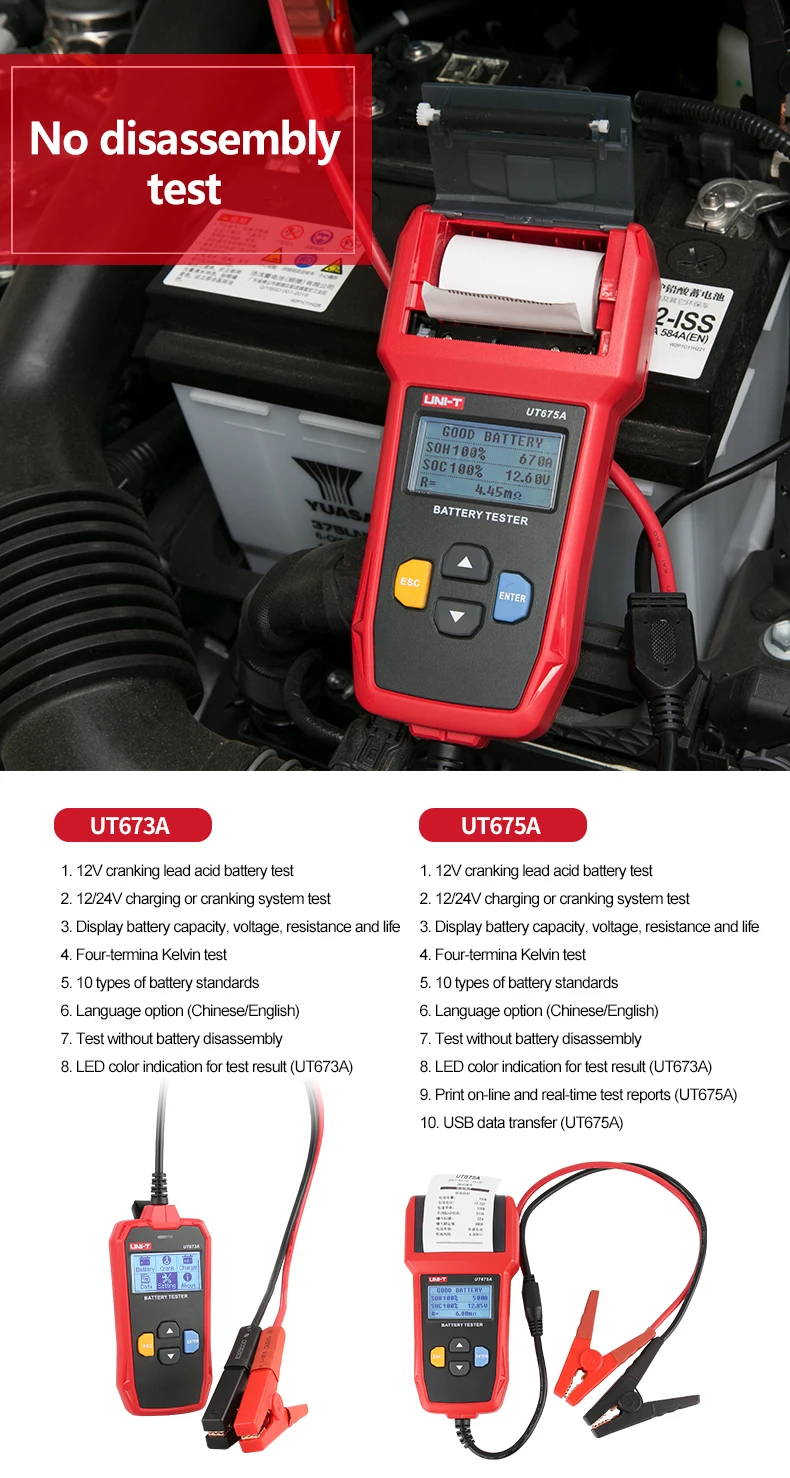

Easy to measure
Direct measurement. No need to remove the battery.
![UNI-T Battery Tester UT673A / UT675A 3 UNI-T Battery Tester UT673A / UT675A](https://ae01.alicdn.com/kf/Hf096ffa871704026b944bbbaf34cf76cU.jpg)

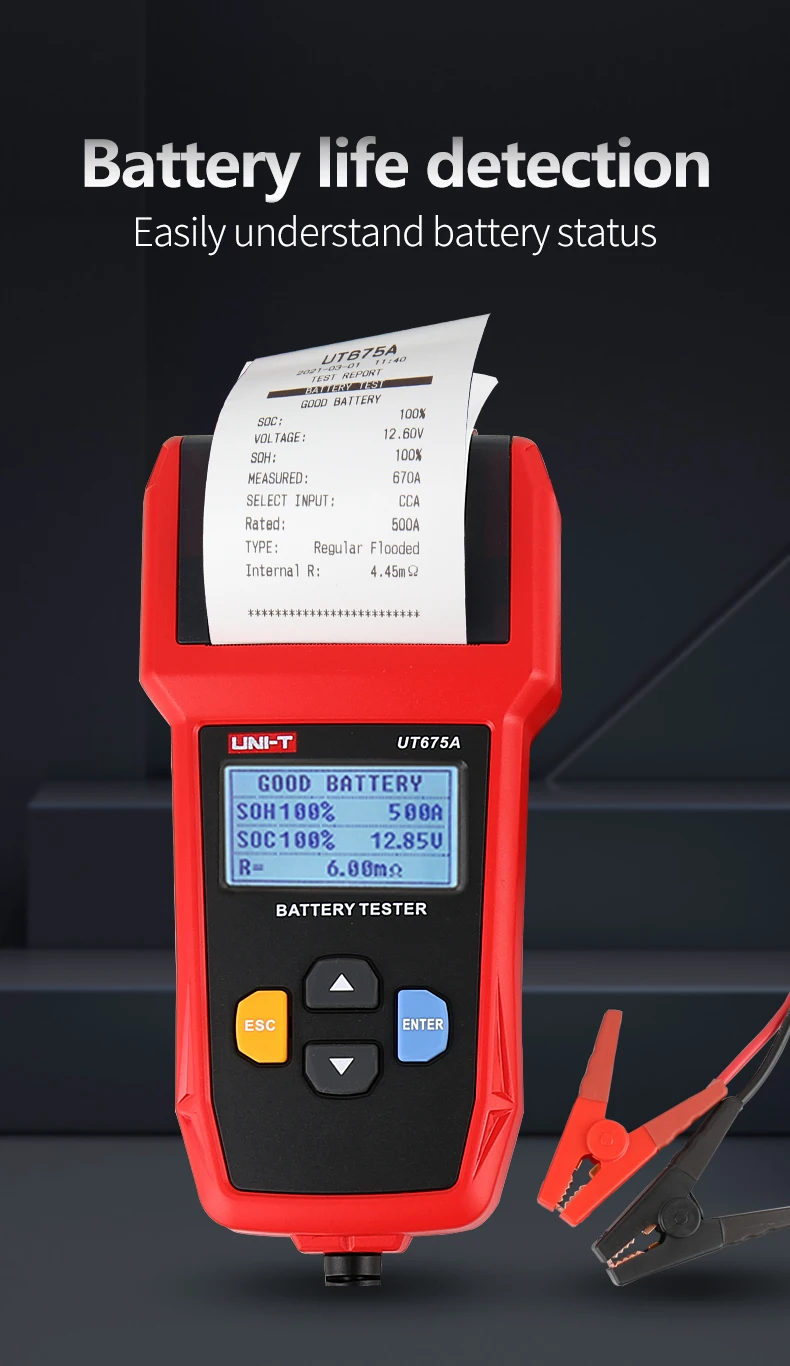

Battery life display
![UNI-T Battery Tester UT673A / UT675A 4 H6920bedb843c4329bb996a28dba55fe13](https://ae01.alicdn.com/kf/H6920bedb843c4329bb996a28dba55fe13.jpg)

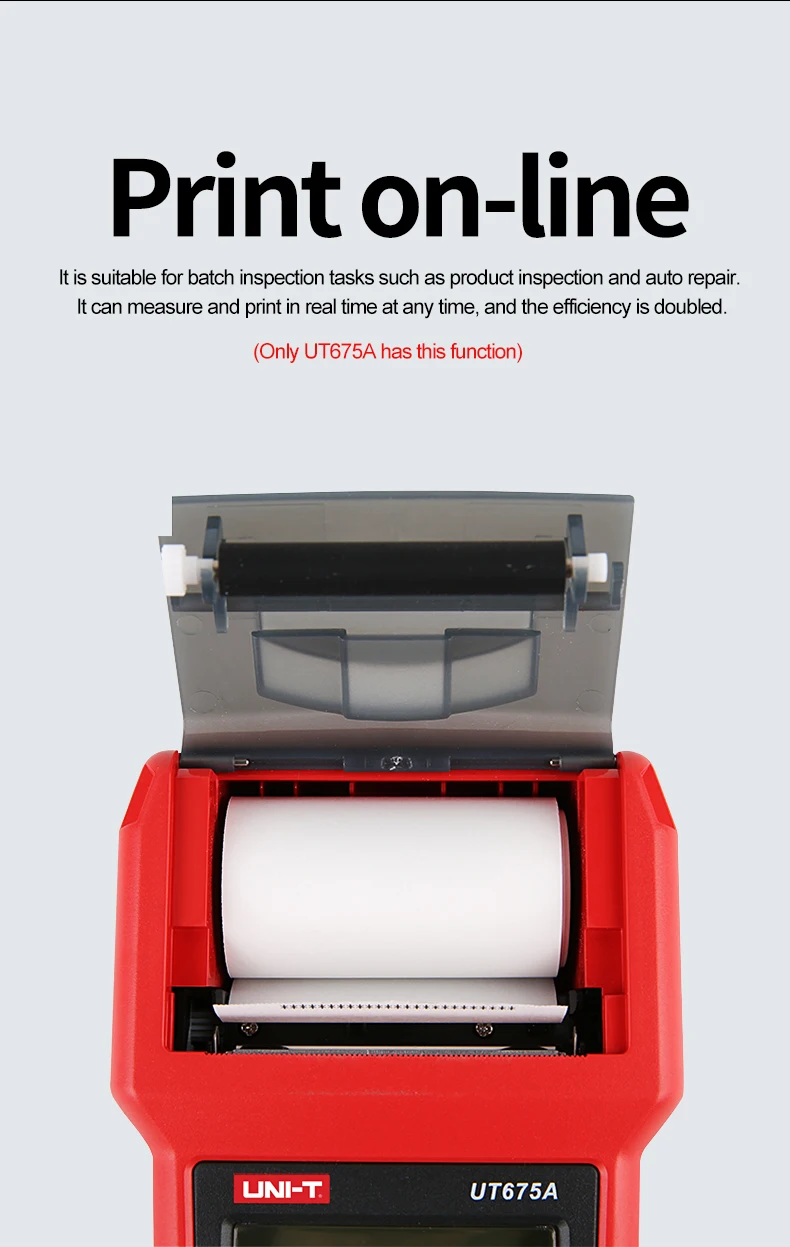

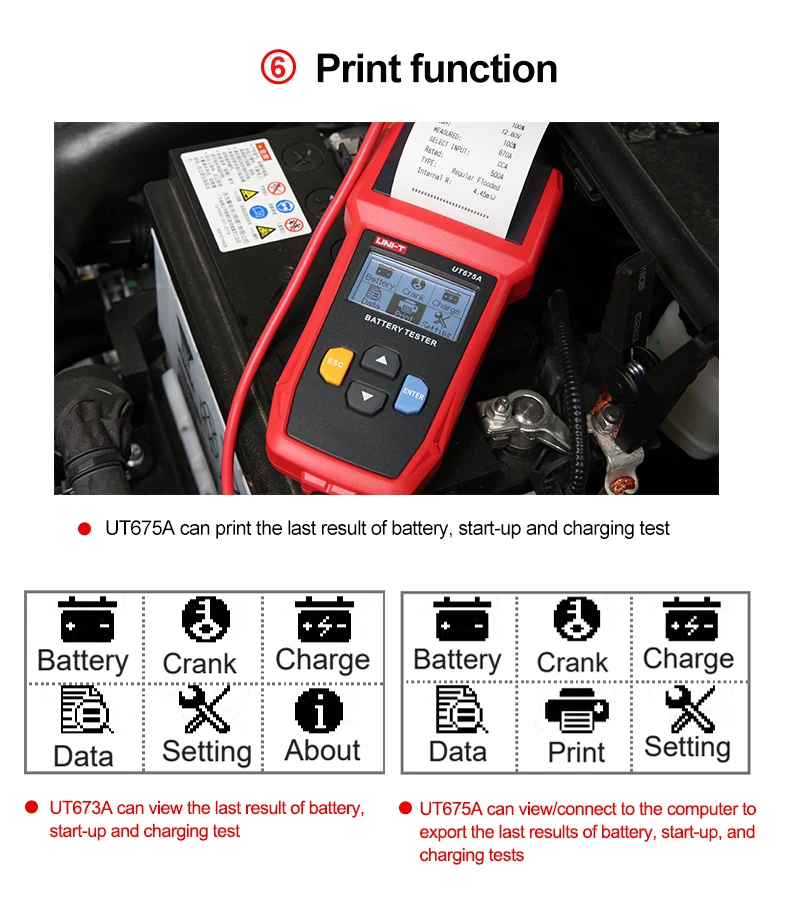

Printing function
UT675A can print out data reports to facilitate statistics on battery data.
![UNI-T Battery Tester UT673A / UT675A 5 H9a06134c50e94ed68e987b3cccb52653n](https://ae01.alicdn.com/kf/H9a06134c50e94ed68e987b3cccb52653n.jpg)
![UNI-T Battery Tester UT673A / UT675A 6 H373e955c447a4a1a82a0319a75205644g](https://ae01.alicdn.com/kf/H373e955c447a4a1a82a0319a75205644g.jpg)
![UNI-T Battery Tester UT673A / UT675A 7 Hb8be03547f324fe4ae183aa99e0c2e1cr](https://ae01.alicdn.com/kf/Hb8be03547f324fe4ae183aa99e0c2e1cr.jpg)
![UNI-T Battery Tester UT673A / UT675A 8 Hbe4acf5831f042d3b69d4fb83357564dI](https://ae01.alicdn.com/kf/Hbe4acf5831f042d3b69d4fb83357564dI.jpg)
![UNI-T Battery Tester UT673A / UT675A 9 H32a07a64c0d34082aab5f63e5f08012dS](https://ae01.alicdn.com/kf/H32a07a64c0d34082aab5f63e5f08012dS.jpg)
![UNI-T Battery Tester UT673A / UT675A 10](https://ae01.alicdn.com/kf/Hd20d9208ec5f4ff1be5a7165644a8085x.jpg)
![UNI-T Battery Tester UT673A / UT675A 11 H23bdc9b717eb42d4b3ff72375deedb9bd](https://ae01.alicdn.com/kf/H23bdc9b717eb42d4b3ff72375deedb9bd.jpg)
