UNI-T Clamp Meter UT216D.
- Measuring Inductance Range: 10Hz-1MHz
- Measuring Capacitance Range: 60mF
- Measuring Resistance Range: 60MΩ
- Measuring Voltage Range: 750V
- Measuring Current Range: 600A
- Display Type: Digital Only
- Model Number: UT216D
- DIY Supplies: ELECTRICAL
- Brand Name: UNI-T
- Certification: CE
- Origin: Mainland China
- Temperature: -40-1000 ℃,-40-1832 ℉
- Display count: 6000
- True RMS: Yes
- Auto range: Yes
- NCV: Yes
- Data hold: Yes
- AC DC Current Clamp Meter: Voltage Tester

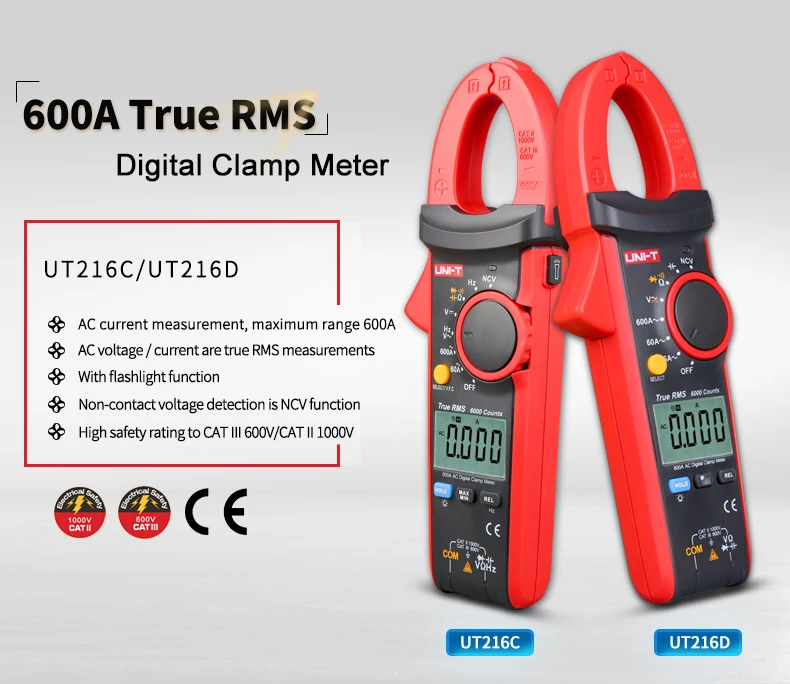

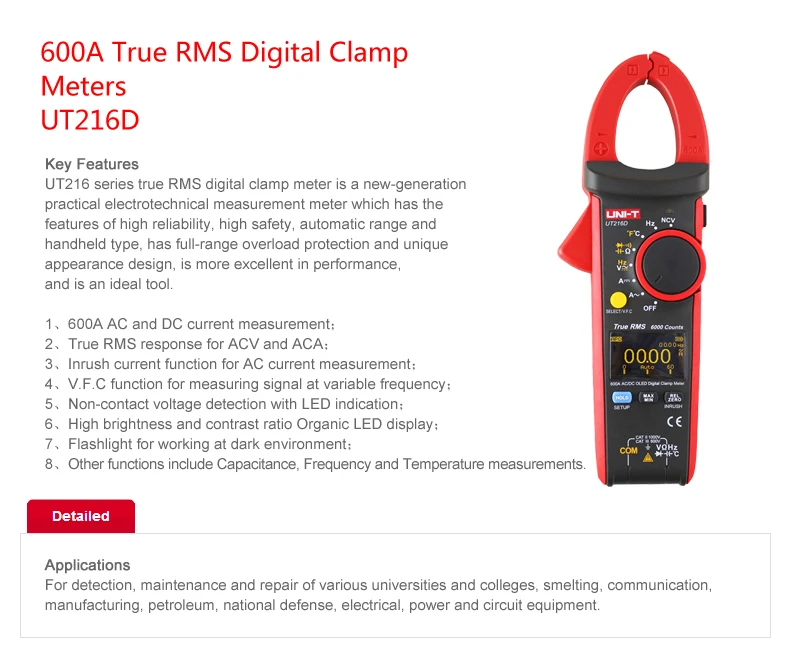

UT216D 600A True RMS Digital Clamp Meter
UT216 series digital clamp meters are designed for measuring high frequency currents (up to 400Hz) in server rooms, IT systems, etc. Its double injection design gives users a more comfortable grip and enhanced durability. UT216’s 6000 count display also provides more precise readings for users.
Features
1. True RMS
2. Auto range, 3 times/s sampling rate
3. MAX/MIN/Relative modes
4. K-type temperature probe
5. Flashlight
6. 400Hz measurement
7. NCV, non-contact AC voltage testing
8. VFC, low pass filter
9. Zeroing function
10. Inrush current
11. Analog bar graph

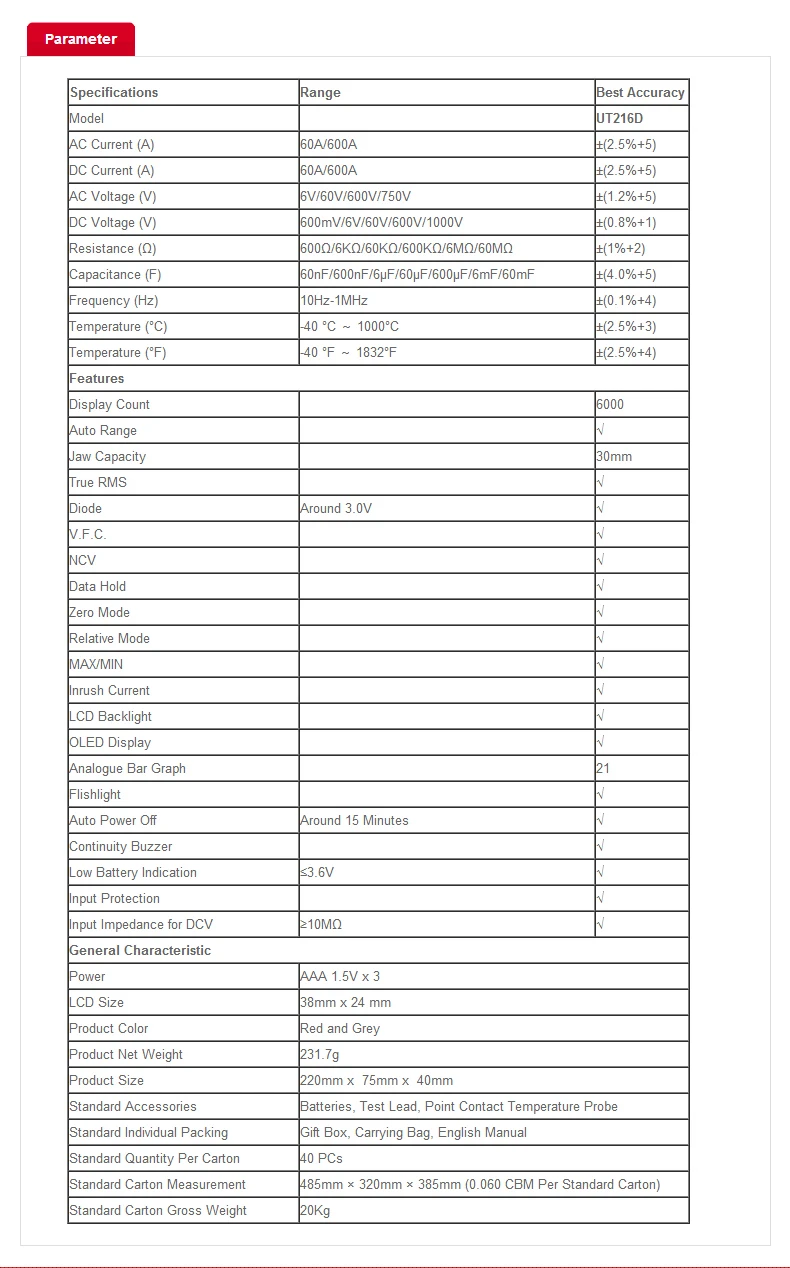

Parameter
| Specifications | Range |
UT216D |
| AC current (A) | 600A | ±(2.5%+5) |
| AC current frequency response | 40~400Hz | |
| DC current (A) | 600A | ±(2.5%+5) |
| AC voltage (V) | 750V | ±(1.2%+5) |
| AC voltage frequency response | 45~400Hz | |
| DC voltage (V) | 1000V | ±(0.8%+1) |
| Resistance (Ω) | 60MΩ | ±(1%+2) |
| Capacitance (F) | 60mF | ±(4%+5) |
| Frequency (Hz) | 10Hz~1MHz | ±(0.1%+4) |
| Temperature | -40°C~1000°C | ±(2.5%+3) |
| -40°F~1832°F | ±(2.5%+6) | |
| Features | ||
| Display count | 6000 | |
| Auto range | √ | |
| Jaw opening | 30mm | |
| True RMS | √ | |
| Diode | Around 3.0V | √ |
| V.F.C. | √ | |
| NCV | √ | |
| Data hold | √ | |
| Relative mode | √ | |
| MAX/MIN | √ | |
| Inrush current | √ | |
| OLED display | √ | |
| Analog bar graph | 21 | |
| Flashlight | √ | |
| Auto power off | √ | |
| Continuity buzzer | √ | |
| Low battery indication | ≤3.6V | √ |
| Input protection | √ | |
| Input impedance for DCV | ≥10MΩ | √ |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 3(NO include） | |
| Display | 38mm x 24mm | |
| Product color | Red and grey | |
