UNI-T Coating Thickness Gauge UT343E

Model Number: UT343E
With Backlight Or Not: YES
Brand Name: UNI-T
Origin: Mainland China
Certification: CE
Display: 2”color TFT screen
Unit conversion: μm/mil
Matrix identification modes: Auto/manual
Data storage: 3300 data
Voice broadcast: Yes
Thickness gauge for cars: Paint meter
Lacquer meter: Car paint detector

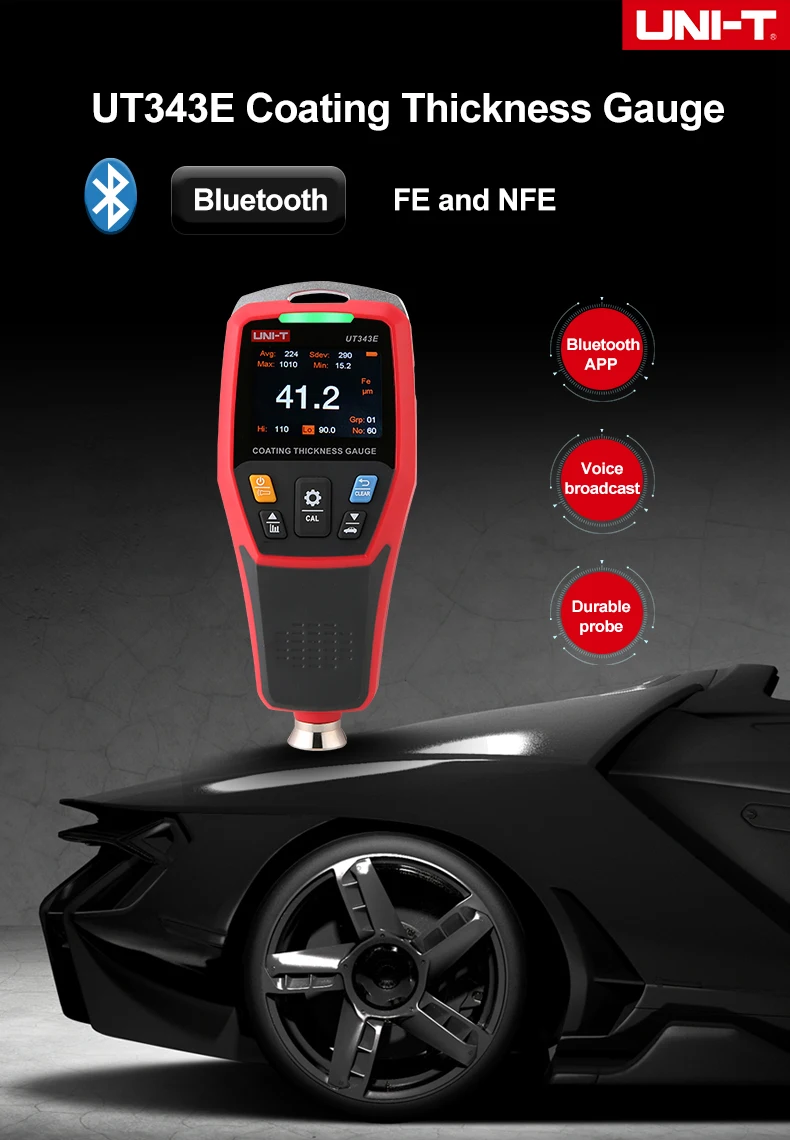

UT343E Coating Thickness Gauge

UT343E coating thickness gauge can measure coating thickness on ferrous and non-ferrous materials. The measuring range is up to 2000µm, and the data can be analyzed through Bluetooth APP and PC software of mobile phones, which can be widely used in manufacturing, metal processing, chemical industry, commodity inspection and other detection areas.

Features

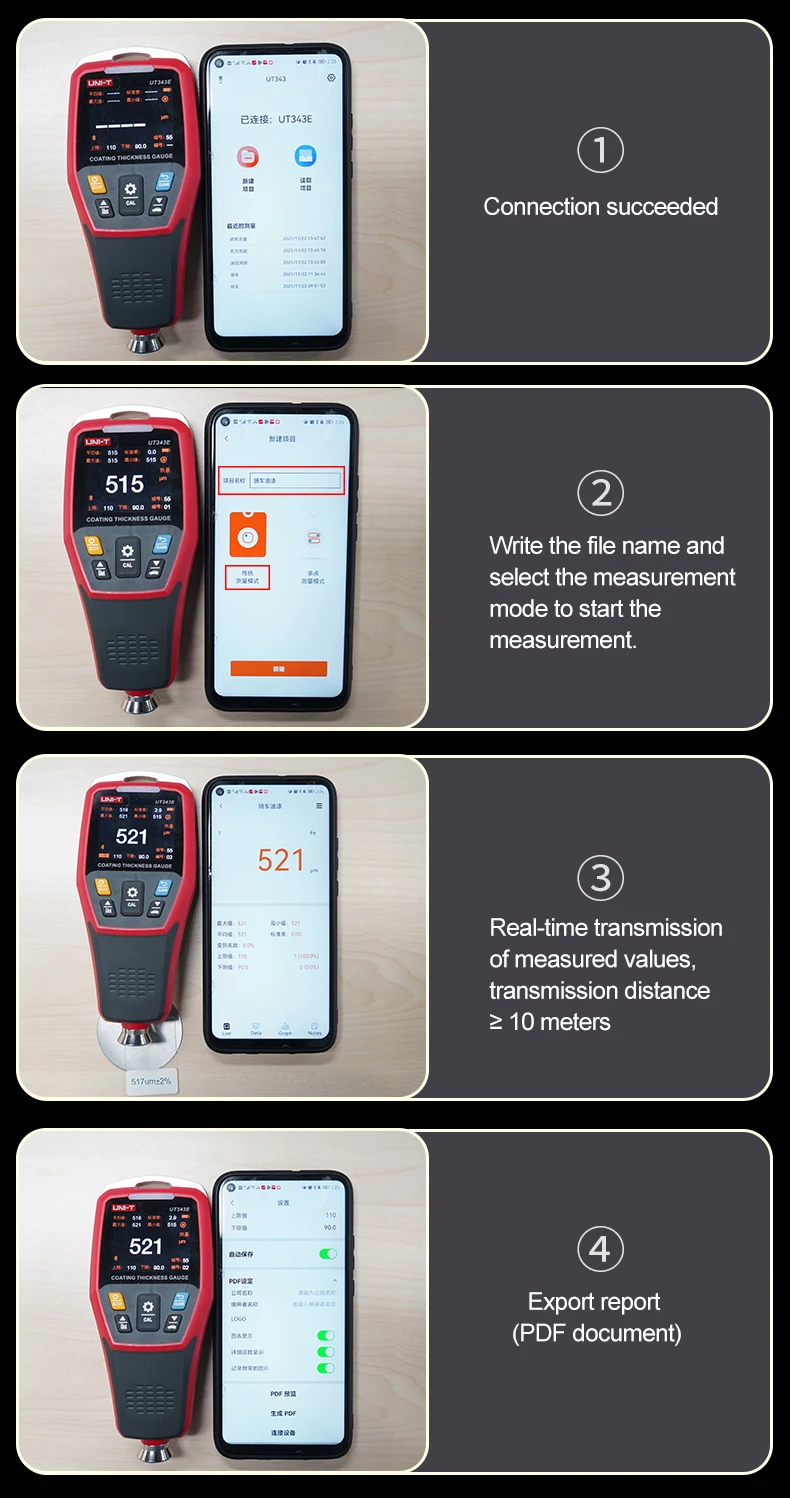

1. Bluetooth APP
2. Conductive coating measurement (like chromium, zinc, tin)

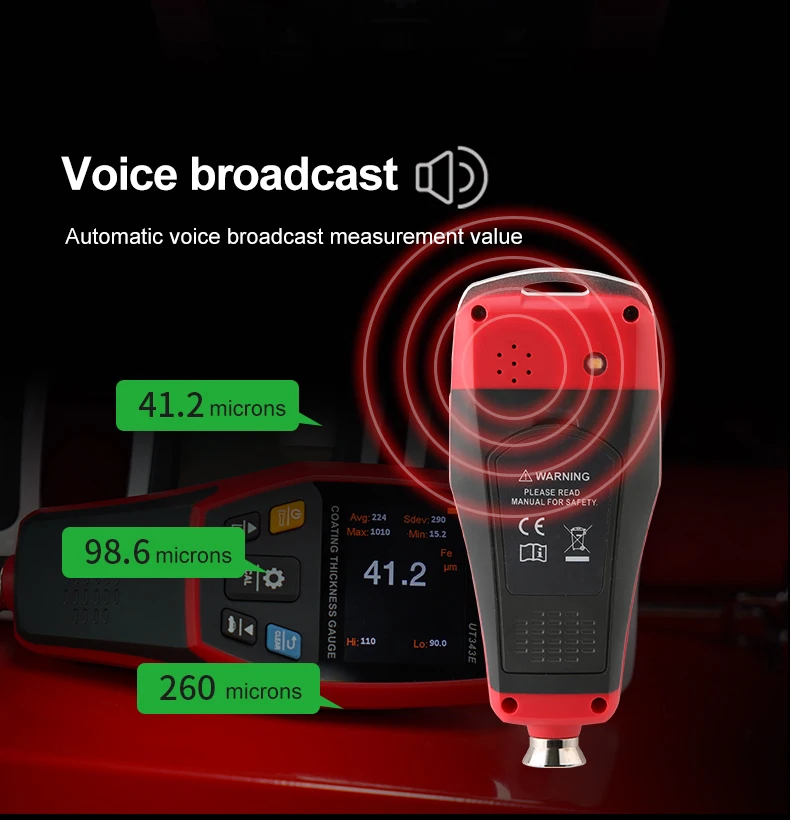

3. Voice broadcast

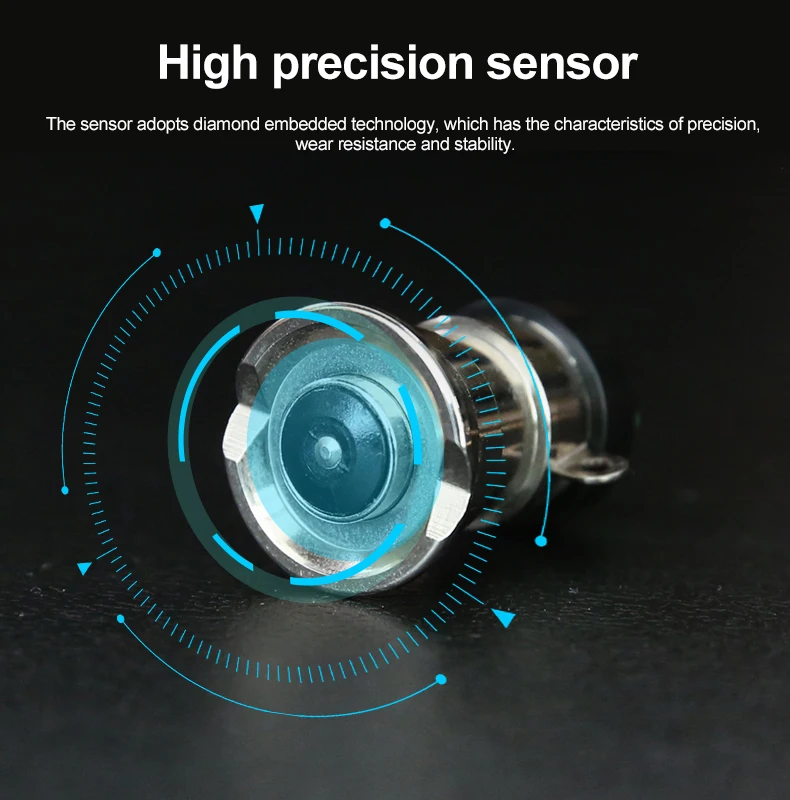

4. Durable probe
5. Automobile mode
6. Multiple measurement modes
7. PC software analysis

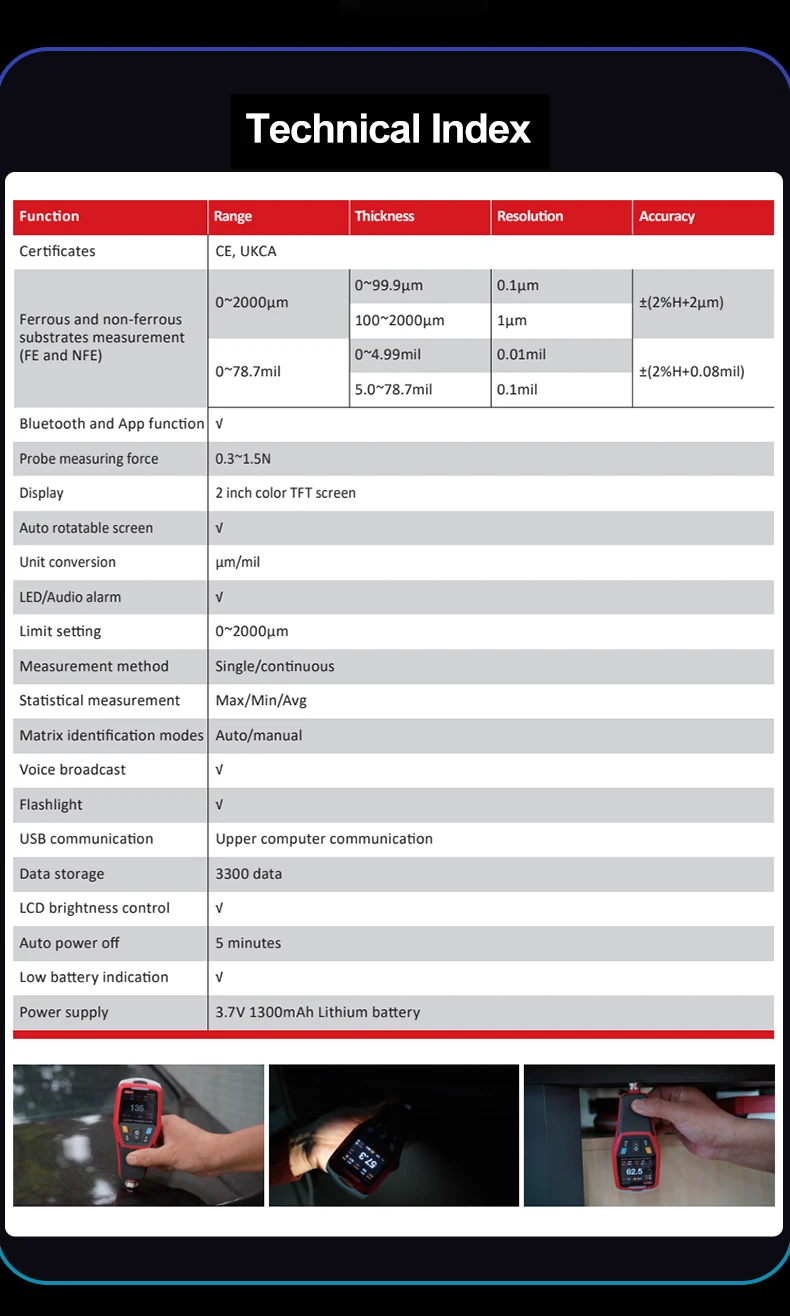

Parameter

Specification	Range	Thickness	Resolution	Accuracy
Certificates	CE/UKCA
Ferrous and non-ferrous substrates measurement(FE and NFE)	0~2000μm	0~99.9μm	0.1μm	±(2%H+2μm)
		100~2000μm	1μm
	0~78.7mil	0~4.99mil	0.01mil	±(2%H+0.08mil)
		5.0~78.7mil	0.1mil
Bluetooth and App function	√
Probe measuring force	0.3~1.5N

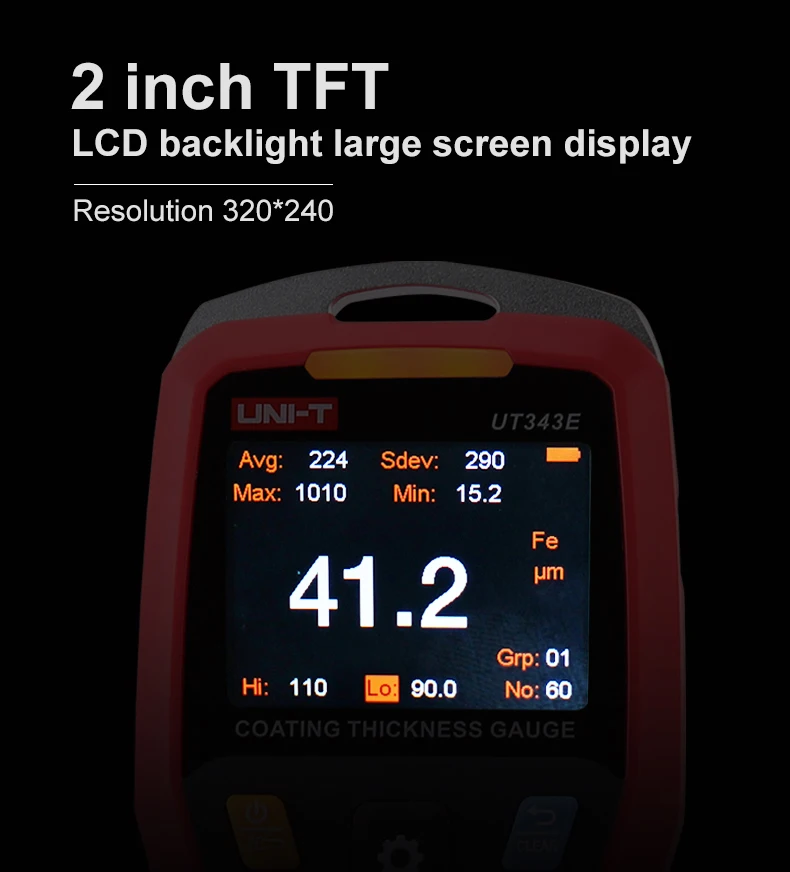

Display	2”color TFT screen
Auto rotatable screen	√
Unit conversion	μm/mil
LED /Audio alarm	√
Limit setting	0~2000μm
Measurement method	Single/continuous
Statistical measurement	Max/Min/Avg
Matrix identification modes	Auto/manual
Voice broadcast	√

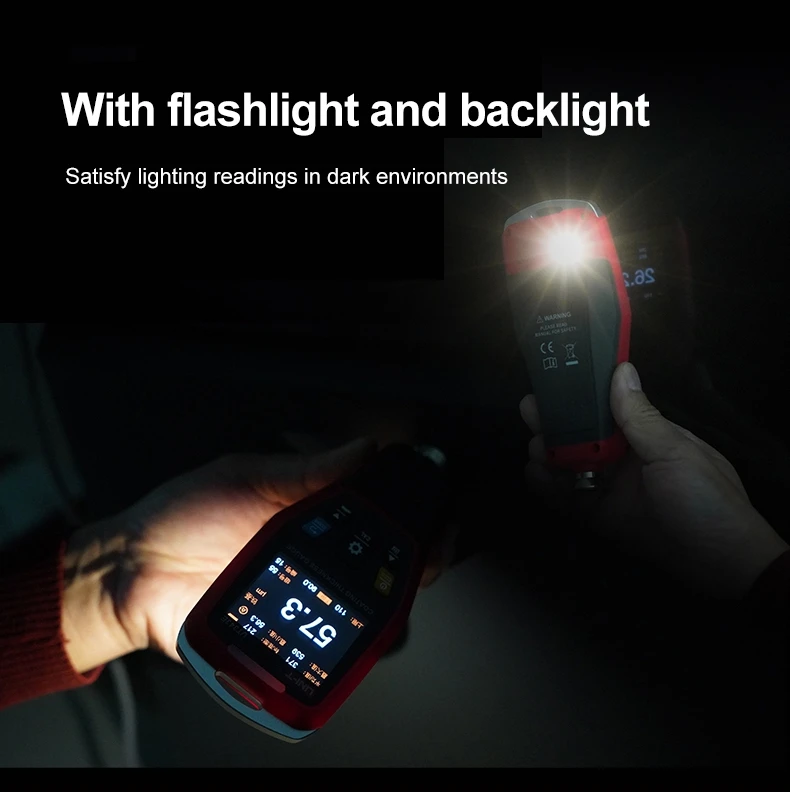

Flashlight	√
USB communication	Upper computer communication

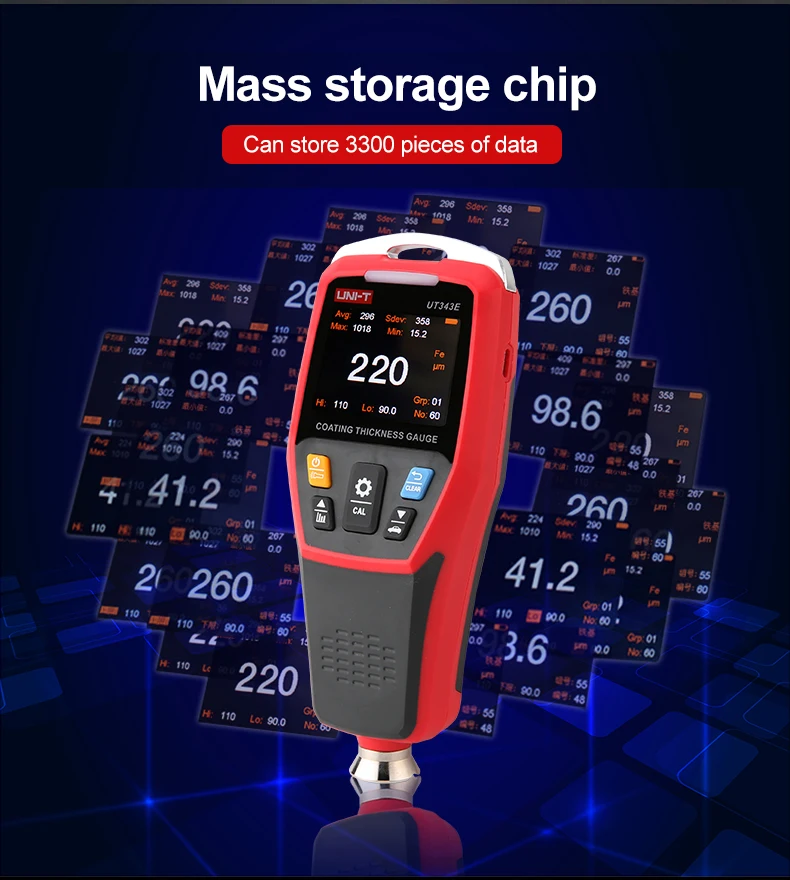

Data storage	3300 data
LCD brightness control	√
Auto power off	5 minutes
Low battery indication	√

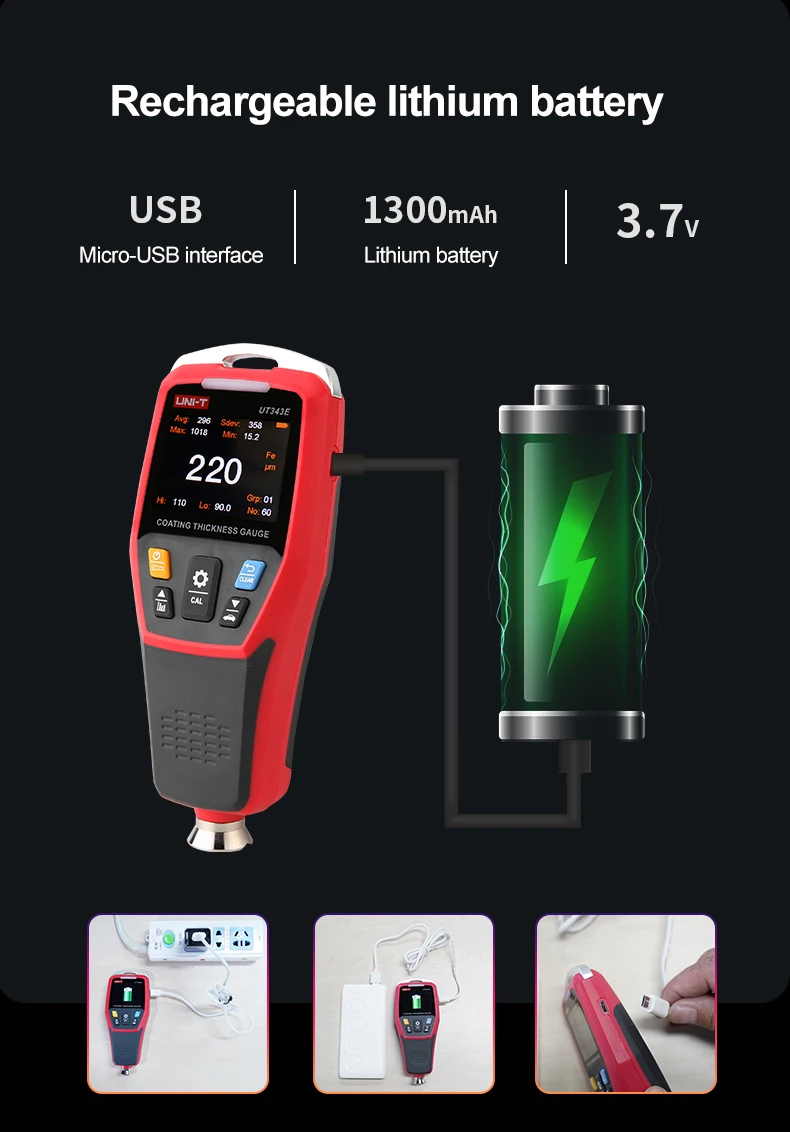

Power supply	3.7V 1300mAh Lithium battery
General Characteristics
Power	3.7V 1300mAh Lithium battery
LCD Size	2 inch
Product color	Red and Gray
Product net weight	150g
Product size	*1526535mm*

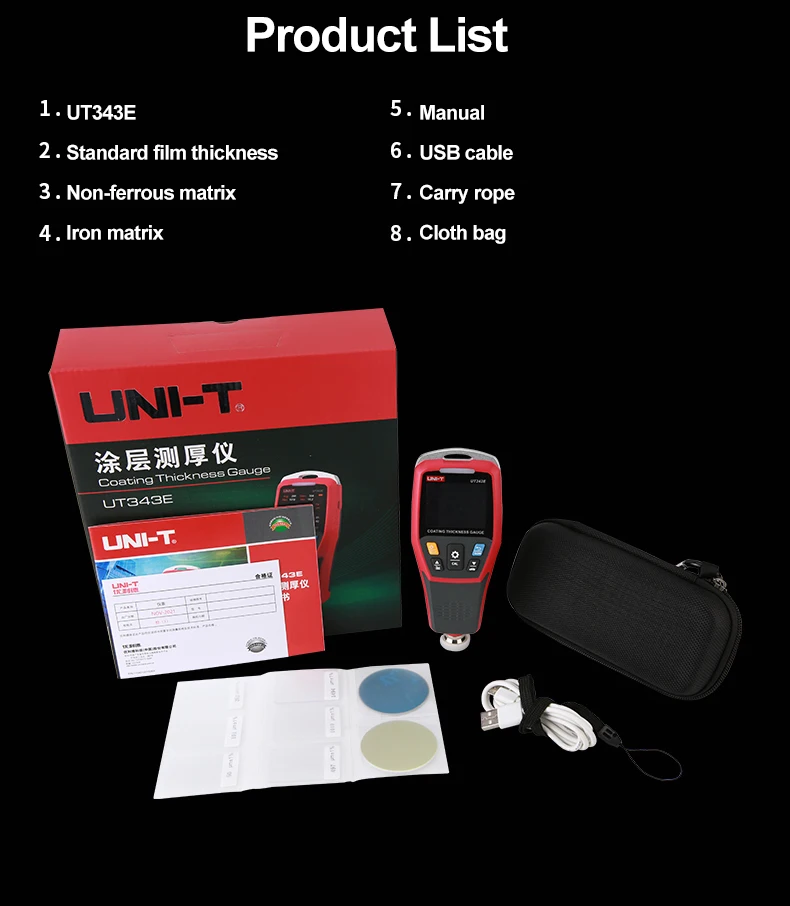

Standard accessories	USB cable, Hand strap, Sensor protective cover, Ferrous matrix, Non-ferrous matrix, Stand coating thickness sheets（6pcs）
