UNI-T Digital Multimeter UT61E+.
- DC Current: 20A
- AC Current: 20A
- DC Voltage: 1000V
- AC Voltage: 1000V
- Measuring Capacitance Range: 220mF
- Measuring Resistance Range: 220MΩ
- Model Number: UT61E
- Operating Temperature: 0 – 40 ℃
- Display Type: Digital display
- DIY Supplies: ELECTRICAL
- Brand Name: UNI-T
- Origin: Mainland China
- Certification: NONE
- Frequency: 220MHz
- Duty cycle: 0.1%~99.9%
- Display count: 22000
- Bandwidth: 40-10kHz
- LPF ACV: Yes
- ACV DCV: Yes
- Peak Hold: Yes
- Voltage tester: Automotive tester
- Digital capacimeter: DC AC Voltage meter
UT61E+ 1000V True RMS Digital Multimeter
UT61E+ are reliable true RMS digital multimeters with display counts 22,000 . It can measure up to 1000V AC/DC. Equipped with audible and visible alarm, this series can provide warning expecially when measuring high voltage/current and temperature.
Features
● True RMS
● Data hold/backlight
● Max/Min/Relative mode
● USB communication
● Input protection
● Diode/continuity test
● NCV (audible/visual alarm)
● LPF ACV
● ACV+DCV
● Transistor hFE
● Peak Hold
● The product has a large-size cloth bag that can hold more tools

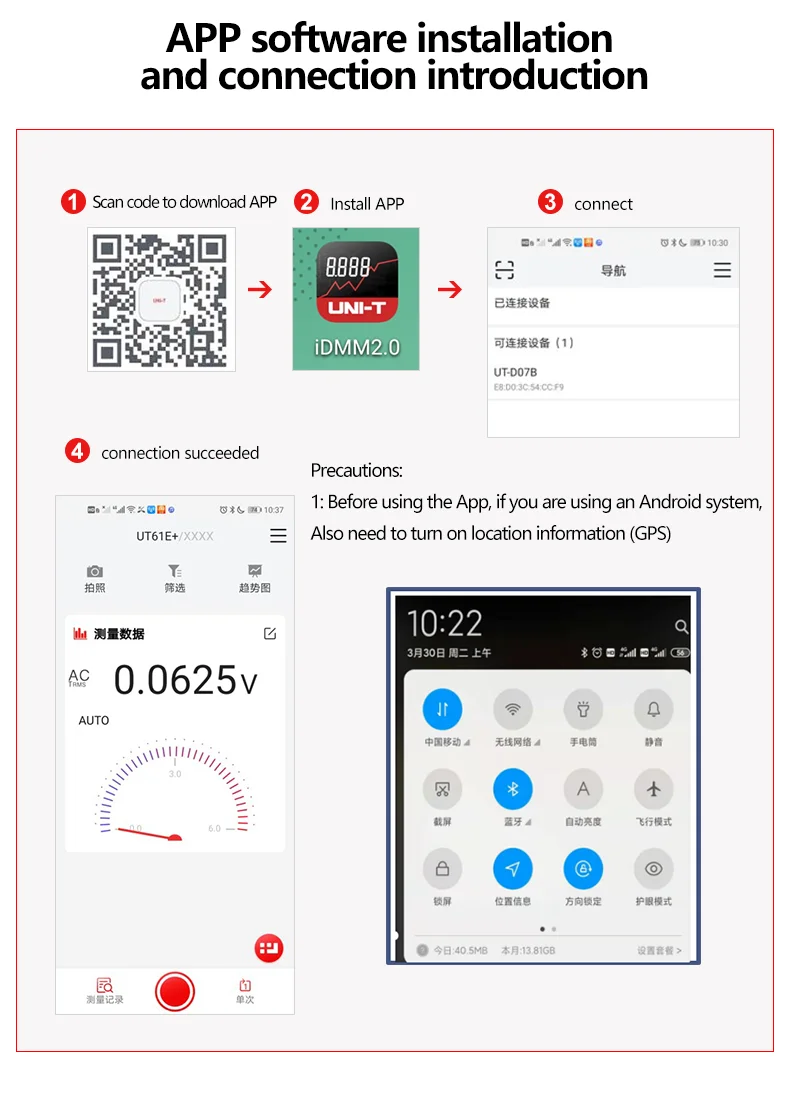

UT-D07B Bluetooth adapter
● Description: Bluetooth 5.0 low power consumption
● Support: iOS 6.0 or above, Android 4.0 or above
● Application: UT61+ Series, UT161 Series, UT171 Series, UT181 Series
● Power: 1.5V battery (R03) x 2(Not include)
|
Specifications |
Range |
|
|
Certifications (UT161 Series only) |
CE/RoHS/cETLus |
|
|
Safety ratings |
CAT III 1000V/CAT IV 600V |
|
|
AC voltage (V) |
1000V |
±(0.8%＋10) |
|
DC voltage (V) |
1000V |
±(0.05%＋5) |
|
AC current (A) |
20A |
±(0.8%＋10) |
|
DC current (A) |
20A |
±(0.5%＋10) |
|
Resistance (Ω) |
220MΩ |
±(0.5%＋10) |
|
Capacitance (F) |
220mF |
±(3%＋5) |
|
Frequency (Hz) |
220MHz |
±(0.01%＋5) |
|
Duty cycle (%) |
0.1%~99.9% |
±(2%＋5) |
|
Display count |
|
22000 |
|
Bandwidth (Hz) |
|
40~10kHz |
|
LPF ACV |
|
√ |
|
ACV+DCV |
|
√ |
|
Transistor hFE |
|
√ |
|
Peak Hold |
|
√ |
|
Analog bar |
|
46 |
|
General Characteristics |
||
|
Power |
1.5V battery (R03) x 4 （Not included) |
|
|
Product net weight |
350g |
|
|
Product size |
190mm x 90mm x 50mm |
|
|

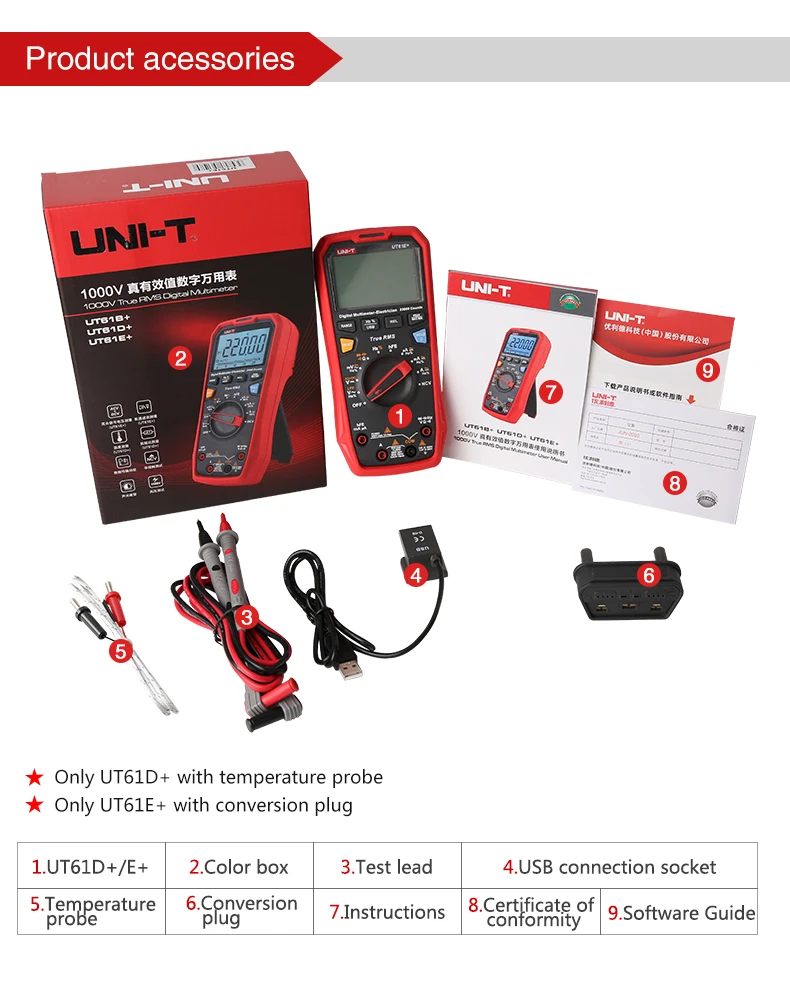

Standard accessories |
gold plated test leads, USB cable, temperature multi-purpose socket, English manual |
|
|
Standard individual packing |
Gift box |
|
220 mF large capacitance
USB communication function

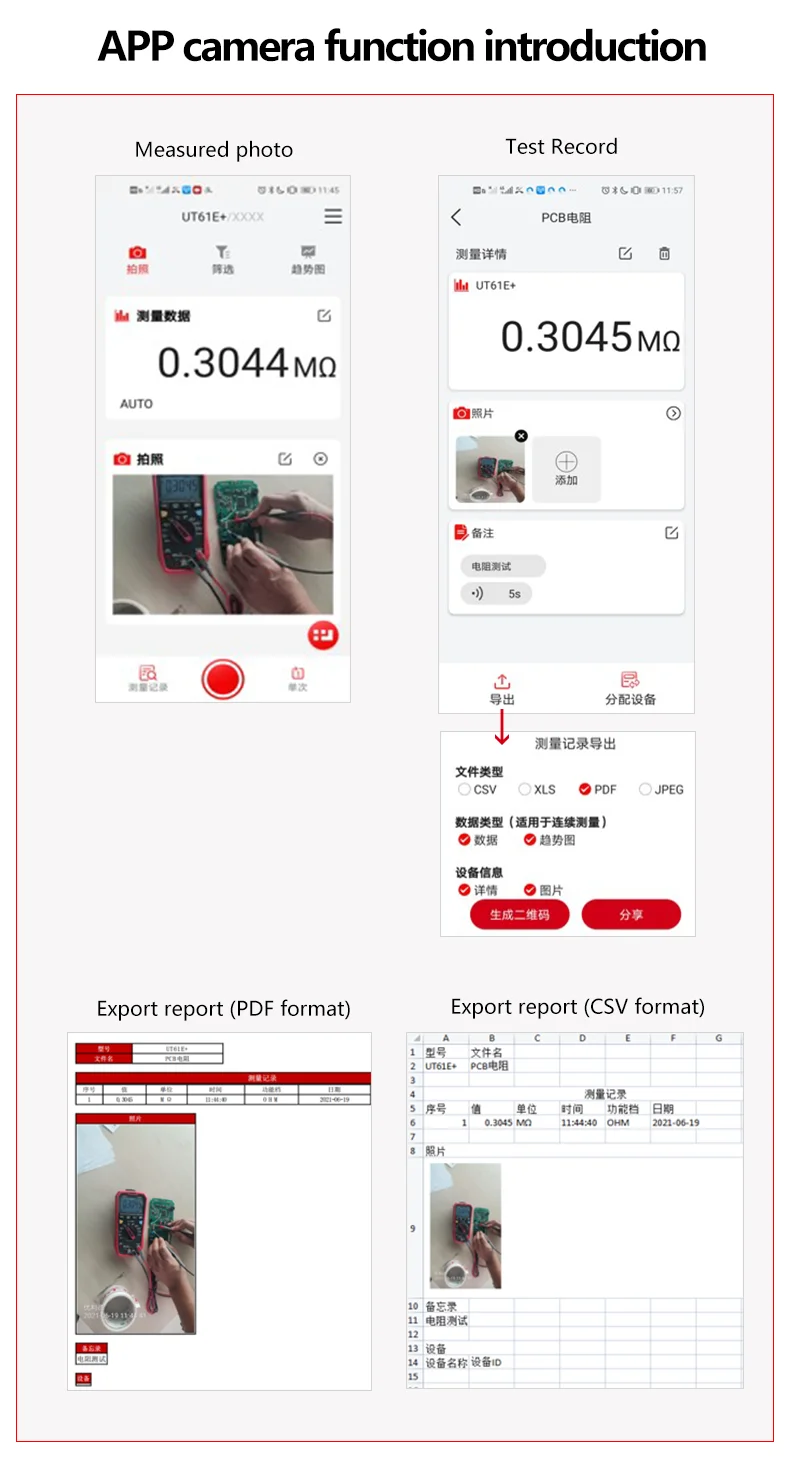

Real-time data transmission and storage
