UNI-T Electronic Load Programmable UTL8211 UTL8212
- Model Number: UTL8211 UTL8212
- Type: Electronic Device Battery Tester
- DIY Supplies: ELECTRICAL
- Brand Name: UNI-T
- Origin: Mainland China
- Certification: NONE
- Voltage: 150V
- UTL8211 Current: 40A
- UTL8212 Current: 20A
- Total power: 400W
- Current slew rate: 0.15A/μs
- Modes: CC/CV/CR/CP/dynamic/list/battery

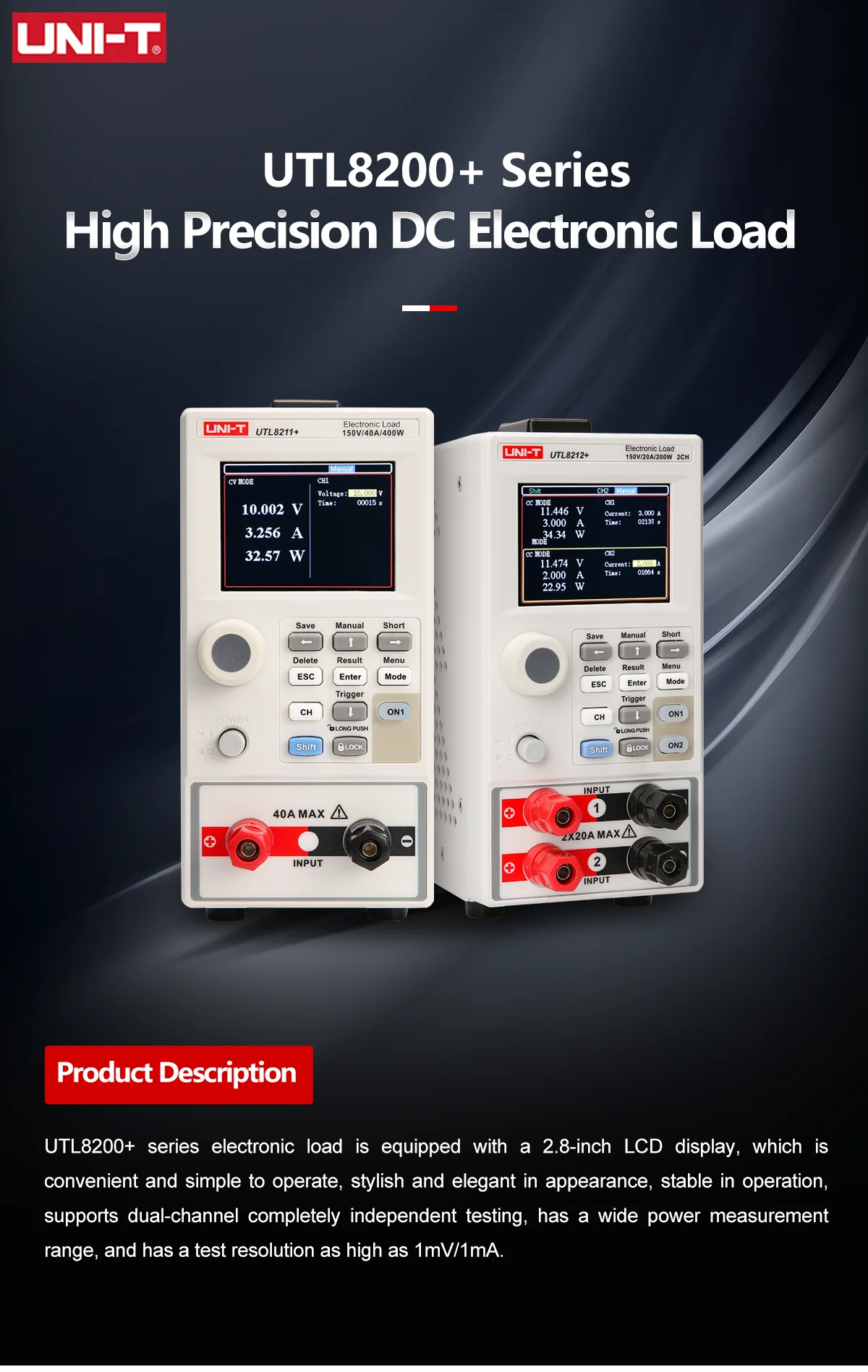

UTL8200+ SERIES
UTL8200+ series electronic load is equipped with 2.8-inch LCD display, convenient and simple operation, fashionable and generous appearance, stable operation, supports dual-channel completely independent test, has a wide power measurement range, the test resolution up to 1mV/1mA, with rich test functions and modes, while the standard RS-232C communication interface, flexible to meet a variety of field test conditions. Seamless connection with automated production lines and automatic test systems (ATS).

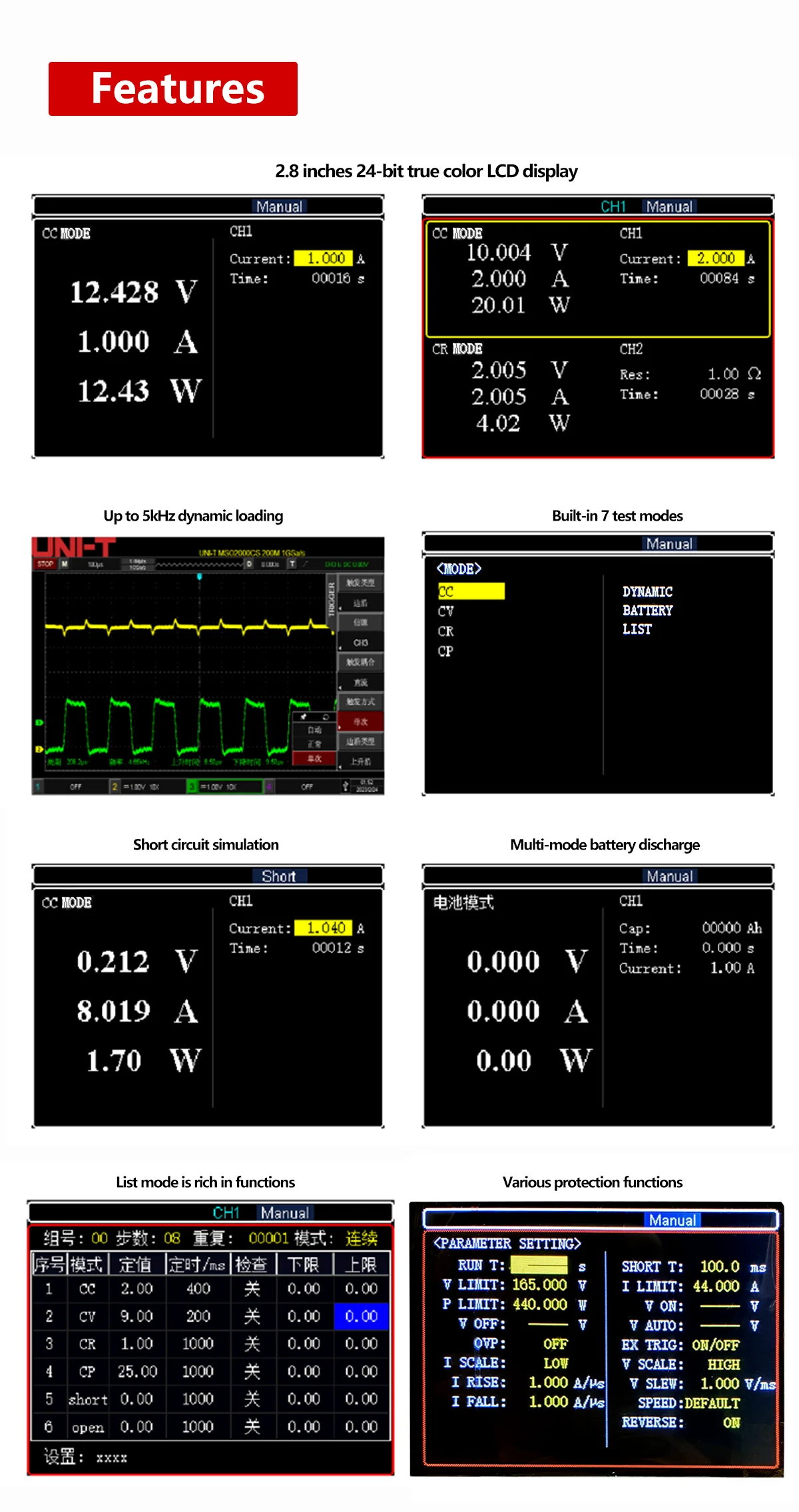

Features
1.2.8 inch large screen LCD display
Test resolution: 1mV/1mA
Voltage test range: 0~150V
Current test range: 0~40A (UTL8211+), 0~20A (UTL8212+)
Power test range: 0~400W (UTL8211+), 0~200W (UTL8212+)
2.Built-in 7 test modes
7 working modes: CC/CV/CR/CP/dynamic/list/battery
2.Independent short circuit test function
3.Multi-mode battery discharge test
4.Multiple protection functions
Various protections such as over voltage, low voltage, over current, over power, over heat, anti-reverse connection, etc.
5.RS-232C communication interface, intelligent temperature control fan, power-off memory function
Standard RS-232C interface: supporting PC software to realize remote operation Intelligent temperature control fan: Effectively reduce noise and help prevent the instrument from overheating Power-off memory: power on again to restore the last saved setting value
