UNI-T Laser Power Meter UT385 Power Analyzer Data Logger

Model Number: UT385
DIY Supplies: ELECTRICAL
Brand Name: UNI-T
Origin: Mainland China
Certification: CE
Measurement range: 0uW-39.99mW
Laser wavelength range: 400nm-1100nm
LCD display: 4-digit LCD display
Data storage: 199 sets

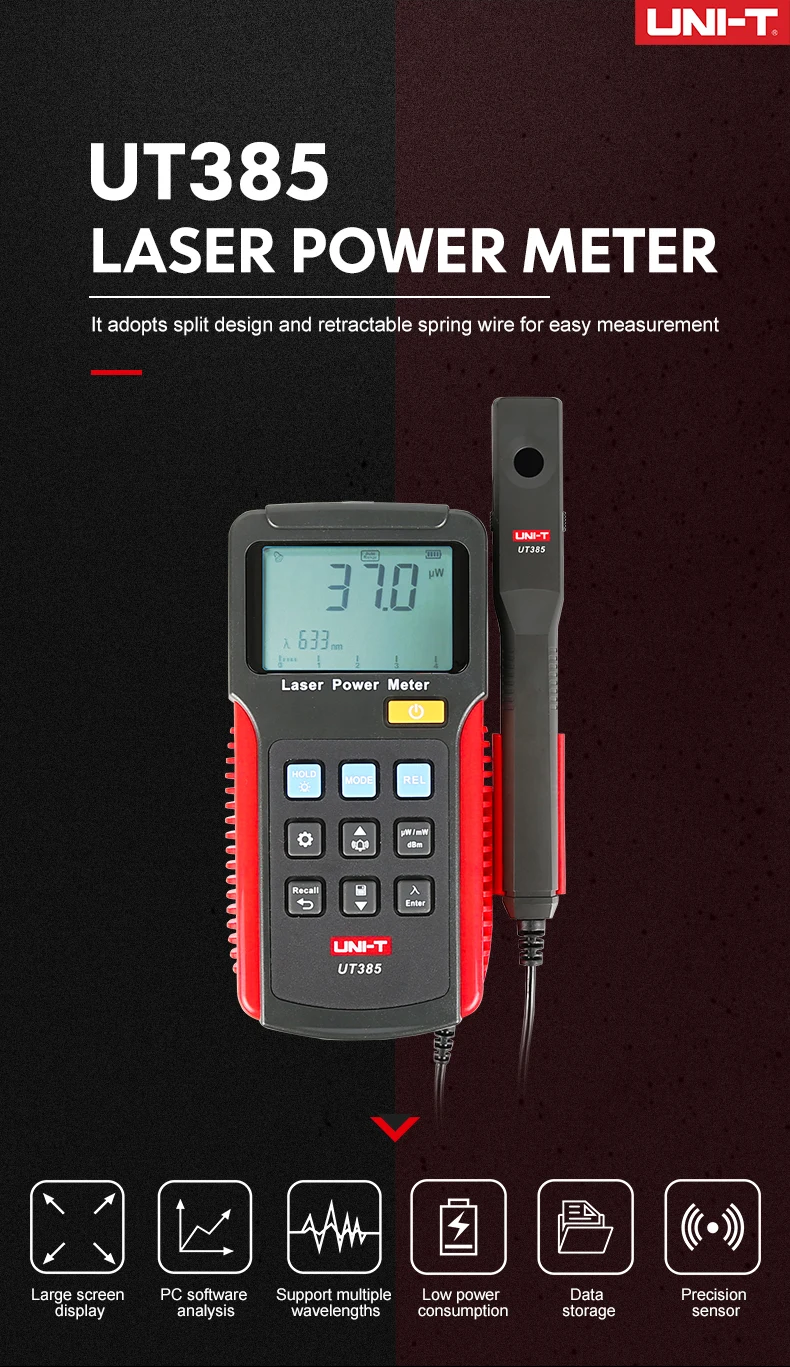

UT385 Laser Power Meter

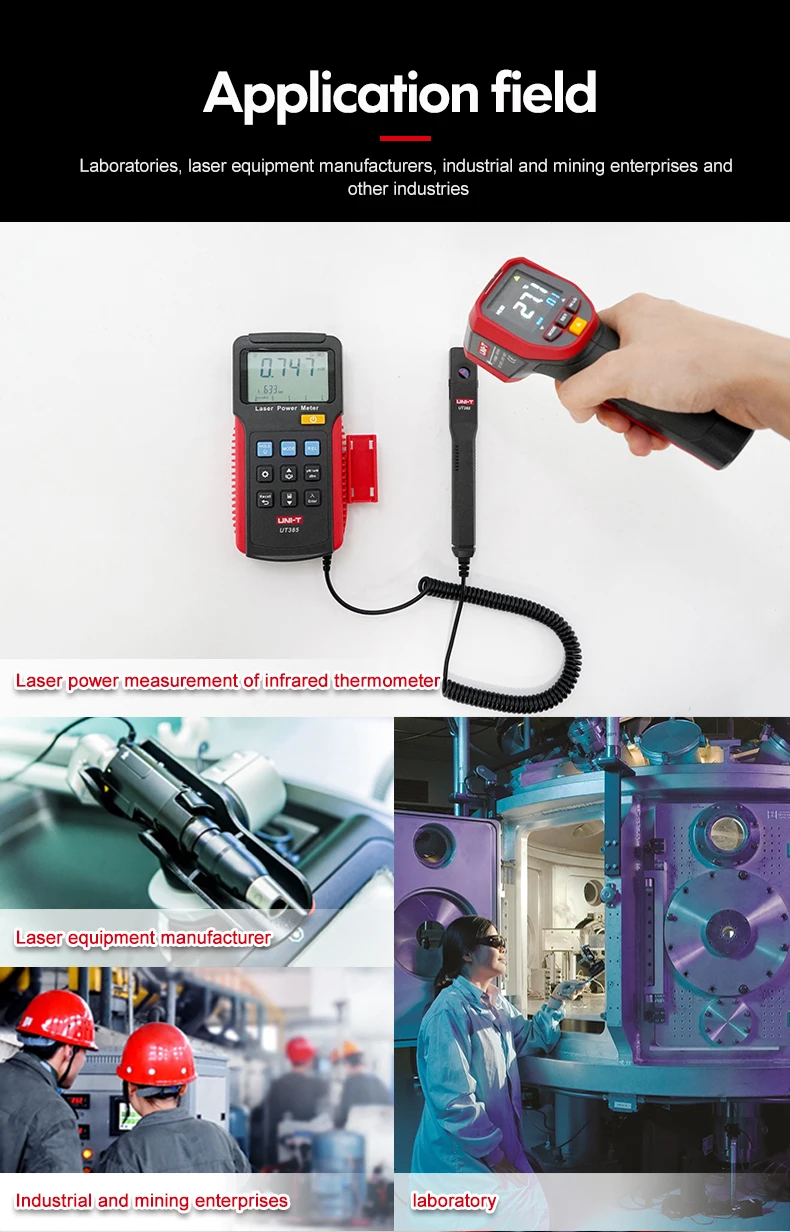

UT385 Laser power meter is used to measure the energy output of laser beams for testing or laser system applications. It uses detection sensor to determine the intensity of a laser beam’s energy output.

Features

● Precise laser sensor

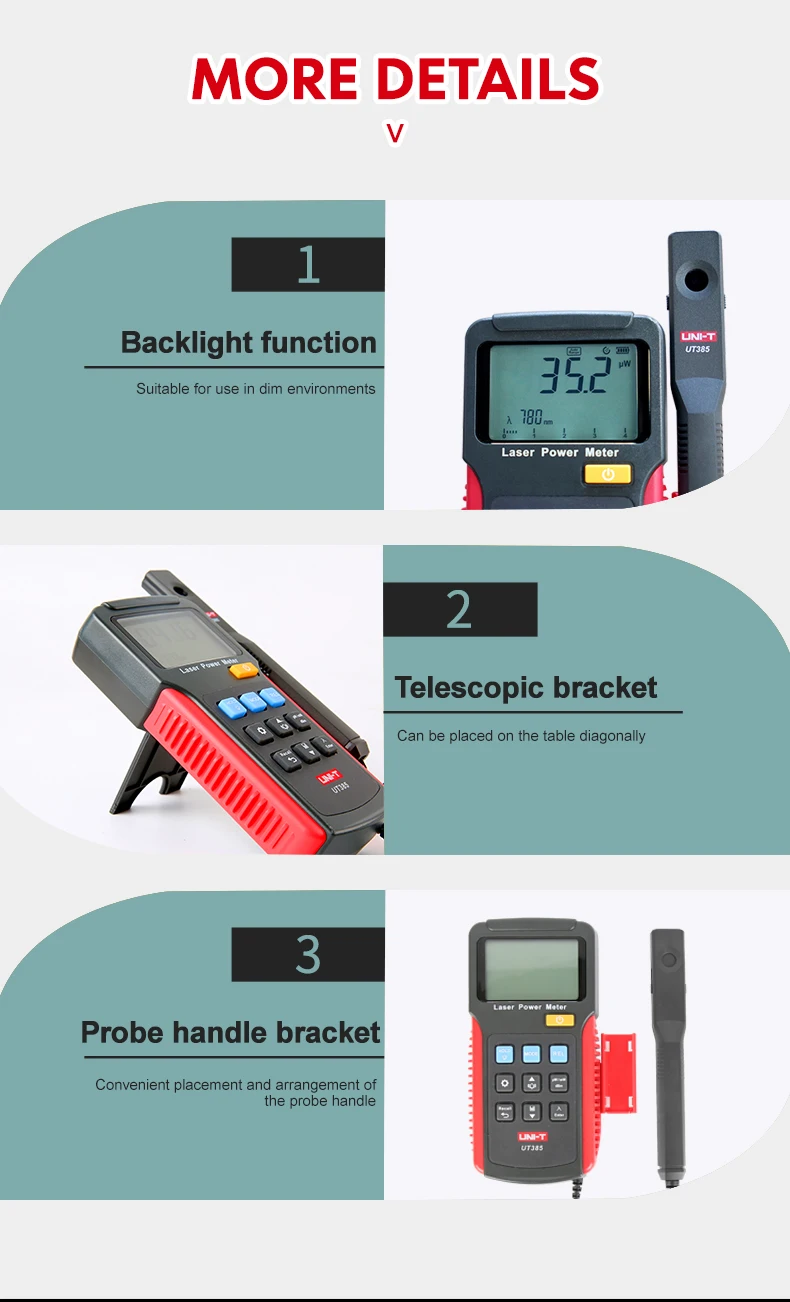

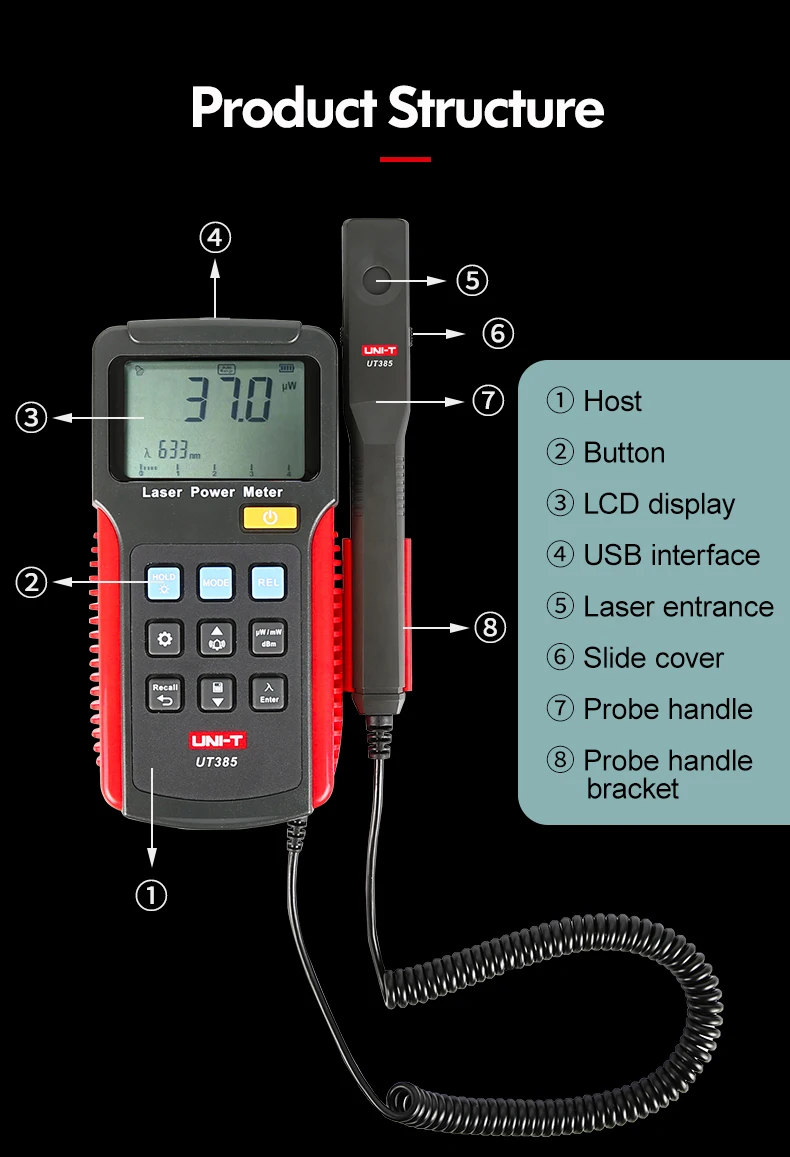

● Split design with retractable spring wire

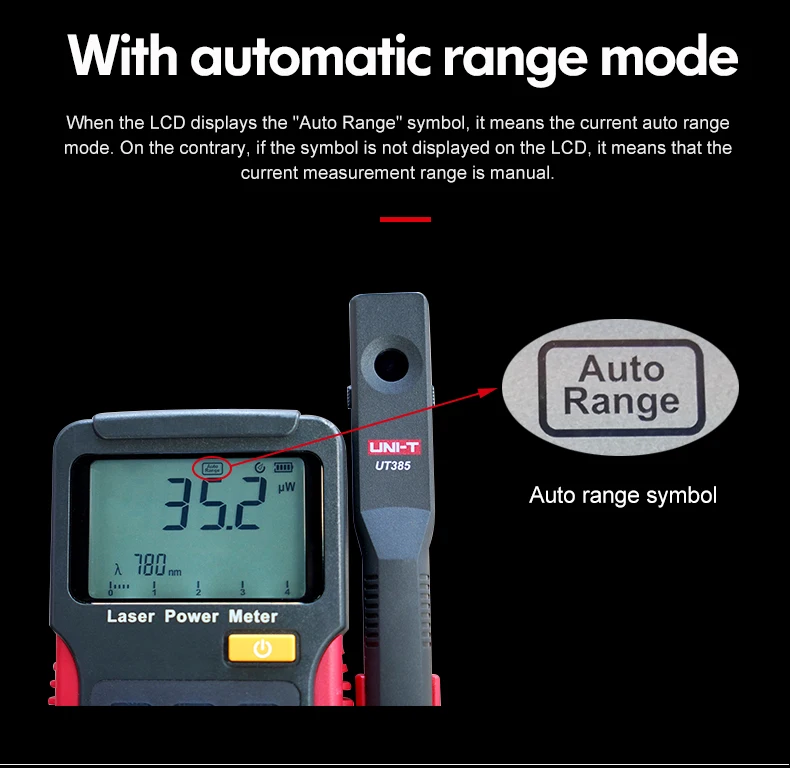

● LCD screen for clear readings

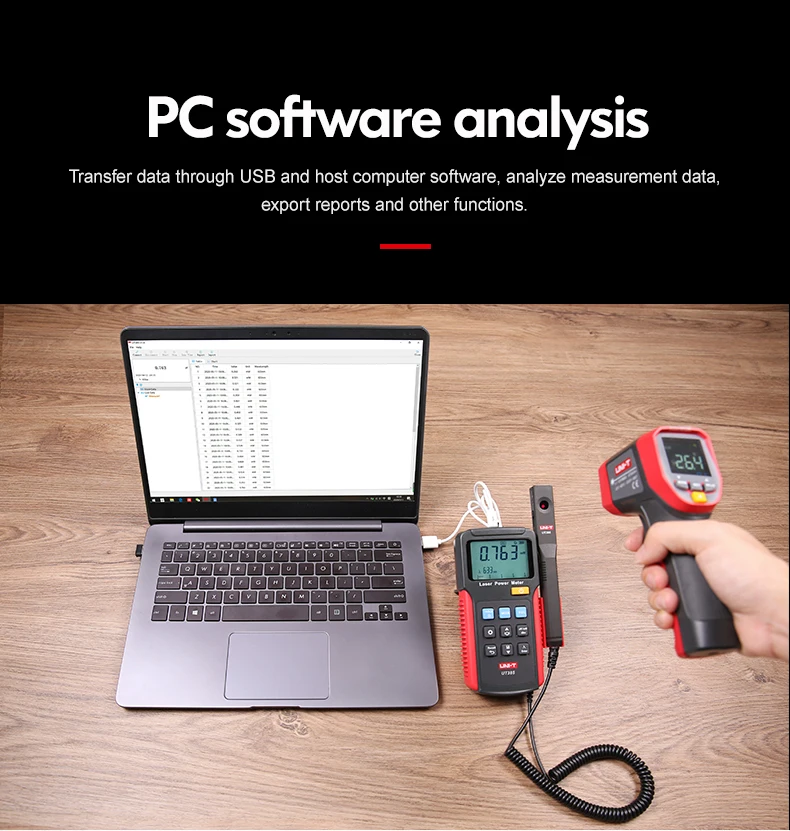

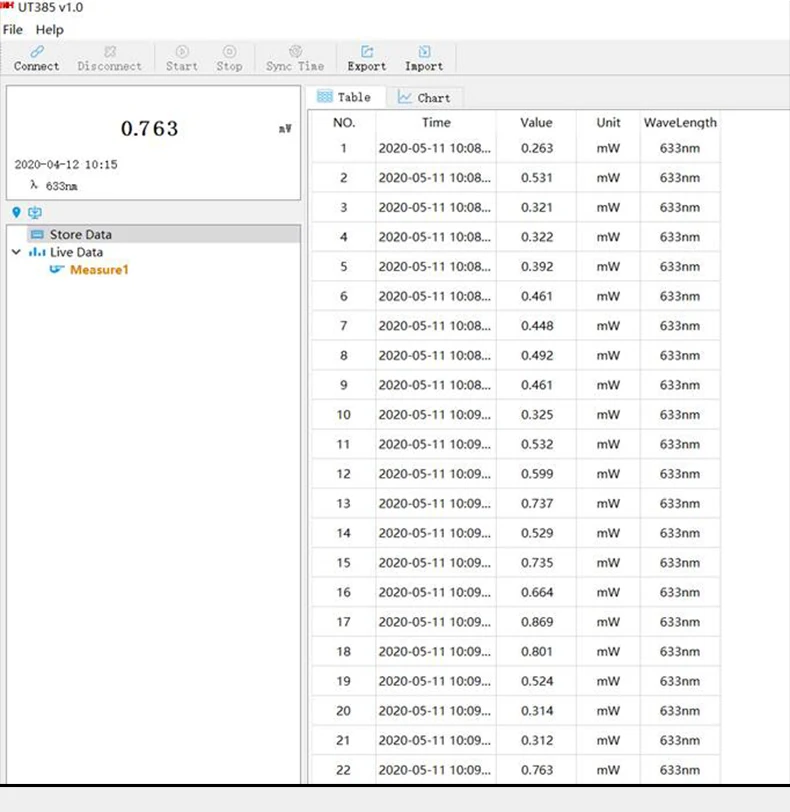

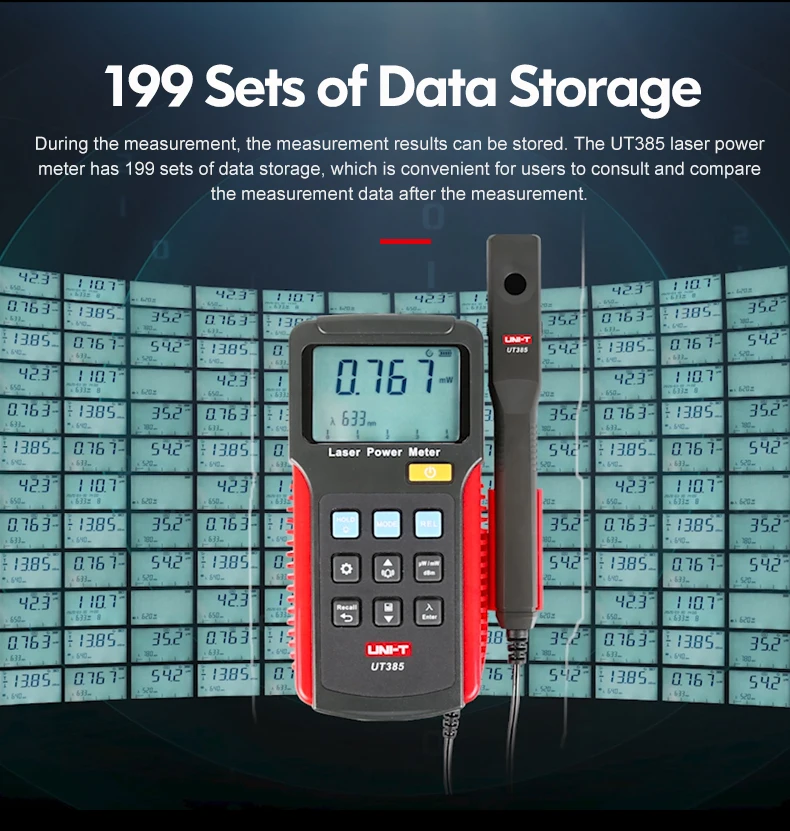

● Data storage function

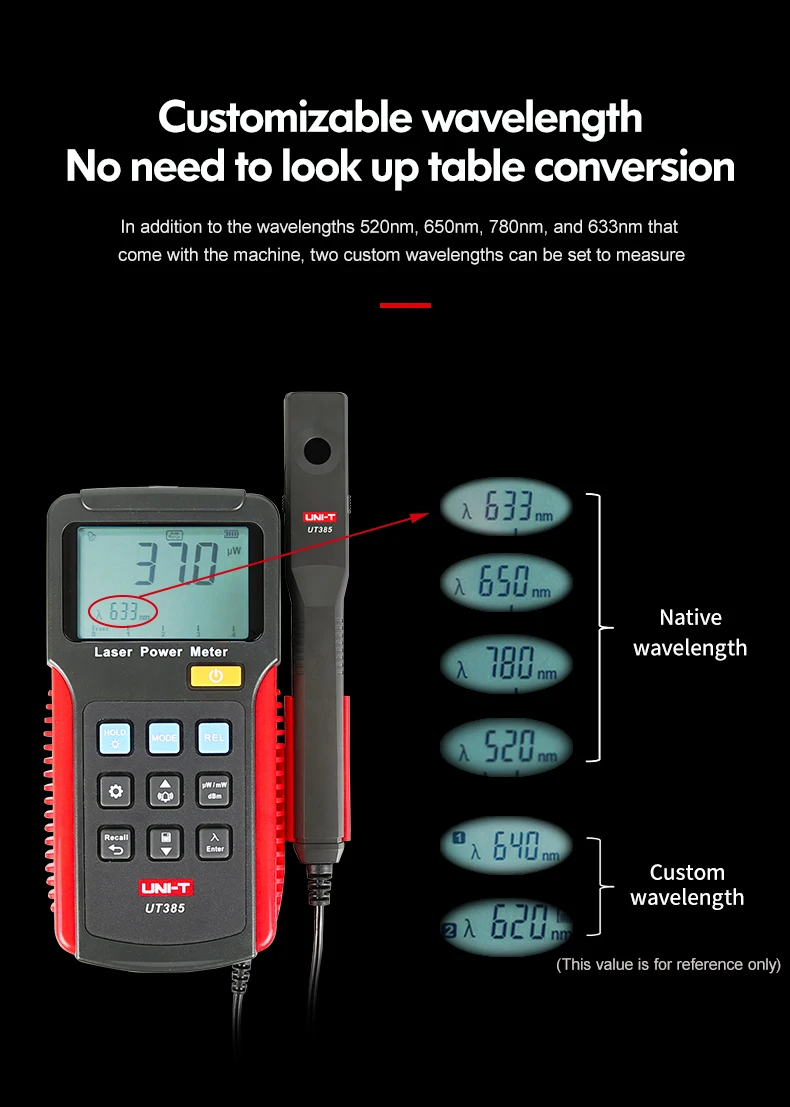

● Selectable and customizable wavelengths

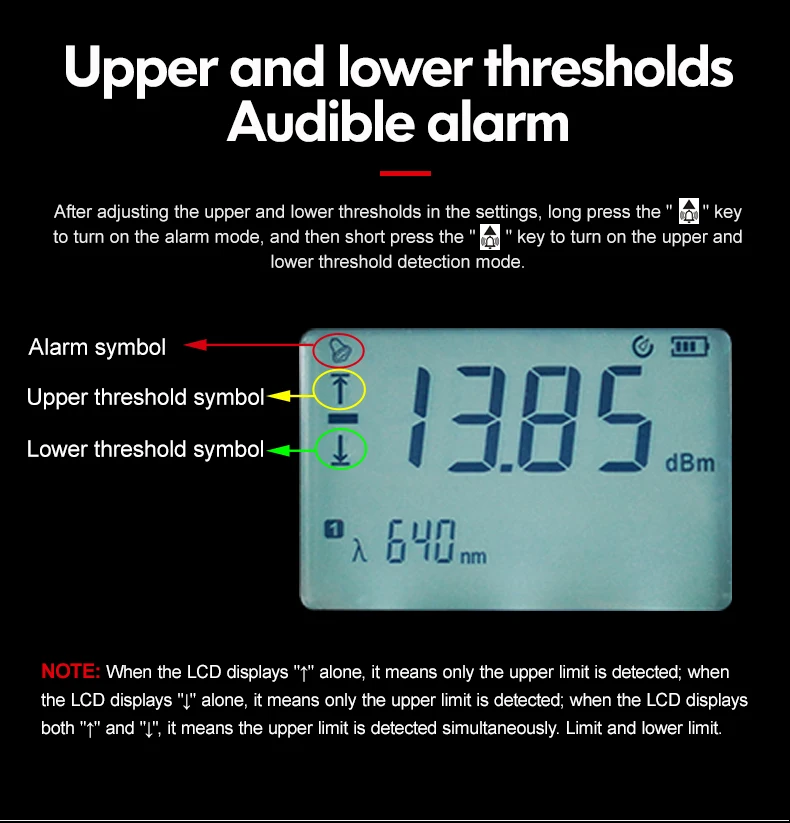

● Threshold alarm function
● Low power consumption

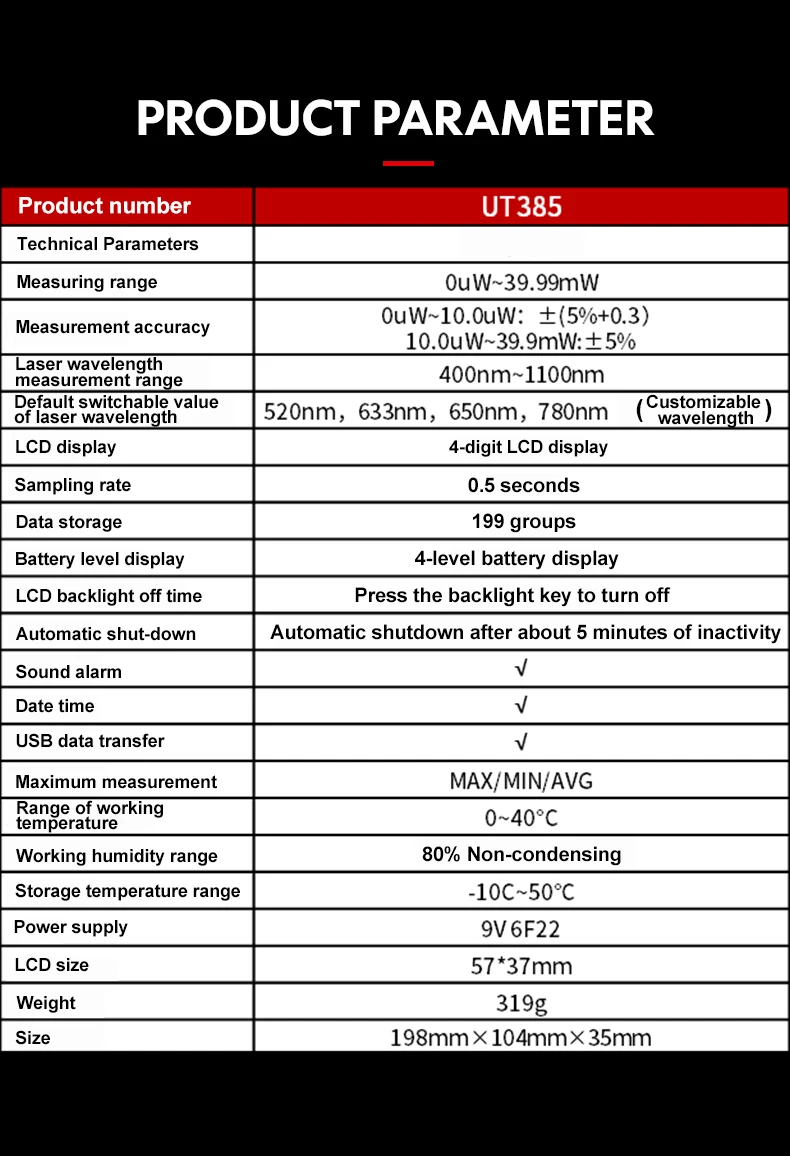

Parameter

Specifications	Range
Certiﬁcates	CE, RoHS
Measurement range	0uW~39.99mW
Measurement accuracy	0uW~10uW: ±(5%+0.3); 10uW~39.9mW: ±5%
Laser wavelength range	400nm~1100nm
Laser wavelength preset options	520nm, 633nm, 650nm, 780nm
LCD display	4-digit LCD display
Sampling rate	0.5s
Data storage	199 sets
Battery level indication	√
LCD backlight	√
Auto power off	√
Operating temperature	0~40°C
Operating humidity	80%RH (no condensation)
Storage temperature	-10°C~50°C
General Characteristics
Power	9V battery (6F22) (No include)
Display	57mm x 37mm
Product net weight	319g
Product size	198mm x 104mm x 35mm

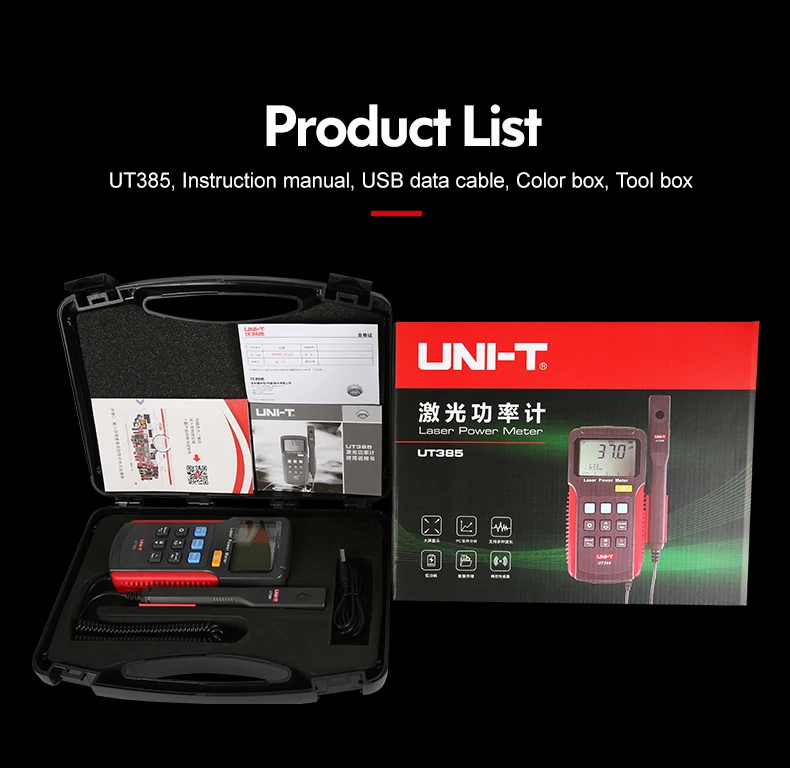

Standard accessories	USB cable, documents download guide, English manual
