UNI-T Laser Rangefinder LM600G/ LM800G/ LM10000G/ LM1200G/ LM1500G.
- Measurement Accuracy: ±1m ± range X 0.2%
- Size: 108x68x38mm
- Model Number: LM600G/ LM600G/ LM800G/ LM10000G/ LM1200G/ LM-1500G
- Power Type: Rechargeable
- Brand Name: UNI-T
- Origin: Mainland China
- Certification: CE
- Magnification: 6X
- Speed range: 0-300Km/h
- Objective caliber: 19mm
- Eyepiece caliber: 15mm
- Exit pupil caliber: 3.7mm
- Flagpole Locking function: Yes
- Slope compensation function: Yes
- Ballistic compensation function: Yes
- Height measurement function: Yes
- Power Supply: 3.7V 750mAh lithium battery
- Monocular telescope laser: Telescope laser rangefinder
LM600G LM800G LM1000G LM1200G LM1500G Rangefinder Telescope
This laser ranging telescope is an engineering, golf general-purpose instrument. Widely used in power equipment installation, highway, municipal engineering, forestry survey and design, construction site, network planning survey and design, communication maintenance, golf, hunting and other outdoor measurements.
Features
1.1 class pulsed laser, harmless to eyes;
2. High precision, high efficiency and low power consumption;

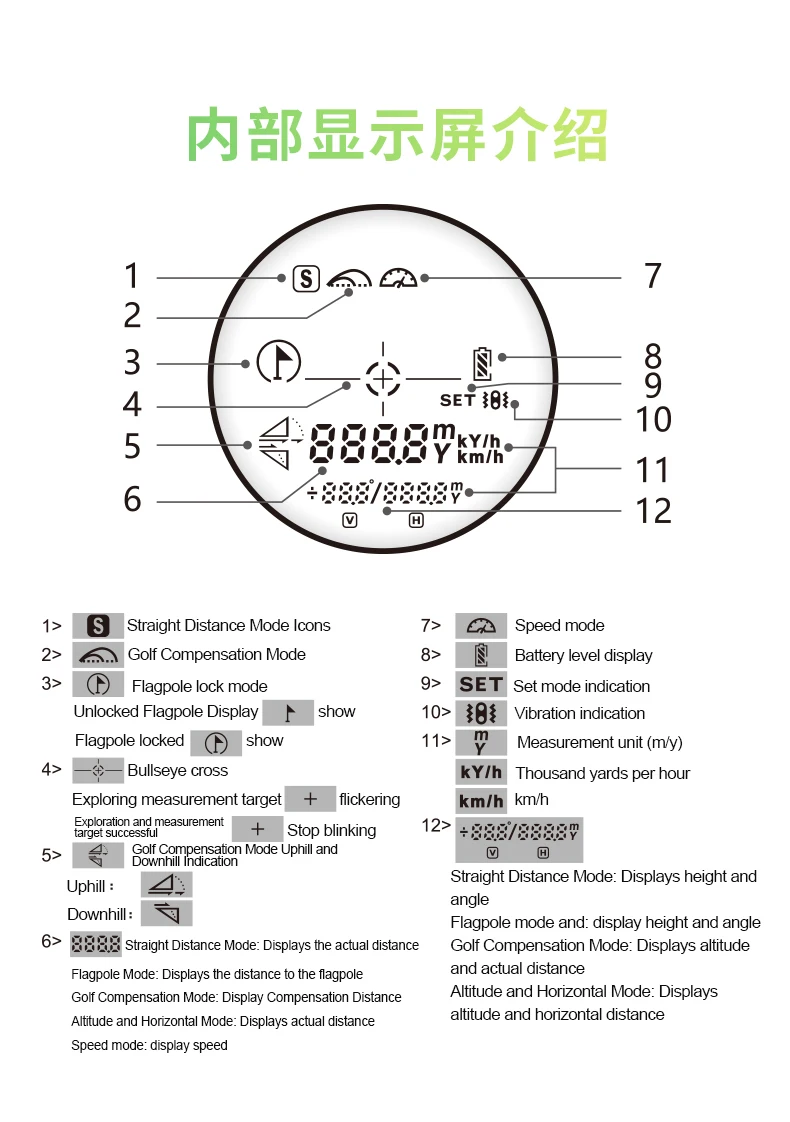

3. Multifunctional liquid crystal display sight;
4. Large area of leather, comfortable feel;
5. Built-in 750mAh rechargeable lithium battery;

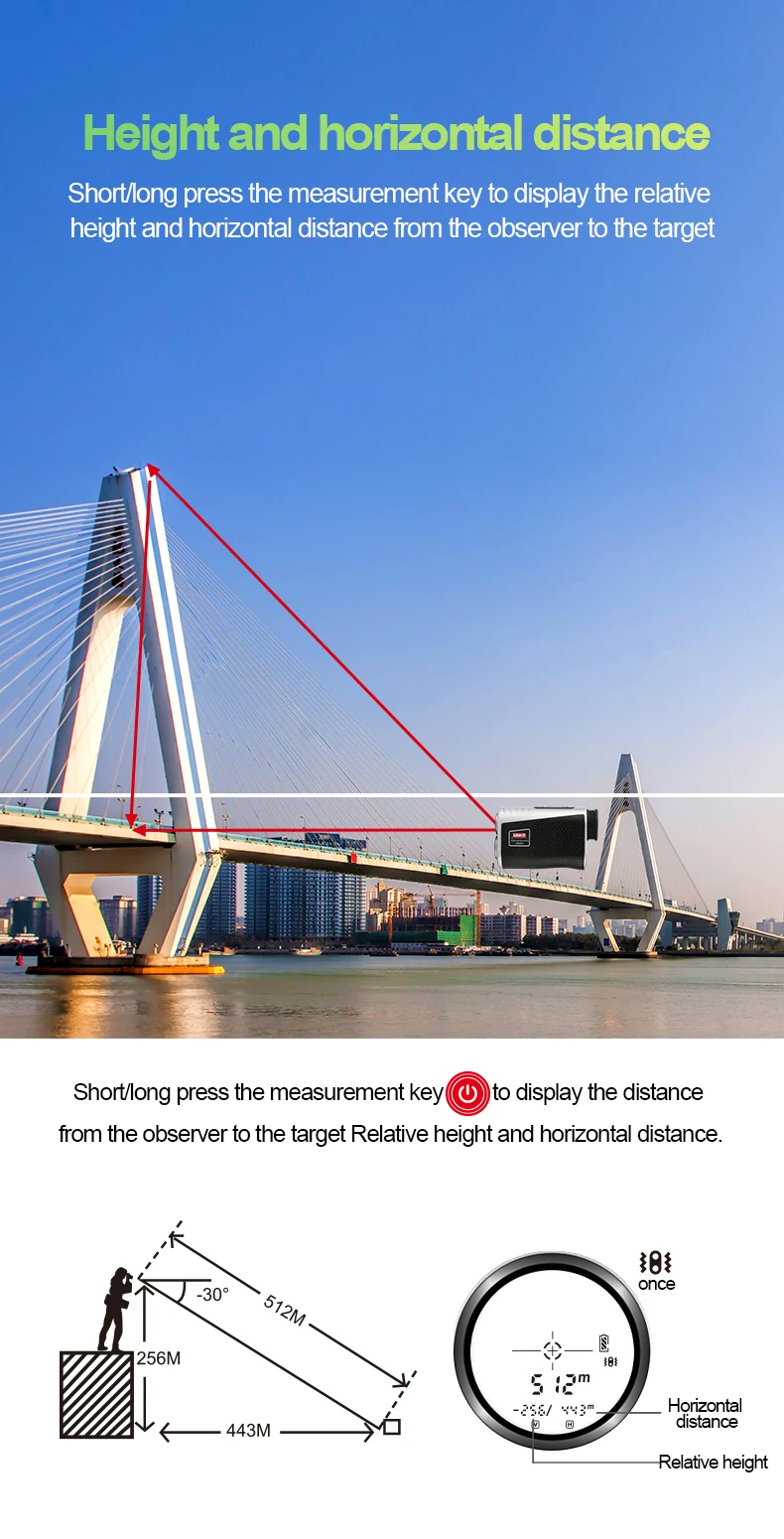

6. Height and horizontal mode, used in engineering survey;

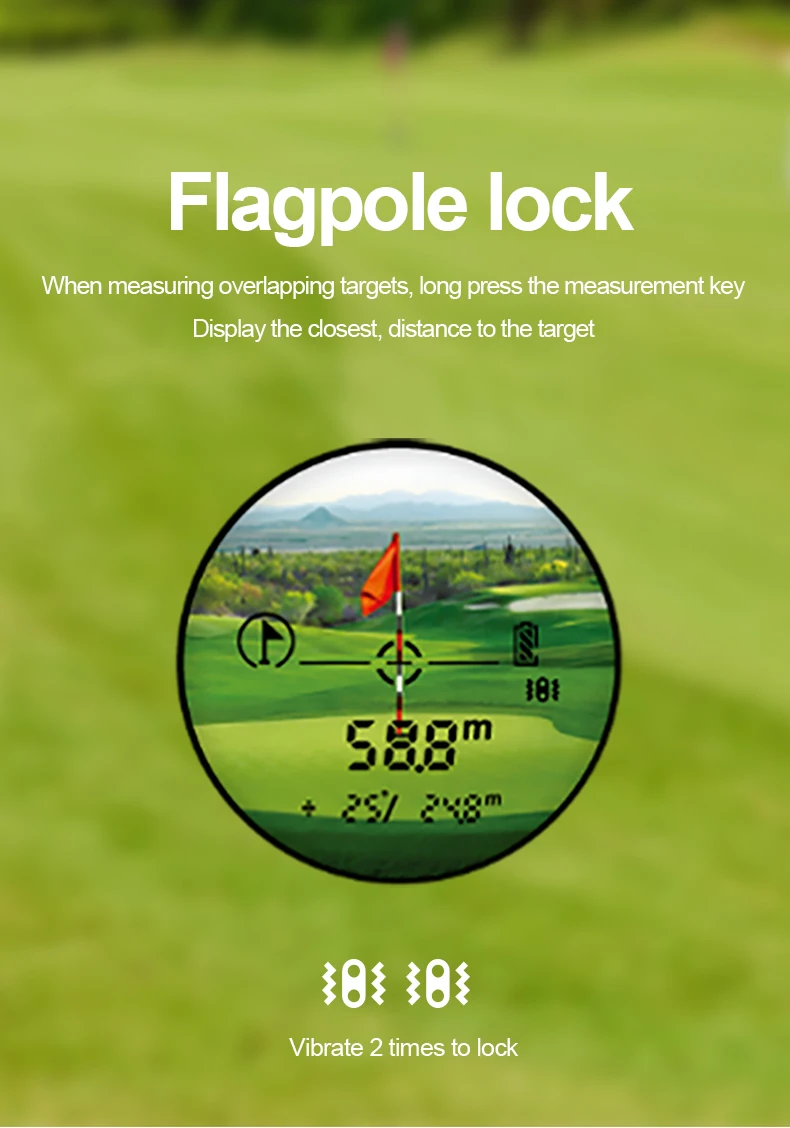

7. Flagpole locking function, easy to measure slender targets;

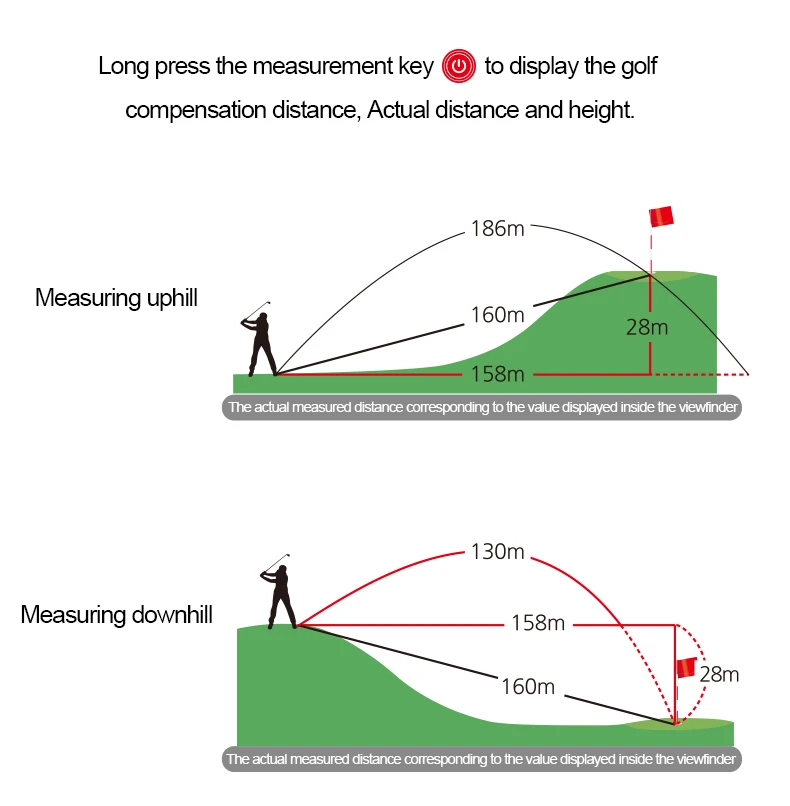

8. Golf ballistic compensation function, used to calculate the actual hitting distance;

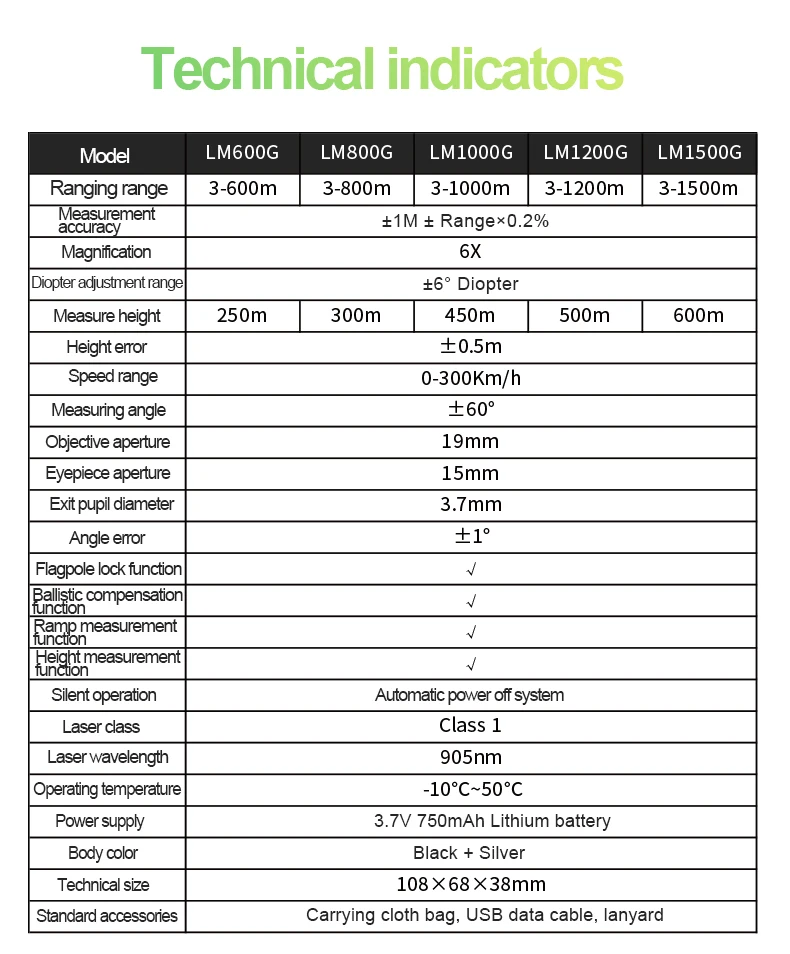

Parameter
| Model |
LM600G |
LM800G |
LM1000G |
LM1200G |
LM1500G |
| Ranging range | 3-600m | 3-800m | 3-1000m | 3-1200m | 3-1500m |
| measurement accuracy | ±1m ± range X 0.2% | ||||
| Magnification | 6X | ||||
| Diopter adjustment range | ±6° diopter | ||||
| Measure height | 250m | 300m | 450m | 500m | 600m |
| Height error | ±0.5m | ||||
| Speed range | 0-300Km/h | ||||
| Measuring angle | ±60° | ||||
| Objective caliber | 19mm | ||||
| Eyepiece caliber | 15mm | ||||
| Exit pupil caliber | 3.7mm | ||||
| Angle error | ±1° | ||||
| Flagpole Locking function | √ | ||||
| Ballistic compensation function | √ | ||||
| Slope compensation function | √ | ||||
| Height measurement function | √ | ||||
| Silent operation | Automatic power off system | ||||
| Laser class | Class 1 | ||||
| Laser wavelength | 905nm | ||||

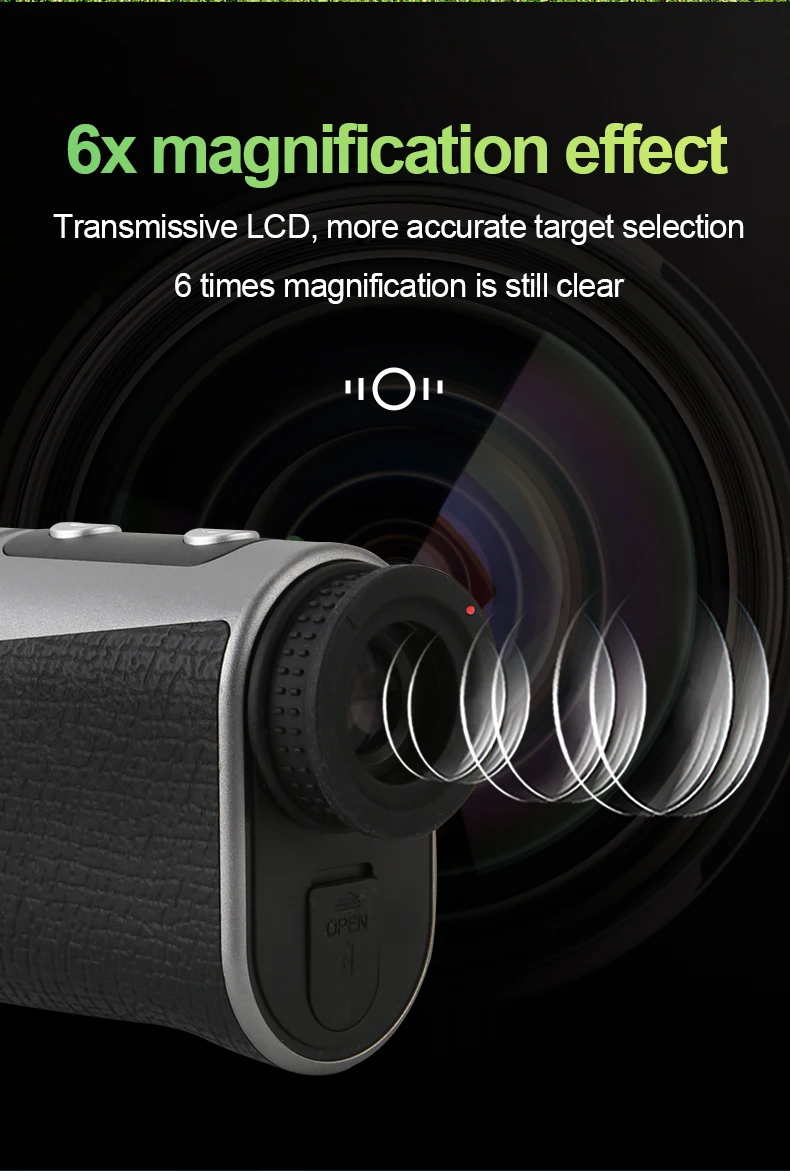

High magnification optical lens
6 times magnification is still clear
High precision, high efficiency, small machine and easy to carry
Rechargeable lithium battery

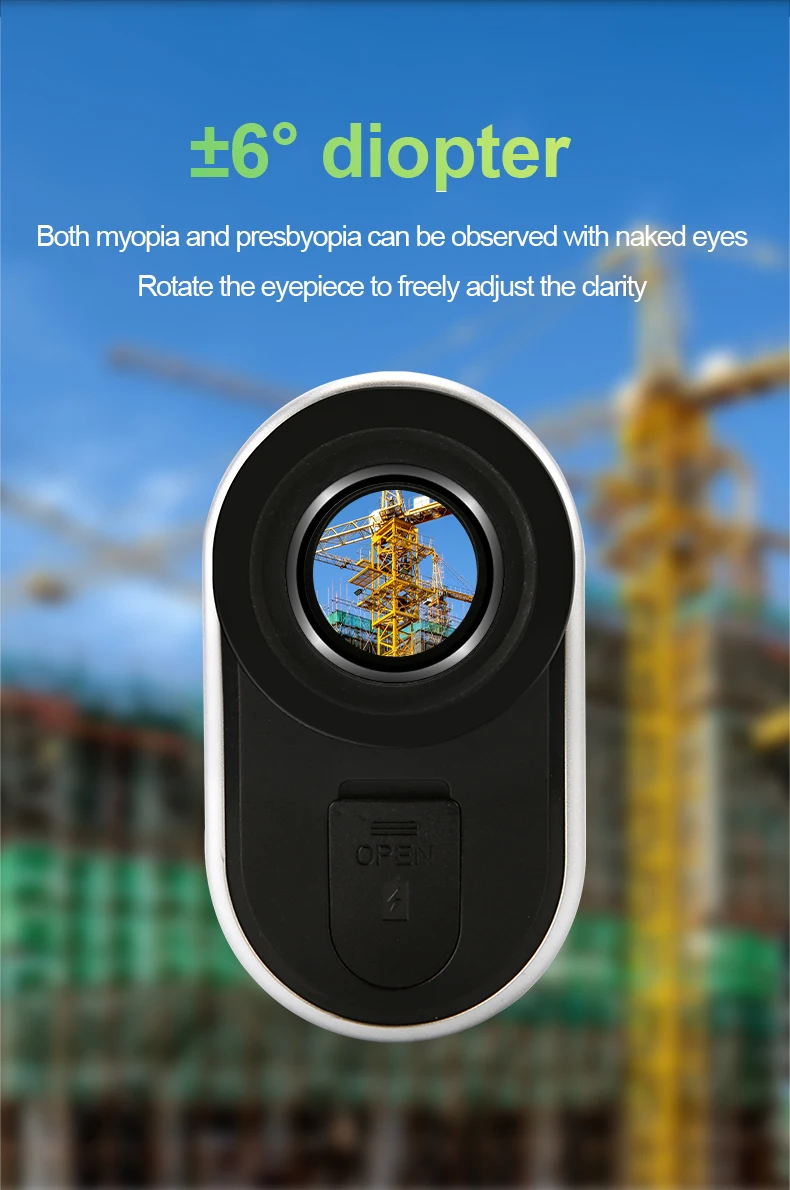

Freely adjust the sharpness
±6° diopter
Both myopia and presbyopia can be observed with naked eyes

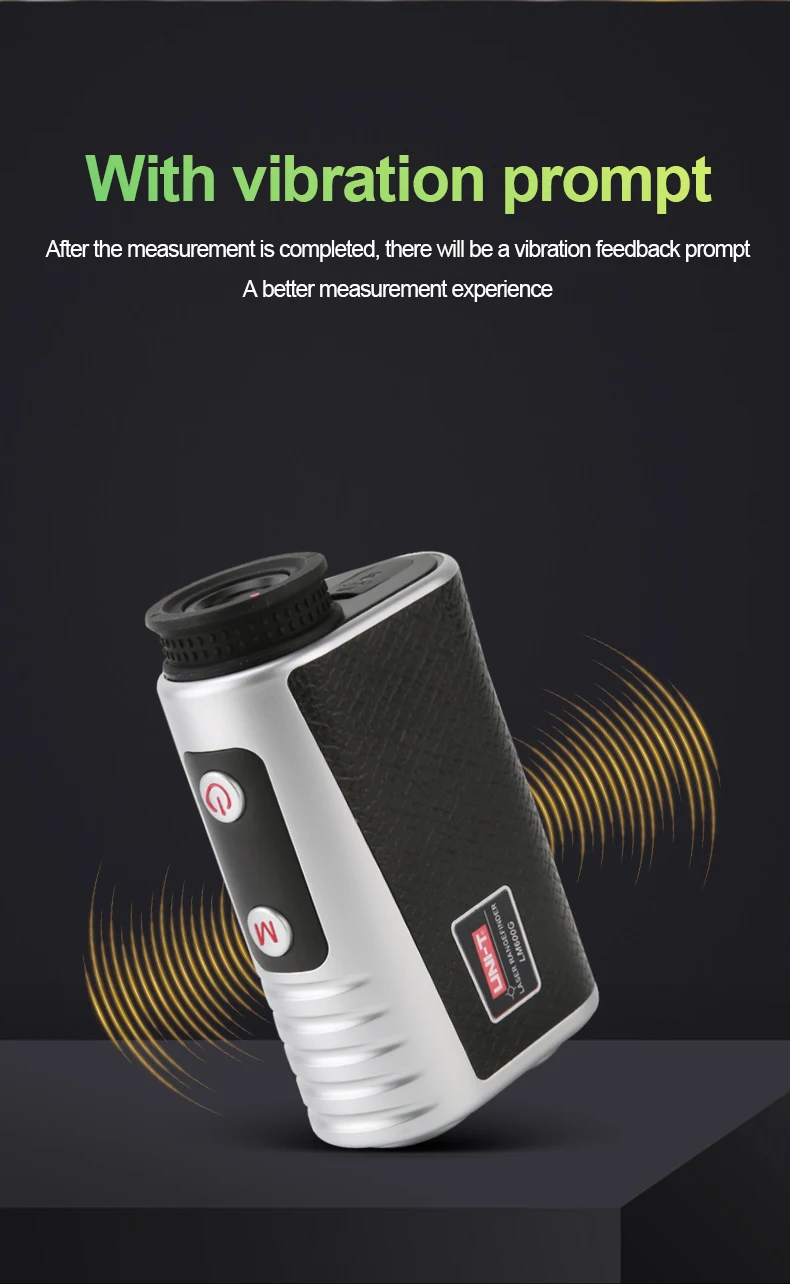

Vibration feedback prompt

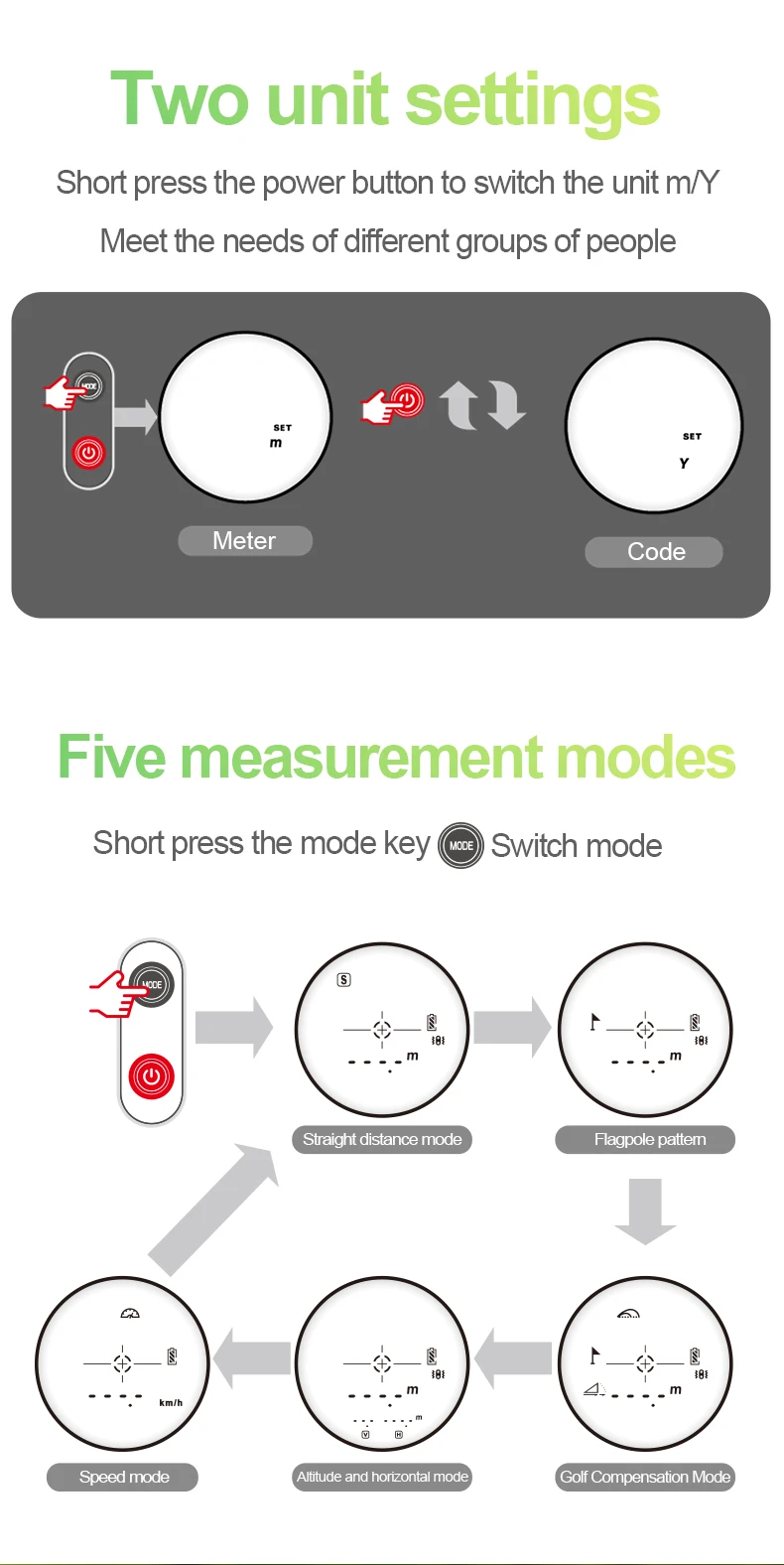

Two units, Five measurement modes
Measurement unit: m/Y

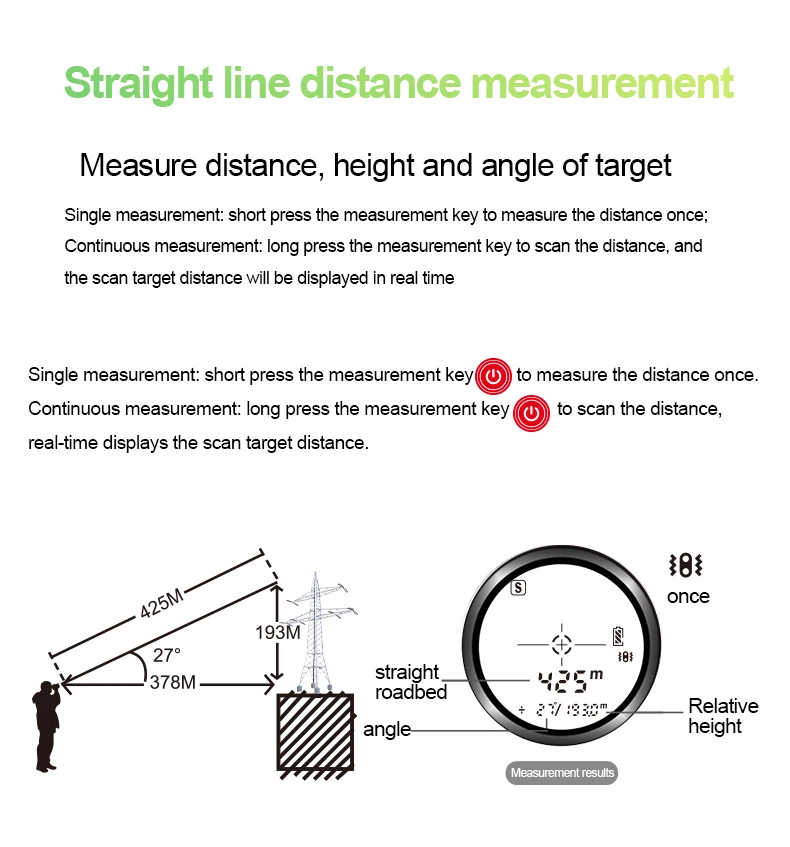

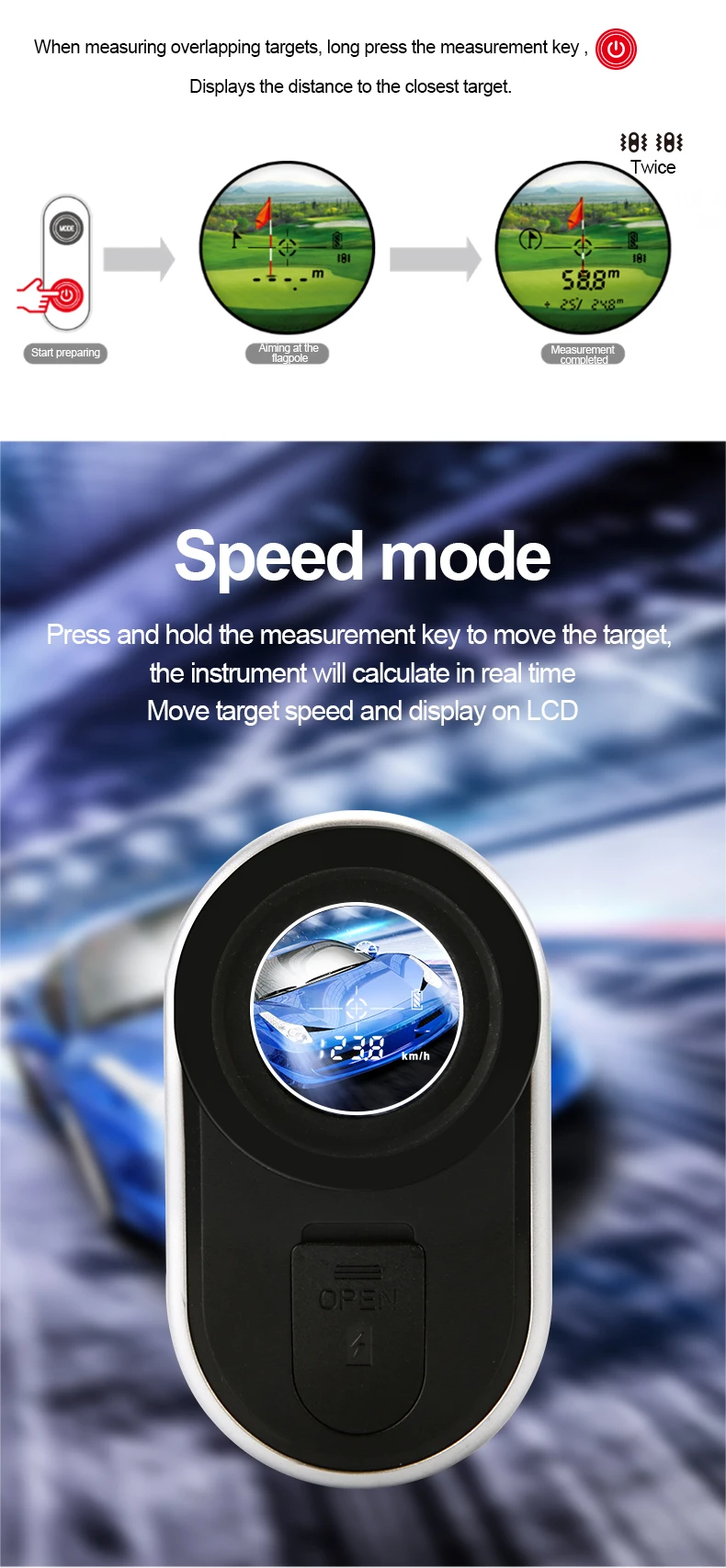

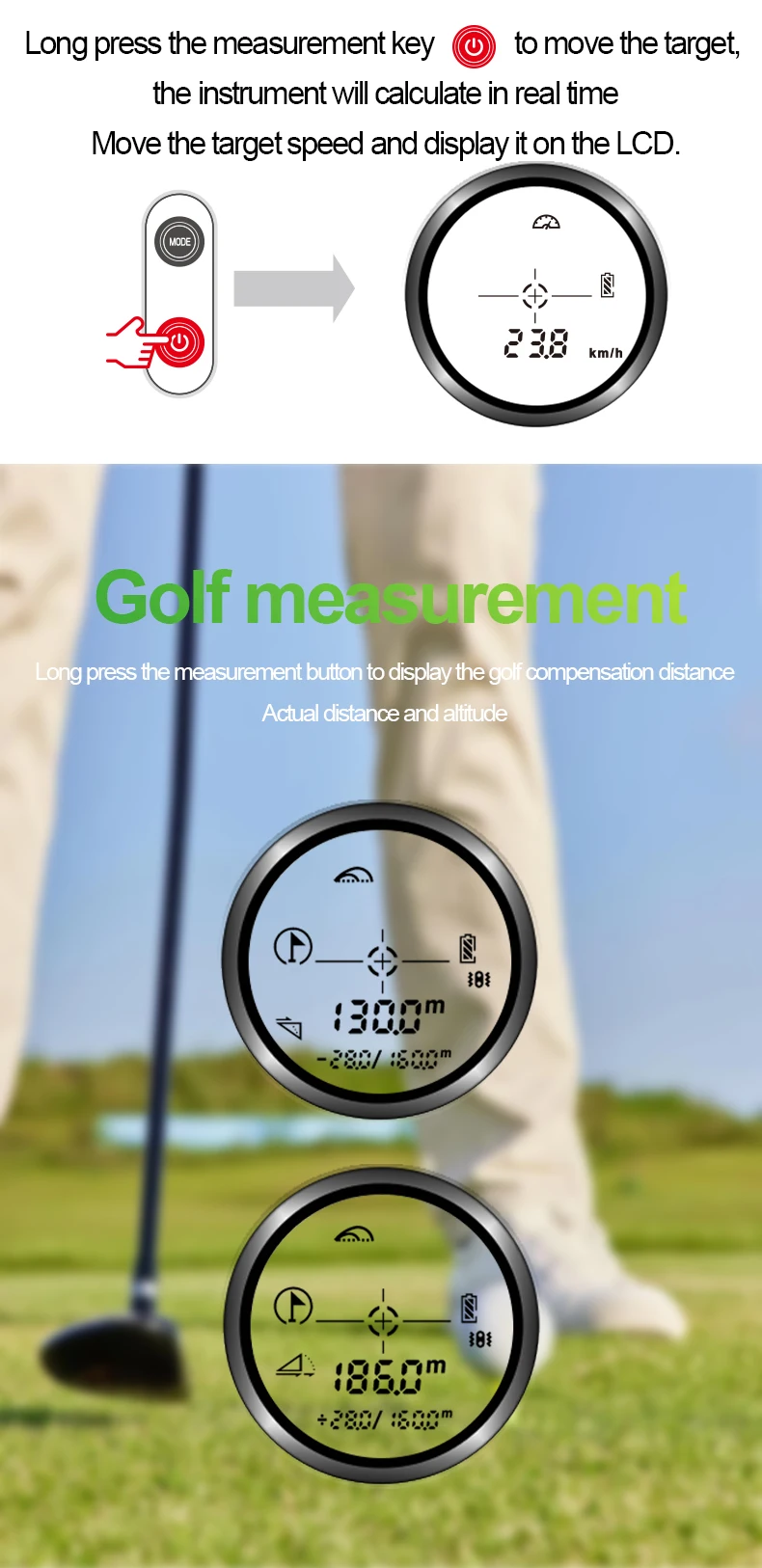

Measurement Modes: Flagpole Mode, Speed Mode, Golf Compensation Mode, Altitude and Level Mode and Straight Distance Mode

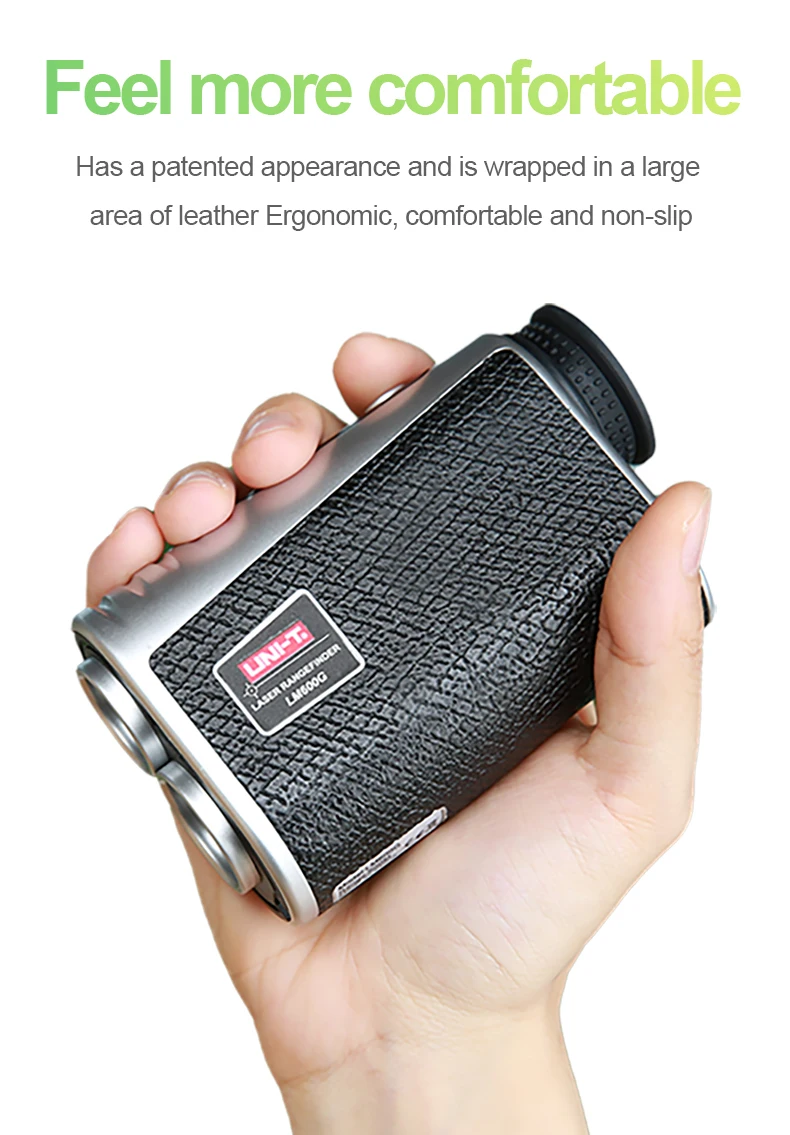

Large area of leather for a comfortable feel
