UNI-T LM575LD/ LM576LD/ LM585LD/ LM573LD-II Laser Green Line Self Leveling.
- Wavelength: 500nm-540nm
- Precision: ±3mm/10m
- Size: 138mm x 89mm x 147mm
- Model Number: LM575LD/ LM576LD/ LM585LD/ LM573LD-II
- Measurement Model: 12 lines
- Type: Vertical & Horizontal Lasers
- Brand Name: UNI-T
- Certification: NONE
- Origin: Mainland China
- 360 laser level: 12 lines laser level
- Green Laser Level: 16 Lines Laser Level
- Self-leveling laser level 360: Laser leveling device
LM570/LM585 Series Laser Levelers
Features
These laser levelers are equipped with green LD laser,suitable for large or bright work place
Its application include: horizontal,vertical,cross line projection for decoration, building construction, home decoration,renovation,furniture installation, flooring, and project layout

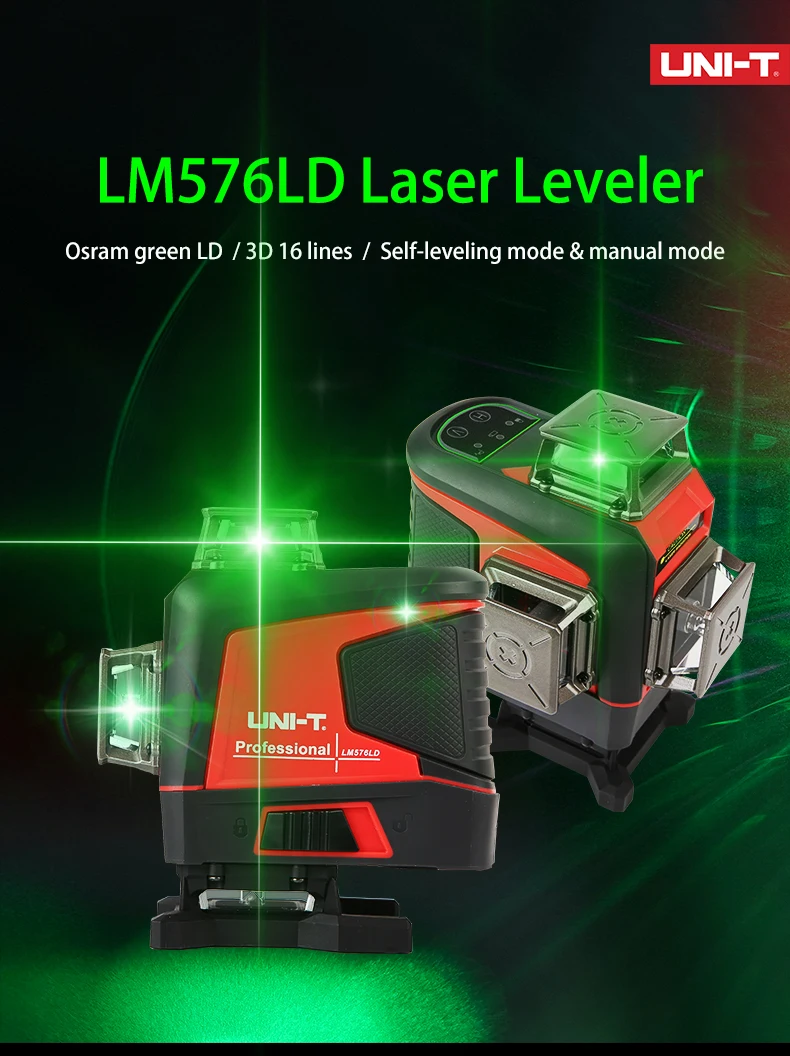

Osram LD green laser(LM576/585LD)

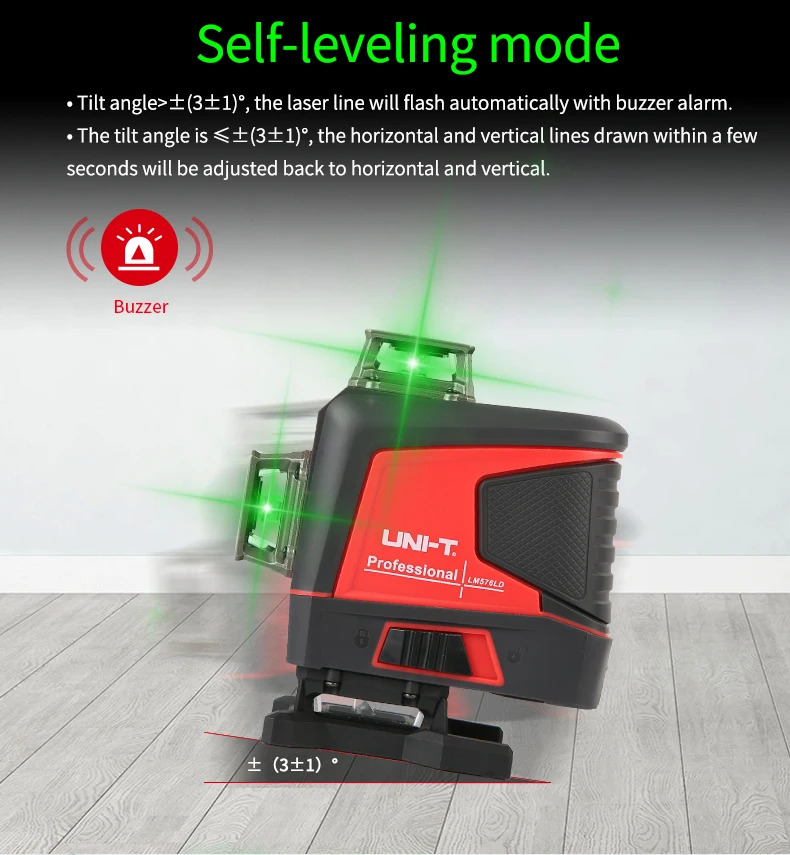

Self-leveling mode & manual mode
Outdoor pulse mode
5200mAh Li-ion battery
Type-C DC- in port

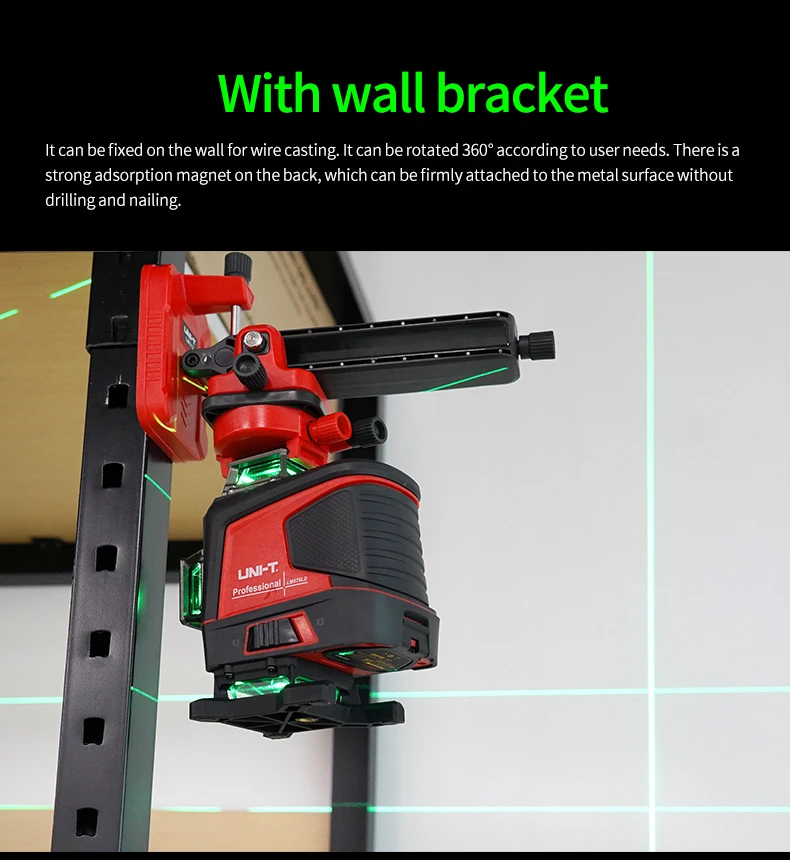

Complimentary bracket
| Model |
LM570LD-II |
LM573LD-II |
LM575LD |
LM576LD |
LM585LD |
| Certificates (LM570LD-II/575LD only) | CE, RoHS | ||||
| Laser type | Green LD | Green LD | Green LD | Osram green LD | Osram green LD |
| Laser lines | 2 lines | 3D 12 lines |
3D 12 lines | 3D 16 lines | 8 lines |
| Operating distance | 10m | 40m | 40m | 30m | 30m |
| Laser accuracy | ±3mm/10m | ±3mm/10m | ±3mm/10m | ±3mm/10m | ±3mm/10m |
| Outdoor pulse mode | √ | √ | √ | √ | |

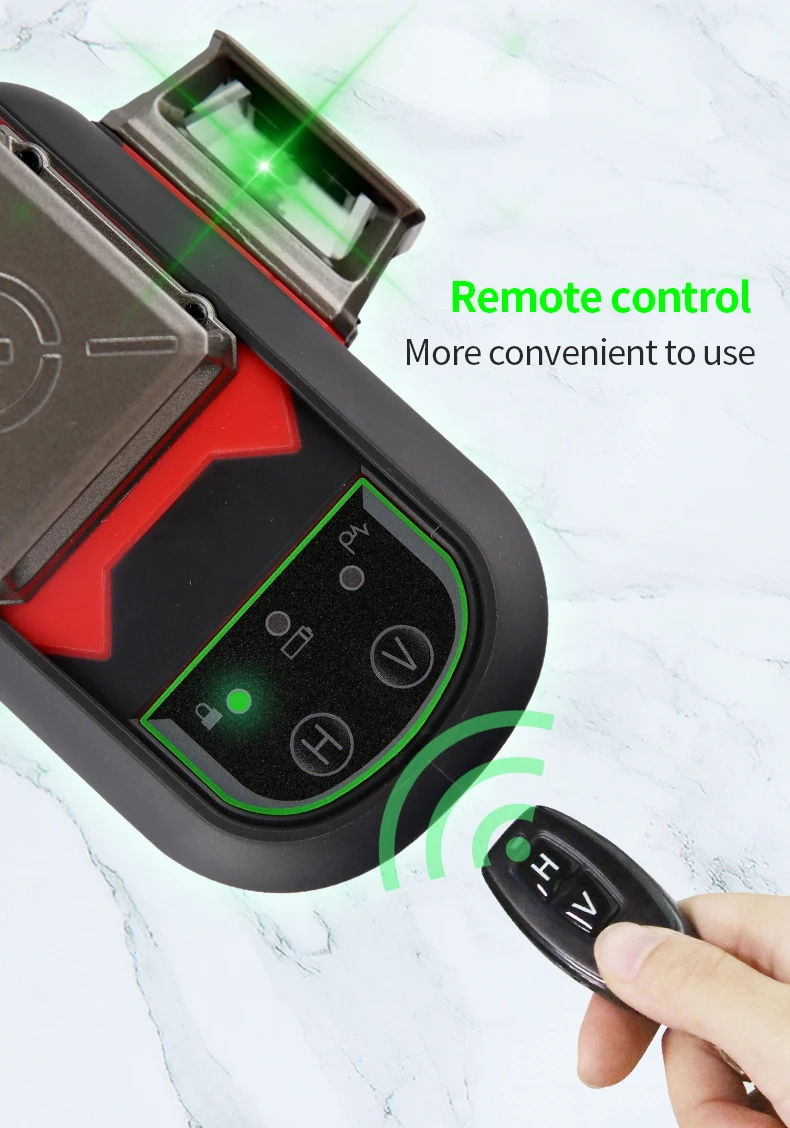

| Remote control | √ | √ | √ | √ | |
| Self-leveling range | 3°±1° | ±3° | ±3° | ±3° | ±3° |
| Self-leveling time | 3s | <3s | <3s | <3s | <3s |
| Working hours | 4h | >6h | >6h | >4h | >4h |
| Laser wavelength | 520nm | ||||
| Laser class | 2 | ||||
| GENERAL CHARACTERISTICS | |||||
| Power | LM570LD-II: 1.5V battery x 2 (LR6); LM573LD-II/LM575LD/LM576LD/LM585LD: |
||||
| 3.7V Li-ion battery 5200mAh | |||||
| Product net weight | LM570LD-II: 240g; LM573LD-II/LM575LD: |
||||
| 694g; LM576LD: 653g; LM585LD: 591g | |||||
| Product size | LM570LD-II: 85.5mm x 62mm x 90.3mm; |
||||
| LM573LD-II: 119mm x 89mm x 138mm; | |||||
| LM575LD/LM576LD: 138mm x 89mm x 147mm; LM585LD: 138mm x 89mm x 136mm |
|||||
| Standard accessories | USB cable, adapter | ||||
| Standard individual packing | Gift box, tool box | ||||
Buy-this-product-on-Aliexpress
