UNI-T Mini Digital Multimeter UT60EU.
- DC Current: 10A
- AC Current: 10A
- DC Voltage: 999.9V
- AC Voltage: 999.9V
- Measuring Resistance Range: 999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ
- Model Number: UT60EU
- Dimensions: 169mm x 81mm x 46mm
- Operating Temperature: 0 – 40 ℃
- Display Type: Digital display
- DIY Supplies: ELECTRICAL
- Brand Name: UNI-T
- Certification: CE
- Origin: Mainland China
- Frequency: 99.99Hz-9.999MHz
- Duty Cycle: 0.1-99.9%
- Temperatue: -40-1000 ℃,-40-1832 ℉
- Display Count: 9999
- Continuity Test: Yes
- Auto Range: Yes
- Voltimetro: Tester multimeter

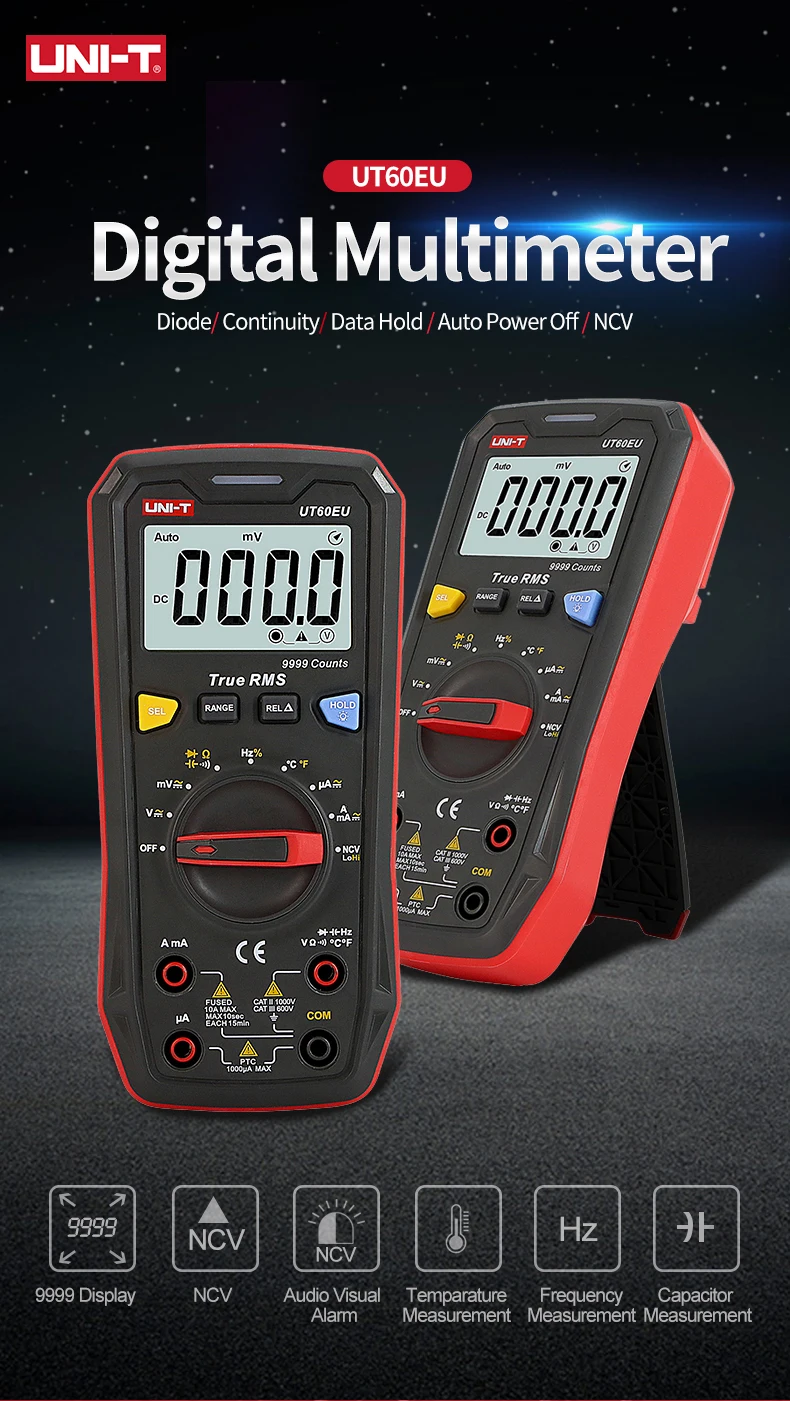

UT60-EU True RMS Digital Multimeter
UT60 series digital multimeters provide True-RMS measurement, 9999-count resolution, non-contact voltage detection and many convenient features for users’ testing needs. These auto-ranged meters can measure up to 1000V AC/DC voltage, 10A AC/DC current and 100MΩ resistance. The easy-to-use interface with backlight enables you to detect equipment quickly even in dark places.
Features
1. 9999 counts
2. True RMS
3. Bluetooth
4. Duty cycle
5. Diode/Continuity test
6. Temperature
7. Non-contact voltage
8. Analog bar/Data hold
9. Backlight/Relative mode
10. Auto/Manual range
11. Low battery indication
12. Three-color LED light indicator
Parameter
|
Specifications |
Range |
UT60EU |
|
DC Voltage |
9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V |
±(0.5%+3) |
|
AC Voltage |
9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V |
±(0.8%+3) |
|
DC Current |
999.9uA/999.9mA/9.999A/10A |
±(0.8%+3) |
|
AC Current |
999.9uA/999.9mA/9.999A/10A |
±(1.0%+3) |
|
Resistance |
999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ |
±(0.8%+2) |
|
Capacitor |
9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF |
±(4.0%+5) |
|
Frequency |
99.99Hz～9.999MHz |
±(0.1%+5) |
|
Duty Cycle |
0.1～99.9% |
±(3%+5) |
|
Temperatue |
–40℃～1000℃/–40°F～1832°F |
±4℃/±5℉ |
|
Features |
||
|
Display Count |
|
9999 |
|
Auto Range |
|
√ |
|
REL |
|
√ |
|
NCV |
|
√ |
|
Diode |
|
√ |
|
Continuity Test |
|
√ |
|
Acousto-optic Indication (NCV/continuity/battery power) |
|
√ |
|
Low Battery Indication |
≤3.6V |
√ |
|
Data Hold |
|
√ |
|
Auto Power Off |
15Min |
√ |
|
Operation Temperature |
0℃～40℃ |
|
|
Safety |
CATII 1000V/CATⅢ 600V |
|
|
General Characteristics |
||
|
Battery |
1.5V AAA x 3(No include) |
|
|
Product Color |
Red and Gray |
|
|
Product Net Weight |
290g |
|
|
Product Size |
169mm x 81mm x 46mm |
|
|
Standard Individual Packing |

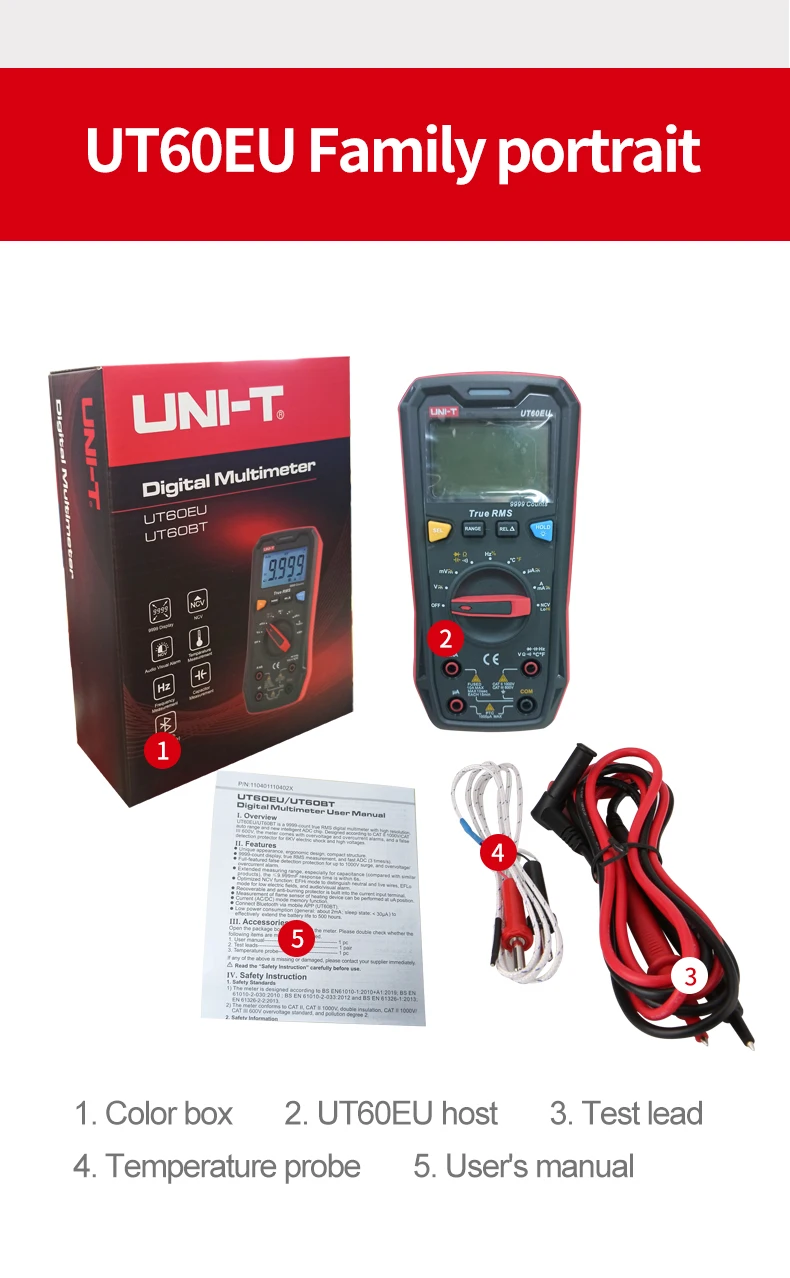

Gift Box, Manual, Thermocouple |
|
