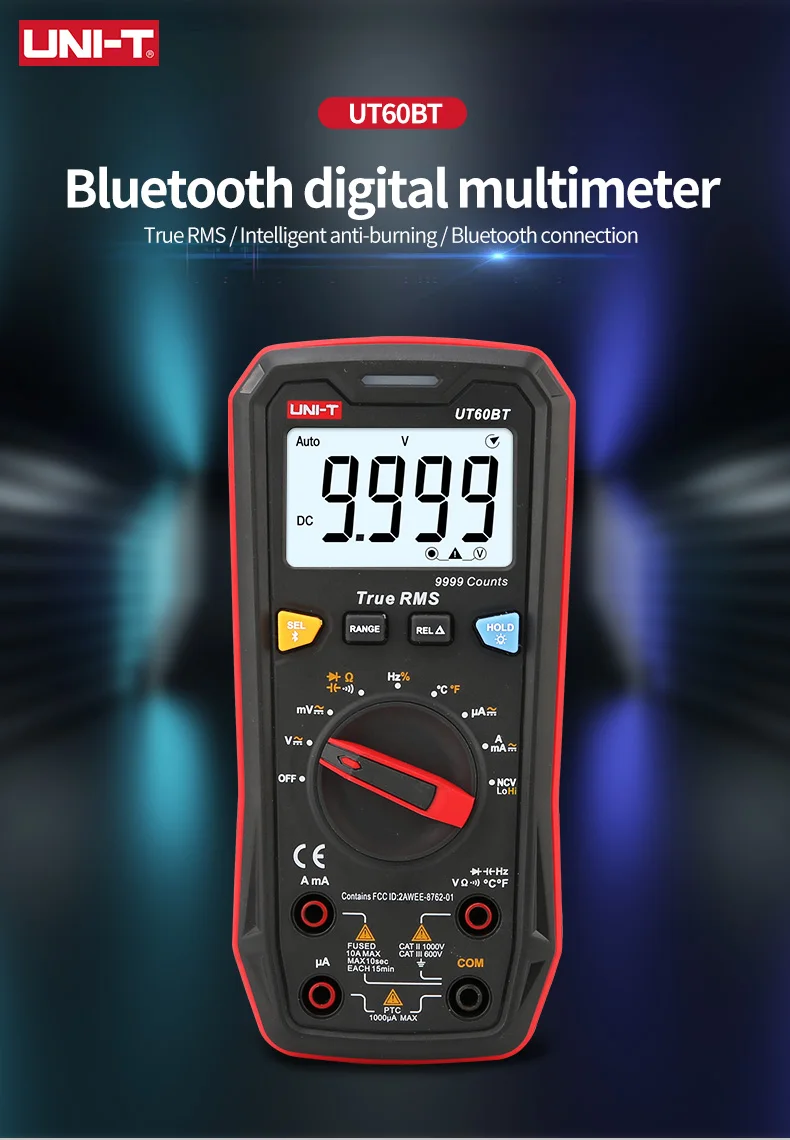

UNI-T Multimeter UT60S/ UT60BT

UNI-T Multimeter UT60S/ UT60BT.

DC Current: 10A
AC Current: 10A
DC Voltage: 999.9V
AC Voltage: 999.9V
Measuring Capacitance Range: 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF
Measuring Resistance Range: 99.99MΩ
Model Number: UT60S
Dimensions: 169mm x 81mm x 46mm
Operating Temperature: 0 – 40 ℃
Display Type: Digital display
DIY Supplies: ELECTRICAL
Brand Name: UNI-T
Origin: Mainland China

Mô tả
Đánh giá (0)

UNI-T Multimeter UT60S/ UT60BT.

DC Current: 10A
AC Current: 10A
DC Voltage: 999.9V
AC Voltage: 999.9V
Measuring Capacitance Range: 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF
Measuring Resistance Range: 99.99MΩ
Model Number: UT60S
Dimensions: 169mm x 81mm x 46mm
Operating Temperature: 0 – 40 ℃
Display Type: Digital display
DIY Supplies: ELECTRICAL
Brand Name: UNI-T
Origin: Mainland China
Certification: NONE
Frequency: 99.99Hz-9.999MHz
Duty Cycle: 0.1-99.9%
Temperatue: -40-1000 ℃,-40-1832 ℉
Display Count: 9999
Auto Range: Yes
Continuity Test: Yes
Mini Digital Multimeter: Tester multimeter
Voltimetro: Digital capacimeter
Bluetooth Multimeter: Professional digital multimeter

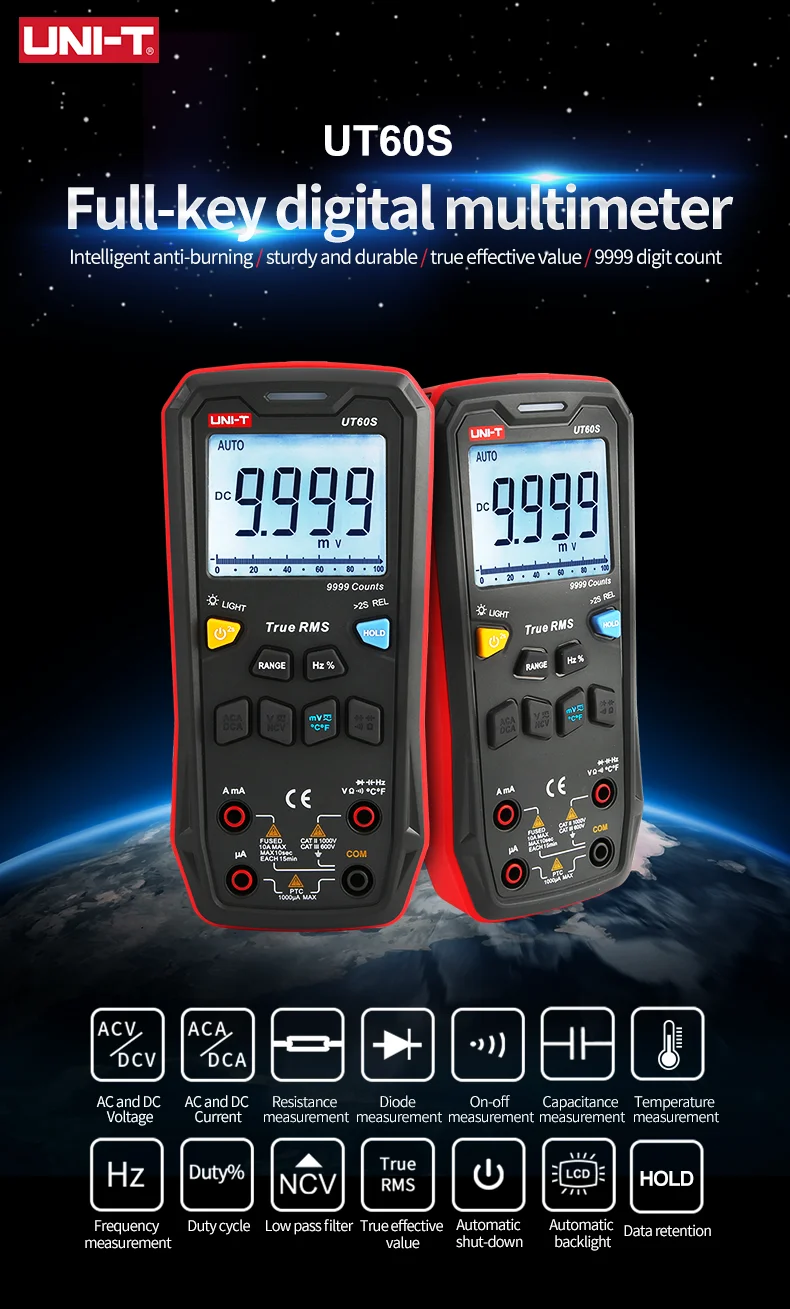

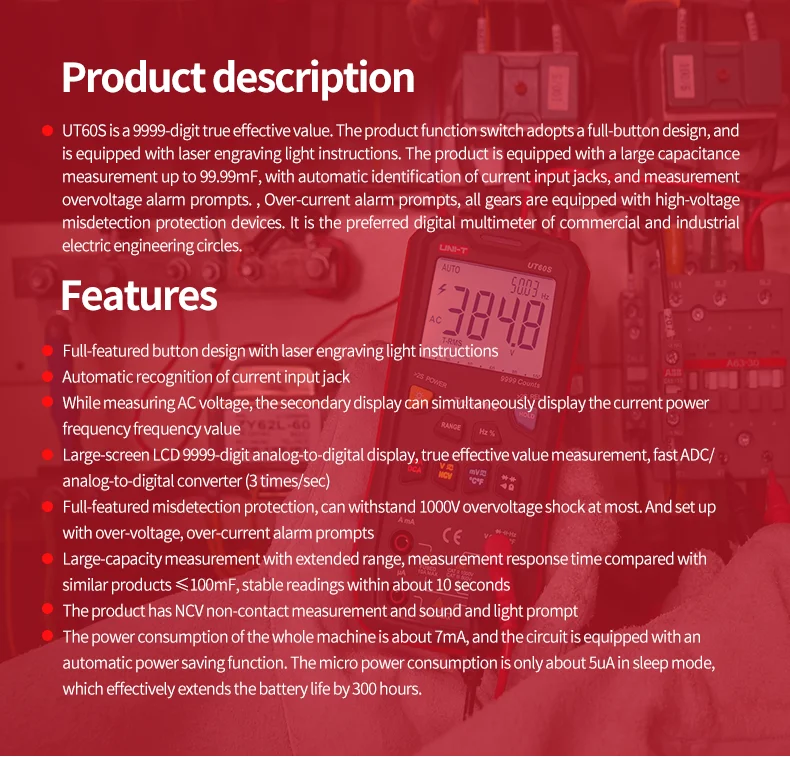

UT60S True RMS Digital Multimeter

UT60 series digital multimeters provide True-RMS measurement, 9999-count resolution, non-contact voltage detection and many convenient features for users’ testing needs. These auto-ranged meters can measure up to 1000V AC/DC voltage, 10A AC/DC current and 100MΩ resistance. The easy-to-use interface with backlight enables you to detect equipment quickly even in dark places.

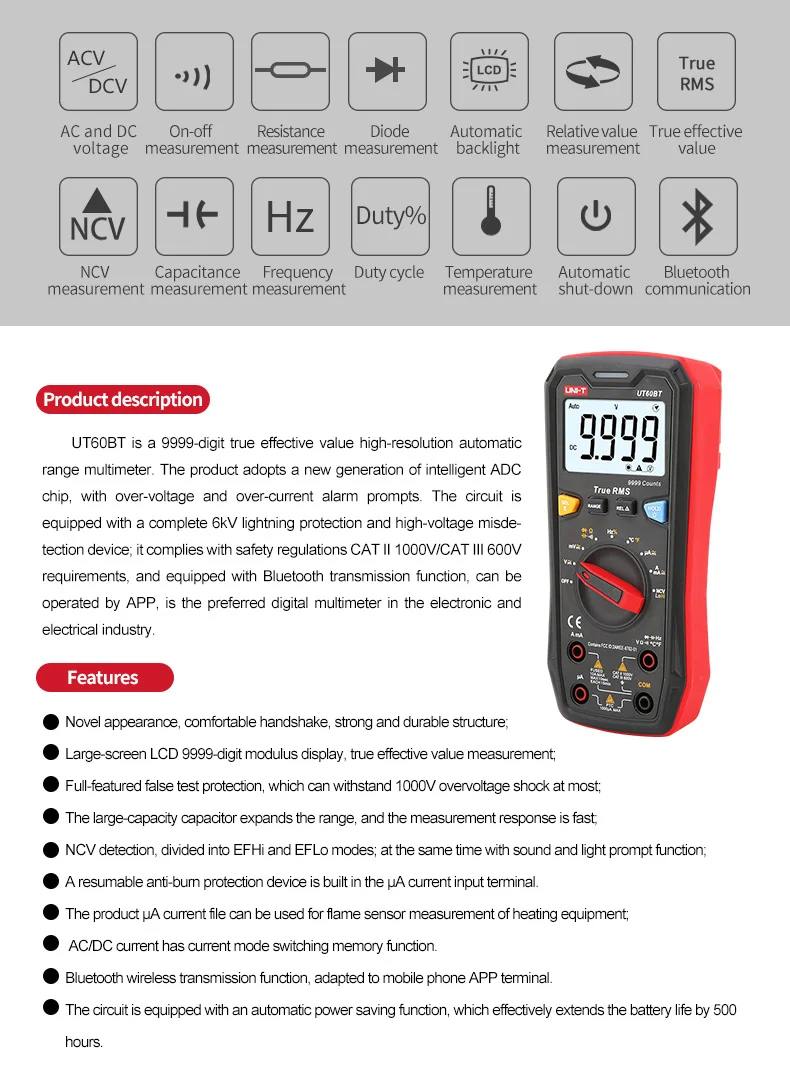

Features

1. 9999 counts
2. True RMS
3. Bluetooth(Only UT60BT have)
4. Duty cycle
5. Diode/Continuity test
6. Temperature
7. Non-contact voltage
8. Analog bar/Data hold
9. Backlight/Relative mode
10. Auto/Manual range
11. Low battery indication
12. Three-color LED light indicator

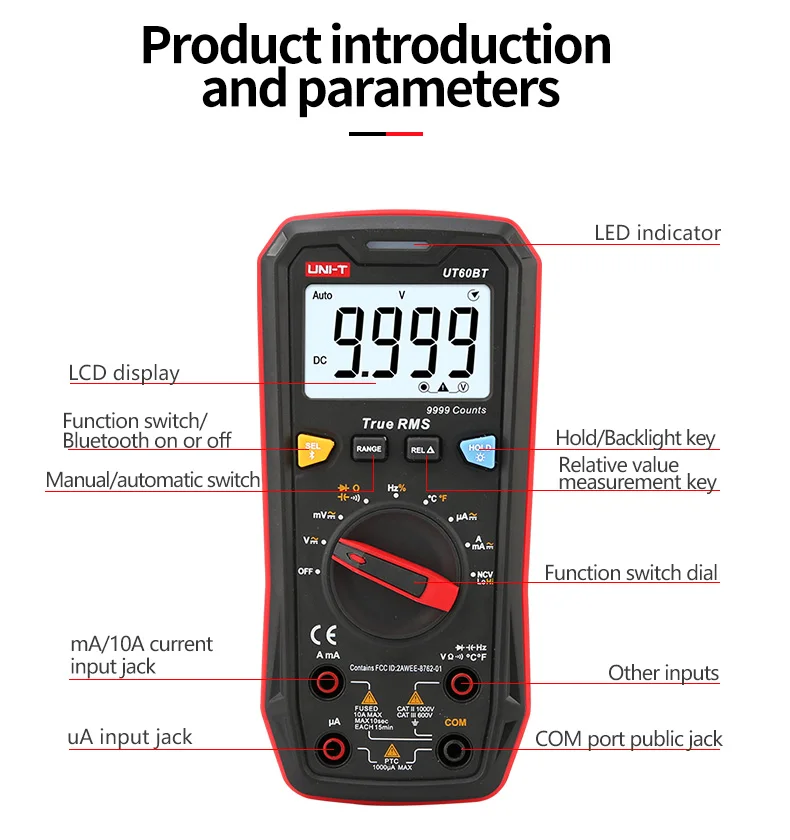

Parameter

Specifications	Range	UT60BT	UT60S
DC Voltage	9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V	±(0.5%+3)	±(0.5%+3)
AC Voltage	9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V	±(0.8%+3)	±(0.8%+3)
DC Current	999.9uA/999.9mA/9.999A/10A	±(0.8%+3)	±(0.8%+3)
AC Current	999.9uA/999.9mA/9.999A/10A	±(1.0%+3)	±(1.0%+3)
Resistance	999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ	±(0.8%+2)	±(0.8%+2)
Capacitor	9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF	±(4.0%+5)	±(4.0%+5)
Frequency	99.99Hz～9.999MHz	±(0.1%+5)	±(0.1%+5)
Duty Cycle	0.1～99.9%	±(3%+5)	±(3%+5)
Temperatue	–40℃～1000℃/–40°F～1832°F	±4℃/±5℉	±4℃/±5℉
Features
Bluetooth		√
Display Count		9999	9999
Auto Range		√	√
REL		√	√
NCV		√	√
Diode		√	√
Continuity Test		√	√
Acousto-optic Indication (NCV/continuity/battery power)		√	√
Low Battery Indication	≤3.6V	√	√
Data Hold		√	√
Auto Power Off	15Min	√	√
Operation Temperature	0℃～40℃
Safety	CATII 1000V/CATⅢ 600V
General Characteristics
Battery	1.5V AAA x 3
Product Color	Red and Gray
Product Net Weight	290g
Product Size	169mm x 81mm x 46mm

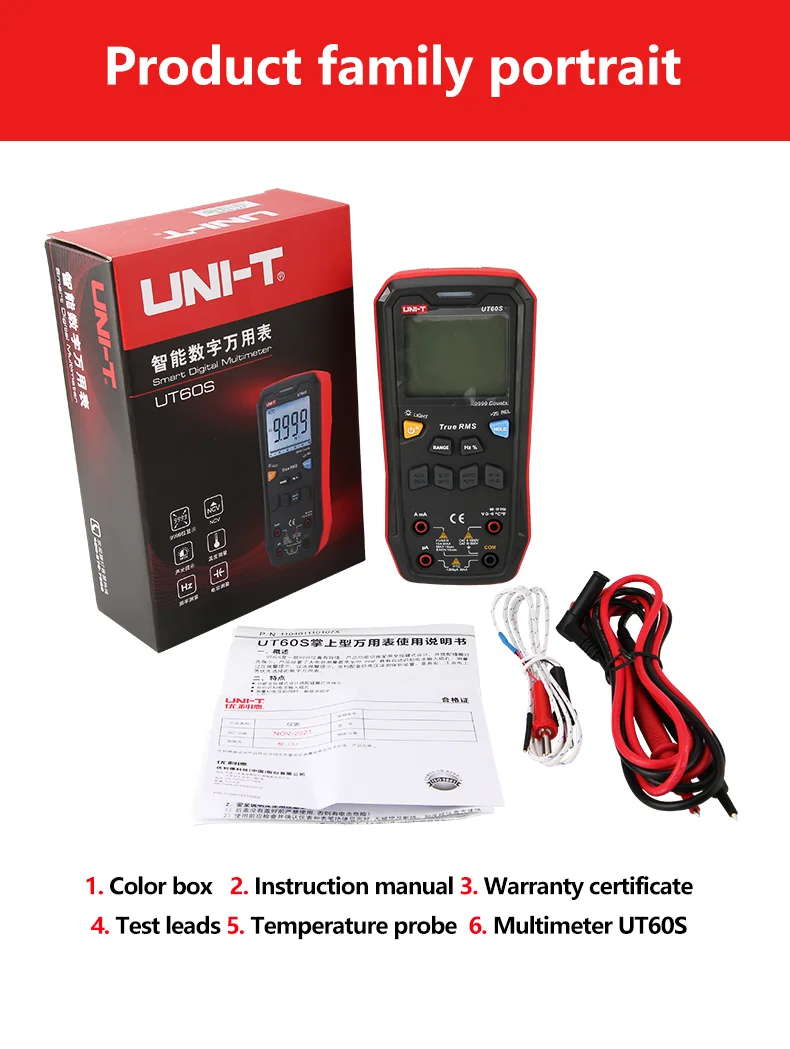

Standard Individual Packing	Gift Box, Manual, Thermocouple

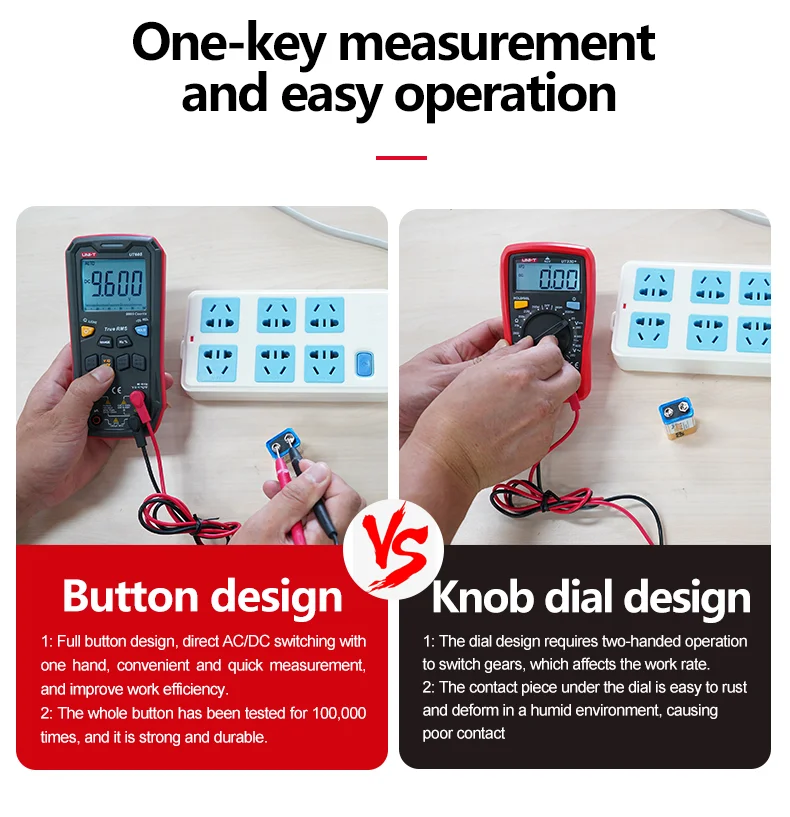

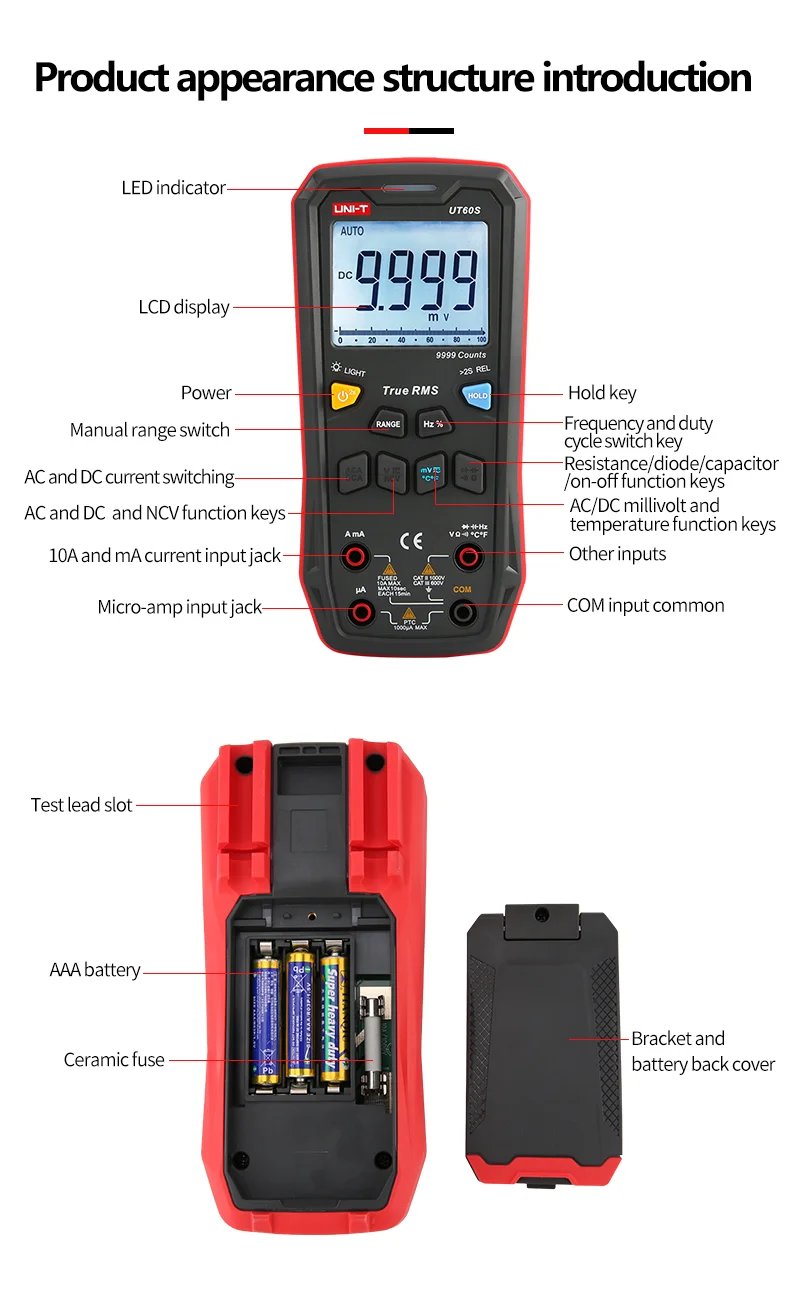

Button measurement, easy to operate

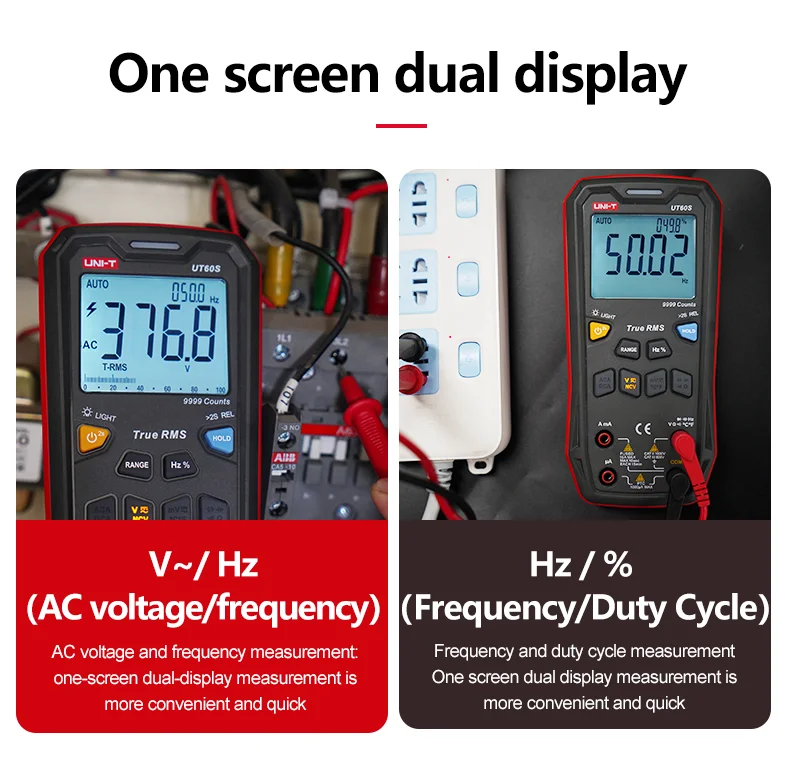

Double data displayed on one screen

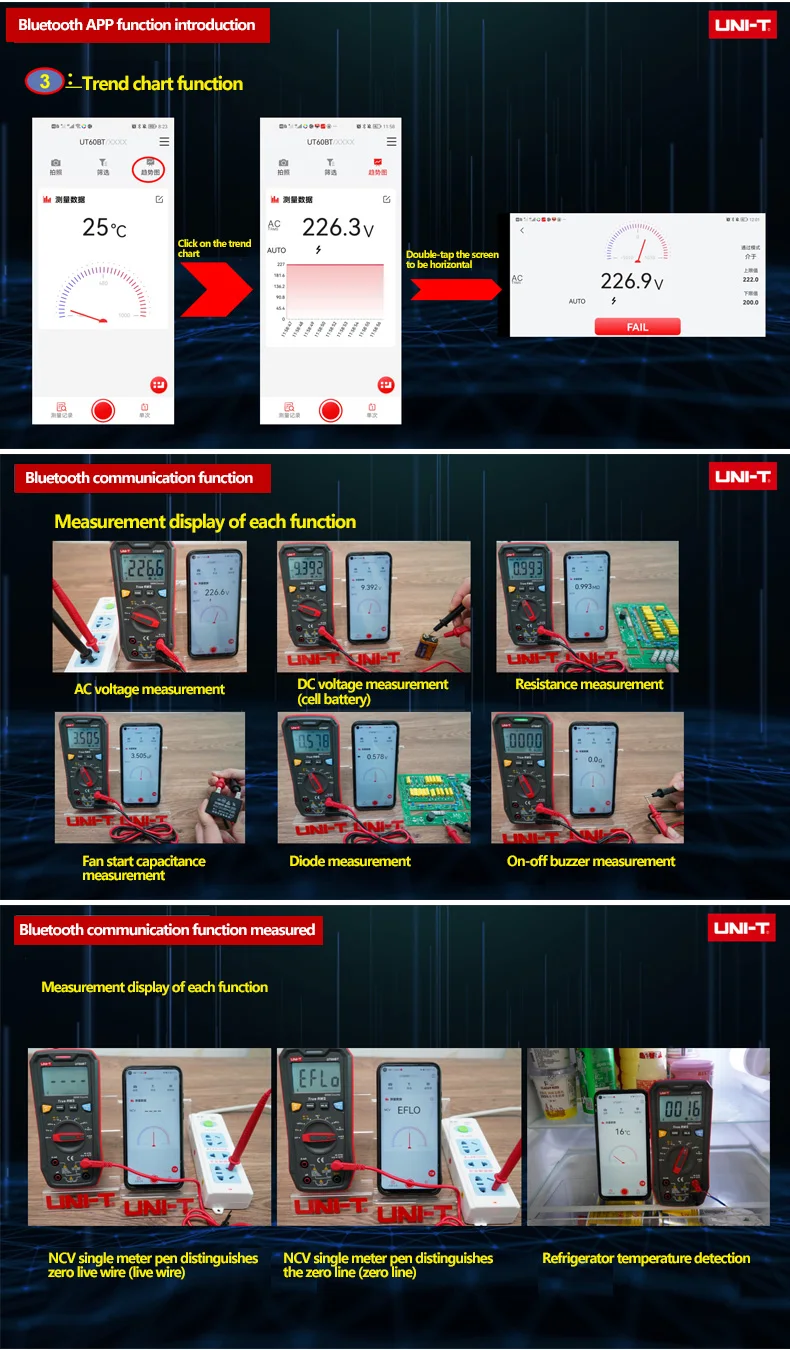

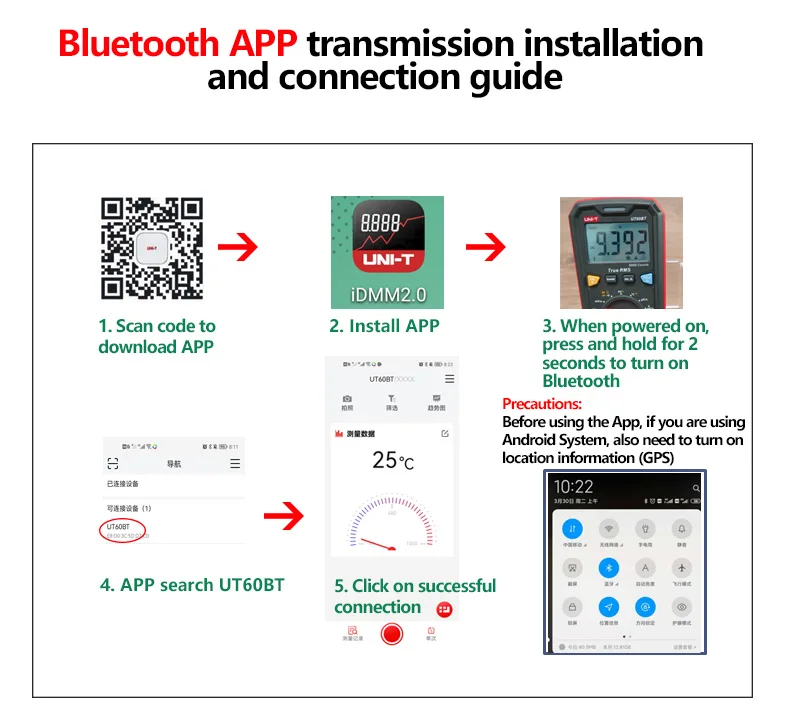

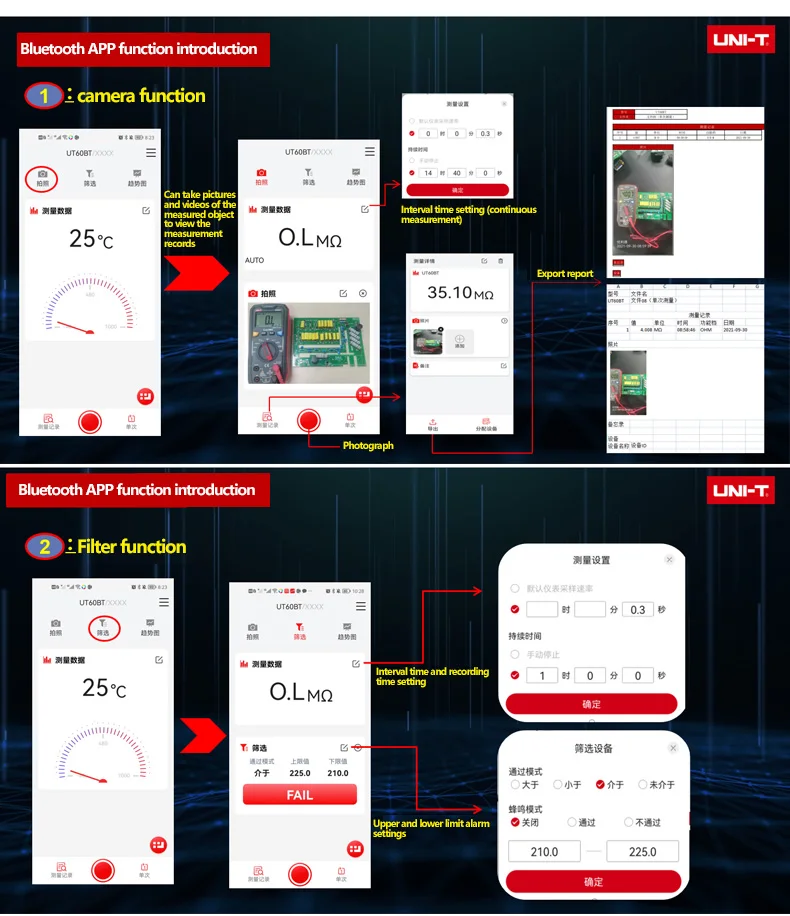

Bluetooth Function(Only UT60BT have)

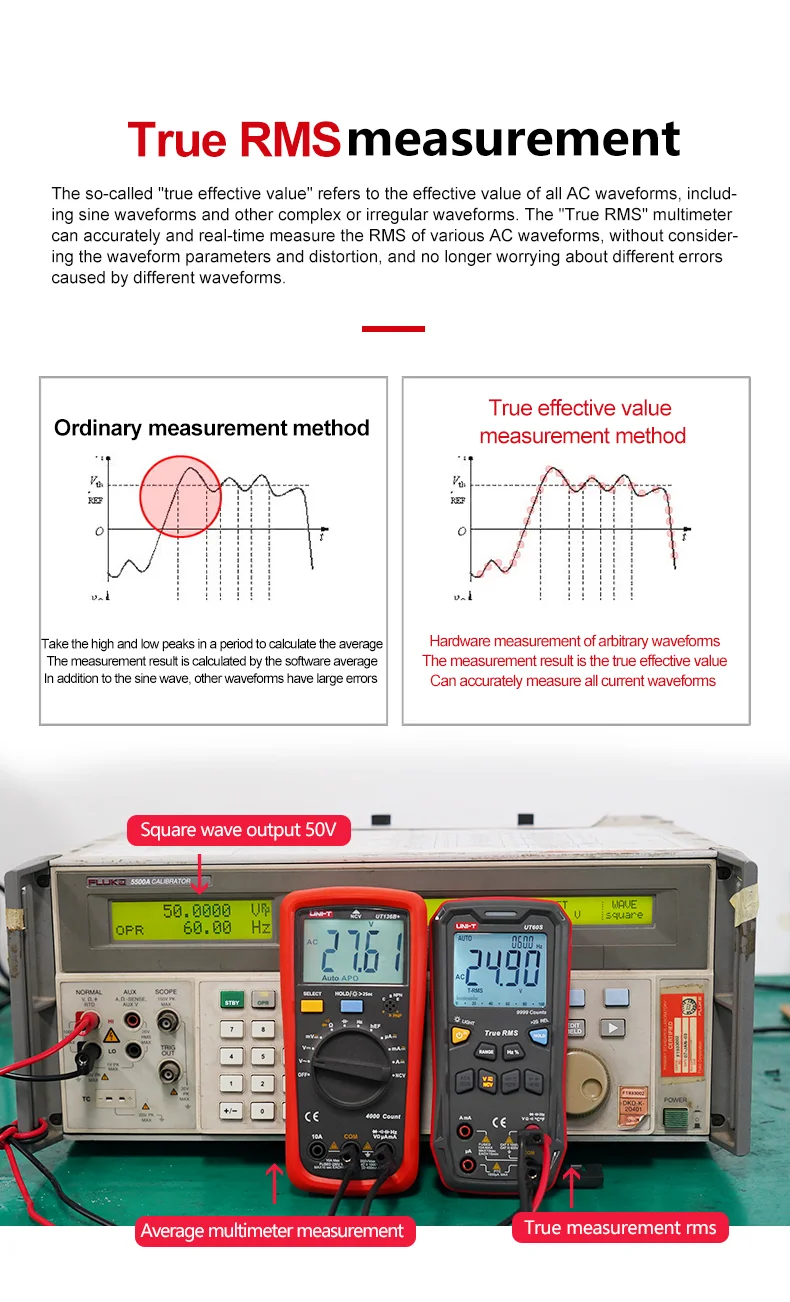

True RMS

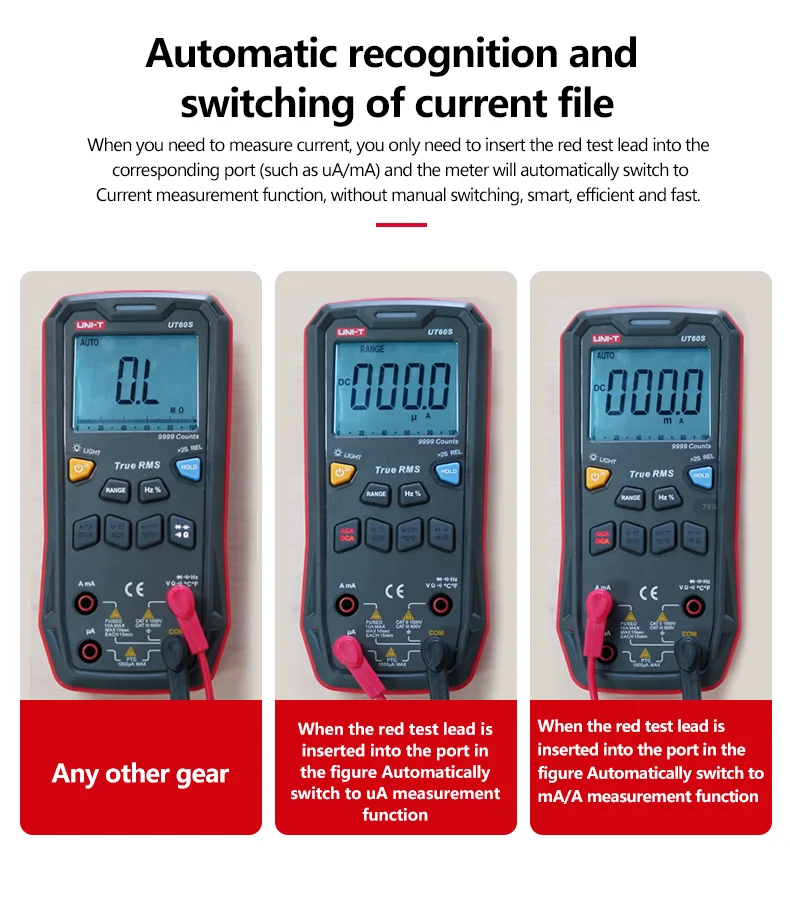

Auto Range

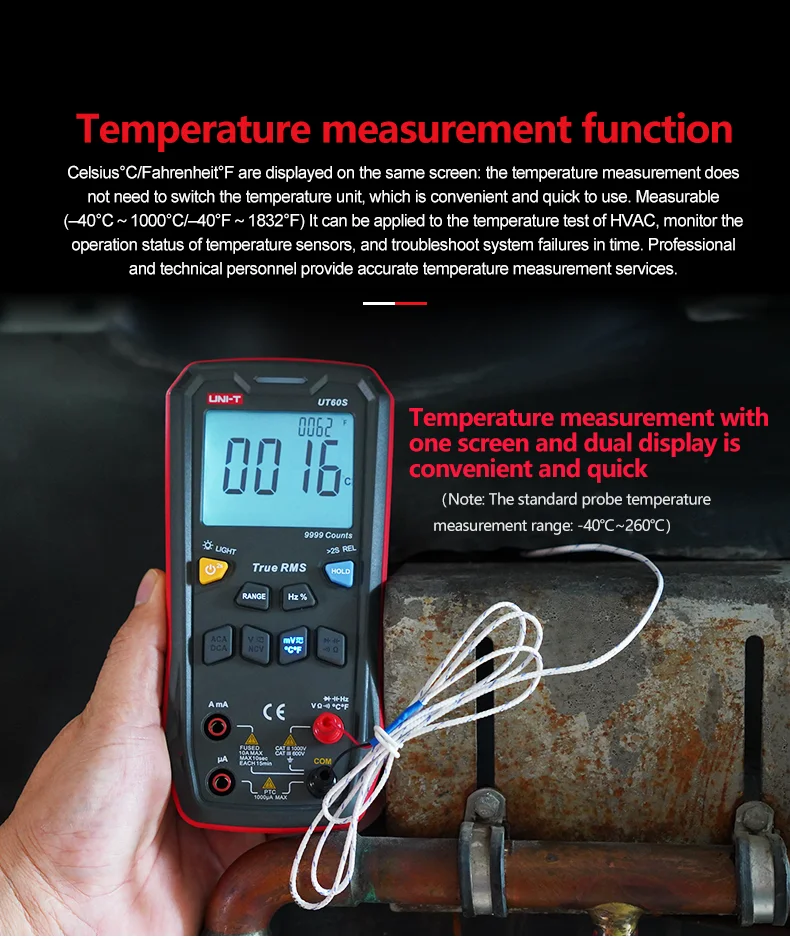

Temperature measurement

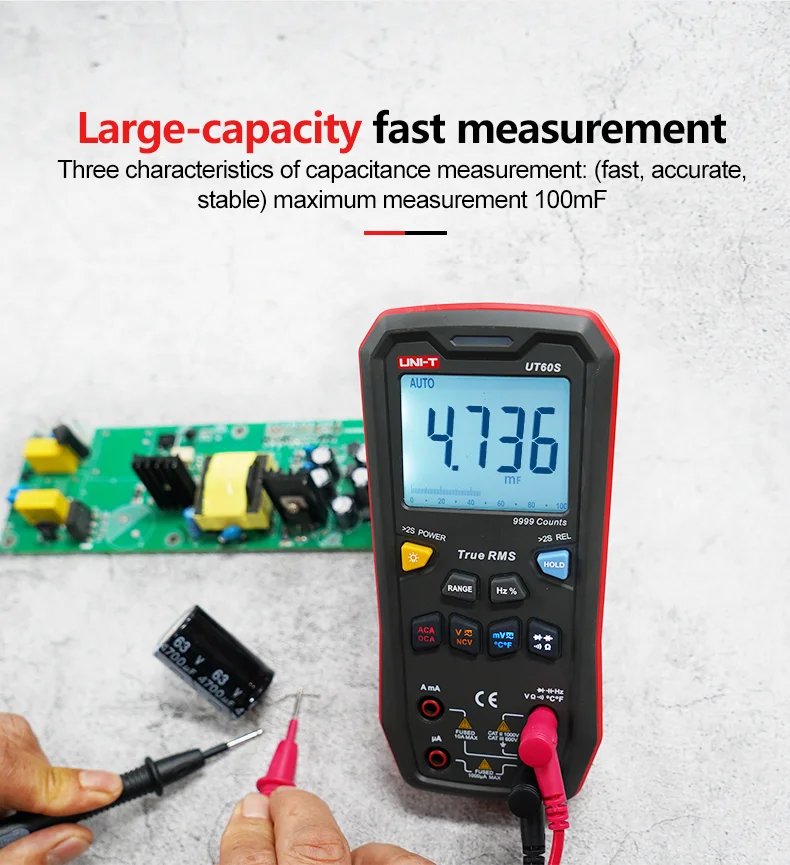

Capacitance measurement

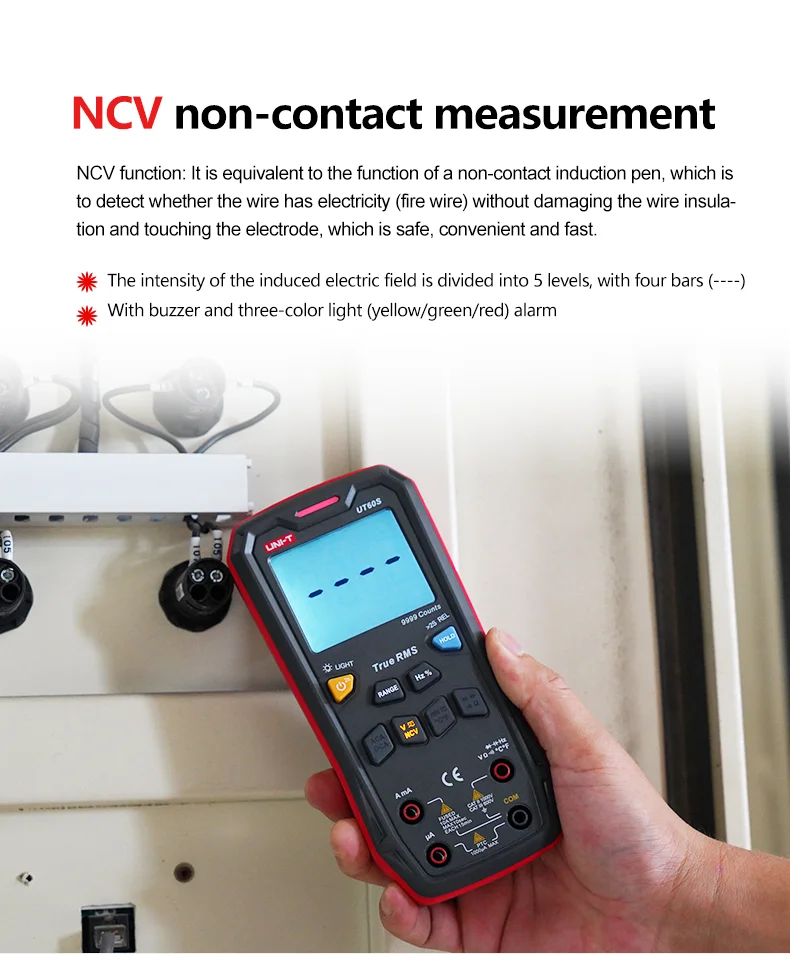

NCV measurement
