UNI-T True RMS Digital Clamp Meter UT205E /UT206B / UT207B / UT208B
- UNI-T True RMS Digital Clamp Meter UT205E /UT206B / UT207B / UT208B.
- Weight: 710g
- Dimensions: 272*81*43.5mm
- Operating Temperature: -40-1000 centigrade
- Measuring Inductance Range: 60mF
- Measuring Capacitance Range: 60mF
- Measuring Resistance Range: 60Mohm
- Measuring Voltage Range: 1000V
- Measuring Current Range: 600A
- Display Type: Digital Only
- Model Number: UT205E UT206B UT207B UT208B
- DIY Supplies: ELECTRICAL
- Brand Name: UNI-T
- Origin: Mainland China
UNI-T True RMS Digital Clamp Meter UT205E /UT206B / UT207B / UT208B.
- Weight: 710g
- Dimensions: 272*81*43.5mm
- Operating Temperature: -40-1000 centigrade
- Measuring Inductance Range: 60mF
- Measuring Capacitance Range: 60mF
- Measuring Resistance Range: 60Mohm
- Measuring Voltage Range: 1000V
- Measuring Current Range: 600A
- Display Type: Digital Only
- Model Number: UT205E UT206B UT207B UT208B
- DIY Supplies: ELECTRICAL
- Brand Name: UNI-T
- Origin: Mainland China
- Certification: CE,RoHS
- AC Current: 1000A

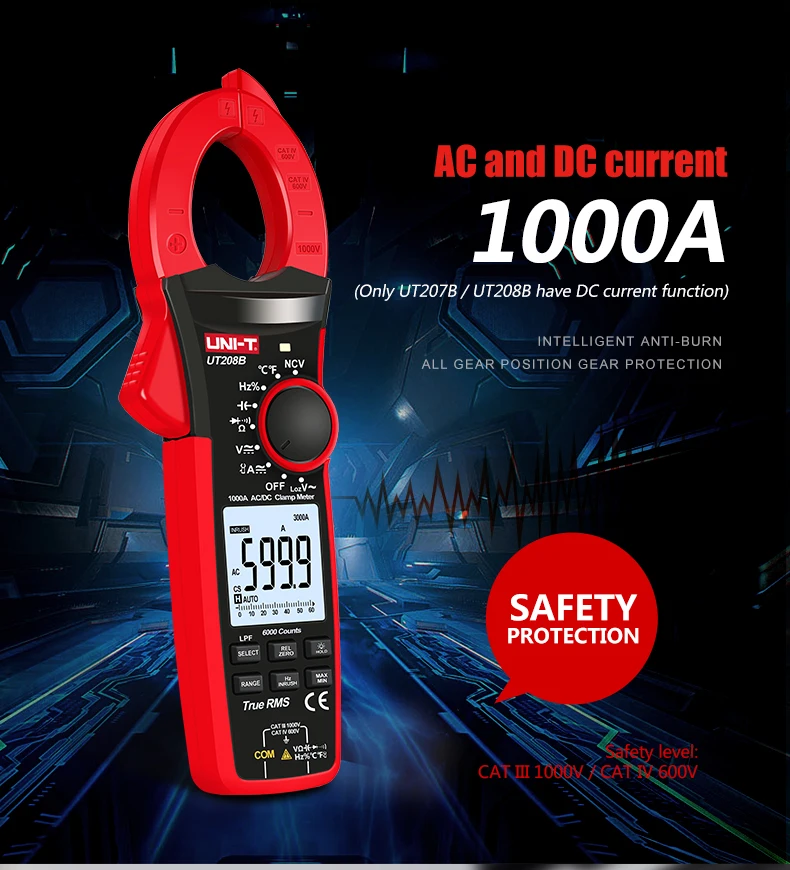

- DC Current: 1000A (only UT207B UT208B)
- Inrush Current: 1000A(only UT206B UT207B UT208B)
- AC Voltage: 1000V
- DC Voltage: 1000V
- Low Pass Filter: 1000V(only UT206B UT207B UT208B)
- Temperature measurment: -40-1000centigrade(Only UT206B UT208B)
- Analog bar: 31(Only UT206B UT207B UT208B)
- Connect to Flexible current probe: Extends up to 3000A(UT206B UT208B)
- Safety Grade: CAT III1000V CAT IV 600V
- multimetro digital profesional: unit clamp meter
- electrician tools: amperemeter

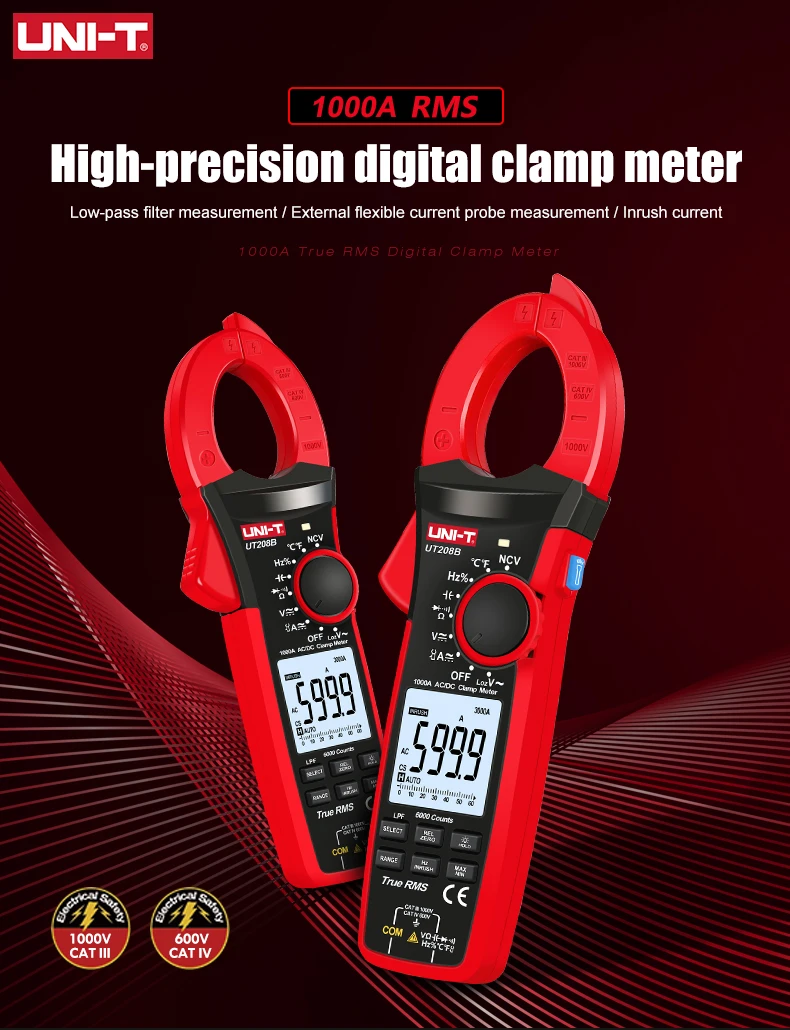

UT200 series 1000A True RMS Digital Clamp Meter
UT200 series are 6000 count digital clamp meter
With Auto Range ,large LCD,true RMS, auto scale memory, and NCV functions They conform to CAT III 1000V /CAT IV600 V safety ratings and cerified by CE/ETL.

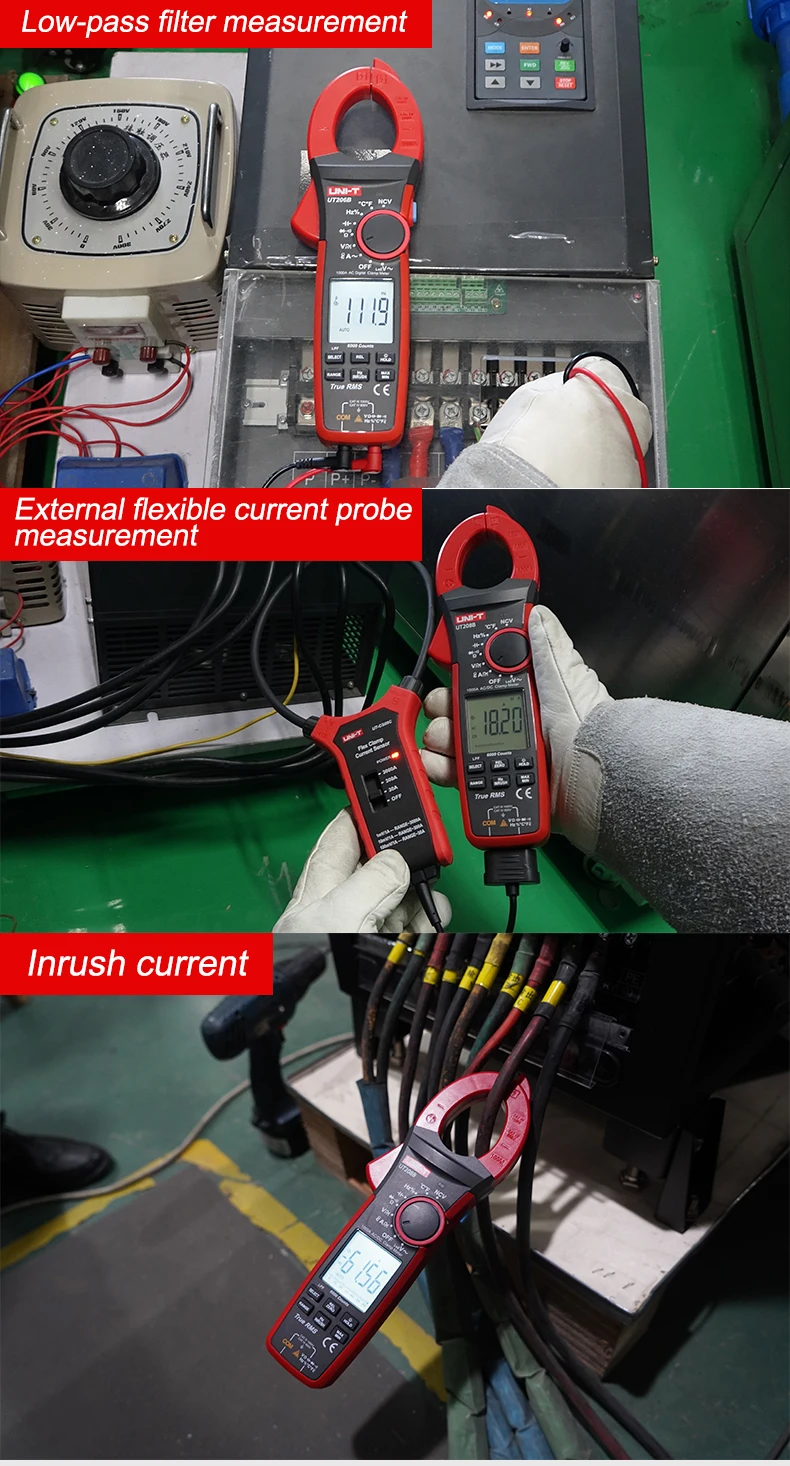

UT206B UT207B UT208B come with LOZ mode for eliminating ghost voltage, LPF ACV function for measuring INV and VFD voltage, inrush current and mode for capturing transient current.
UT206B, UT208B also feature high-precision temperature measurement with 0.1 centigrade resolution, and can be equipped with a flexible current probe to extend the AC current measurement range up to 3000A

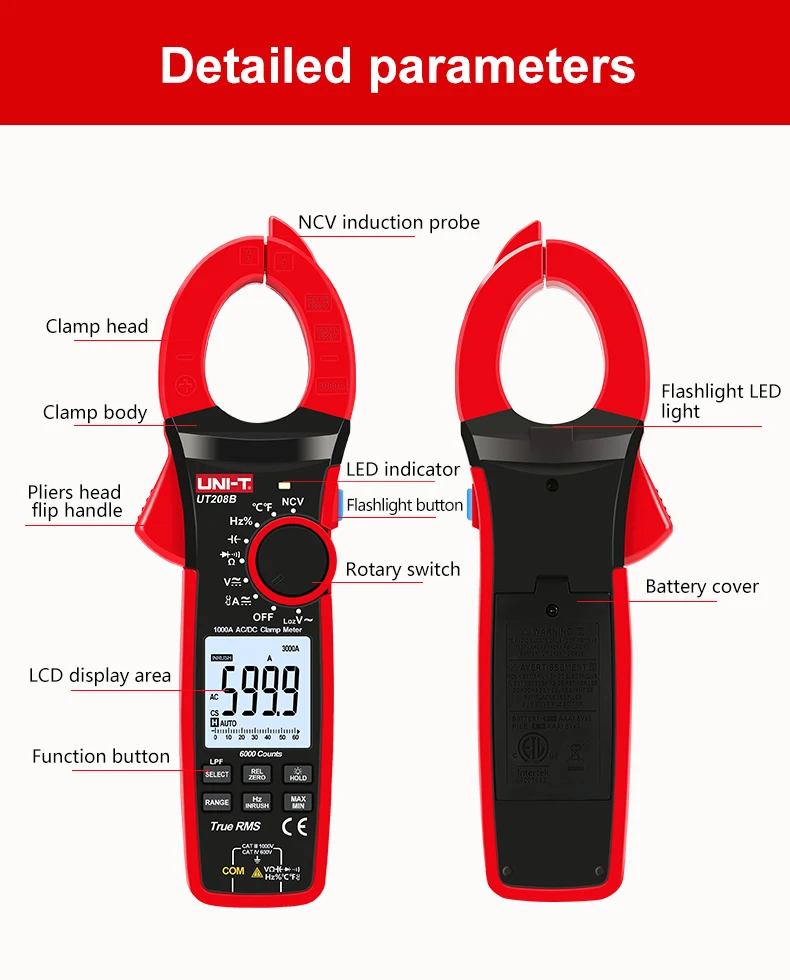

Features:
True RMS
Flashlight
NCV(audible/visual alarm)
Data hold
Backlight
MAX/MIN/relative mode
Diode/Continuity test
Inrush current(UT206B/UT207B/UT208B)
LPF ACV(UT206B/UT207B/UT208B)
LOZ ACV(UT206B/UT207B/UT208B)
Optional flex clamp (UT-CS09D) up to 3000A (UT206B/UT208B)
Note please ：the flex clamp need to be ordered , not included in standard accessories
Battery is not included
Parameter
| Specifications | Range |
UT205E |
UT206B |
UT207B |
UT208B |
| AC current (A) |
1000A | ±(2%+5) | ±(2%+5) | ±(2%+5) | ±(2%+5) |
| DC current (A) |
1000A | ±(2%+5) | ±(2%+5) | ||
| AC current frequency response |
50Hz~60Hz | 50Hz~60Hz | 40Hz~400Hz | 40Hz~400Hz | |
| Inrush current (A) |
1000A | ±(10%+10) | ±(10%+10) | ±(10%+10) | |
| AC voltage (V) |
6V | ±(1.2%+3) | ±(1.2%+3) | ±(1.2%+3) | ±(1.2%+3) |
| 60V/600V/1000V | ±(1%+8) | ±(1%+8) | ±(1%+8) | ±(1%+8) | |
| DC voltage (V) |
600mV | ±(0.8%+3) | ±(0.8%+3) | ±(0.8%+3) | ±(0.8%+3) |
| 6V/60V | ±(0.5%+5) | ±(0.5%+5) | ±(0.5%+5) | ±(0.5%+5) | |
| 600V | ±(0.5%+5) | ±(0.5%+5) | ±(0.5%+5) | ±(0.5%+5) | |
| 1000V | ±(0.5%+5) | ±(0.5%+5) | ±(0.5%+5) | ±(0.5%+5) | |
| Low pas filter (LPF ACV) |
600V/1000V | ±(2%+5) | ±(2%+5) | ±(2%+5) | |
| AC voltage frequency response |
40Hz~400Hz | 40Hz~400Hz | 40Hz~400Hz | 40Hz~400Hz | |
| LoZ ACV |
600V/1000V | ±(2%+5) | ±(2%+5) | ±(2%+5) | |
| Resistance (Ω) |
600Ω | ±(1%+3) | ±(1%+3) | ±(1%+3) | ±(1%+3) |
| 6KΩ/60KΩ/600KΩ | ±(1%+2) | ±(1%+2) | ±(1%+2) | ±(1%+2) | |
| 6MΩ/60MΩ | ±(2%+8) | ±(2%+8) | ±(2%+8) | ±(2%+8) | |
| Capacitance (F) |
60nF | ±(4%+25) | ±(4%+25) | ±(4%+25) | ±(4%+25) |
| 600nF/6μF/60μF/600μF | ±(4%+5) | ±(4%+5) | ±(4%+5) | ±(4%+5) | |
| 6mF/60mF | ±(10%+9) | ±(10%+9) | ±(10%+9) | ±(10%+9) | |
| Temperature (℃) |
-40℃~300℃ | ±(1%+20) | ±(1%+20) | ||
| 300℃~1000℃ | ±(1%+2) | ±(1%+2) | |||
| Low voltage frequency (Hz) |
10Hz~1MHz | ±(0.1%+3) | ±(0.1%+3) | ±(0.1%+3) | ±(0.1%+3) |
| Duty cycle (%) |
10%~90% | ±(2.6%+7) | ±(2.6%+7) | ±(2.6%+7) | ±(2.6%+7) |
| Features | |||||
| Display count |
6000 | 6000 | 6000 | 6000 | |
| Jaw opening |
42mm | 42mm | 42mm | 42mm | |
| Current frequency |
50Hz~60Hz | 50Hz~60Hz | 50Hz~60Hz | 50Hz~60Hz | |
| High voltage frequency |
40Hz~400Hz | 40Hz~400Hz | 40Hz~400Hz | 40Hz~400Hz | |
| Analog bar |
31 | 31 | 31 | ||
| Auto power off |
√ | √ | √ | √ | |
| Continuity test |
√ | √ | √ | √ | |
| Auto/Manual range |
√ | √ | √ | √ | |
| Low battery indication |
√ | √ | √ | √ | |
| Diode test |
√ | √ | √ | √ | |
| Relative mode/Data hold |
√ | √ | √ | √ | |
| MAX/MIN | √ | √ | √ | √ | |
| Function selection |
√ | √ | √ | √ | |
| Flashlight | √ | √ | √ | √ | |
| Wake-up function |
√ | √ | √ | √ | |
| Auto power off current: ＜50μA |
√ | √ | √ | √ | |
| Flexible current probe (optional) |
Extends to 3000A |
√ | √ | ||
| Zero mode |
√ | √ | |||
| Input impedance (ACV/DCV) |
≥10MΩ | √ | √ | √ | √ |
| General Characteristics |
|||||
| Power | 1.5V battery (R03) x 3 (NOT INCLUDED) |
||||
| Display | 43mm x 45mm |
||||
| Product color |
Red and grey |
||||
| Product net weight |
UT205E/UT206B: 465g; UT207B/UT208B: 420g |
||||
| Product size |
272mm x 81mm x 43.5mm |
||||

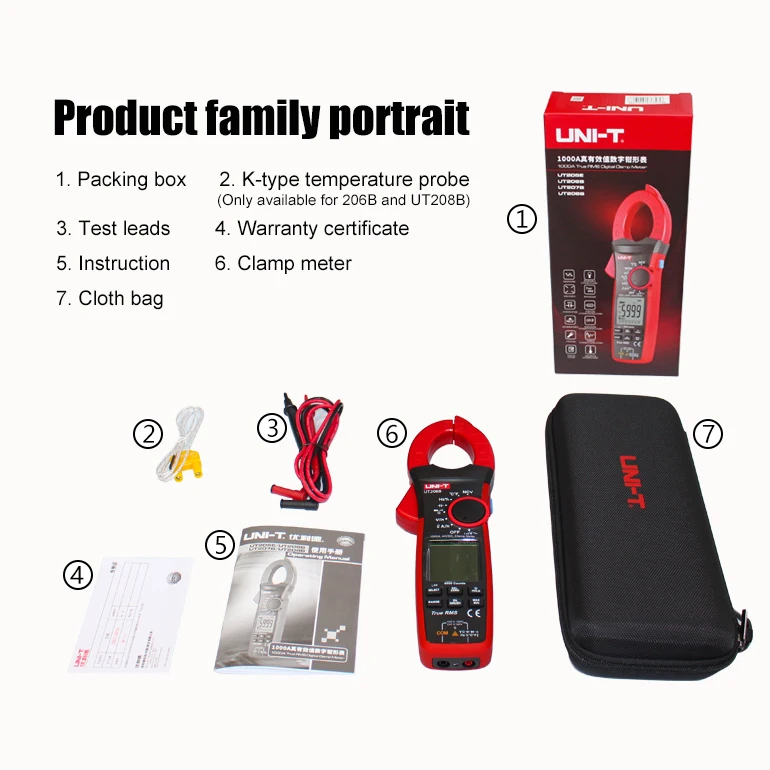

| Standard accessories |
Test leads, batteries, point contact temperature probe (UT206B/UT208B) |
||||
| Standard individual packing |
Gift box, carrying bag, English manual |
||||
