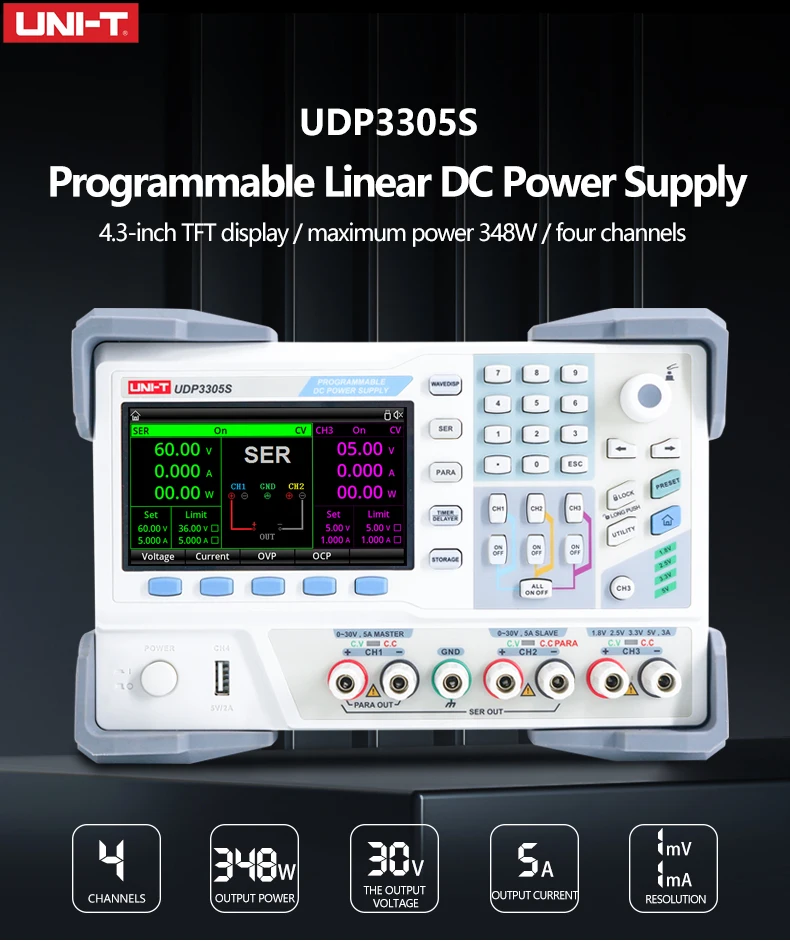

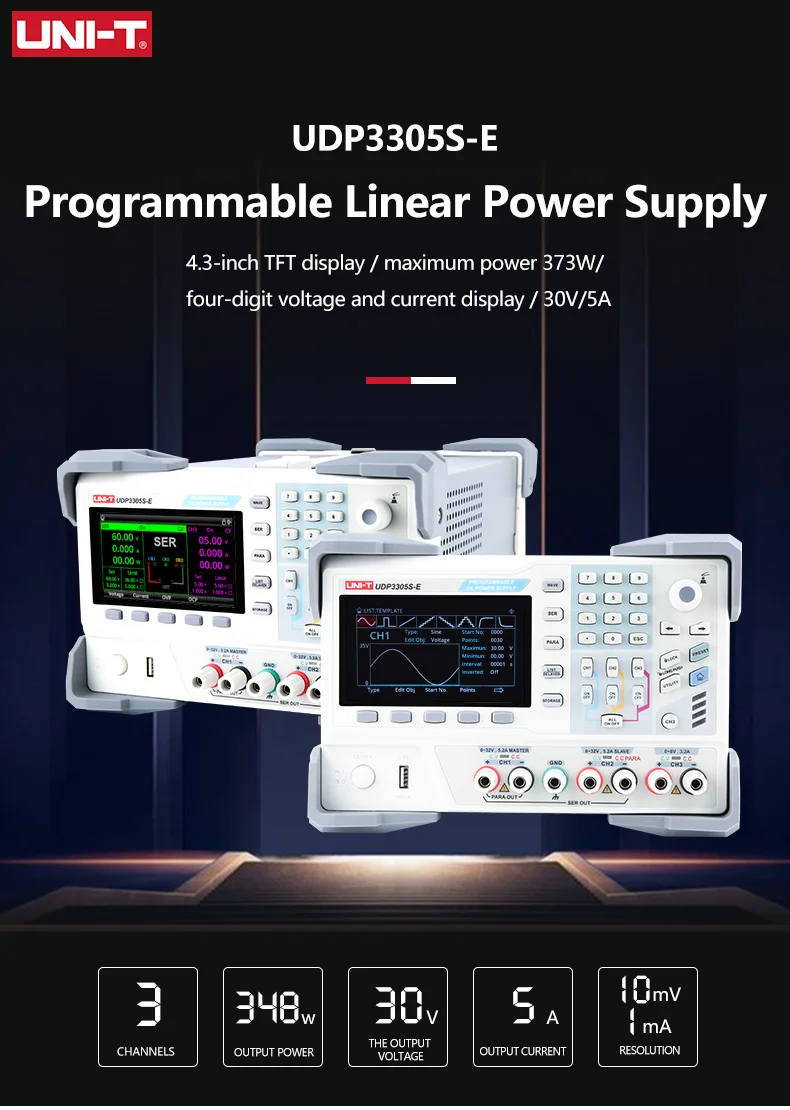

UNI-T UDP3305S-E / UDP3305S Programmable Linear DC Power Supply
- Power Supply: AC
- Model Number: UDP3305S/ UDP3305S
- Operating Temperature: 0℃-40℃
- Display Type: Digital Only
- DIY Supplies: ELECTRICAL
- Brand Name: UNI-T
- Origin: Mainland China
- Certification: CE,RoHS
- Input Voltage: AC 100V/120V/ 220V/230V
- Output power: 348W
- Output Voltage: 30V
- Output Current: 5A
- UDP3305S Resolution: 1mV/1mA
- UDP3305S-E Resolution: 10mV/1mA
- Linear DC Power Supply: Voltage Regulator Switch
UDP3000S Series Programmable Linear DC Power Supply
The UDP3000S series is a high-performance programmable linear DC power supply. It has a clear LCD user interface, excellent performance indicators, a variety of analysis functions and communication interfaces. It can meet the diversified test needs of users. It aims to provide cost-effective DC programmable power supply equipment for teaching, scientific research,
industry and other fields.
Features
● Maximum power up to 328W
● Four channel independent output:CH1/CH2: 0~30V/5A,CH3:0~6V/3A, CH4:5V/2A
● Multiple protection:OCP/OVP/OTP
● Excellent load regulation and line regulation

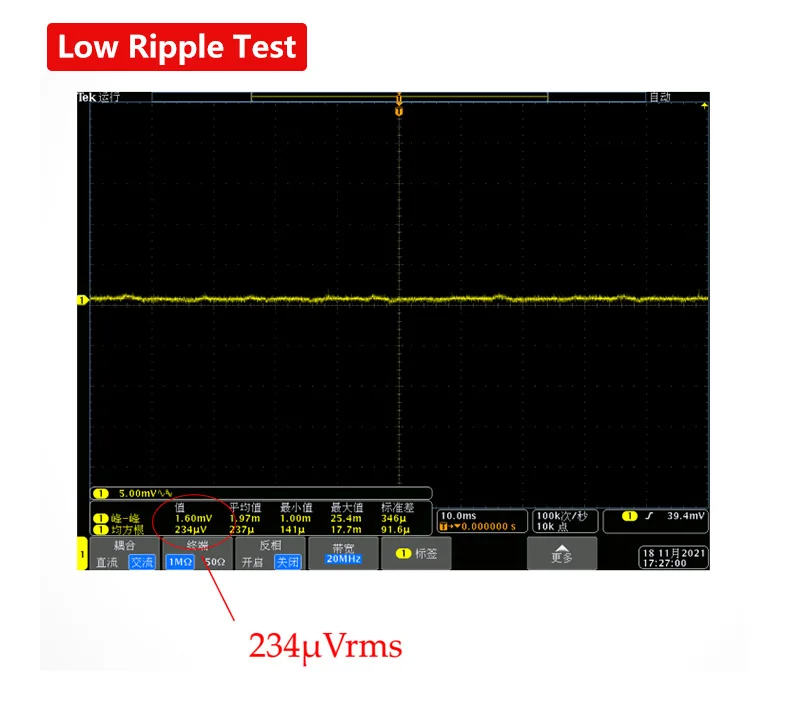

● Ultra low output ripple and noise
● Support one key serial and parallel output function
● The 4.3 inch TFT display can display three channels and multiple parameters at the same time
● List / delayer function to control voltage and current output as required
● External trigger function to realize industrial automation control
● Provide USB host, USB device, LAN, RS232, digital IO and other interfaces
● With waveform display function, real-time and dynamic display of output voltage / current / power waveform
● Intelligent speed control of fan can effectively reduce fan noise during operation
● Support 10 groups of file storage and transfer out, and support USB FLASH read and write.
![UNI-T UDP3305S-E / UDP3305S Programmable Linear DC Power Supply 1 UNI-T UDP3305S-E / UDP3305S Programmable Linear DC Power Supply](https://ae01.alicdn.com/kf/S6545ed693f2a48548785cd374fb7d27cH.jpg)
![UNI-T UDP3305S-E / UDP3305S Programmable Linear DC Power Supply 3 UNI-T UDP3305S-E / UDP3305S Programmable Linear DC Power Supply](https://ae01.alicdn.com/kf/S6160a6d1d31842d690aa7f218c9638faN.jpg)

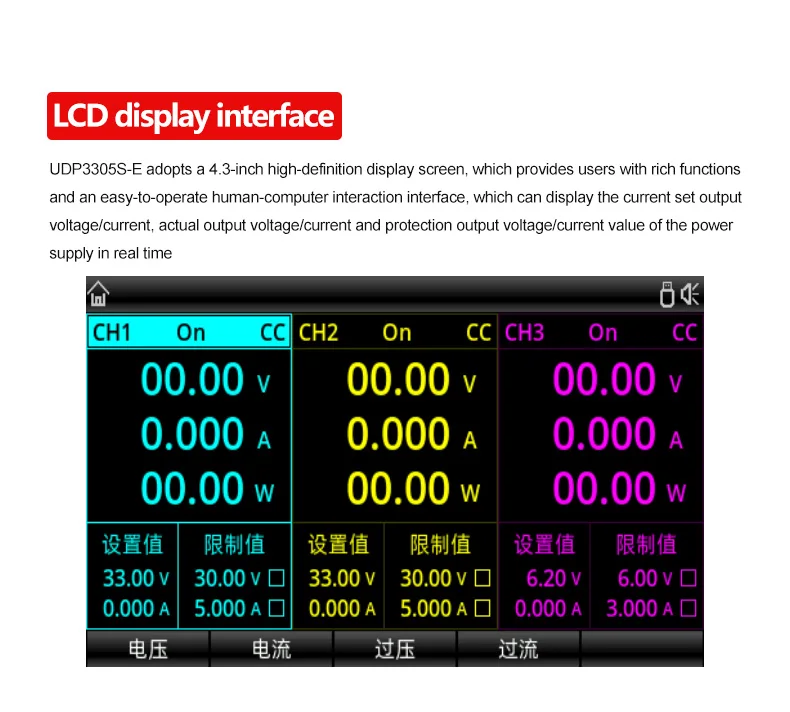

LCD interactive interface
4.3 inch LCD provides a human-computer interaction interface with rich functions and simple operation
![UNI-T UDP3305S-E / UDP3305S Programmable Linear DC Power Supply 5 S4e9961dfcc244751bec260eb2583ffb2g](https://ae01.alicdn.com/kf/S4e9961dfcc244751bec260eb2583ffb2g.jpg)

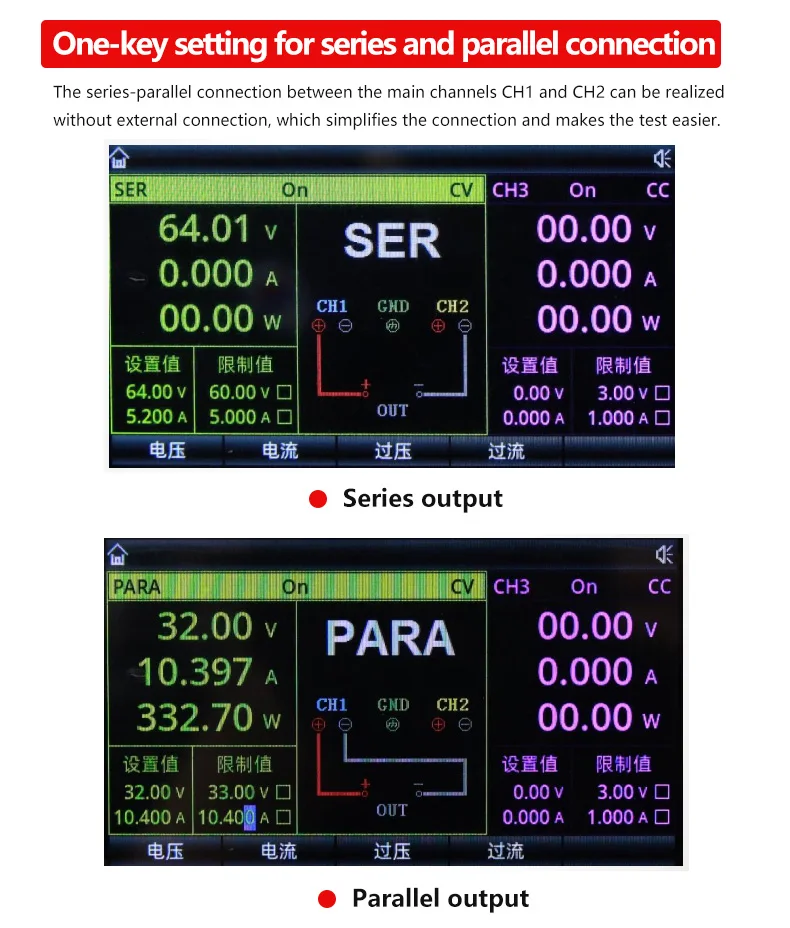

One-key setting for series and parallel
One key series parallel connection provides you with a wider working range of power supply.
![UNI-T UDP3305S-E / UDP3305S Programmable Linear DC Power Supply 6 S42b2ce12842444199e89edc11992fcacC](https://ae01.alicdn.com/kf/S42b2ce12842444199e89edc11992fcacC.jpg)

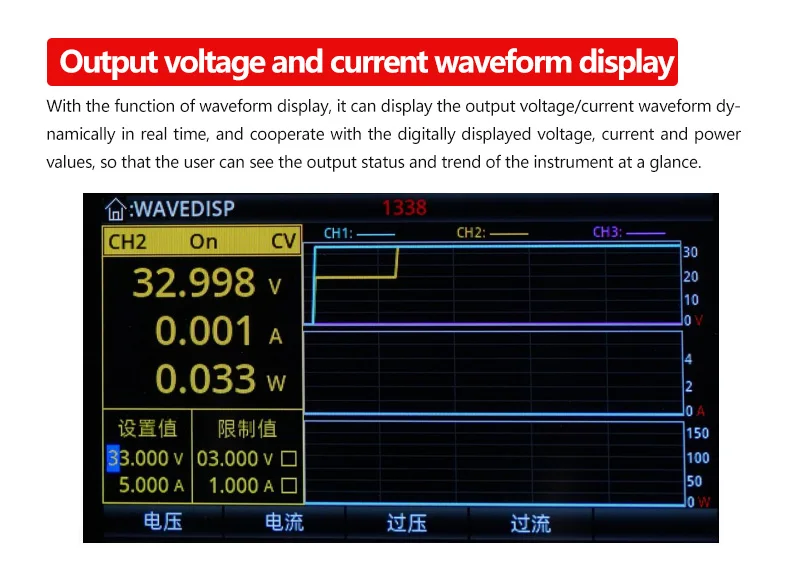

Waveform Display
With waveform display function, it can intuitively display the change trend of voltage, current and power.
![UNI-T UDP3305S-E / UDP3305S Programmable Linear DC Power Supply 7 S47228654f87044178eb0c146a219cd4bI](https://ae01.alicdn.com/kf/S47228654f87044178eb0c146a219cd4bI.jpg)

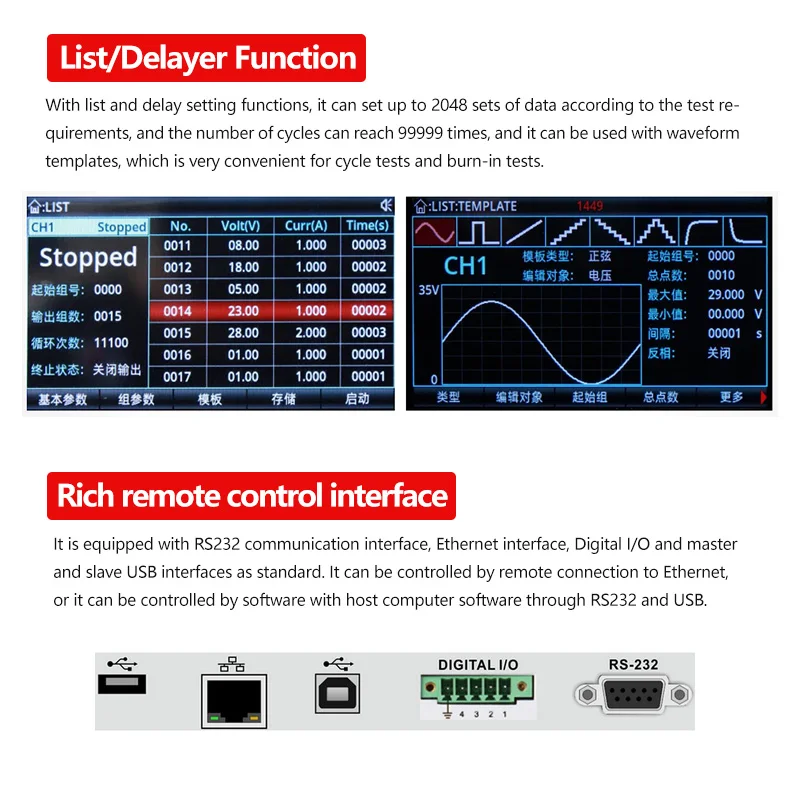

List/Delayer function
Unique list and delayer functions provide convenience for automatic test.
![UNI-T UDP3305S-E / UDP3305S Programmable Linear DC Power Supply 8 S1e503385a1dc4ca5930824176d561856w](https://ae01.alicdn.com/kf/S1e503385a1dc4ca5930824176d561856w.jpg)
![UNI-T UDP3305S-E / UDP3305S Programmable Linear DC Power Supply 9 Sc465ee7241e14d059b6e649fa89ebfa3l](https://ae01.alicdn.com/kf/Sc465ee7241e14d059b6e649fa89ebfa3l.jpg)
![UNI-T UDP3305S-E / UDP3305S Programmable Linear DC Power Supply 10 Sffe75e4350744fc2b0693fb43804f68d6](https://ae01.alicdn.com/kf/Sffe75e4350744fc2b0693fb43804f68d6.jpg)
![UNI-T UDP3305S-E / UDP3305S Programmable Linear DC Power Supply 11 Sc190620d1756470eb53fadc22b13fa30g](https://ae01.alicdn.com/kf/Sc190620d1756470eb53fadc22b13fa30g.jpg)
![UNI-T UDP3305S-E / UDP3305S Programmable Linear DC Power Supply 12 S6657ede12cd24de09898f8e34c5f86bcn](https://ae01.alicdn.com/kf/S6657ede12cd24de09898f8e34c5f86bcn.jpg)
![UNI-T UDP3305S-E / UDP3305S Programmable Linear DC Power Supply 13 S345fc02352344bf49f123506f25cdb517](https://ae01.alicdn.com/kf/S345fc02352344bf49f123506f25cdb517.jpg)
![UNI-T UDP3305S-E / UDP3305S Programmable Linear DC Power Supply 14 S07fd72026f2246dc8b1f398f85c74573b](https://ae01.alicdn.com/kf/S07fd72026f2246dc8b1f398f85c74573b.jpg)
![UNI-T UDP3305S-E / UDP3305S Programmable Linear DC Power Supply 15 UNI-T UDP3305S-E / UDP3305S Programmable Linear DC Power Supply](https://ae01.alicdn.com/kf/Sae77ea2a28994e4f9e0b8a67b9a6acd0Z.jpg)
