UNI-T UT-CS09D Flex Clamp Sensor

UNI-T UT-CS09D Flex Clamp Sensor

Weight: 0.53 kg
Dimensions: 45.7cm(18 inches)
Operating Temperature: 0~50 Celsius
Measuring Current Range: 30A/300A/3000A
Model Number:UT-CS09D
DIY Supplies: ELECTRICAL
Brand Name: UNI-T
Certification: CE,RoHS
Origin: Mainland China

Mô tả
Đánh giá (0)

UNI-T UT-CS09D Flex Clamp Sensor

Weight: 0.53 kg
Dimensions: 45.7cm(18 inches)
Operating Temperature: 0~50 Celsius
Measuring Current Range: 30A/300A/3000A
Model Number:UT-CS09D
DIY Supplies: ELECTRICAL
Brand Name: UNI-T
Certification: CE,RoHS
Origin: Mainland China
Frequency response: 45Hz~500Hz
Storage temperature: -20~60 Celsius
Low battery indication: About 3.3V
flexible Clamp Sensor: Flex clamp meter
High Precision: Amperometric clamp
Pliers ammeter: Ammeter
AC current pliers: Current tester

UNI-T UT-CS09D Flex Clamp Sensor 3000A AC Current Flexible Clamp Meter Amperemeter Frequency Meter UT206B UT208B Applicable

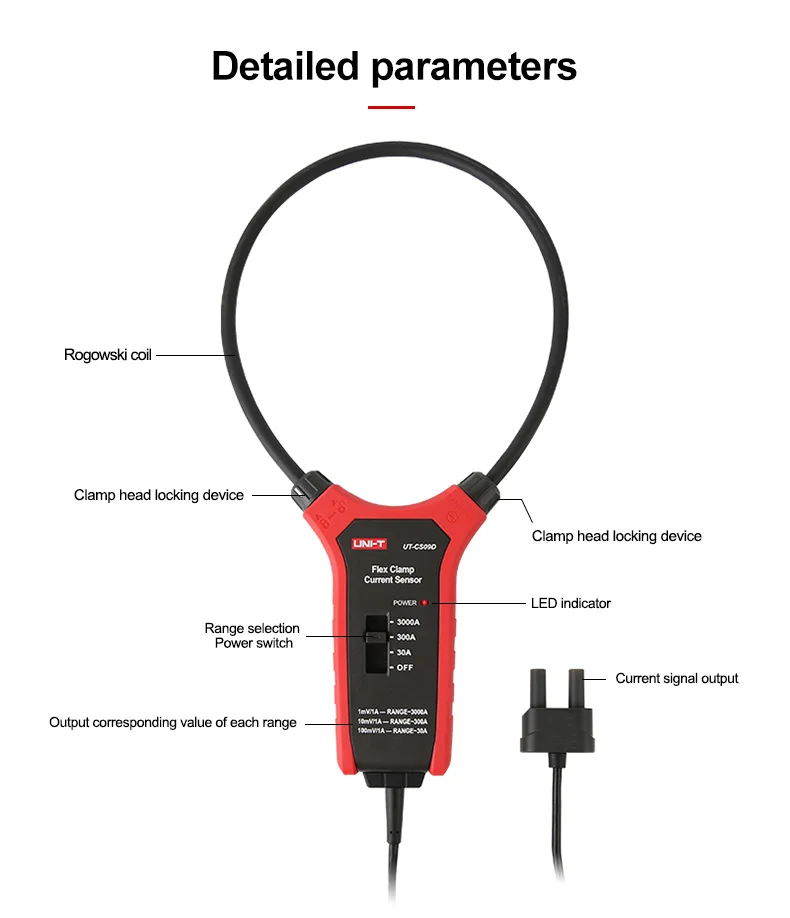

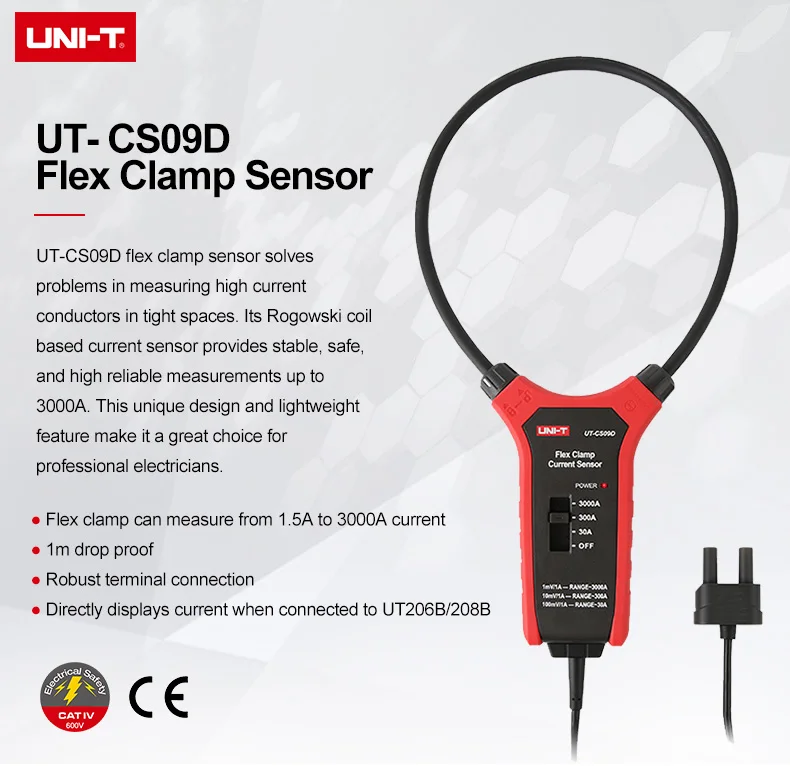

UT-CS09D ﬂex clamp sensor solves problems in measuring high current conductors in tight spaces. Its Rogowski coil based current sensor provides stable, safe, and high reliable measurements up to 3000A. This unique design and lightweight feature make it a great choice for professional electricians.

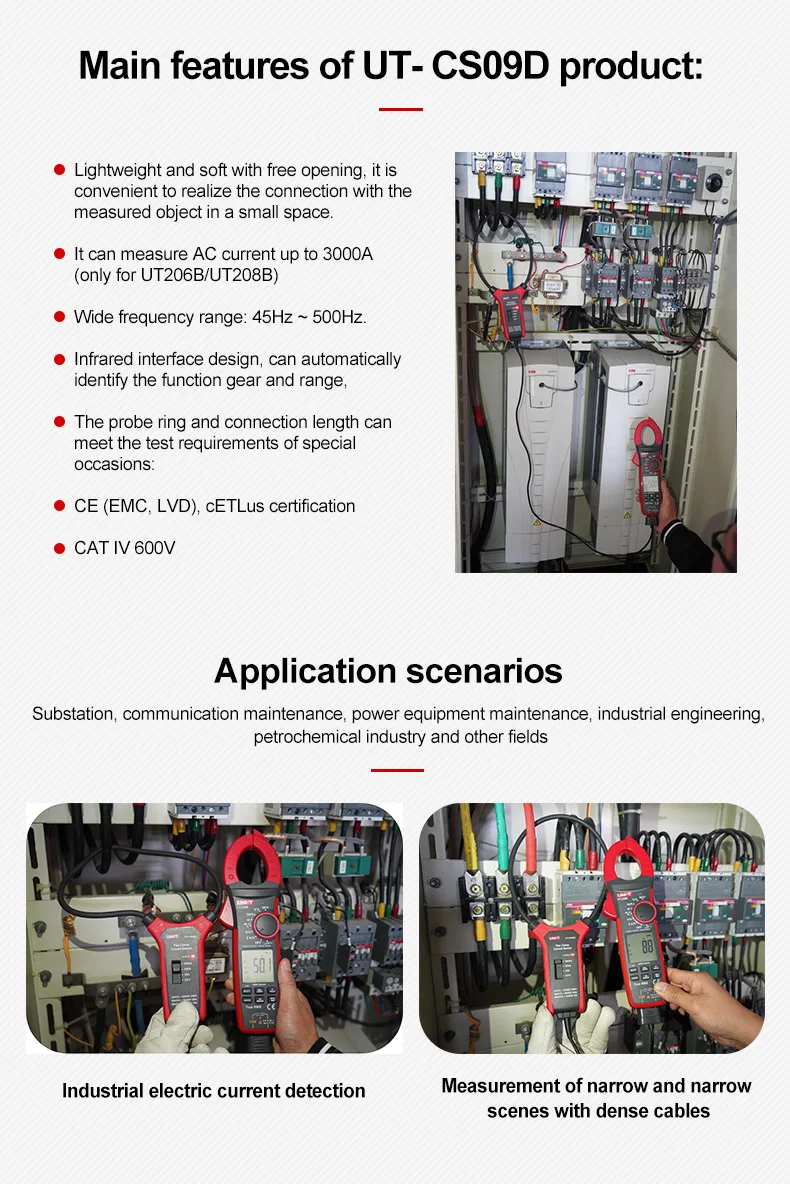

Features

● Flex clamp can measure from 1.5A to 3000A current
● 1m drop proof
● Robust terminal connection
● Directly displays current when connected to UT206B/208B

Parameter

Specifications	Range
Certifications	CE, RoHS,cETLus
Safety rating	CAT IV 600V
AC current (A)	30A/300A/3000A
Frequency response	45Hz~500Hz
Flex clamp size	45.7cm (18 inches)
Operating temperature	0℃~50℃
Storage temperature	-20°C~60°C
Storage humidity	≤80%RH
Low battery indication	About 3.3V
Category rating	CAT IV 600V
General Characterisitics
Power	1.5V battery (R03) x 3(No include)
Product net weight	260g
Product size	267mm x 119.4mm x 34mm
Standard accessories	BNC adapter, English manual

Product Details

H87042996349b4b4c8f88168549af174eZ

Notice please: battery no include!
