UNI-T UT12D Pro/ UT12D-ROW Voltage Tester Detector
- Power Supply: Battery
- Model Number: UT12pro
- Display Type: Digital Only
- DIY Supplies: ELECTRICAL
- Brand Name: UNI-T
- Origin: Mainland China
- Certification: CE,RoHS
- Model: UT12D
- Feature: voltage tester
- Feature 2: voltage meter
- Frequency Range: 50 60Hz
- AC voltage range(UT12D): 12-1000V
- AC voltage range(UT12PRO): 24-1000V
- AC voltage range: 90-1000V
UT12D-ROW UT12 PRO AC Voltage Detectors

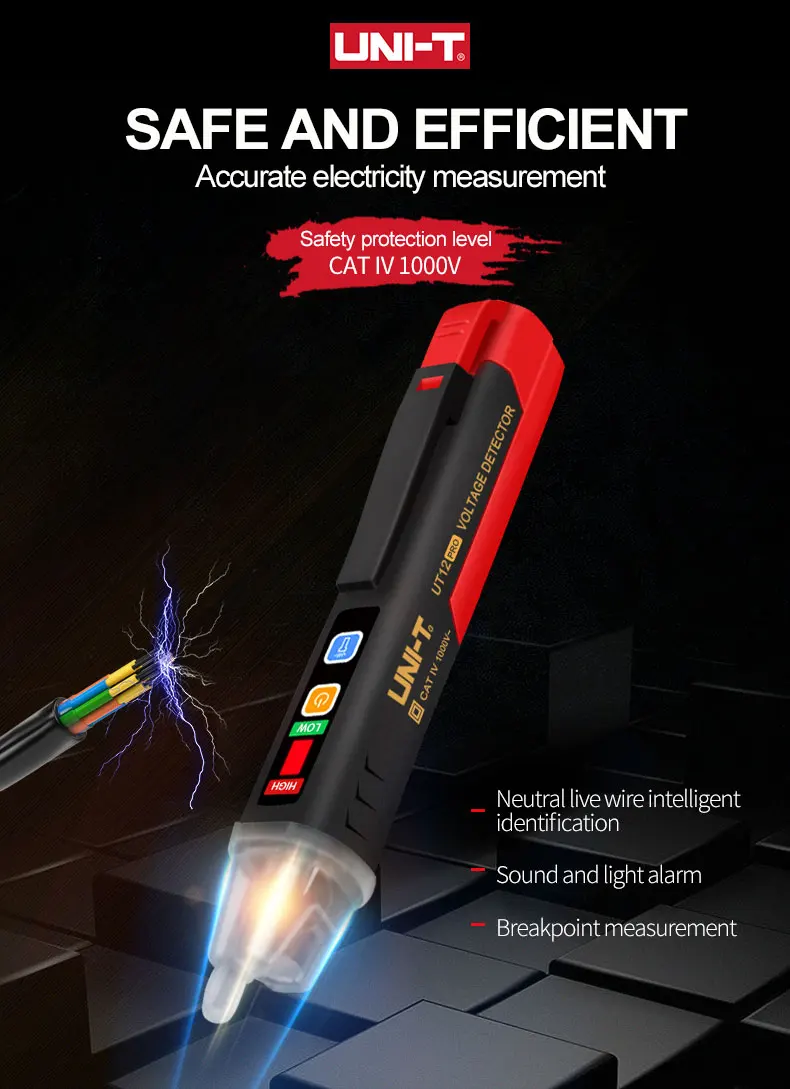

The UT12Pro with 12V-1000V voltage detection range, intelligently identifies zero-fire lines, and has high and low dual-mode voltage range detection. with flashlight helps to maintain normal use in harsh lighting conditions. Safety level CAT IV 1000V ensures User-safe, audible and visual alarm synchronization, it’s an essential tool for industry and home.

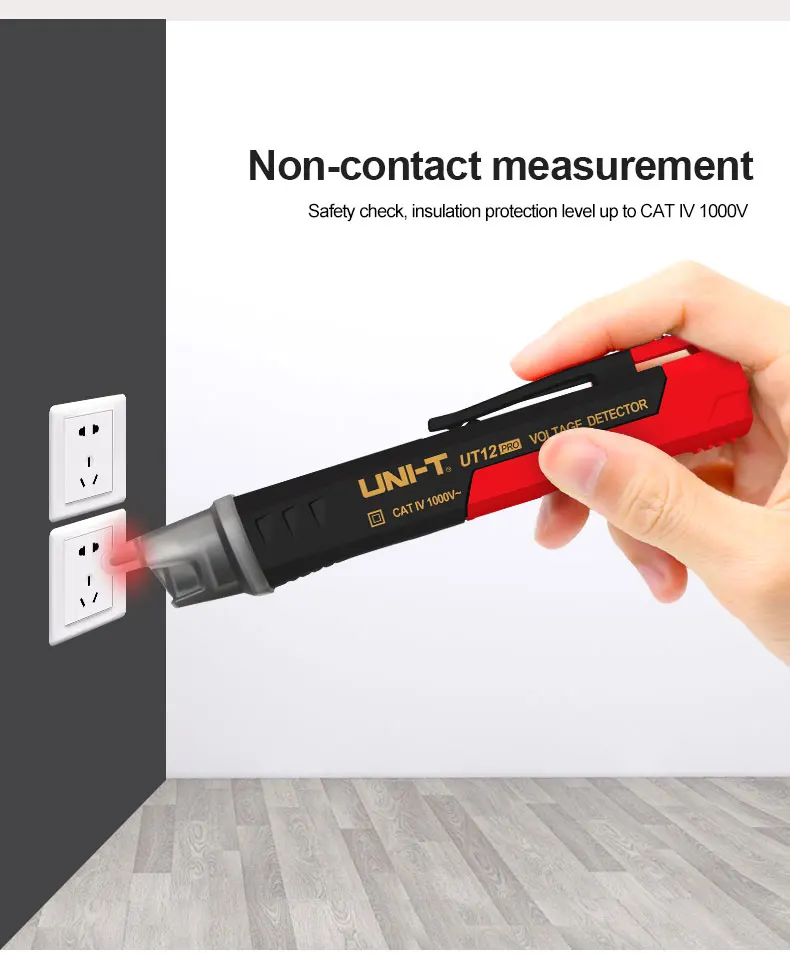

UT12D-ROW non-contact AC voltage detectors are widely used in the maintenance of low voltage equipment’s such as conductors, cables, sockets, and other electrical/electronics instruments. It is a very handy tool for electricians.

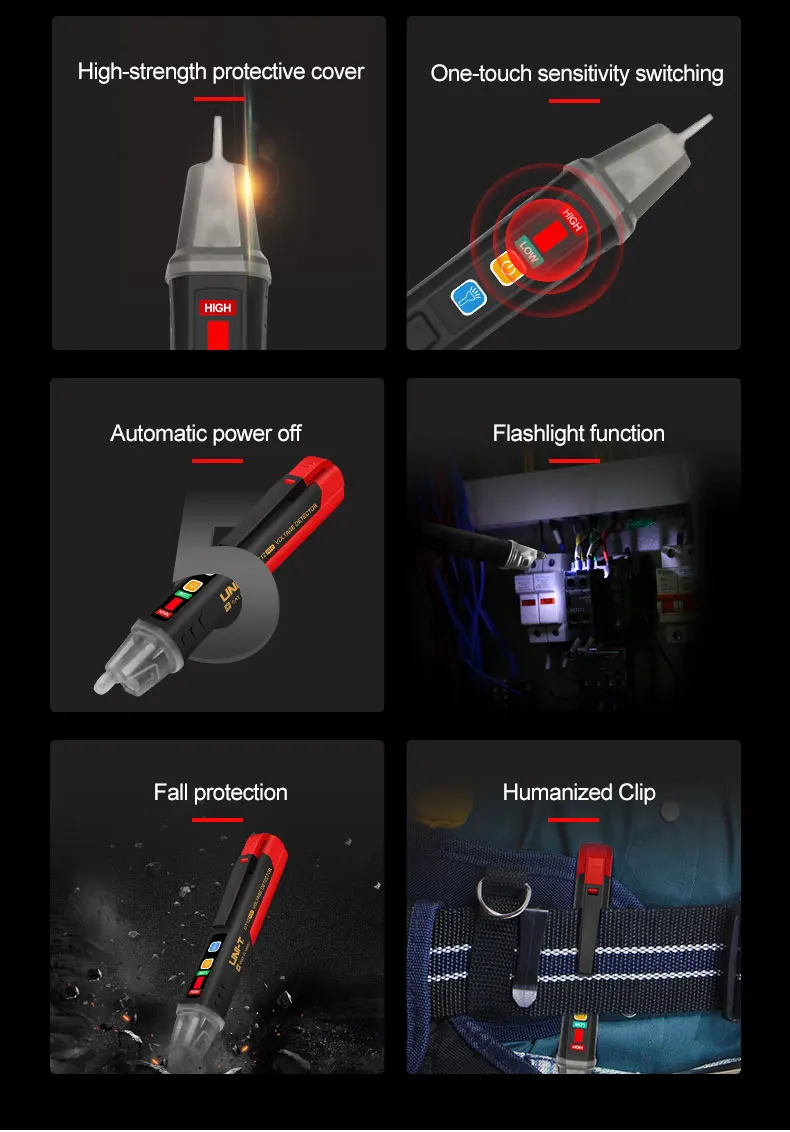

Feature

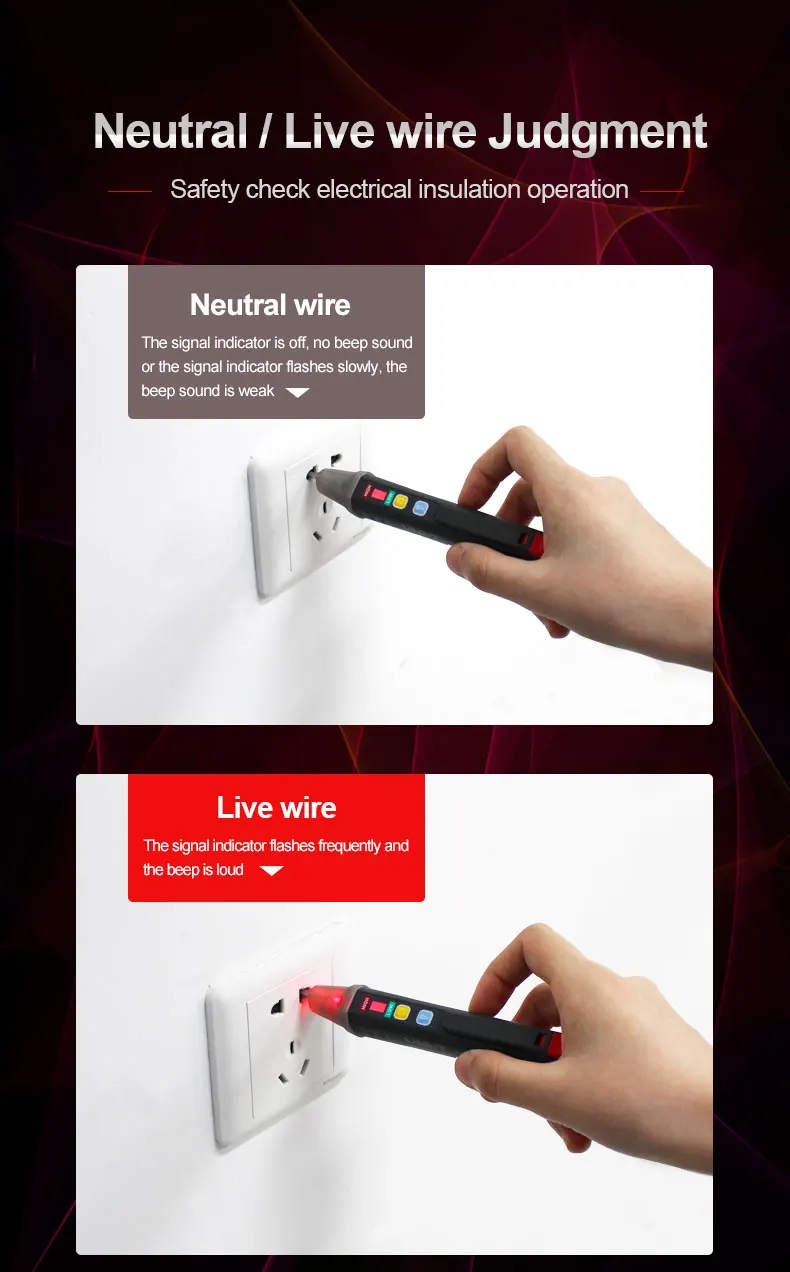

1.Safe, reliable, high sensitivity, non-contact test pencil that can distinguish between zero fire lines
2.UT12 PRO AC voltage measuring range:12V-1000V
UT12D AC voltage measuring range:24V-1000V
3.High Low Dual Mode detect(Low:12-1000Vgreen,High:90-1000V red)50Hz/60Hz
4.Audio Light Alarm
5.Low voltage indication

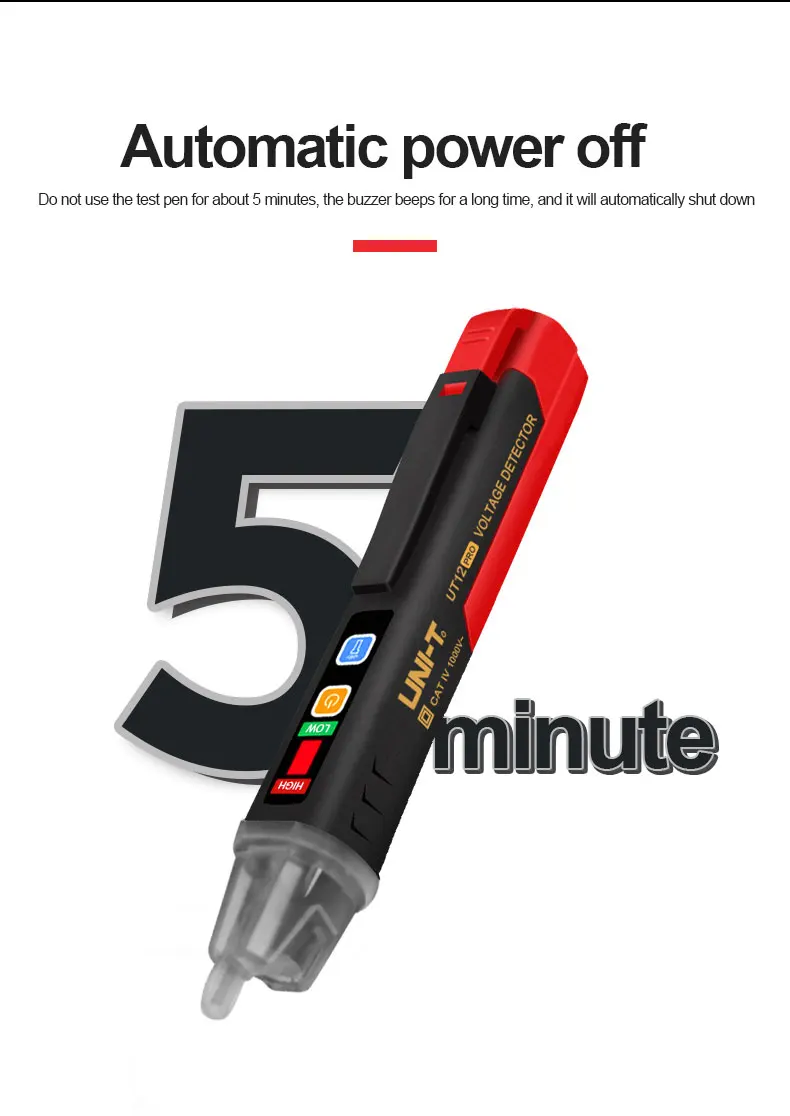

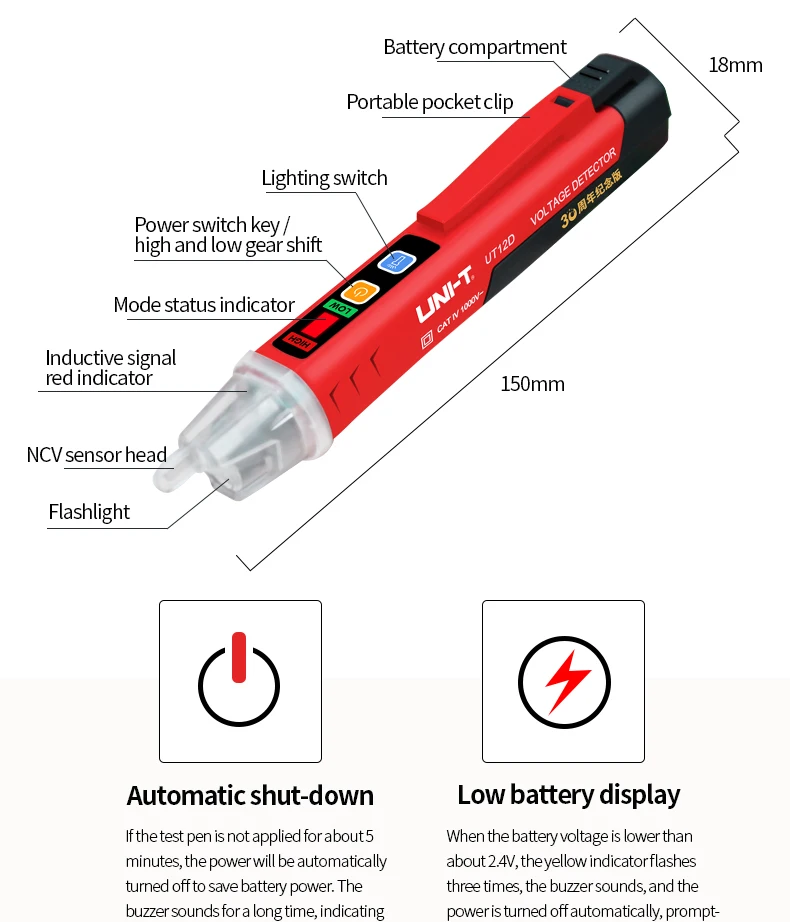

6.Auto Power Off(5 minutes don’t use the dectector, it will be powered off automatically)
7.With Flashlight

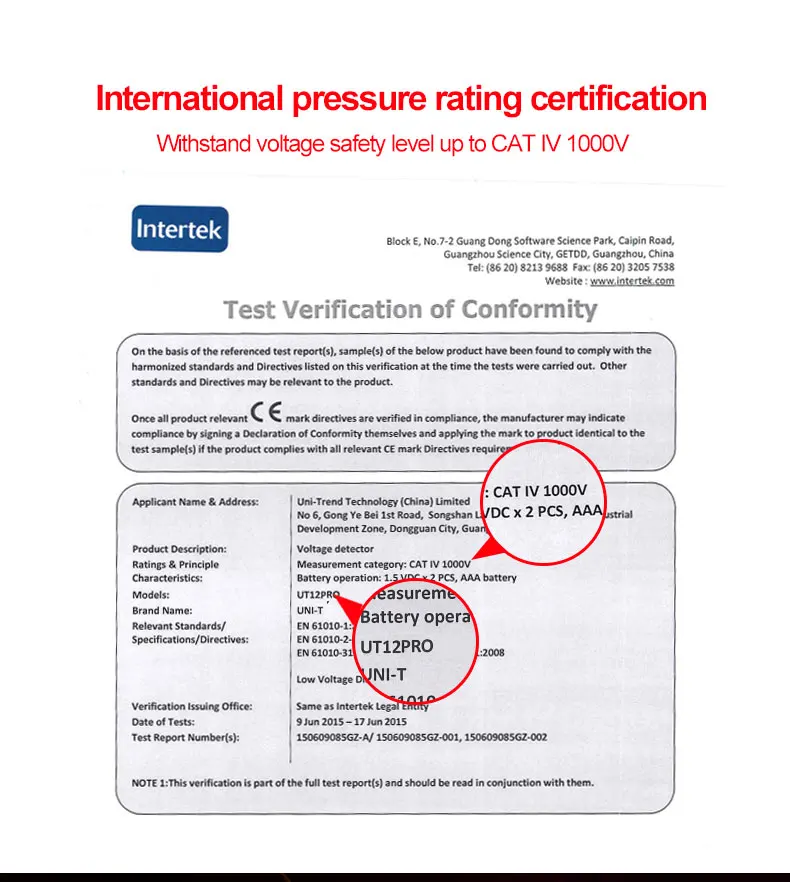

8.CAT IV 1000V

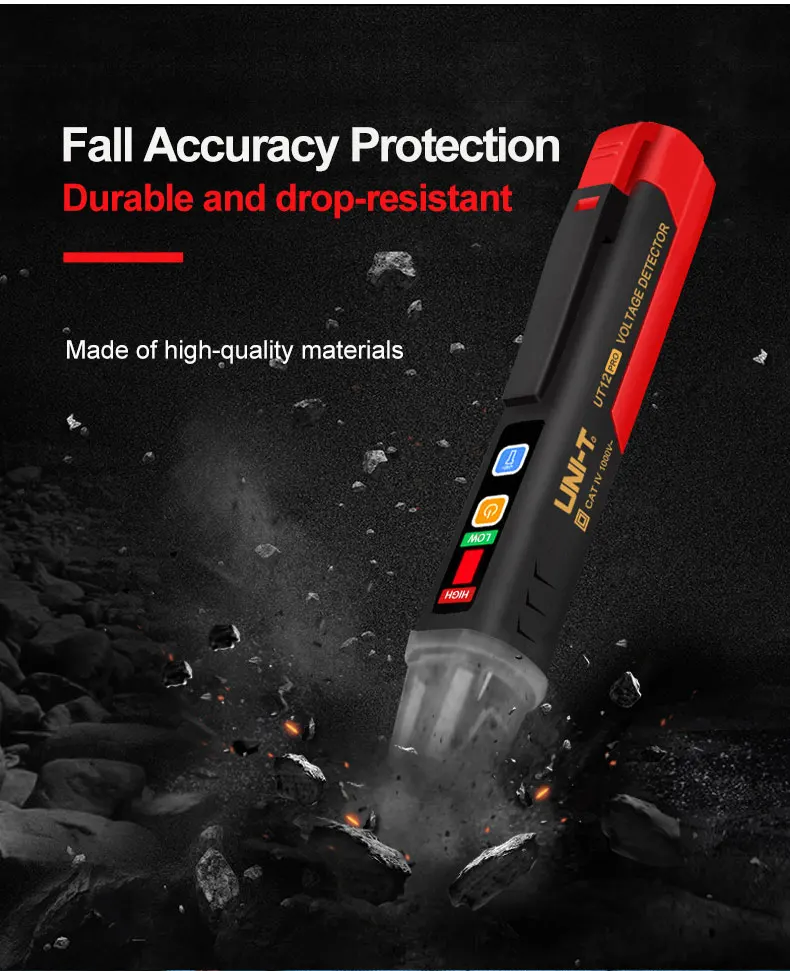

9.1 meter drop-proof
|
Specifications |
UT12PRO |
UT12D-ROW |
|
AC voltage (Low) |
12V~1000V |
24V~1000V |
|
AC voltage (High) |
90V~1000V |
90V~1000V |
|
Frequency range |
50/60Hz |
|
|
Built-in flashlight |
√ |
√ |
|
※Audible (buzzer) and visual (LED) indication |
√ |
√ |
|
Buzzer |
√ |
√ |
|
LED indication |
√ |
√ |
|
Auto power off |
√ |
√ |
|
Low voltage indication |
√ |
√ |
|
Drop test |
1m |
1m |
|
General Characteristics |
||
|
Power |
1.5V battery (R03) x 2(No include) |
|
|
Product color |
Red and grey |
|
|
Product net weight |
50g |
|
|
Product size |
150mm x 18 mm x 23mm |
|
|

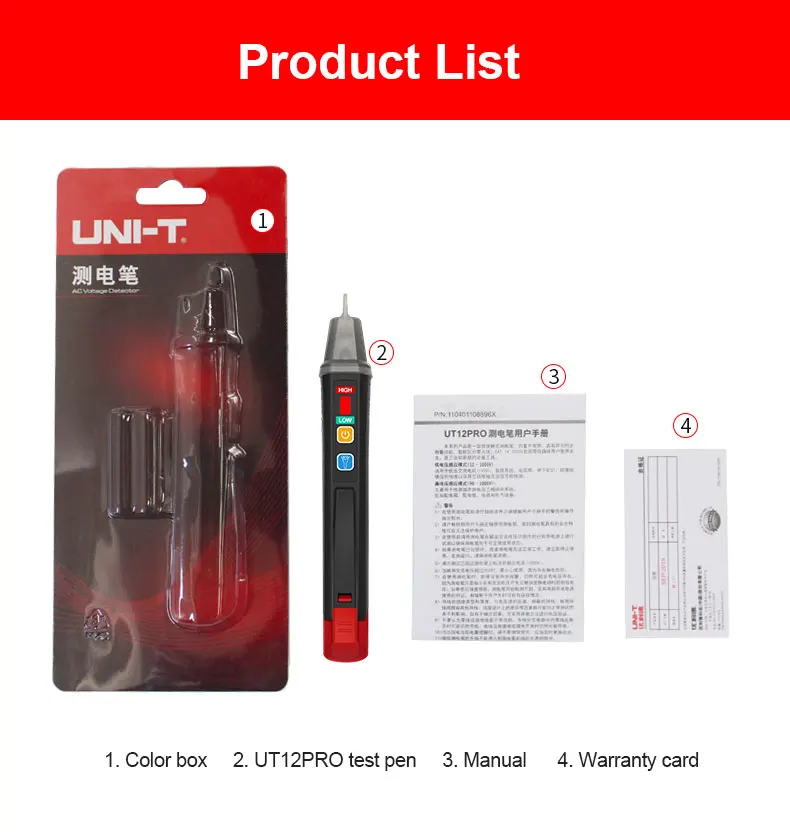

Standard individual packing |
Blister, English manual |
|

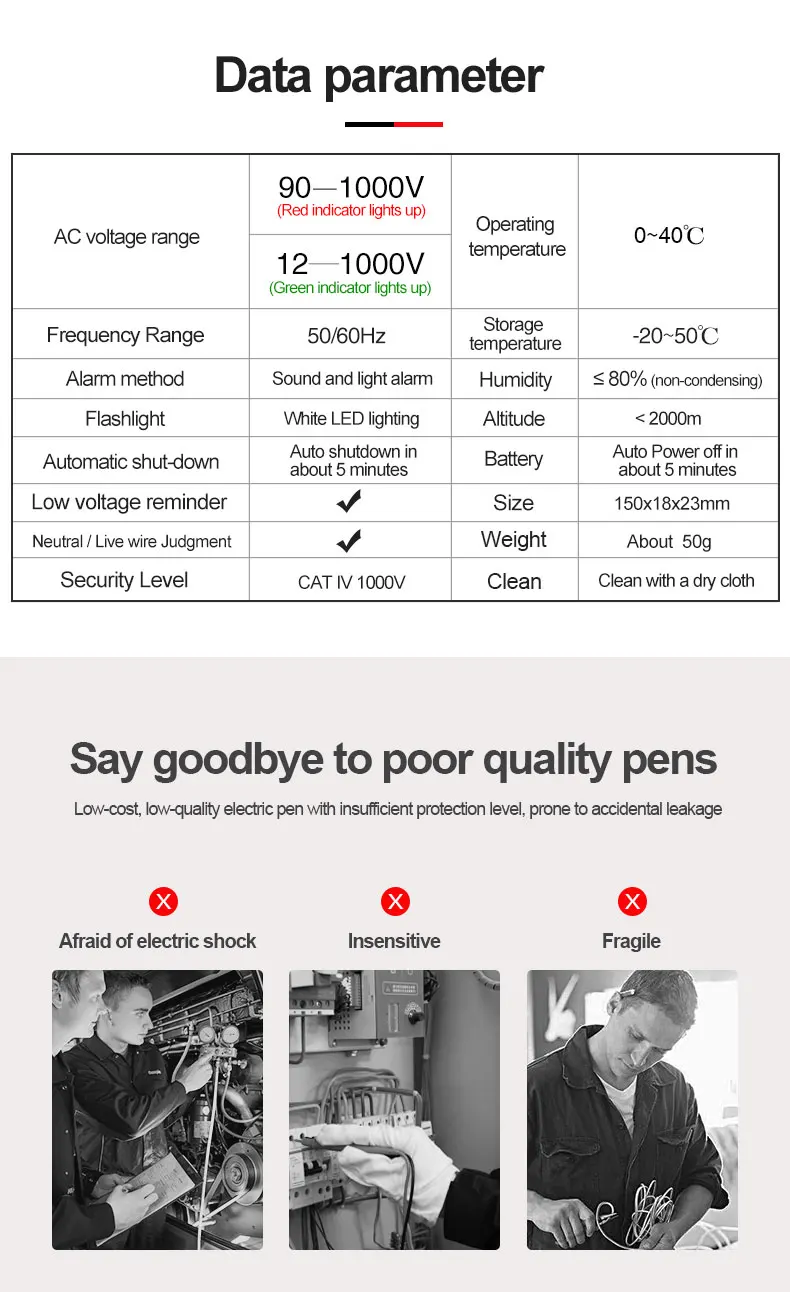

UT12PRO Parameter

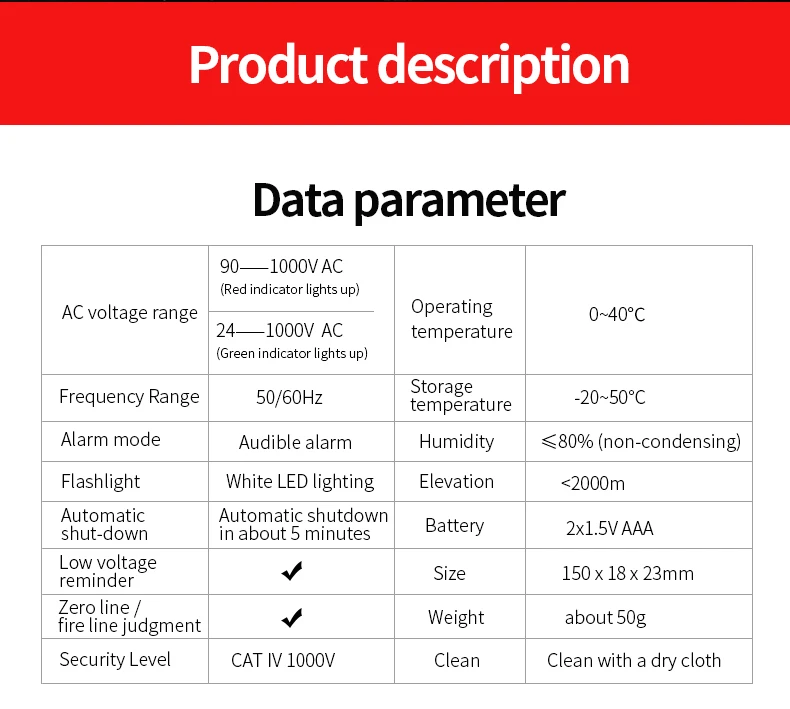

UT12D-ROW Parameter

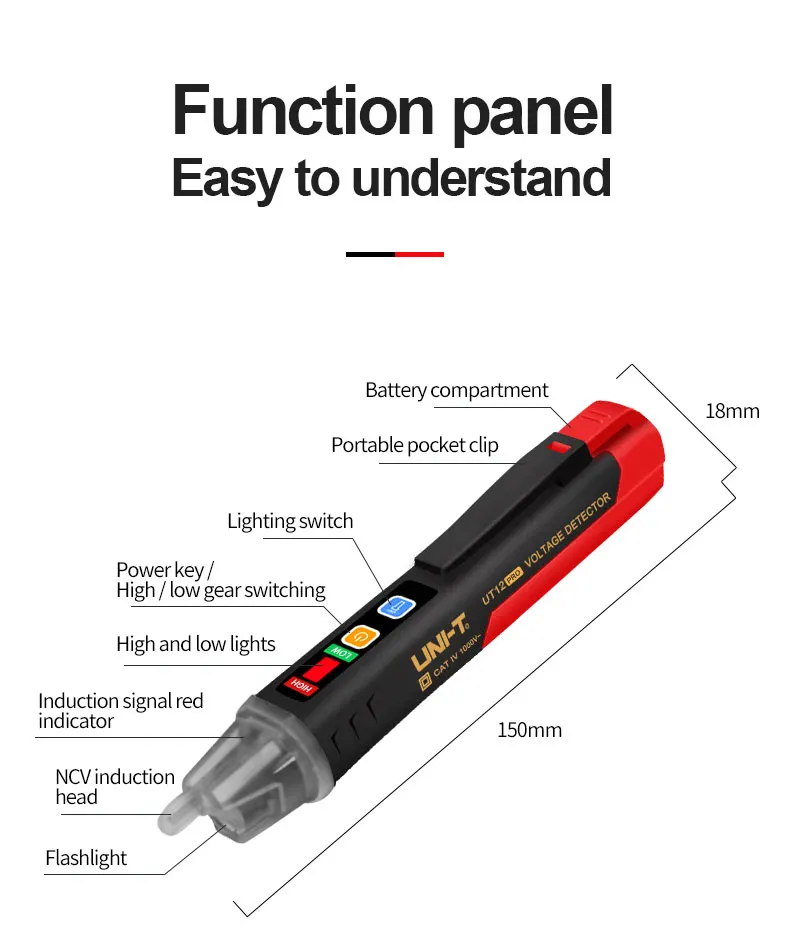

Product Pictures
