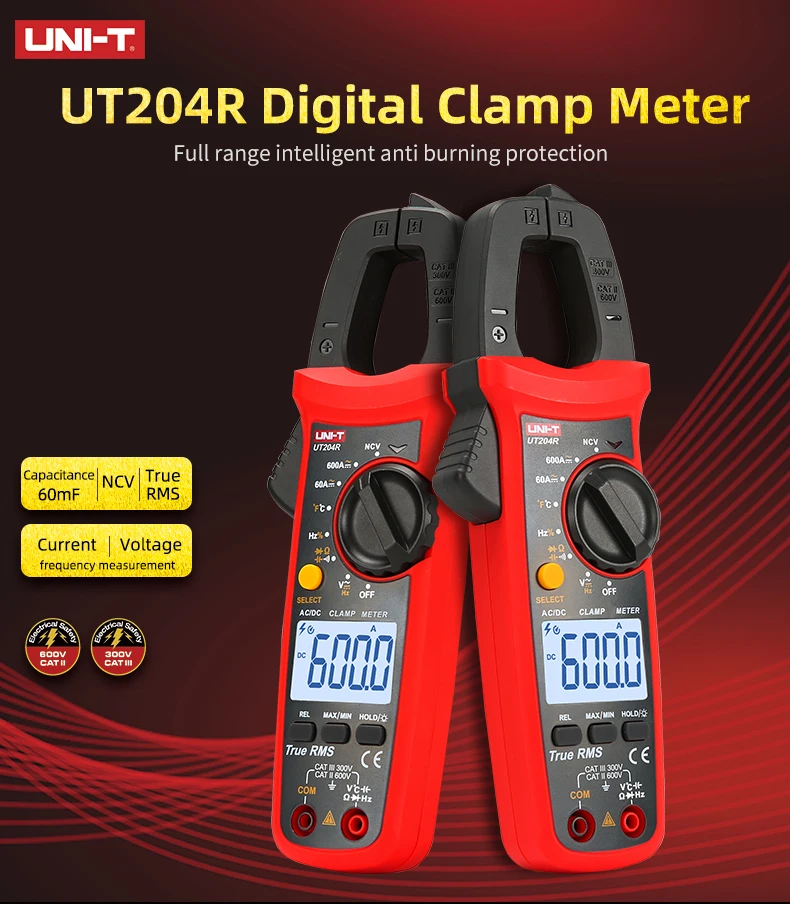

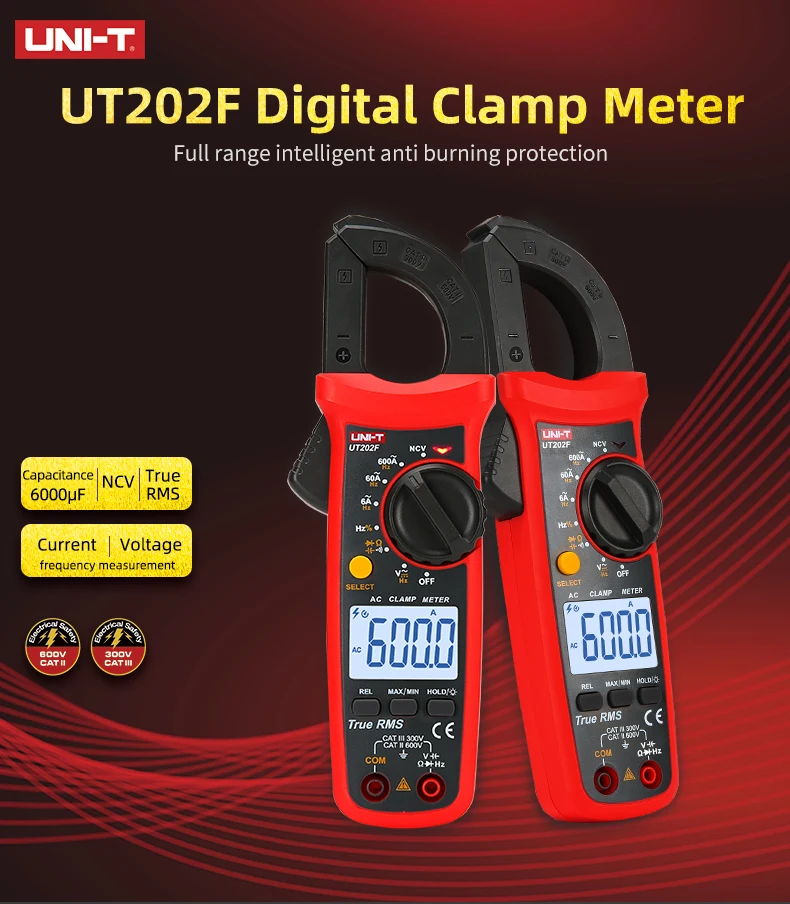

UNI-T UT202F / UT204R Clamp Meter.
- Weight: 420g
- Dimensions: 215mm x 63mm x 36mm
- Measuring Capacitance Range: 60mF
- Measuring Resistance Range: 60MΩ
- Measuring Voltage Range: 600V
- Measuring Current Range: 0.06-600A
- Display Type: Digital Only
- Model Number: UT202F/ UT204R
- DIY Supplies: ELECTRICAL
- Brand Name: UNI-T
- Certification: CE,RoHS
- Origin: Mainland China
- AC current frequency: 50Hz-100Hz
- AC voltage frequency: 10Hz-10kHz
- Display count: 6000
- Jaw opening: 28mm
- Digital ammeter: AC DC current pliers ammeter
- Electric instruments: Voltmeter
UT202F UT204R Digital Clamp Meter

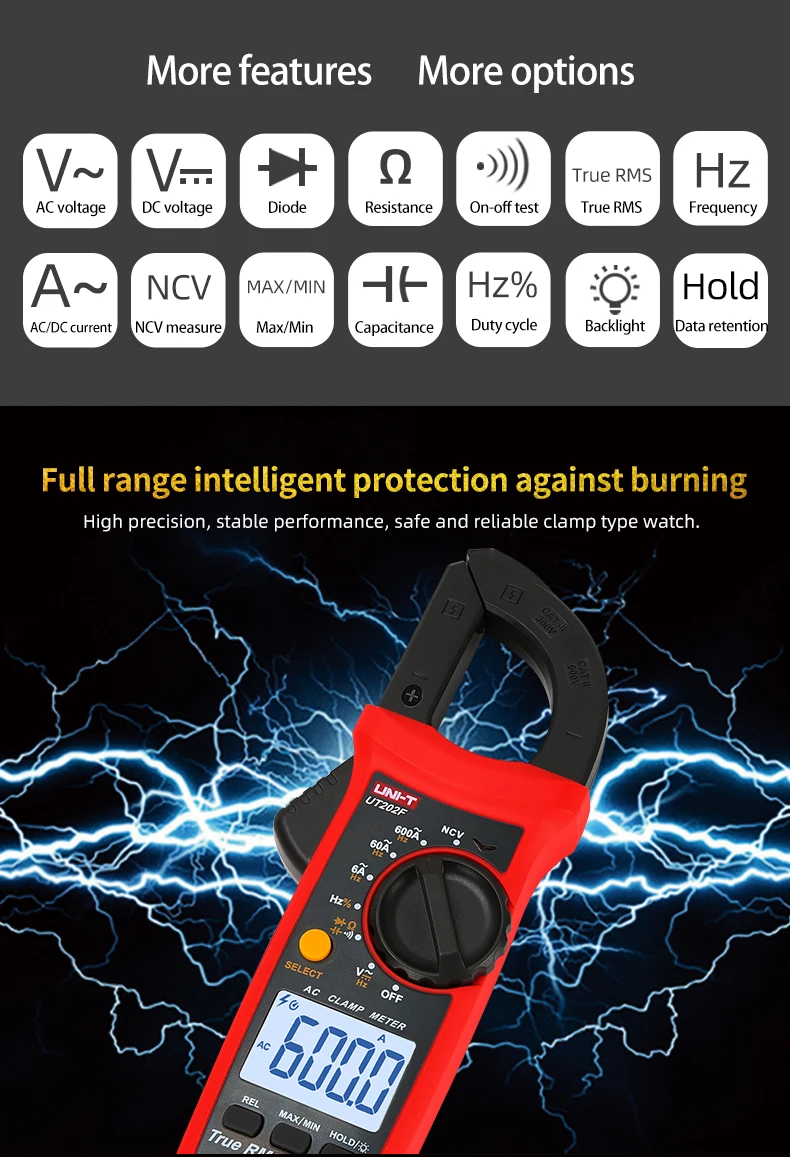

Features
1. True RMS
2. 60mF large capacitancemeasurement
3. Larger screen anddisplay digits

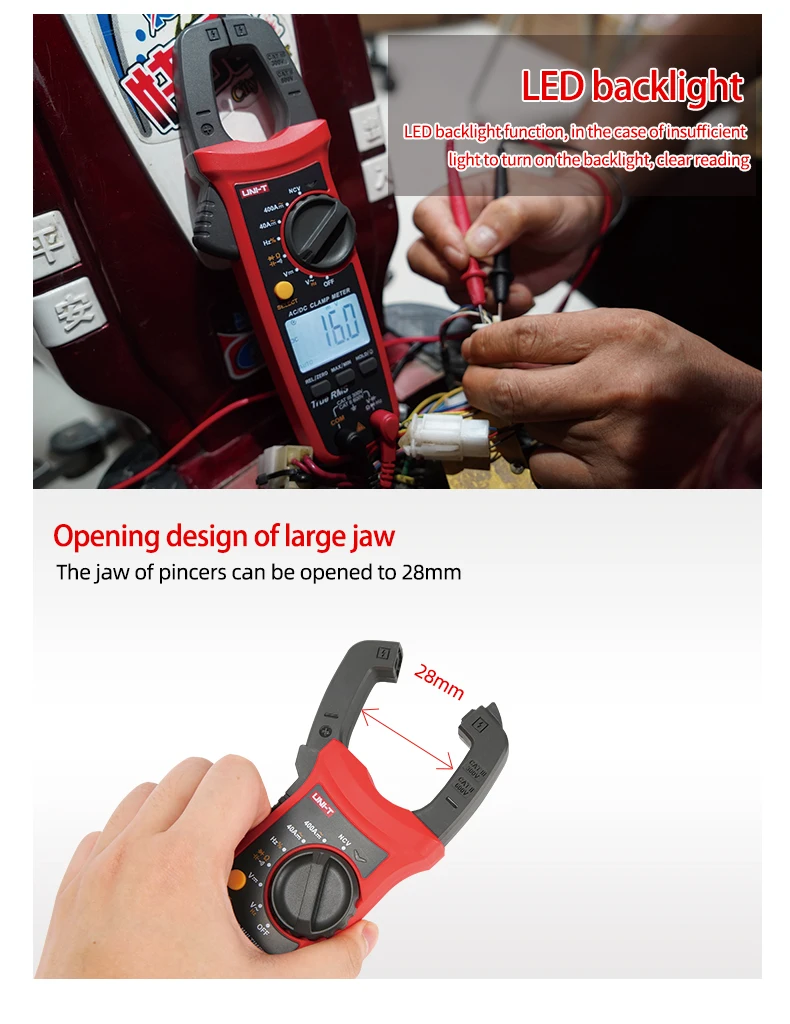

4. LCD backlight
5. Continuity test

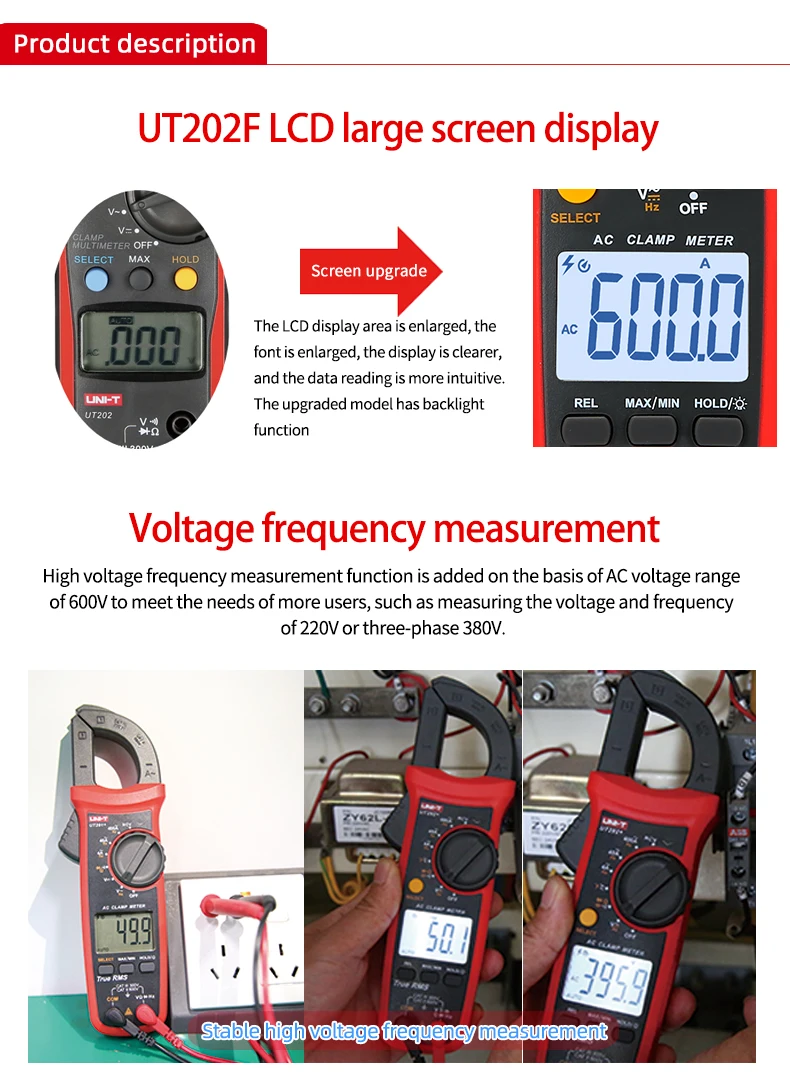

6. High voltage (600V) frequencymeasurement

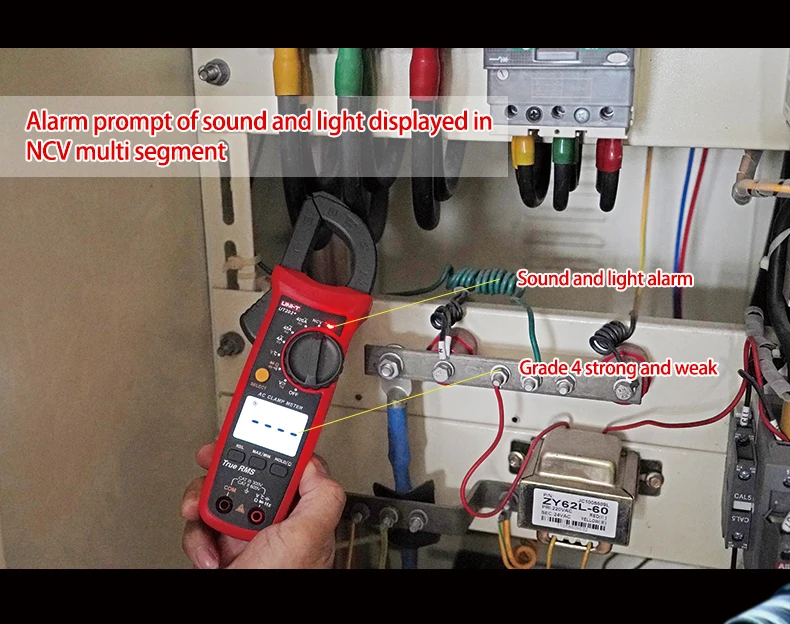

7. NCV multi-segment display andaudio/visual alarm
8. 600V protection across allrange

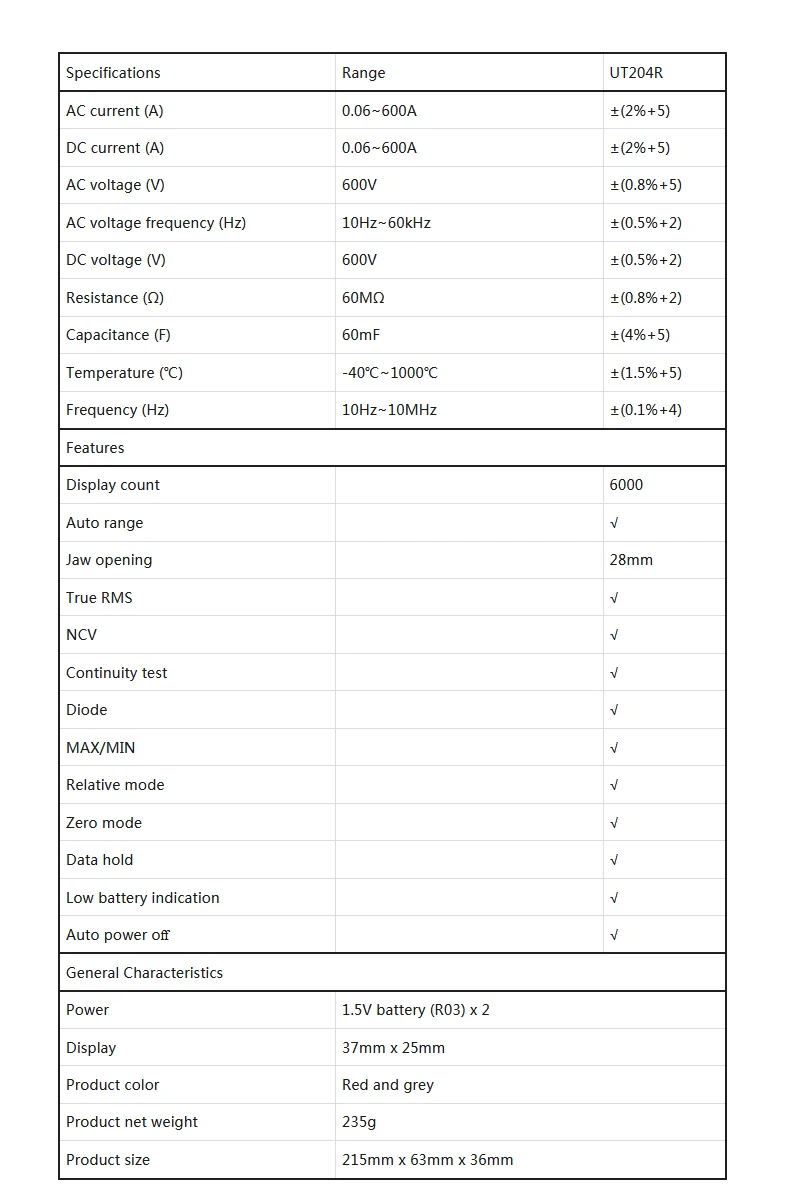

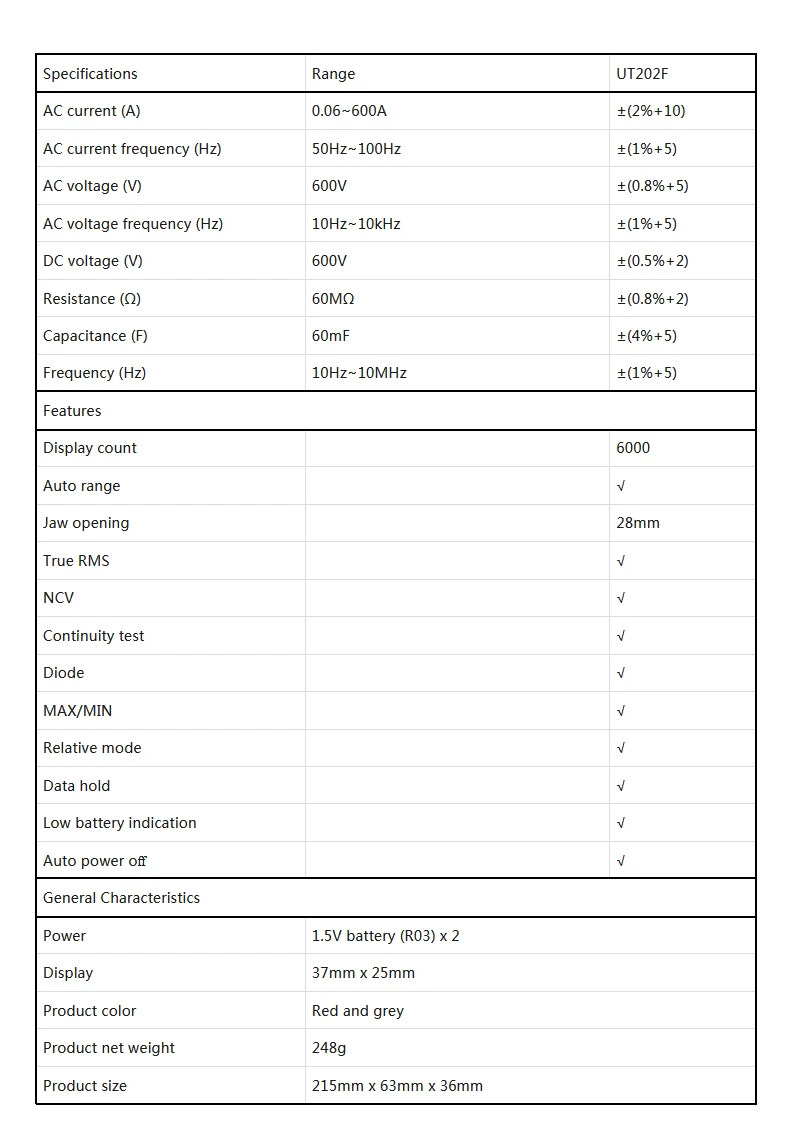

Parameter
Specifications | Range |
UT202F |
UT204R |
AC current (A) | 0.04~400A | ||
0.06~600A | ±(2%+10) | ±(2%+5) | |

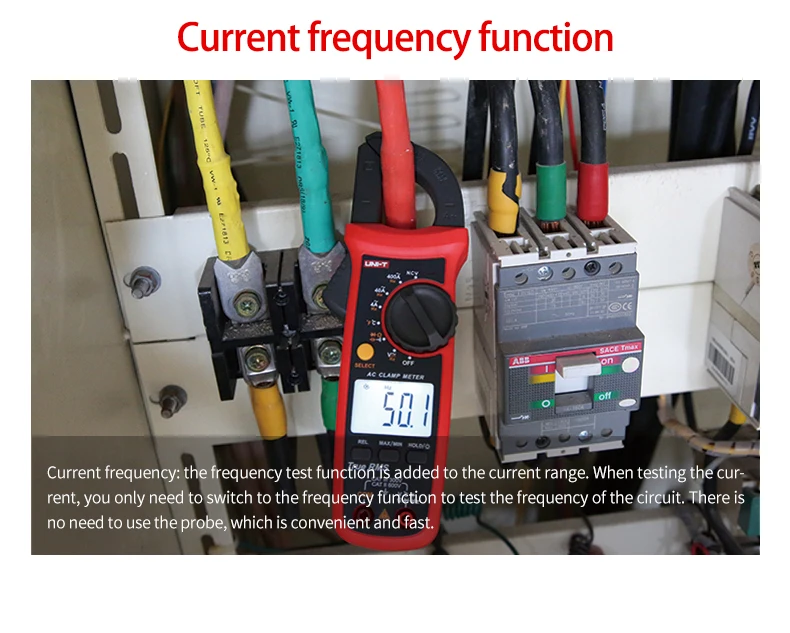

AC current frequency (Hz) | 50Hz~100Hz | ±(1%+5) | |
DC current (A) | 0.04~400A | ||
0.06~600A | ±(2%+5) | ||
AC voltage (V) | 600V | ±(0.8%+5) | ±(0.8%+5) |
AC voltage frequency (Hz) | 10Hz~10kHz | ±(1%+5) | |
10Hz~60kHz | ±(0.5%+2) | ||
DC voltage (V) | 600V | ±(0.5%+2) | ±(0.5%+2) |
Resistance (Ω) | 40MΩ | ||
60MΩ | ±(0.8%+2) | ±(0.8%+2) | |
Capacitance (F) | 4mF | ||
40mF | |||
60mF | ±(4%+5) | ±(4%+5) | |
Temperature (℃) | -40℃~1000℃ | ±(1.5%+5) | |
Frequency (Hz) | 10Hz~10MHz | ±(1%+5) | ±(0.1%+4) |
Features | |||
Display count | 6000 | 6000 | |

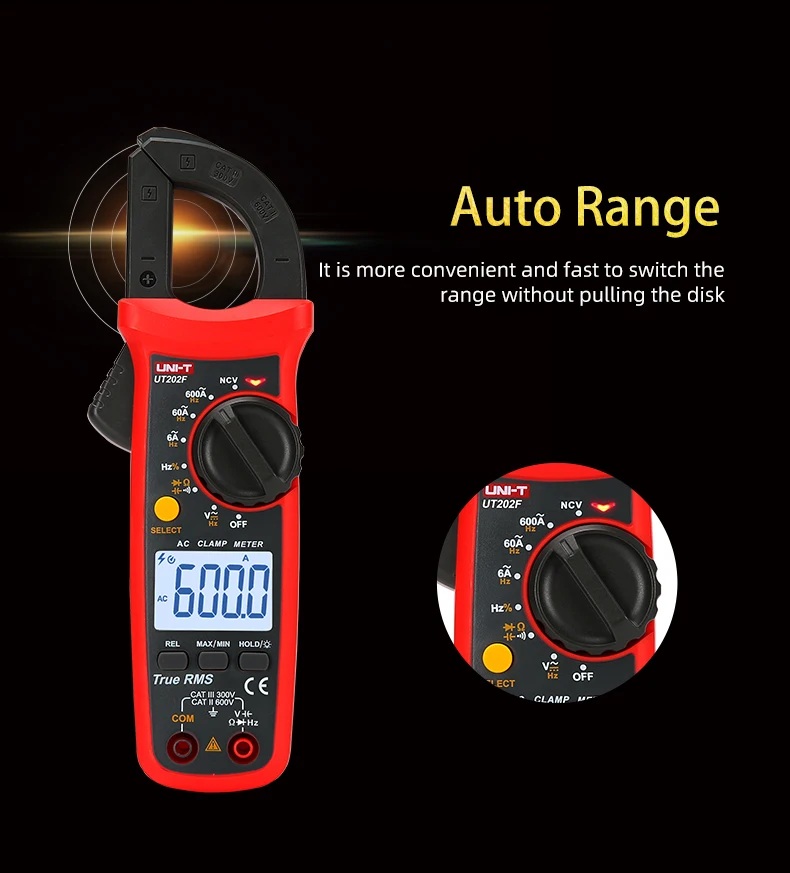

Auto range | √ | √ | |
Jaw opening | 28mm | 28mm | |
True RMS | √ | √ | |
NCV | √ | √ | |
Continuity test | √ | √ | |
Diode | √ | √ | |
MAX/MIN | √ | √ | |
Relative mode | √ | √ | |
Zero mode | √ | ||
Data hold | √ | √ | |
Low battery indication | √ | √ | |
Auto power off | √ | √ | |
General Characteristics | |||
Power | 1.5V battery (R03) x 2 (No include) | ||
Display | 37mm x 25mm | ||
Product color | Red and grey | ||
Product net weight | UT202F: 248g; UT204R: 235g | ||
Product size | 215mm x 63mm x 36mm | ||
Standard accessories | Test leads, Themocouple (Only UT204R) | ||
Standard individual packing | Gift box, carrying bag, English manual |
![UNI-T UT202F / UT204R Clamp Meter 1 UNI-T UT202F / UT204R Clamp Meter](https://ae01.alicdn.com/kf/Ha0989de5d68e49bfa59b99608478ffe6P.jpg)
![UNI-T UT202F / UT204R Clamp Meter 2 UNI-T UT202F / UT204R Clamp Meter](https://ae01.alicdn.com/kf/H96f6fb94d57b441799630d2238eb4f19I.jpg)
![UNI-T UT202F / UT204R Clamp Meter 4 UNI-T UT202F / UT204R Clamp Meter](https://ae01.alicdn.com/kf/H6b301cbd2d804addb069f997bc1418053.jpg)
![UNI-T UT202F / UT204R Clamp Meter 7 Hbebcf8e159d7420697f7e129b78bbeedY](https://ae01.alicdn.com/kf/Hbebcf8e159d7420697f7e129b78bbeedY.jpg)
![UNI-T UT202F / UT204R Clamp Meter 8 H6ef9269b122e4f5fb8f89fce534c8d4bf](https://ae01.alicdn.com/kf/H6ef9269b122e4f5fb8f89fce534c8d4bf.jpg)
![UNI-T UT202F / UT204R Clamp Meter 9 Hc14a99375a894b9e857805b50ac18899n](https://ae01.alicdn.com/kf/Hc14a99375a894b9e857805b50ac18899n.jpg)
![UNI-T UT202F / UT204R Clamp Meter 10 H6fe26e7e035e4843a207413161a38991d](https://ae01.alicdn.com/kf/H6fe26e7e035e4843a207413161a38991d.jpg)
![UNI-T UT202F / UT204R Clamp Meter 11 H77bdf686ce774e26a687fb8cd505b6aa5](https://ae01.alicdn.com/kf/H77bdf686ce774e26a687fb8cd505b6aa5.jpg)
![UNI-T UT202F / UT204R Clamp Meter 12 H7b8d39b8baef46f281f777b1706ac18ae](https://ae01.alicdn.com/kf/H7b8d39b8baef46f281f777b1706ac18ae.jpg)
![UNI-T UT202F / UT204R Clamp Meter 13 Ha5fb1971be574169be06162d39e53cf9o](https://ae01.alicdn.com/kf/Ha5fb1971be574169be06162d39e53cf9o.jpg)
![UNI-T UT202F / UT204R Clamp Meter 14 H4af1913e2834479aac143e15f798a4cey](https://ae01.alicdn.com/kf/H4af1913e2834479aac143e15f798a4cey.jpg)

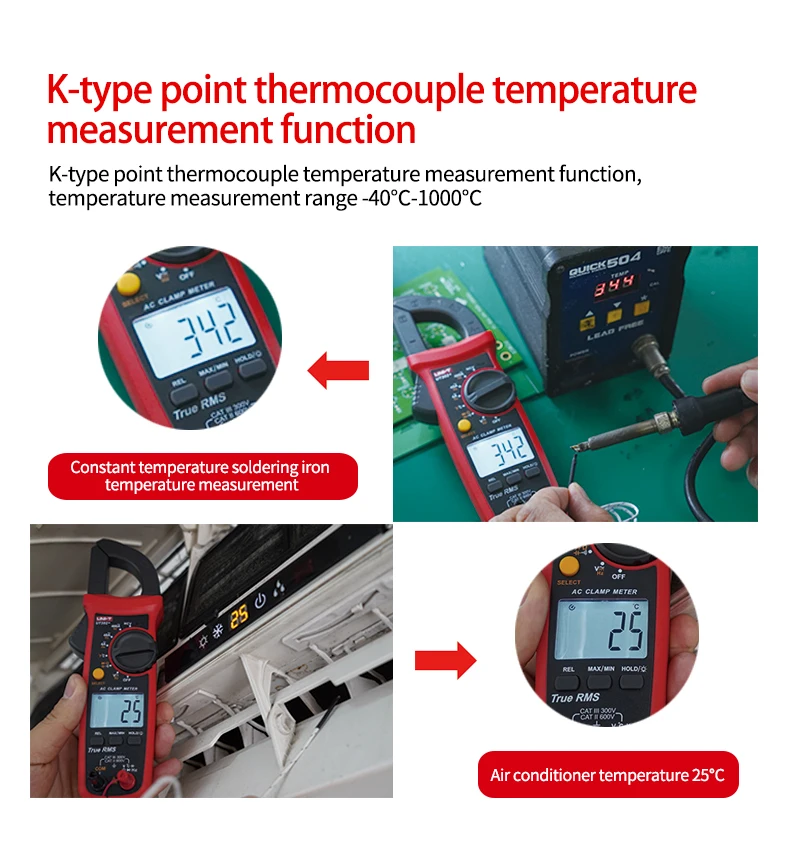

Only UT204R has temperature measurement function.
![UNI-T UT202F / UT204R Clamp Meter 15 H05aa6f4d25594056bb9de9a9db4fb77d2](https://ae01.alicdn.com/kf/H05aa6f4d25594056bb9de9a9db4fb77d2.jpg)
