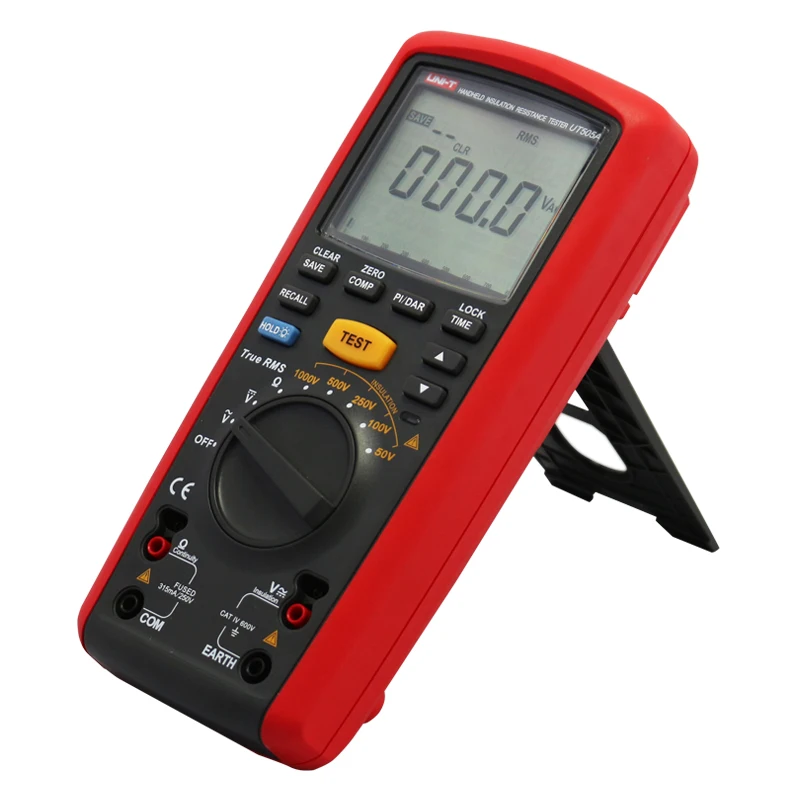

UNI-T UT505A Insulation Resistance Tester
- Dimensions: 11*23*59
- Operating Temperature: -40 degrees Celsius -1000 degrees Celsius
- Accuracy Class: 0%-10%
- Testing Voltage: 50V/100V/250V/500V/1000V
- Measuring Range: 10.0Gohm-20Gohm
- Model Number: UT505A
- Display Type: Digital Only
- DIY Supplies: ELECTRICAL
- Brand Name: UNI-T
- Origin: Mainland China
- Certification: CE,RoHS
UT505A is a kind of handled insulation resistance tester, which has the parameters such as insulation resistance, AC/DC voltage and etc. This machine has high accuracy and stable
Performance with wide range of function. It apply to maintain, test and check the transformers, electrical machines, cables, switch, electric appliances and the other electrical equipments as well as insulation resistance with insulation materials. UT505A is your ideal choice.
Features:
1 Show the actual value of insulation voltage 50V/100V/250V/500V/1000V
2 Insulation resistance can be test to 20GΩ
3 Measured absorptance / polarization index ,low –resistance test (20kΩ)
4 Step voltage regulation , the function of remote detection test lead and comparison
5 600V AC/DC voltage ,99 data loging
6 Safety level: CAT III 1000V CAT IV 600V
7 Brand-new designed, portable and easy to control.

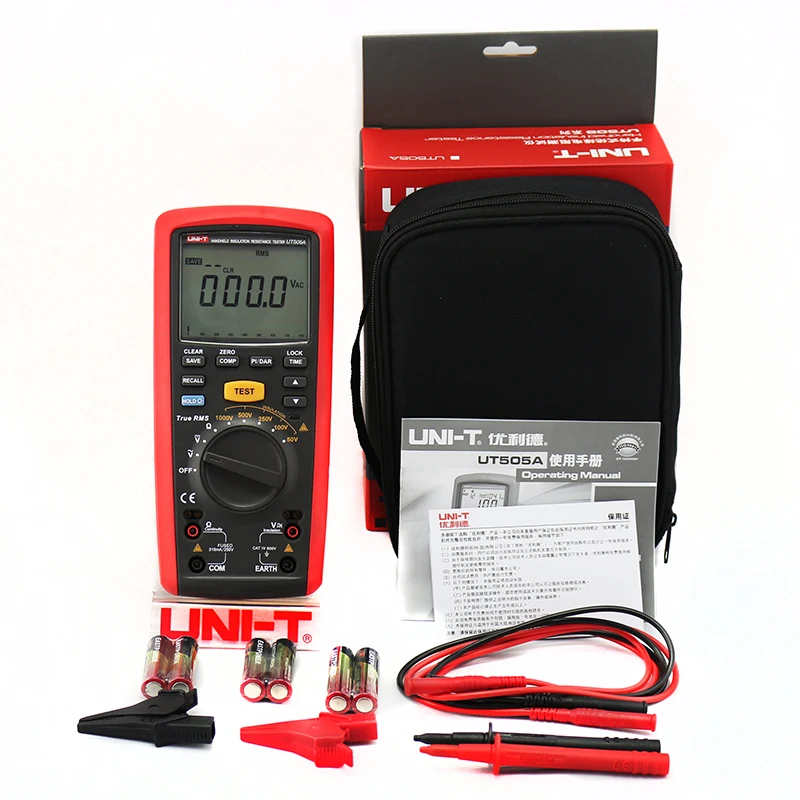

Package List:
1 * UNI-T UT505A Insulation Resistance Tester
1 * Pair Test Lead
1 * Pair Probe
1 * Pair Alligator Clip
1 * English Manual
1 * Carrying Bag
1 * UNI-T UT505A Insulation Resistance Tester
1 * Pair Test Lead
1 * Pair Probe
1 * Pair Alligator Clip
1 * English Manual
1 * Carrying Bag
