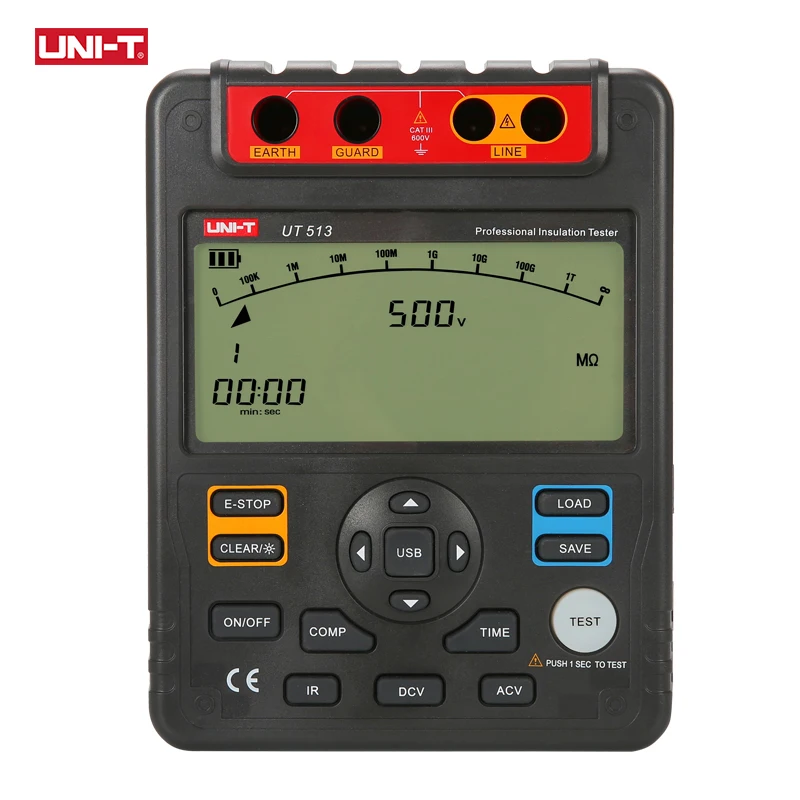

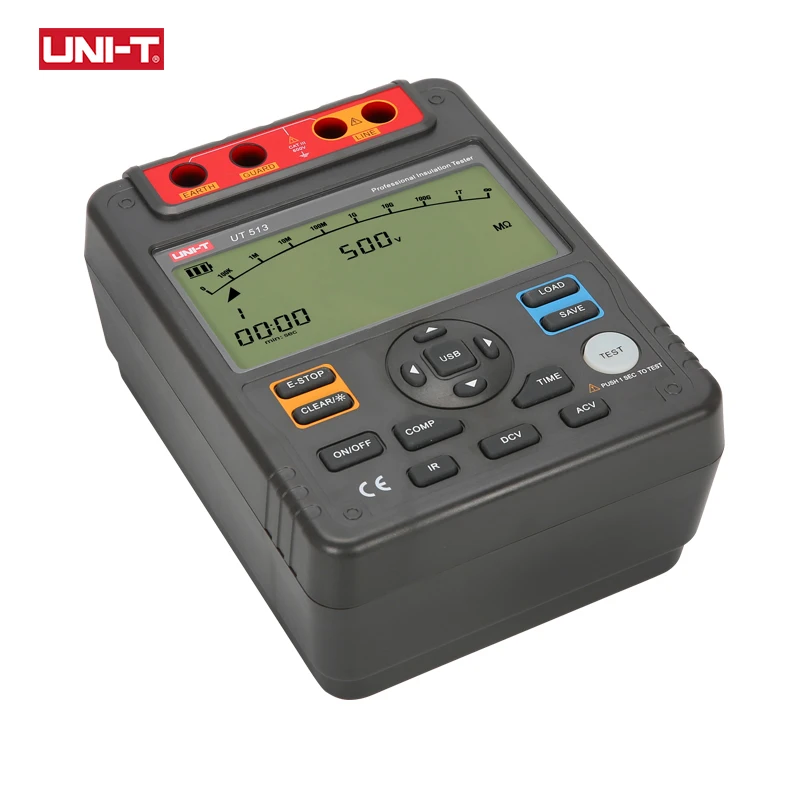

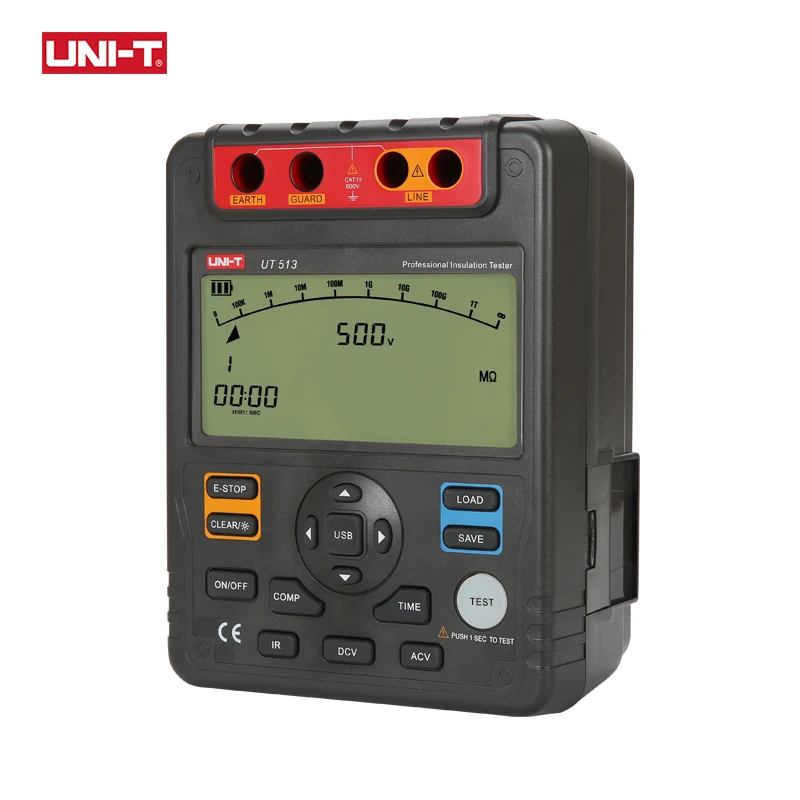

UNI-T UT513 Insulation Resistance Tester.
- Dimensions: 202*155*94mm
- Operating Temperature: -30~50
- Accuracy Class: /-(3% 5)
- Testing Voltage: 500V/1000V/2500V/5000V
- Measuring Range: 0.1Mohm-1000Gohm
- Model Number: UT513
- Display Type: Digital Only
- DIY Supplies: ELECTRICAL
- Brand Name: UNI-T
- Origin: Mainland China
- Certification: CE
- AC DC Voltage: 600V
- Power: 1.5V Batteries (LR14)* 8
UNI-T UT513 Insulation Resistance Tester Electrical Meter AC DC Voltmeter 5000V Automatic Range Digital Megohmmeter Data Hold

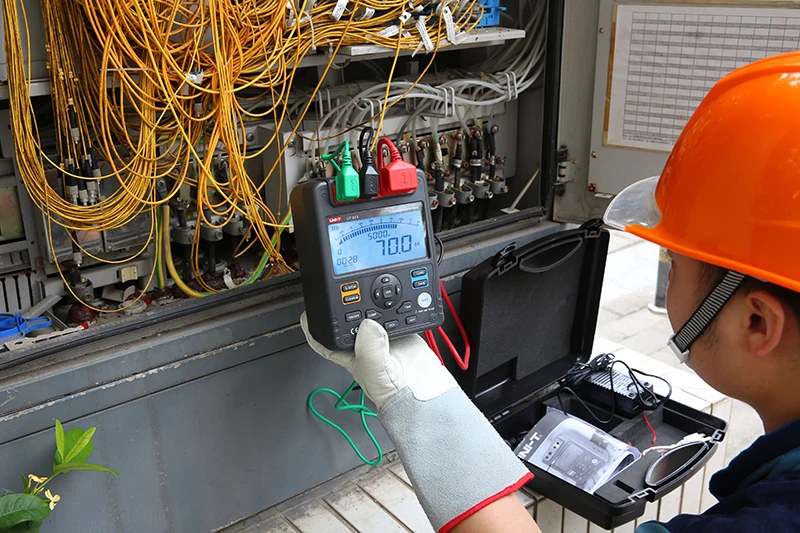

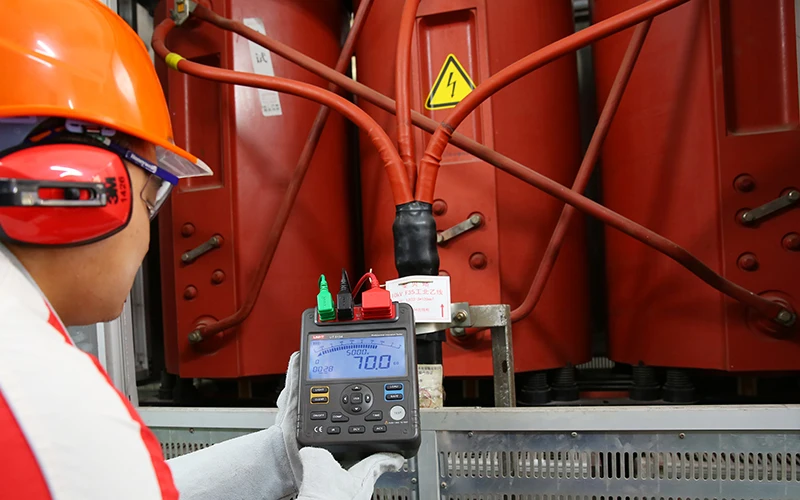

UT510 Series testers measure insulation resistance of large transformers, generators, high voltage motors and more
They can also measure PI, DAR and other important specifications. Measured data can then be analyzed through PC software.UT513 produce test voltage up to 5000V
Features
1. Large 9999 display with 30-segment analog bar graph
2. PI/DAR measurements
3. Comparison, upper and lower limit functions
4. Continuous measurement mode
5. Auto power off
6. 18-group data storage

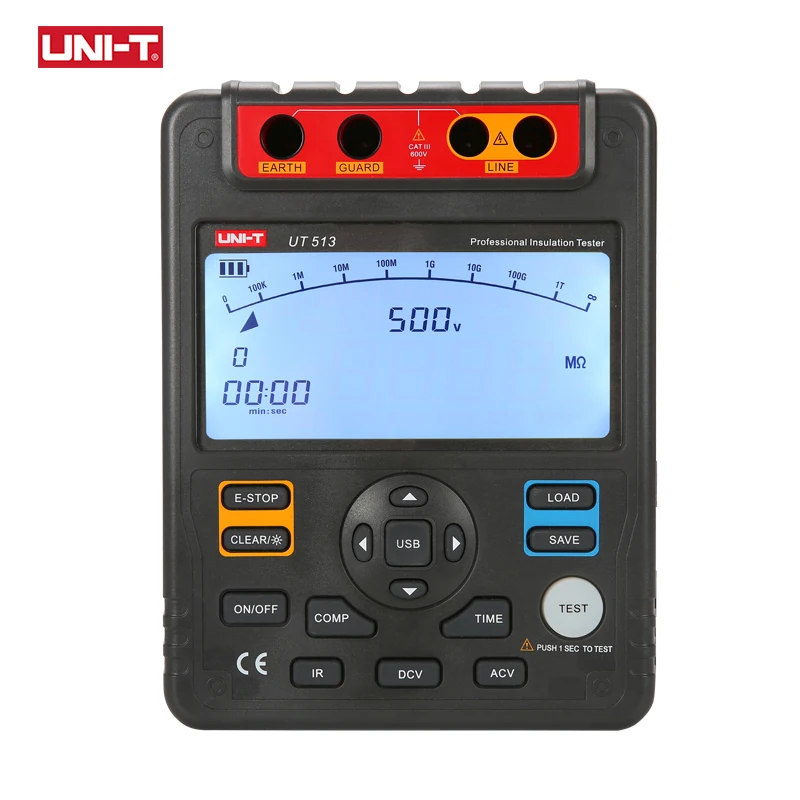

7. Backlight
8. Auto current discharge and high-voltage output alarm
9. Power adapter(UT512/UT513)
10. Time measurement mode, auto measure within 15 minutes

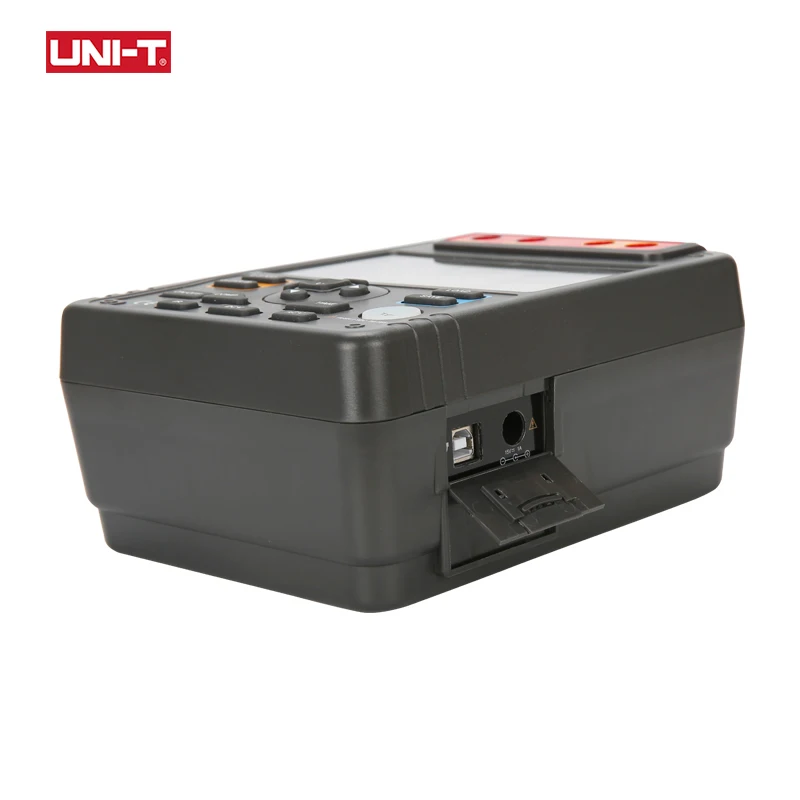

11. USB interface and PC software(UT512/UT513)
12. Low battery and over range indications
| Specifications | Range | UT513 | |
| Insulation resistance (Ω) | Test voltages | 500V~5000V | 0%~20% |
| 500V | 0.5MΩ~20GΩ | ±(3%+5) | |
| 1000V | 1MΩ~40GΩ | ±(3%+5) | |
| 2500V | 2.5MΩ~100GΩ | ±(3%+5) | |
| 5000V | 5MΩ~1000GΩ | ±(3%+5) | |
| DC voltage (V) | 600V | ±(2%+3) | |
| AC voltage (V) | 600V | ±(2%+3) | |
| Short-circuit current | ＜1.8mA | ||
| Features | |||
| Auto range/Auto power off | √ | ||
| Test voltage secondary display | √ | ||
| Low battery indication | √ | ||
| Data storage | 18 | ||
| Comparison measurement | √ | ||
| Polarization index (PI) | √ | ||
| Dielectric absorption ratio (DAR) | √ | ||
| USB interface | √ | ||
| Analog bar graph | 30 | ||
| LCD backlight | √ | ||
| Over-range warning | √ | ||
| High voltage indication | √ | ||
| Timing measurement | Around 15 minutes | √ | |
| Meets IEC 61557 | 61557-1:2007; 61557-2:2007 | ||
| General Characterisitics | |||
| Power | 1.5V battery (LR14) x 8 | ||
| Display | 123mm x 58mm | ||
| Product color | Red and grey | ||
| Product net weight | 2kg | ||
| Product size | 202mm x 155mm x 94mm | ||

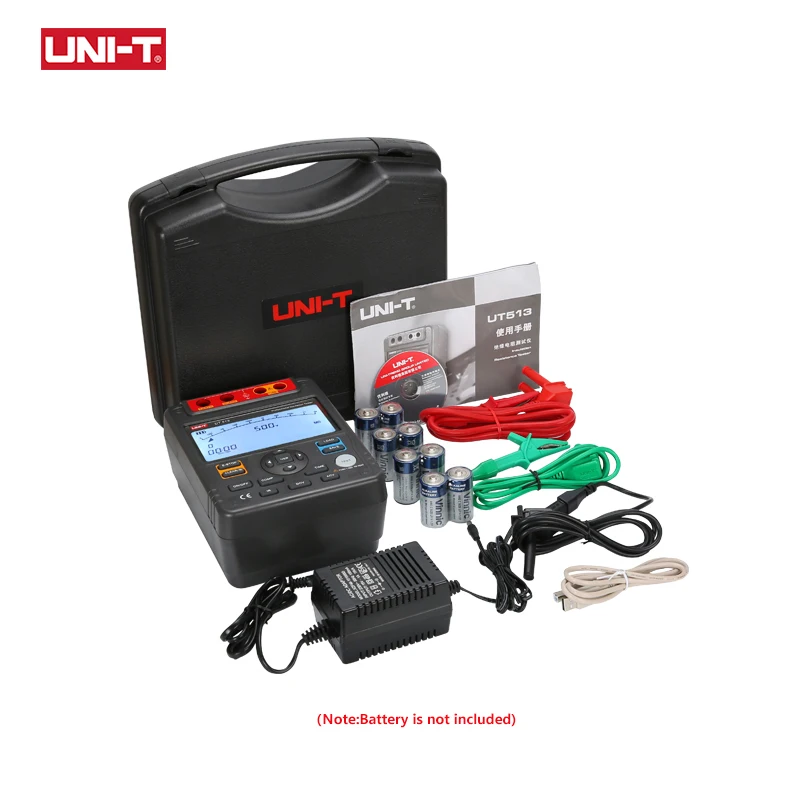

| Standard accessories | 2pcs of one plug test lead to one alligator clip (black and green), 1pcs of two plugs test lead to one alligator clip (red),USB cable, PC software, power adaptor | ||
| Standard individual packing | Gift box, tool box, English manual | ||
Please note: For environmental protection ,All of paper manual and CD in product is cancelled . UNI-T Offer electronic instruction in english, please follow the guide in package to download software and manual from our offical website,or ask customer service to get it .
