UNI-T UT61E Digital Multimeter electrician
- Is Smart Device: no
- DC Current: 20A
- AC Current: 20A
- DC Voltage: 1000V
- AC Voltage: 1000V
- Operating Mode: Auto range
- Measuring Capacitance Range: 220mF
- Measuring Resistance Range: 220MΩ
- Model Number: UT61E
- Dimensions: 190mm x 90mm x 50mm
- Display Type: Digital display
- DIY Supplies: ELECTRICAL
- Brand Name: UNI-T
- Origin: Mainland China
- Certification: NONE
- Frequency: 220MHz
- Analog bar: 46
- Peak Hold: Transistor hFE
- ACV DCV: LPF ACV
- Bandwidth: 40-10kHz
- Display count: 22000
- Duty cycle: 0.1%-99.9%

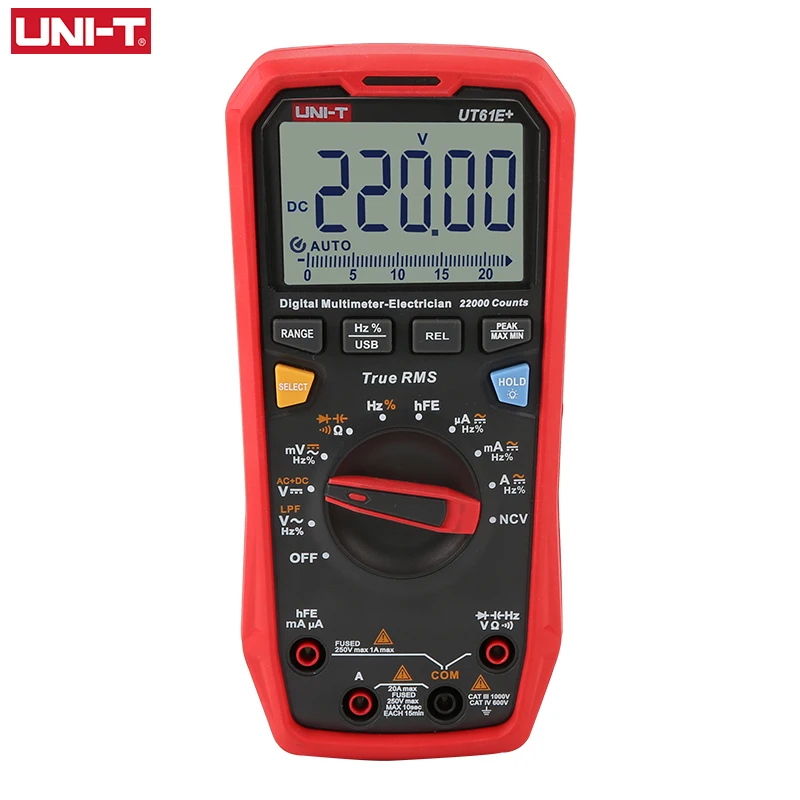

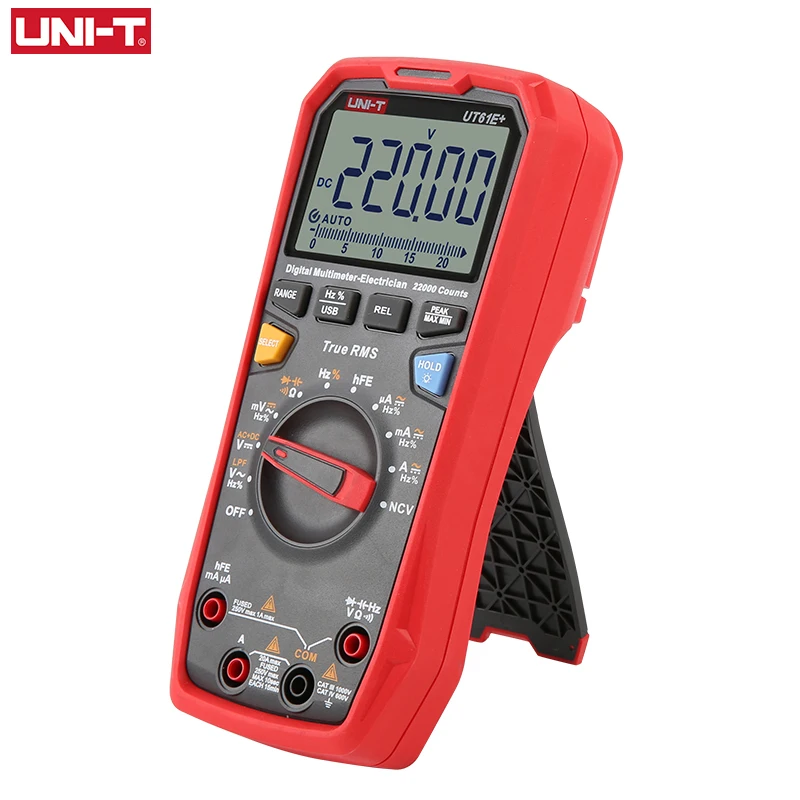

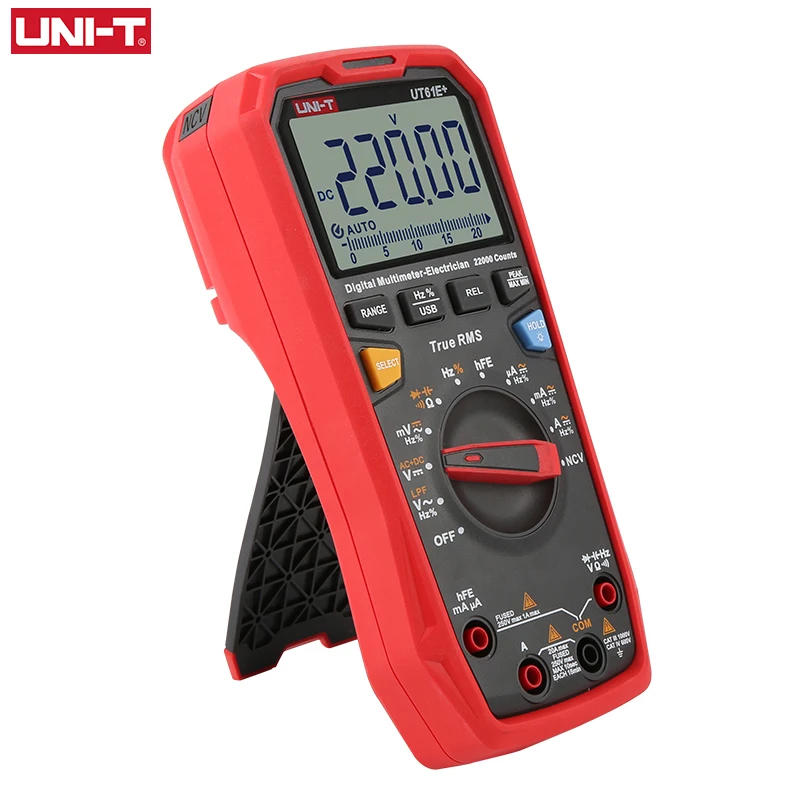

UT61E+ 1000V True RMS Digital Multimeter
UT61+ series are reliable true RMS digital multimeters with display counts 6000 (UT61B+/D+) and 22,000 (UT61E+). It can measure up to 1000V AC/DC.
Equipped with audible and visible alarm, this series can provide warning expecially when measuring high voltage/current and temperature.
UT161 series are CE certified, suitable for the European market.
Features:
● True RMS
● Data hold/backlight
● Max/Min/Relative mode
● USB communication
● Input protection
● Diode/continuity test
● NCV (audible/visual alarm)
● LPF ACV
● ACV+DCV
● Transistor hFE
● Peak Hold
| Specifications | Range | UT61E+ |
| Certifications (UT161 Series only) | CE/RoHS/cETLus | |
| Safety ratings | CAT III 1000V/CAT IV 600V | |
| AC voltage (V) | 1000V | ±(0.8%＋10) |
| DC voltage (V) | 1000V | ±(0.05%＋5) |
| AC current (A) | 20A | ±(0.8%＋10) |
| DC current (A) | 20A | ±(0.5%＋10) |
| Resistance (Ω) | 220MΩ | ±(0.5%＋10) |
| Capacitance (F) | 220mF | ±(3%＋5) |
| Frequency (Hz) | 220MHz | ±(0.01%＋5) |
| Duty cycle (%) | 0.1%~99.9% | ±(2%＋5) |
| Display count | 22000 | |
| Bandwidth (Hz) | 40~10kHz | |
| LPF ACV | √ | |
| ACV+DCV | √ | |
| Transistor hFE | √ | |
| Peak Hold | √ | |
| Analog bar | 46 | |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 4 （Not included) | |
| Product net weight | 350g | |
| Product size | 190mm x 90mm x 50mm | |

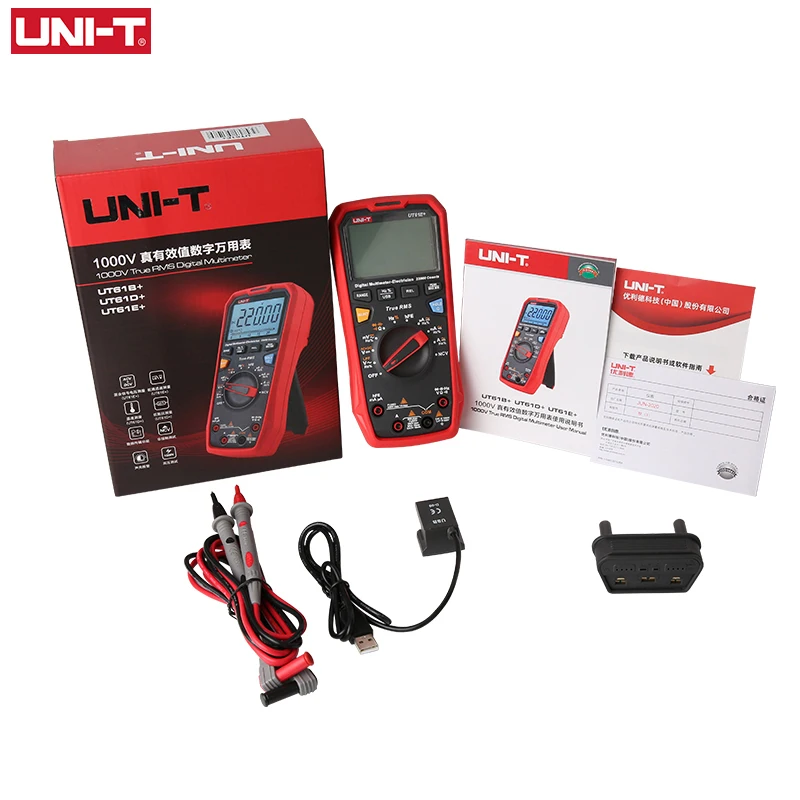

| Standard accessories | gold plated test leads, USB cable, temperature multi-purpose socket, English manual | |
| Standard individual packing | Gift box | |
