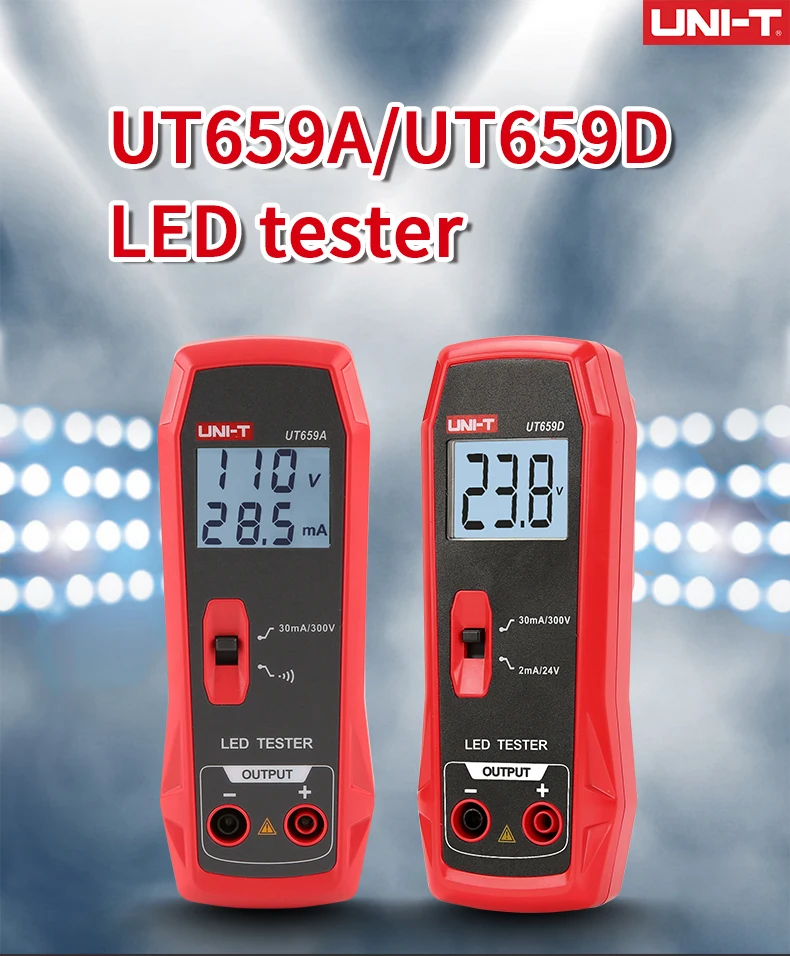

UT659A UT659D LED tester

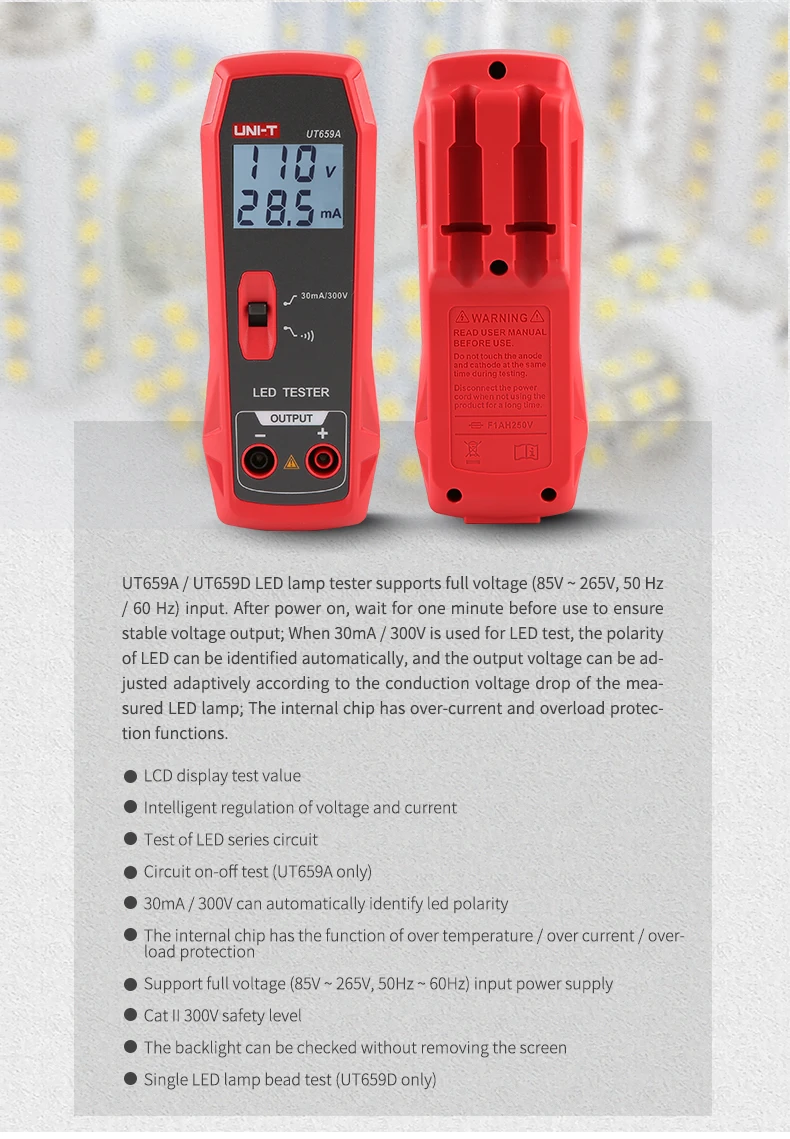

UT659 series products are widely used in LED single lamp bead test (UT659D), inspection and repair of LCD TV backlight, strip light and modulator tube, etc. UT659A/UT659D LED tester supports full voltage (85V~265V, 50Hz/60Hz) input, which can be used after 1 minute of power-up to ensure stable voltage output. When performing a LED test at 30mA/300V, the LED polarity can be automatically identified, and the output voltage is adaptively adjusted according to the forward voltage drop of the tested LED.

Features

1.Lightweight and easy to use
2.Support full voltage (85V~265V 50Hz~60Hz) input power supply
3.30mA/300V file can automatically identify LED polarity
4.The internal chip has over-temperature/over-current/over-load protection functions

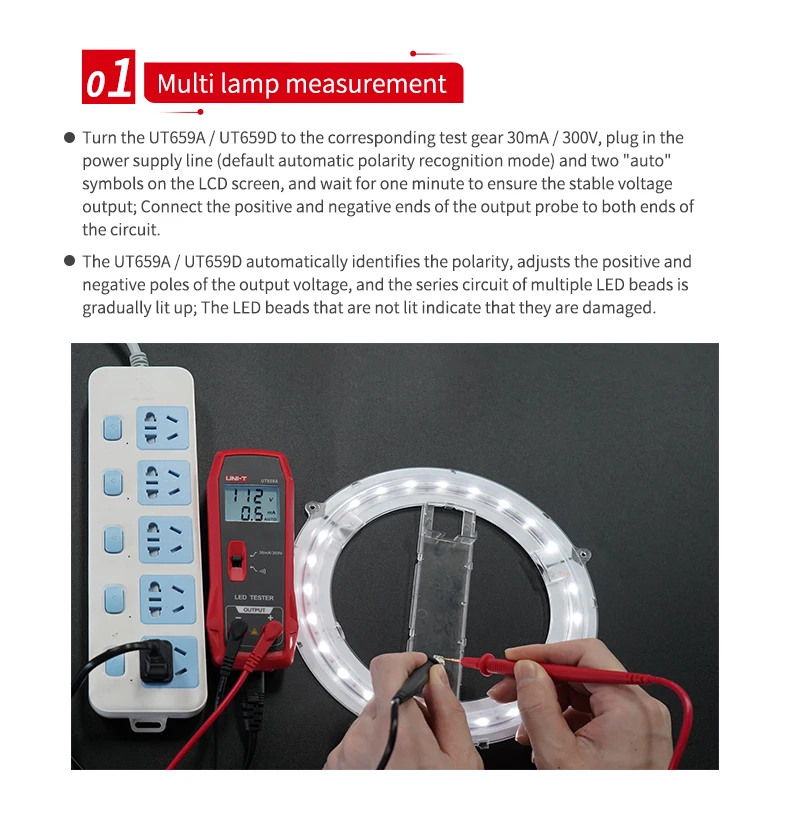

5.LED lamp series circuit test
6.Circuit continuity test
7.Intelligent adjustment of voltage and current
8.LCD display test value
9.No need to disassemble the screen, you can check the quality of the backlight
10.CAT II 300V safety rating

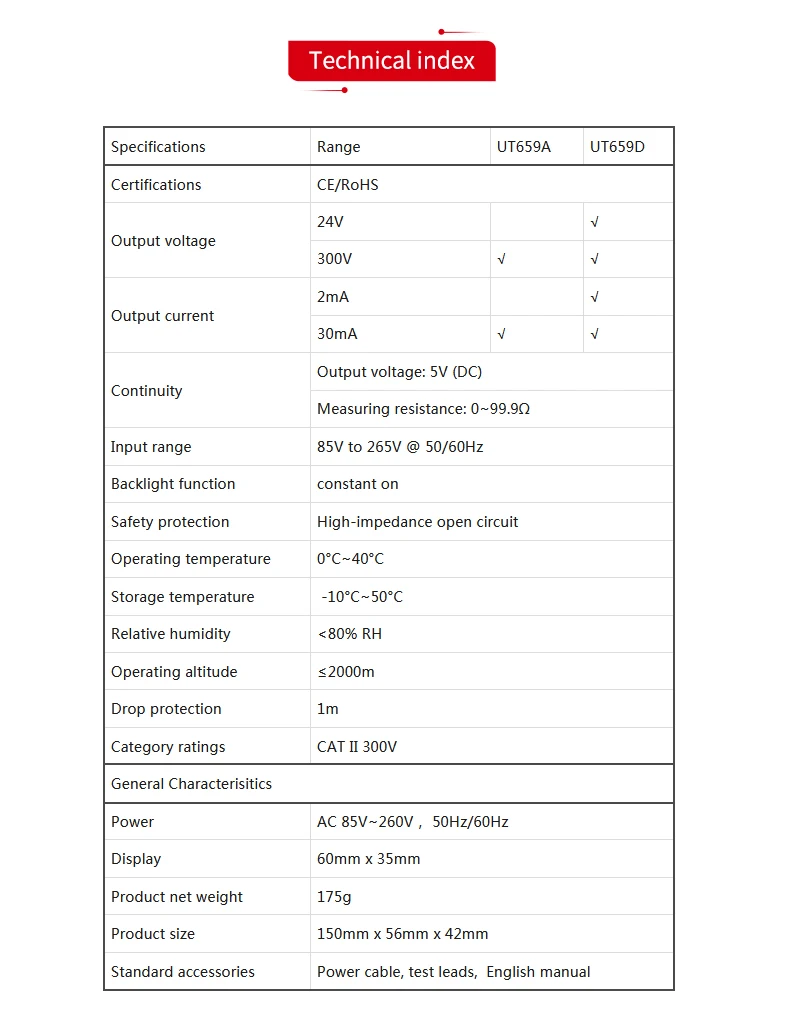

Parameter
