UNI-T UT683KIT Network Cable Tester. RJ45/ RJ11 Wire Tracer
- Model Number: UT683KIT Network Cable Tester
- Brand Name: UNI-T
- Origin: Mainland China
- Certification: CE
- Port flashing: Wire tracking
- Line alignment: Polarity test
- lan tester: wire tracker
- cable continuity: lan tester rj45
UNI-T UT683KIT Lan Tester Network Wire Tracer Cable Tracker RJ45 RJ11Telephone Line Finder Repairing Networking Tool

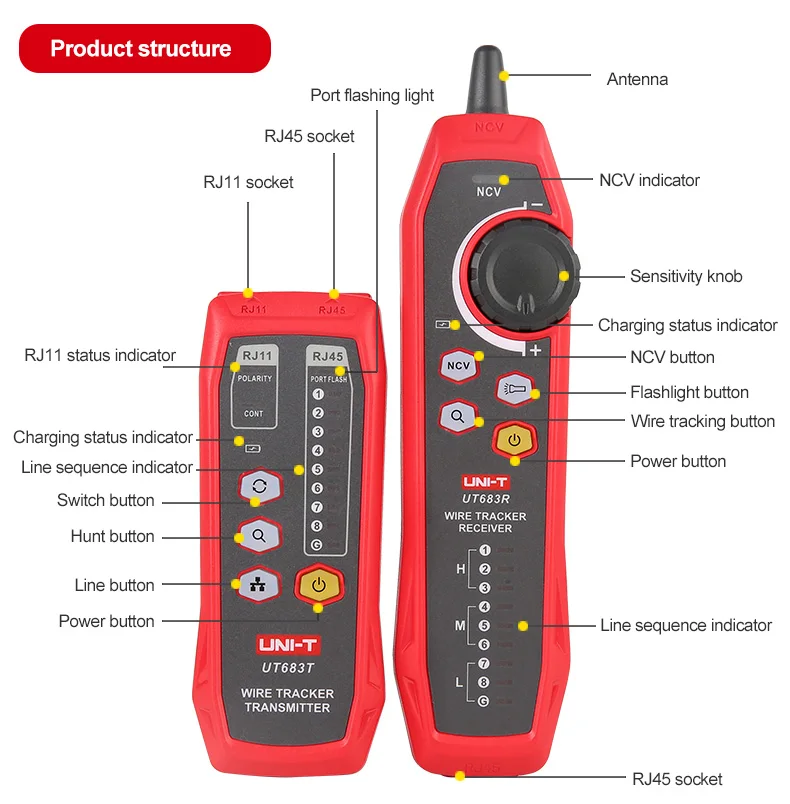

The device is an intelligent wire tracker which consists of the transmitter and receiver, this kit is designed with strong anti-interference ability. The receiver can quickly and accurately locate the target cable. This kit can automatically identify open, short, polarity, and quickly distinguish cable failure.

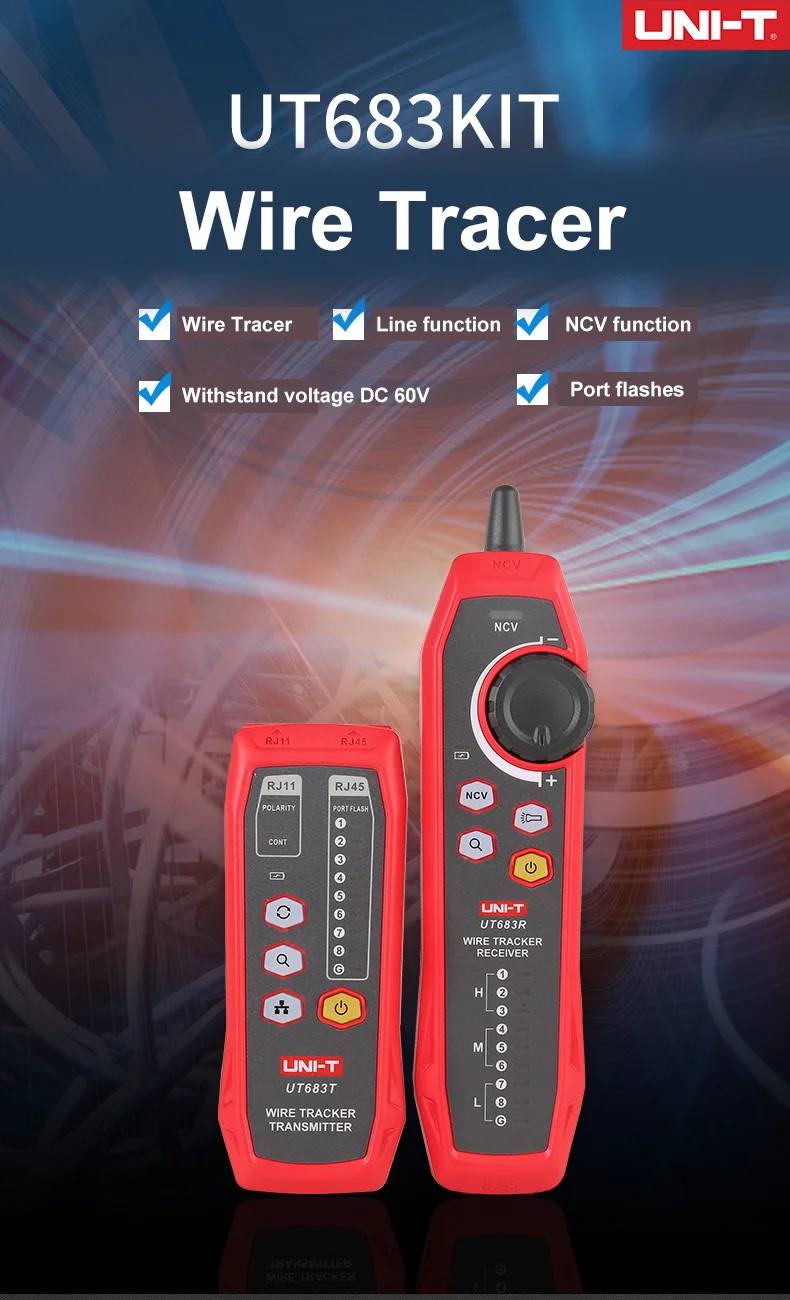

Features

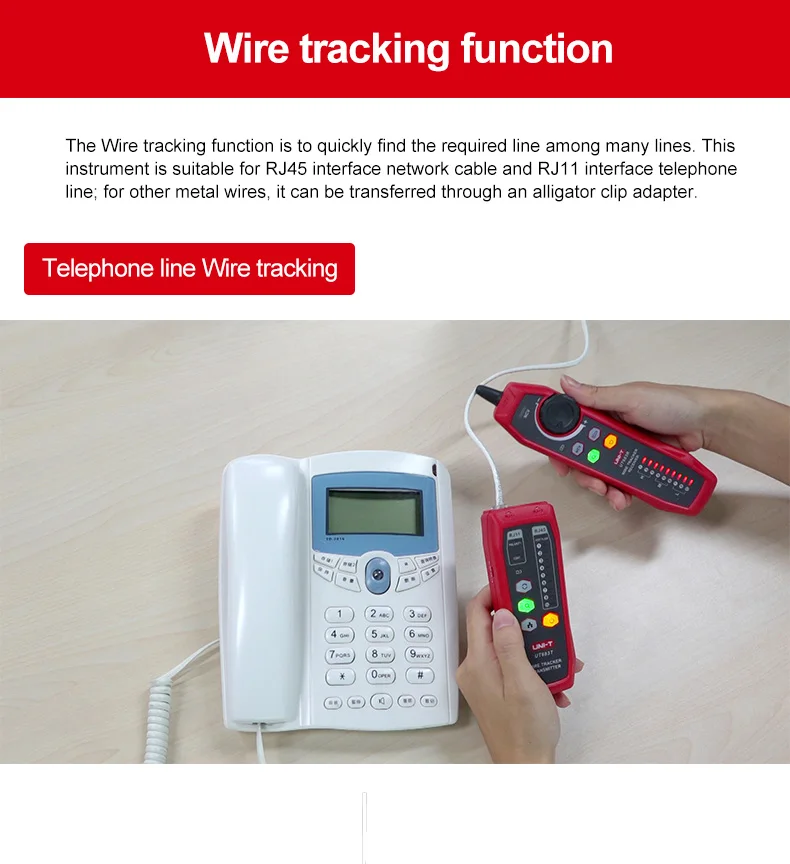

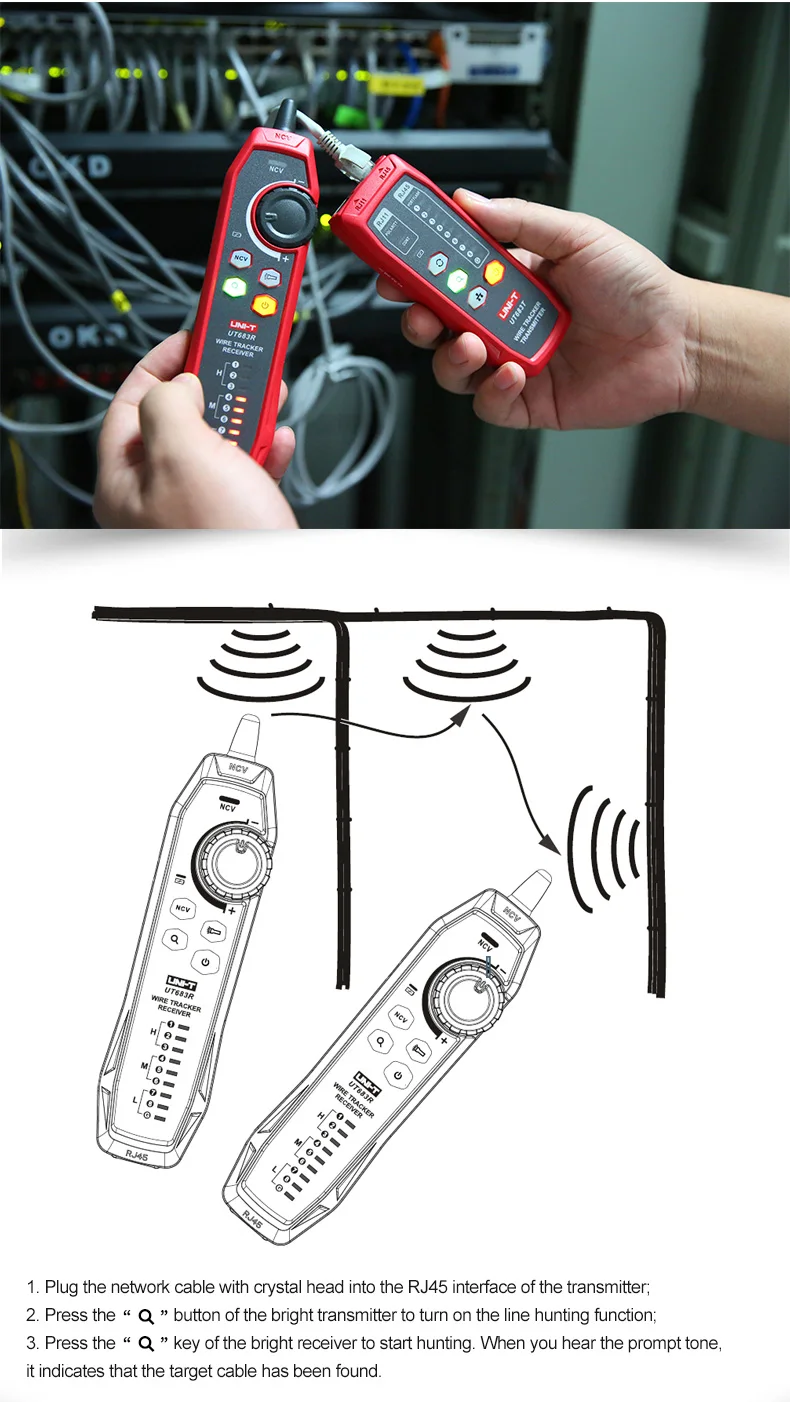

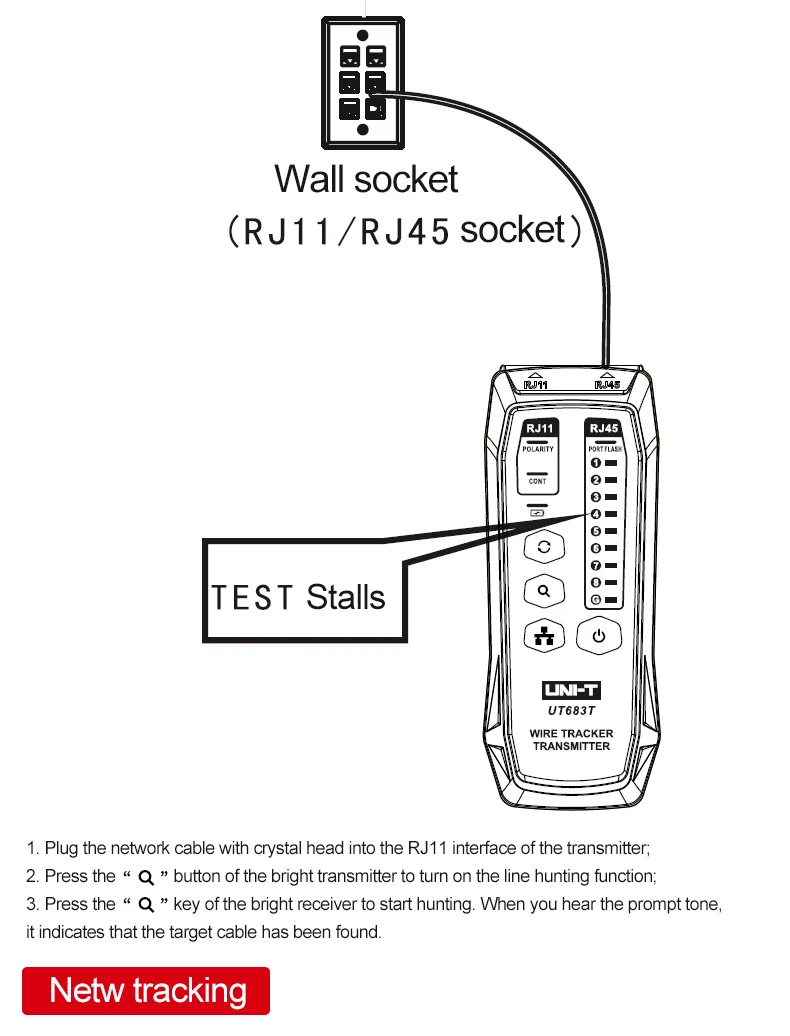

1.Wire Tracer

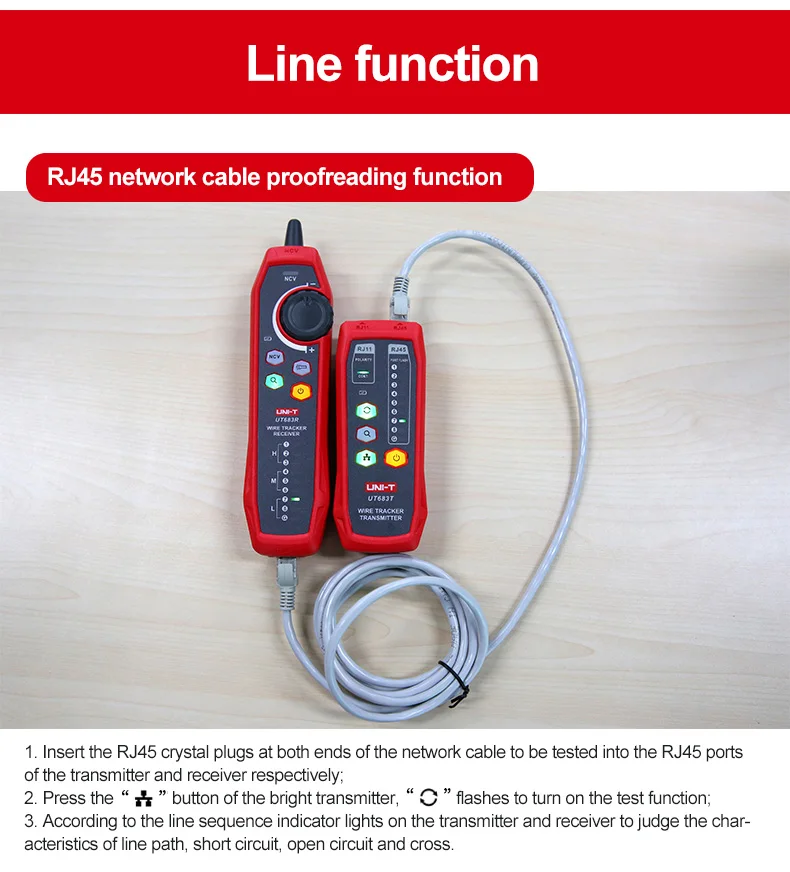

2.Line function
3.NCV function

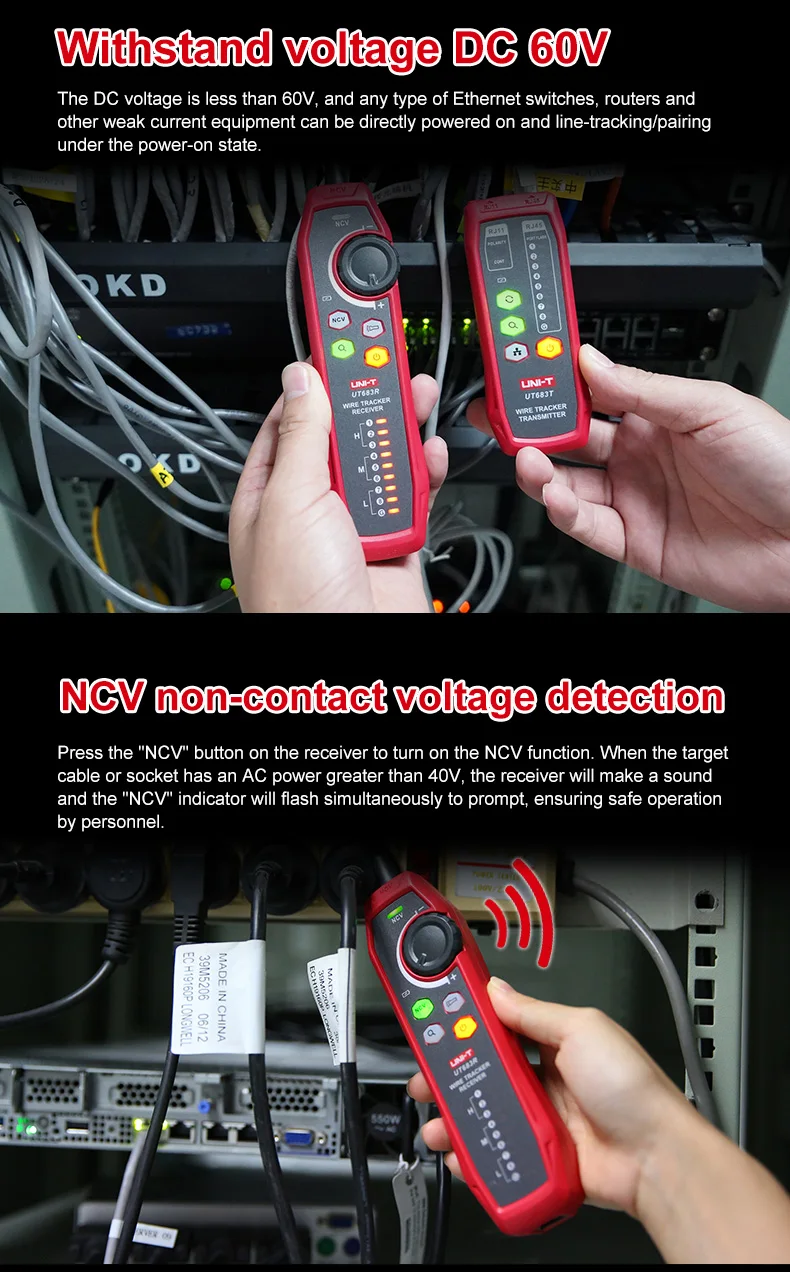

4.Withstand voltage DC 60V

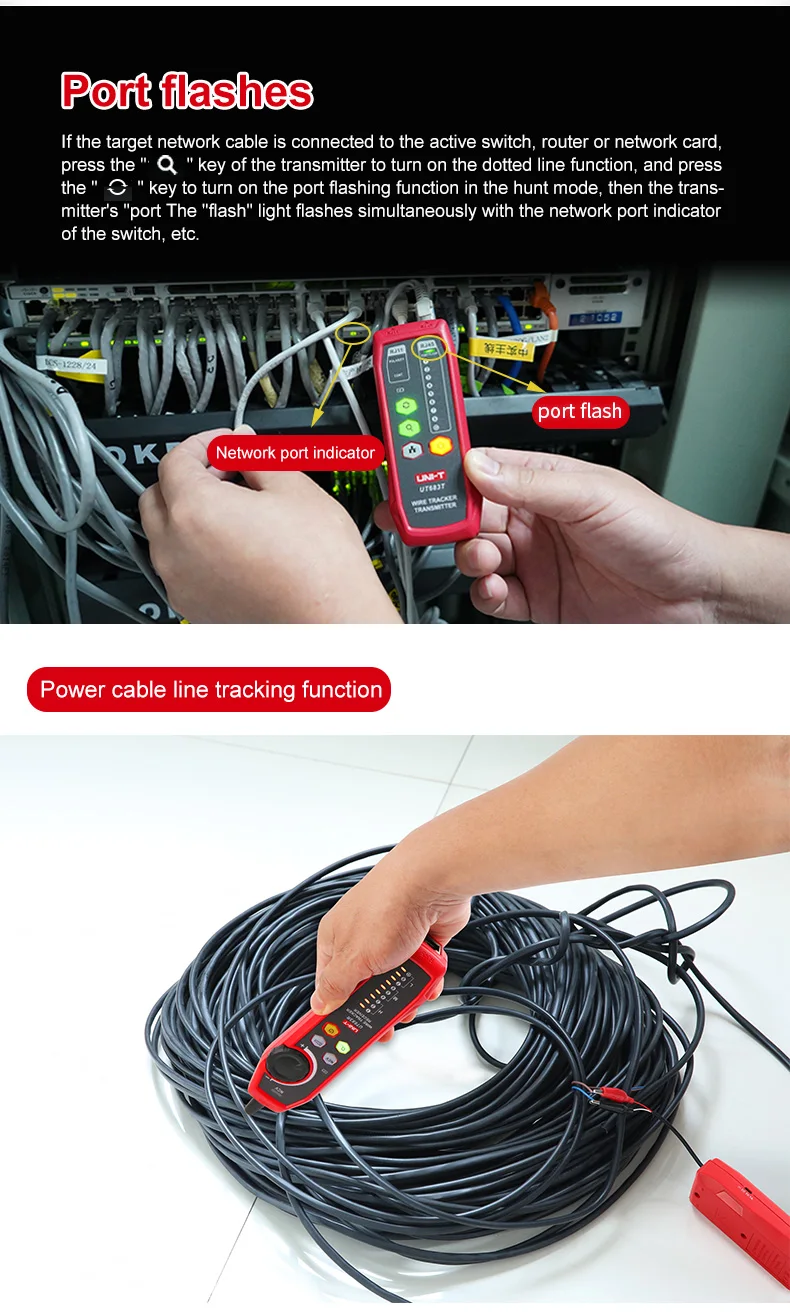

5.Port flashes

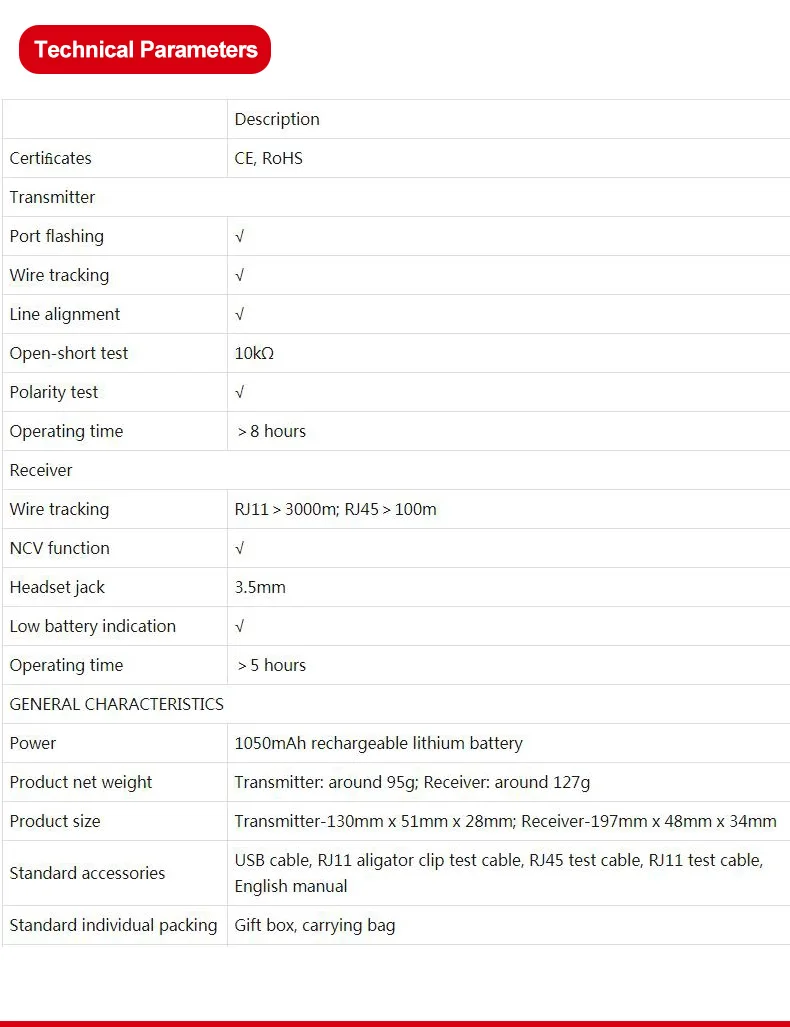

Parameter
| Description | |
| Certificates | CE, RoHS |
| Transmitter | |
| Port flashing | √ |
| Wire tracking | √ |
| Line alignment | √ |
| Open-short test | 10kΩ |
| Polarity test | √ |
| Operating time | ＞8 hours |
| Receiver | |
| Wire tracking | RJ11＞3000m; RJ45＞100m |
| NCV function | √ |

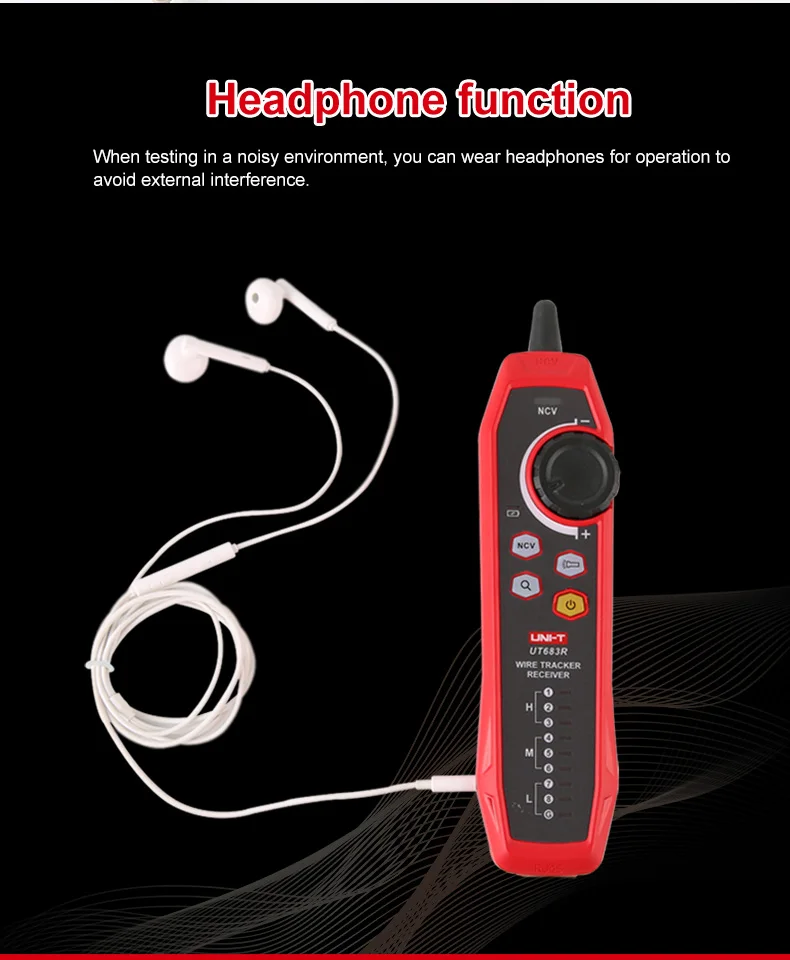

| Headset jack | 3.5mm |
| Low battery indication | √ |
| Operating time | ＞5 hours |
| GENERAL CHARACTERISTICS | |

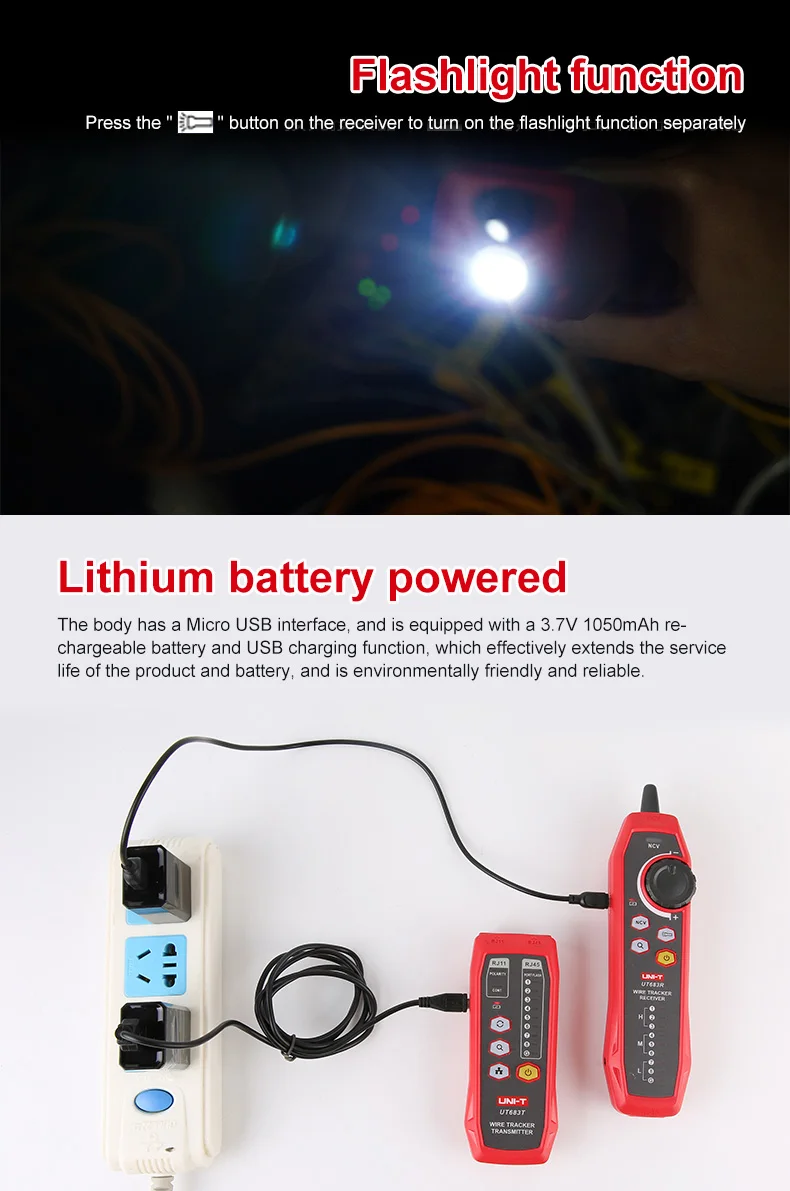

| Power | 1050mAh rechargeable lithium battery |
| Product net weight | Transmitter: around 95g; Receiver: around 127g |

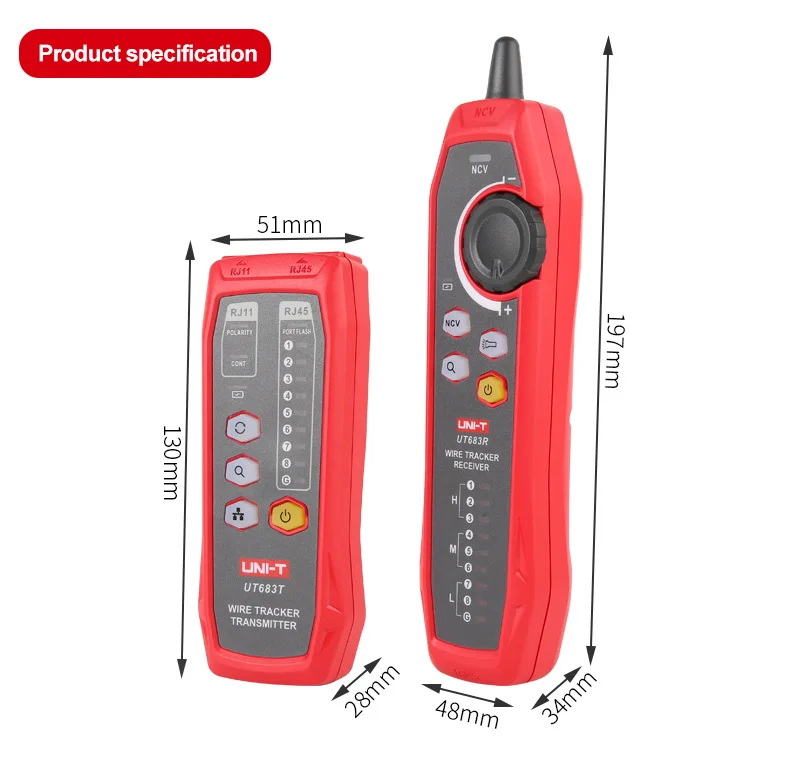

| Product size | Transmitter-130mmx 51mm x 28mm;
Receiver-197mm x 48mm x 34mm |

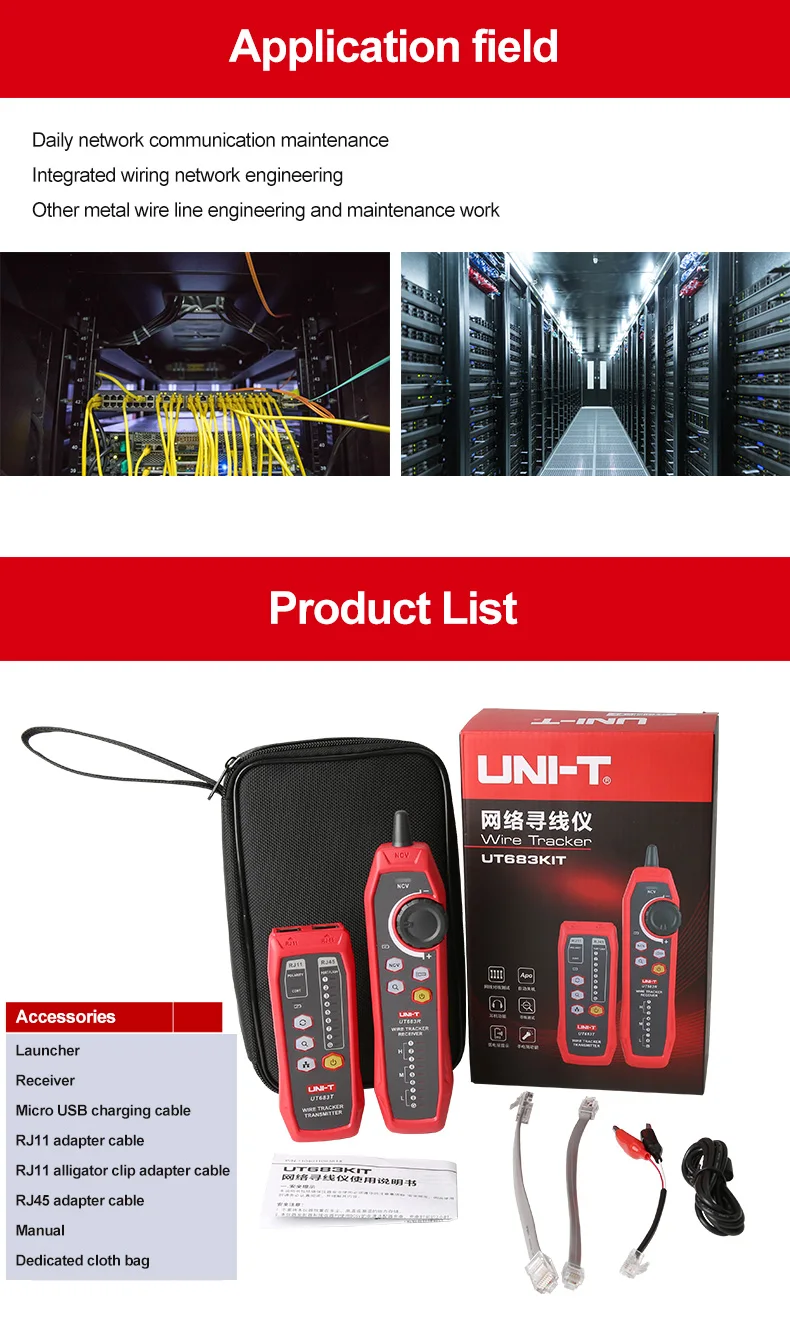

| Standard accessories | USB cable, RJ11 aligator clip test cable, RJ45 test cable, RJ11 test cable, English manual |
| Standard individual packing | Gift box, carrying bag |
