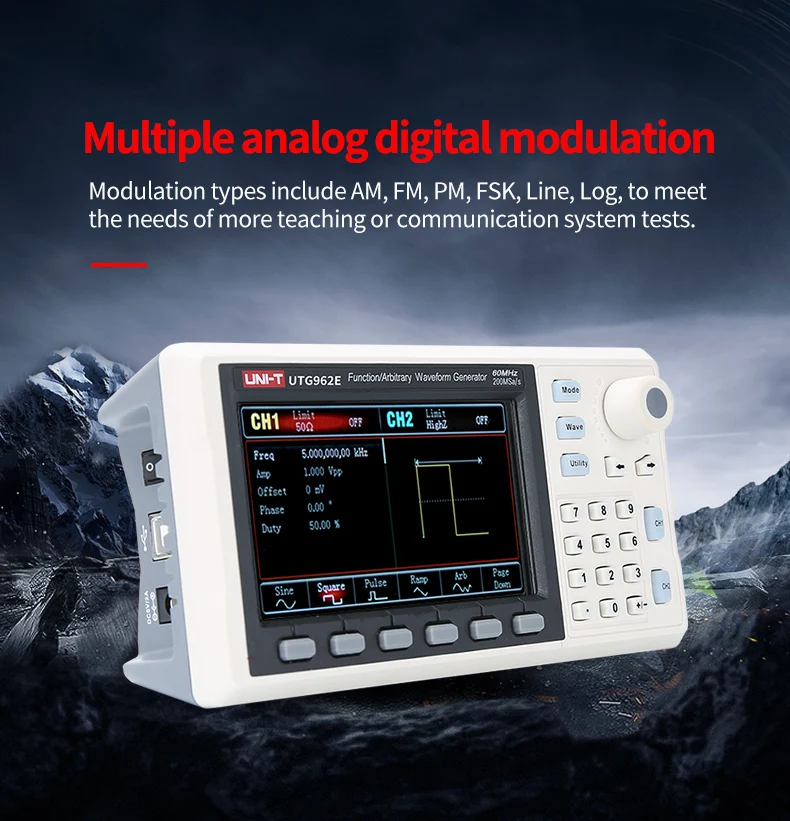

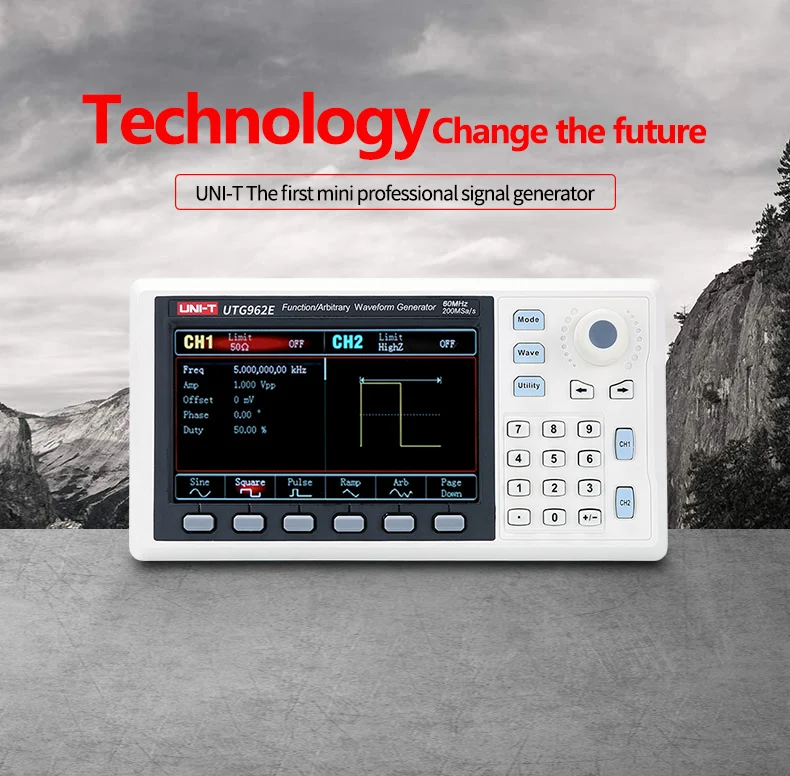

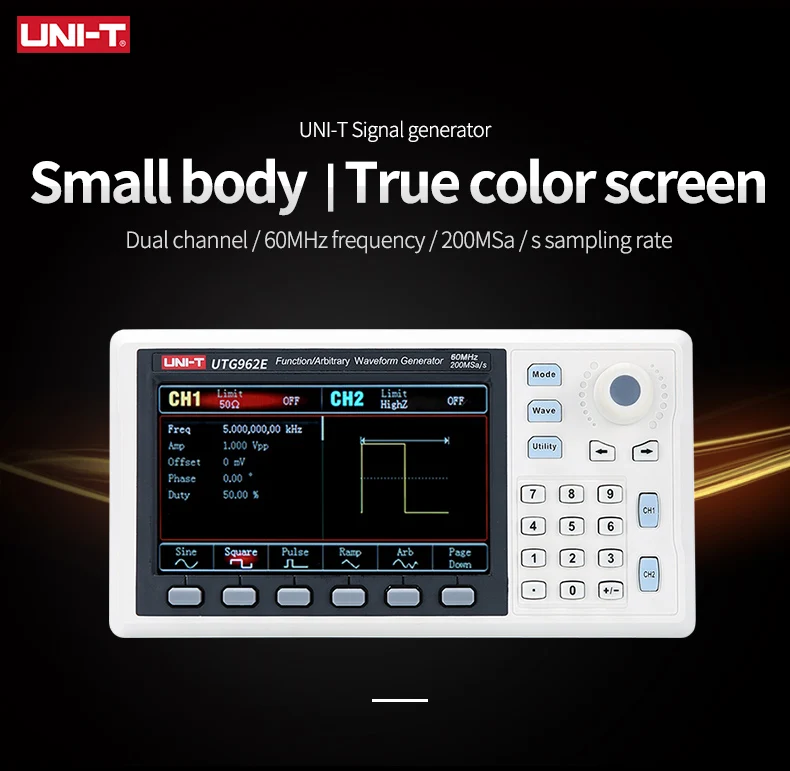

UNI-T UTG932E UTG962E Function Arbitrary Waveform Generator.
- Model Number: UTG932/ UTG962
- Display Size: 3.0 – 4.9 Inches
- DIY Supplies: ELECTRICAL
- Brand Name: UNI-T
- Origin: Mainland China
- Certification: CE
- Max Frenquency: UTG932E(30Mhz) UTG962E(60Mhz)
- Sampling Rate: 200MS/s
- Vertical Resolution: 14Bits
- Waveform: Sine/Square/Pulse/Ramp/Noise/DC/Arbitrary
- Sweep modes: Logarithmic/linear
- Function Generator: Singnal Generator
UTG900E Series Waveform Generators
The UTG900E series function arbitrary waveform generator uses direct digital synthesis technology to produce accurate and stable waveform output, with a resolution as low as 1μHz. It is an economical, high-performance, and versatile function arbitrary waveform generator. It can generate accurate, stable, pure, low-distortion output signals, convenient operation, superior technical indicators and humanized graphic display. It is a multi-purpose device that meets the needs of learning and testing and improves work efficiency.
Main Features
Output Waveforms: Sine,square, pulse, ramp, noise, DC ,arbitrary
Output frequency range:1uHz-30MHz/60MHz
High accuracy, broad band 6 bit frequency ,counter,range:100mHz-100MHz
Two equivalent-performance channels

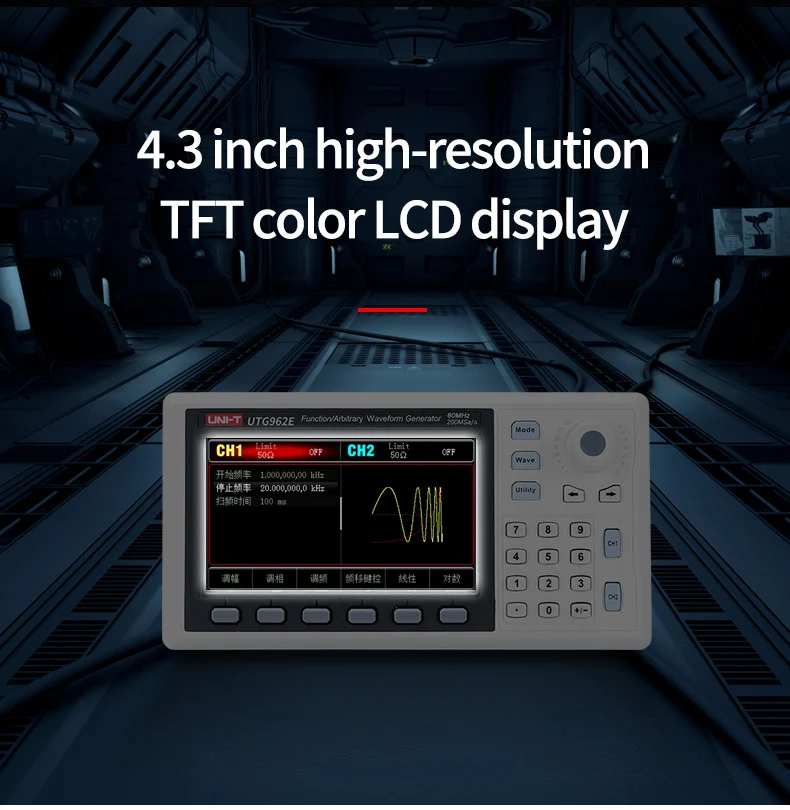

4.3 inches TFT LCD
Multi-language menu ,easy to operation
|

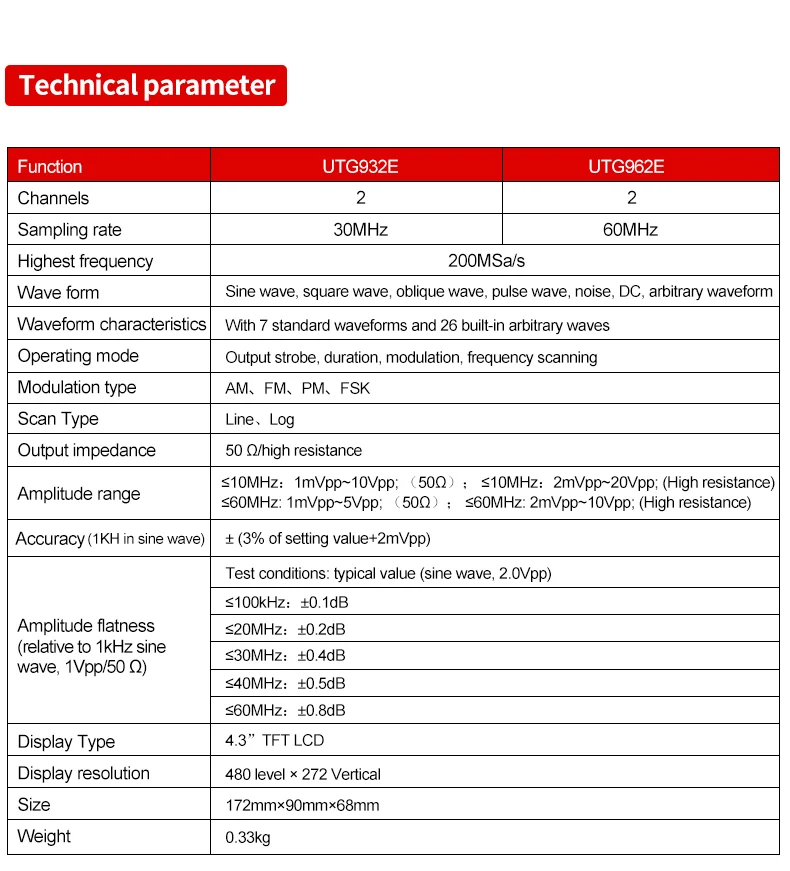

Specifications |
||
|
Model |
UTG932E |
UTG962E |
|
Channel |
2 |
|
|
Max frequency |
30MHz |
60MHz |
|
Sampling rate |
200MS/s |
|
|
Vertical resolution |
14 bits |
|
|
Waveforms |
Sine, square, pulse, ramp, noise, DC, arbitrary |
|
|
Sweep modes |
Logarithmic, linear |
|
|
Frequency Characteristics |
||
|
Sine |
1μHz~30MHz |
1μHz~60MHz |
|
Square |
1μHz~15MHz |
1μHz~20MHz |
|
Ramp |
1μHz~400kHz |
1μHz~400kHz |
|
Pulse |
1μHz~15MHz |
1μHz~20MHz |
|
Arbitrary |
1μHz~10MHz |
1μHz~10MHz |
|
Resolution |
1μHz |
|
|
Accuracy |
Within 90 days ± 50ppm |
|
|
Within 1 year ± 100ppm |
||
|
18℃~28℃ |
||
|
Output Characteristics |
||
|
Impedance |
50Ω/High Z |
|
|
Amplitude range |
1mVpp~10Vpp (50Ω); 2mVpp~20Vpp (high Z) |
|
|
DC offset range (AC+DC) |
±5V (50Ω); ±10V (high Z) |
|
|
Amplitude resolution |
1mV |
|
|
General Characterisitics |
||
|
Power |
100~240VAC, 50Hz/60Hz |
|
|
Display |
4.3”TFT LCD (480×272) |
|
|
Product color |
White and grey |
|
|
Product net weight |
0.33kg |
|
|
Product size |
172mm x 90mm x 68mm |
|
|
Standard accessories |
USB interface cable, power cord, BNC cable with alligator clips |
|
|
Standard individual packing |
Carton box |
|
