UNI-T UTI320E Thermal Imager
- Power Type: 5200mAh Li-ion battery pack
- Display Size: 2.0 – 3.9 Inches
- Style: Handheld
- Brand Name: UNI-T
- Origin: Mainland China
- Certification: CE
- IR resolution: 320×240 pixel
- Temperature range: -40-400℃
- Screen Display: 3.5 -inch IPS
- Palettes: 7
- Image Model: Thermal, visible, blending, PiP
- Storage: 16G Mcro SD Card
- Thermographic camera: Infrared Camera
- Thermal imaging camera: Digital thermometer
![UNI-T UTI320E Thermal Imager 1 UNI-T UTI320E Thermal Imager](https://ae01.alicdn.com/kf/S70ecbb842a544eb7aa0b630209bf8752G.jpg)

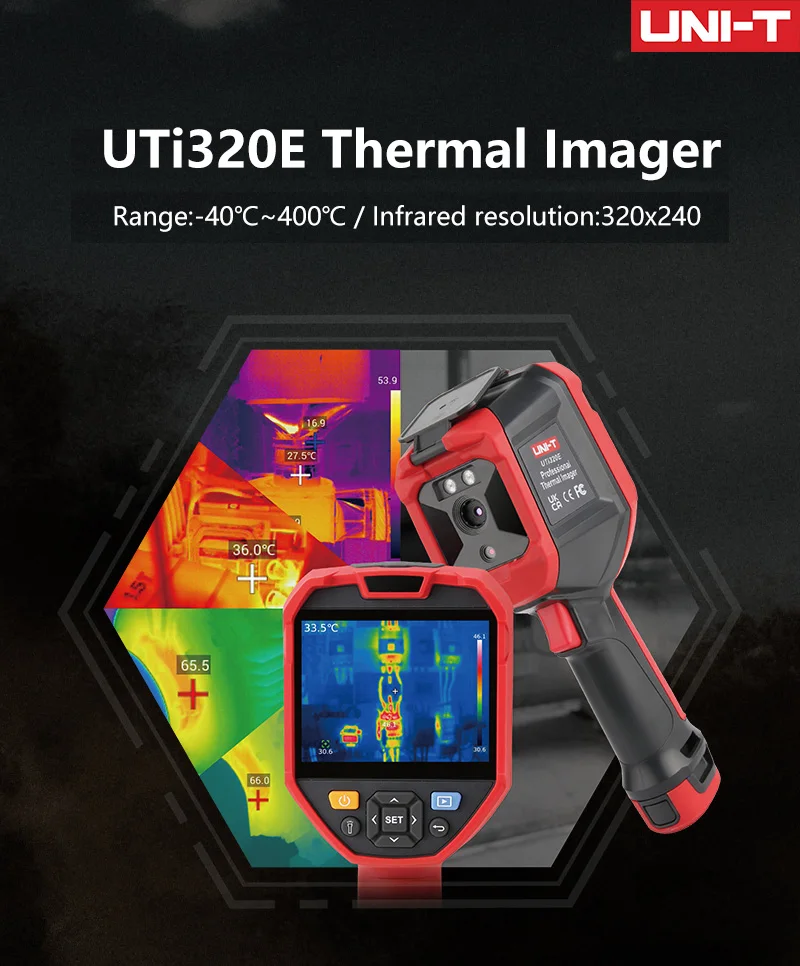

UTi320E Thermal Imager
UNI-T Enhanced Thermal Imagers provide various functions compared with Classic and Echo series, such as flexible measurement presets, high resolution digital camera (2Megapixel), WiFi, Isotherm etc. The imager size is bigger which allows a bigger screen (3.5”IPS) for excellent display quality. Its replaceable battery modules allow the imager to have minimal down time, greatly improving productivity.
Features
1. Infrared resolution: 320×240
2. Temperature measurement range:–40℃~400℃
3. 2 Megapixel digital with 2x, 4x digital zoom
4. Image blending and Picture in Picture
5. WiFi download photos
6. Battery replaceable
7.16G memory storage
8.7 palette modes
9. PC-side software analysis
Parameter
Model |
UTi320E |
IR resolution | 320×240 pixel |
Screen Display | 3.5”IPS |
Field of view (FOV) | 56°x 42° |
Thermal sensitivity (NETD) | 65mK |
Spatial resolution (IFOV) | 3mrad |
Focus | Focus free |
Frame rate | 9Hz |
Object Temperature range | -40~400℃ |
Measurement accuracy | ±2℃ or ±2% whichever is greater |
Battery | Li-ion battery pack(5200mAh) |
Battery Type | Replaceable |
Battery operating time | ≧4 hours |
Founctions | |
Palettes | 7 |
Emissivity | Adjustable (0.01-0.99) |
Measurement presets | Point x5, Line x1, Area x6 |
Digital camera | 2MP |
Digital zoom | 2x, 4x |
Image Model | Thermal, visible, blending, PiP |
LED | √ |
WiFi download photo | √ |
ROI (eliminates interference) | √ |
Isotherm | √ |
Atuo tracking for Lo/Hi temperature | √ |
Alarm | √ |
Storage | 16G Mcro SD Card |
PC software | Analysis, Real-time display |
Protection | IP54/2m |
Communication interface | Type-C |
Package | |
Product net size | 260mmx97mmx99mm |
Product net weight | 630g |
Standard accessories | Micro SD card, Type-C USB cable, manual, Li-ion battery pack |
![UNI-T UTI320E Thermal Imager 2 UNI-T UTI320E Thermal Imager](https://ae01.alicdn.com/kf/H42935fdbac494ee69498c425acc03e9ei.jpg)

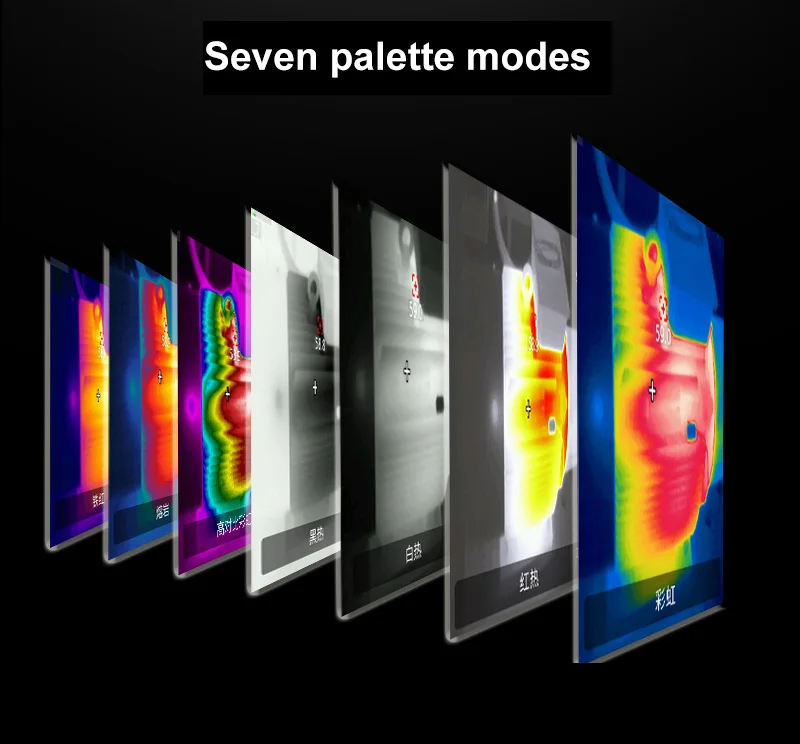

7 Palette modes
Iron Red, Lava, High Contrast Rainbow, Black Hot, White Hot, Red Hot and Rainbow
![UNI-T UTI320E Thermal Imager 6 Ha28c497631b9496cbb8a565d58b0562dY](https://ae01.alicdn.com/kf/Ha28c497631b9496cbb8a565d58b0562dY.jpg)

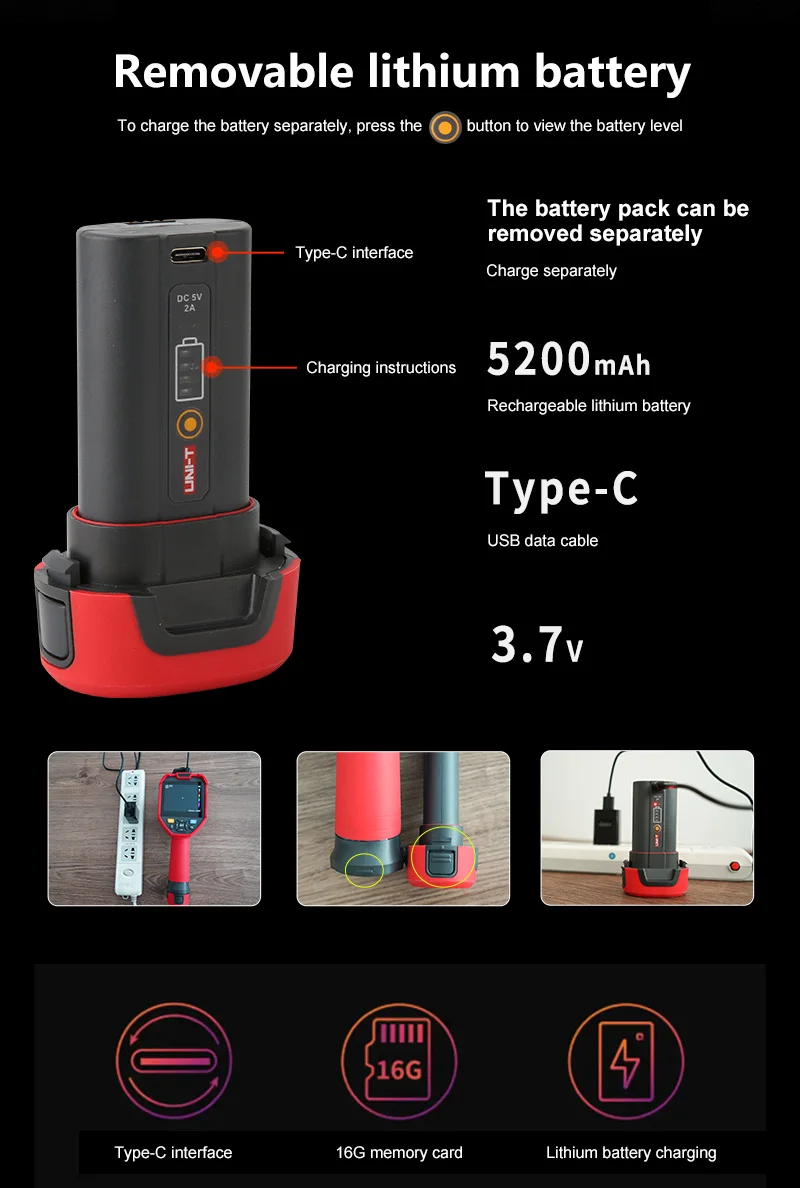

Removable and rechargeable lithium battery
![UNI-T UTI320E Thermal Imager 7 H5694adfdab5c42c3b60d0399cda4381bp](https://ae01.alicdn.com/kf/H5694adfdab5c42c3b60d0399cda4381bp.jpg)

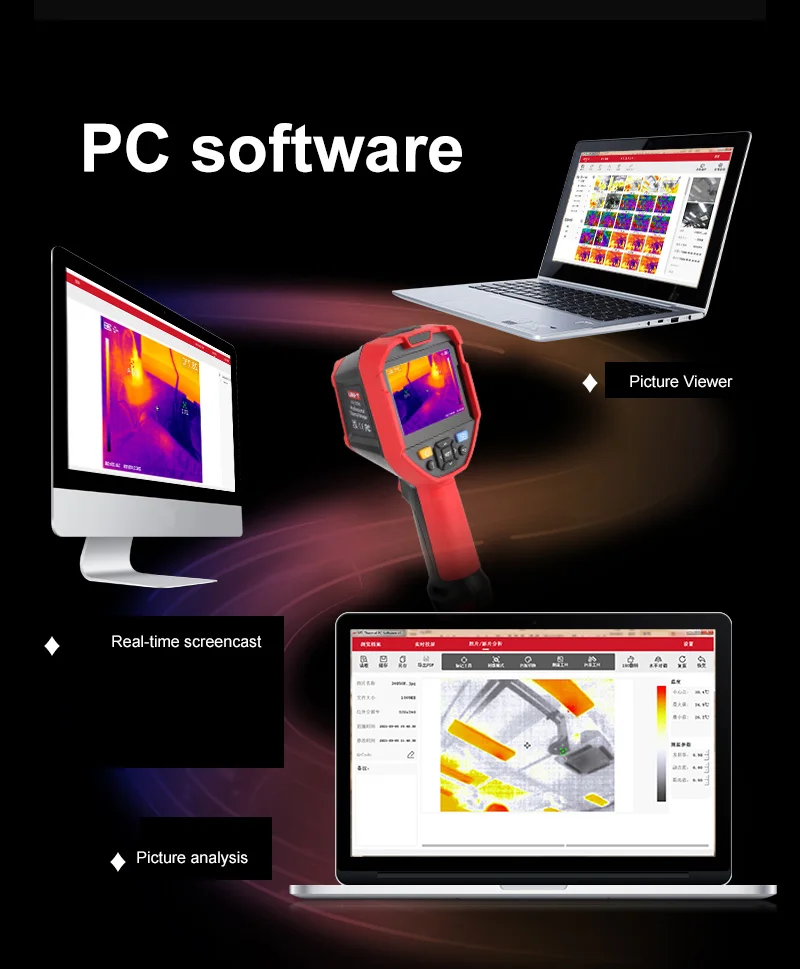

PC software
![UNI-T UTI320E Thermal Imager 8 Ha5c1a524a99b4f1e950683243d0d6633N](https://ae01.alicdn.com/kf/Ha5c1a524a99b4f1e950683243d0d6633N.jpg)

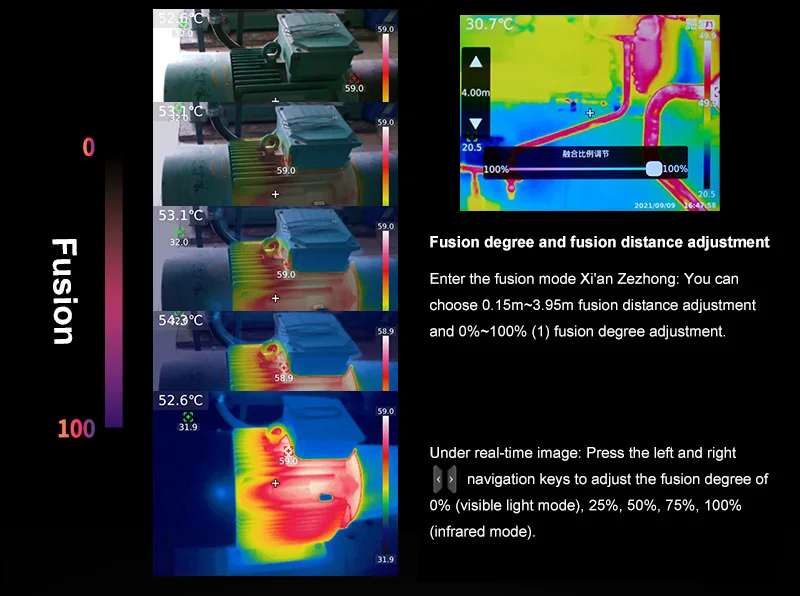

Image Model
Thermal, visible, blending, PiP
![UNI-T UTI320E Thermal Imager 9 Hb3d6e86105f141fe8b644f554a5b3ccfR](https://ae01.alicdn.com/kf/Hb3d6e86105f141fe8b644f554a5b3ccfR.jpg)
![UNI-T UTI320E Thermal Imager 10 H0b6e4c33546d4ed7a4c5c6df20ae4975R](https://ae01.alicdn.com/kf/H0b6e4c33546d4ed7a4c5c6df20ae4975R.jpg)

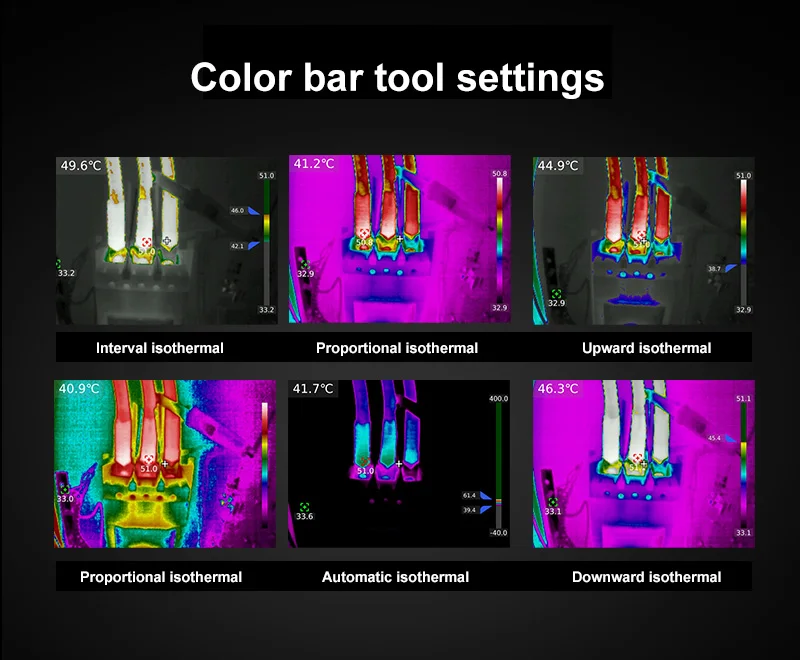

Color bar settings
![UNI-T UTI320E Thermal Imager 11 Hdd72b4c59a0b4430b5f098a51d5722caQ](https://ae01.alicdn.com/kf/Hdd72b4c59a0b4430b5f098a51d5722caQ.jpg)

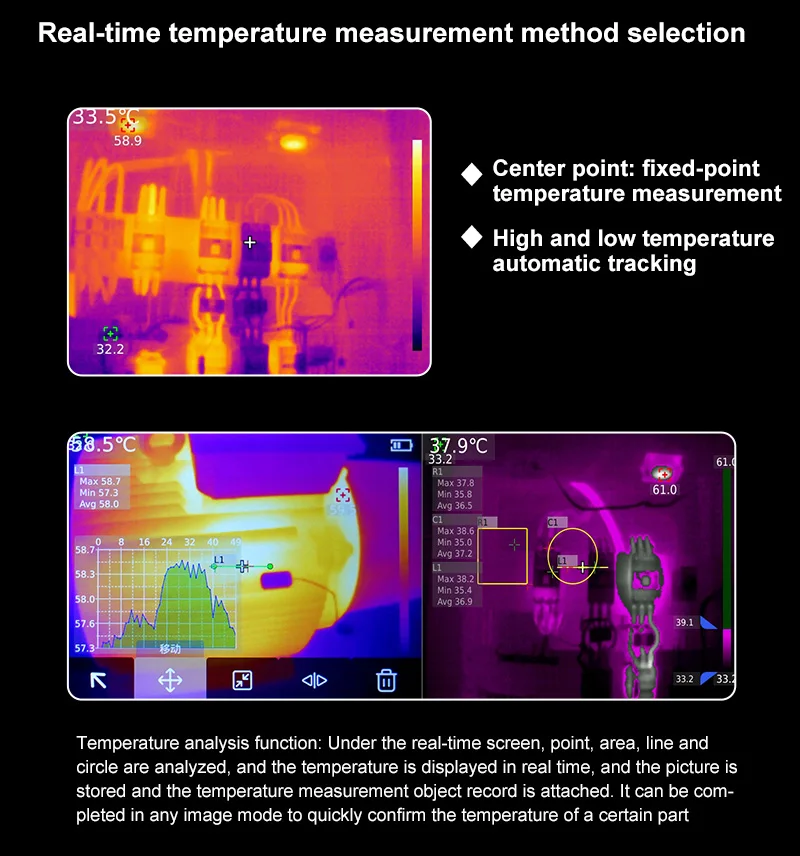

Real-time temperature measurement
![UNI-T UTI320E Thermal Imager 12 H3547984abee44406a7c53527b0f083ear](https://ae01.alicdn.com/kf/H3547984abee44406a7c53527b0f083ear.jpg)
Camera/storage function
![UNI-T UTI320E Thermal Imager 13 H85bb966579944014bc07ec31c5845647p](https://ae01.alicdn.com/kf/H85bb966579944014bc07ec31c5845647p.jpg)

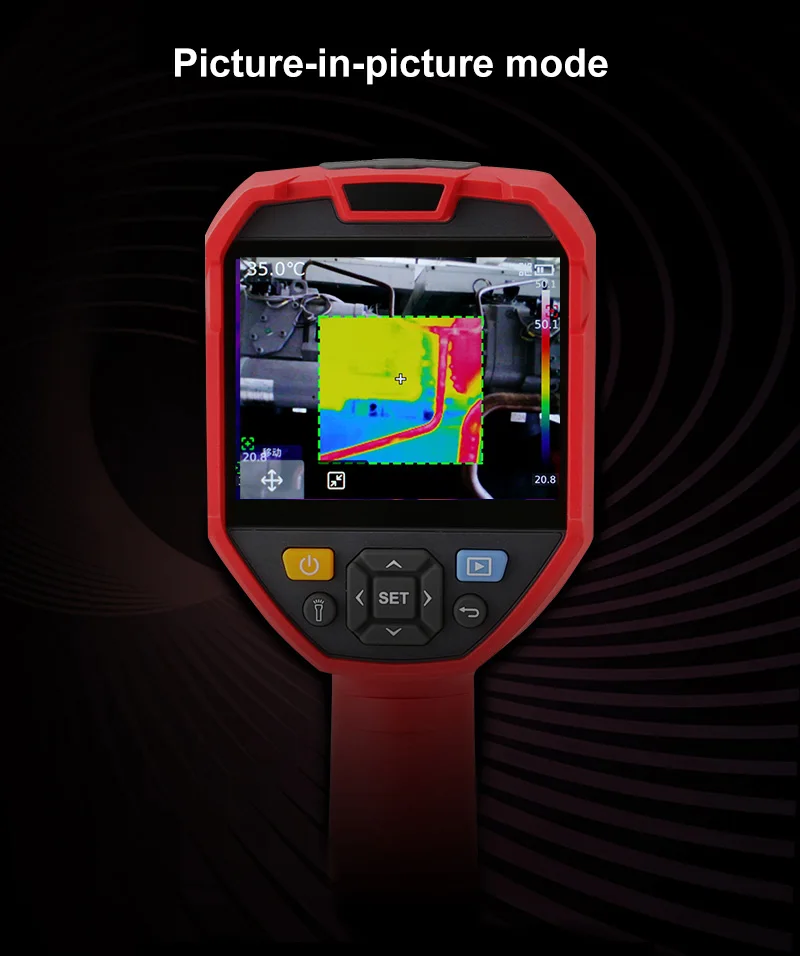

Picture-in-picture mode
Picture can be edited
![UNI-T UTI320E Thermal Imager 14 H486c7050223c44ab831c57bb13adc51c3](https://ae01.alicdn.com/kf/H486c7050223c44ab831c57bb13adc51c3.jpg)
![UNI-T UTI320E Thermal Imager 15 Ha088b41601ea4bf9846db4bd478e50b4e](https://ae01.alicdn.com/kf/Ha088b41601ea4bf9846db4bd478e50b4e.jpg)
High and low temperature alarm
![UNI-T UTI320E Thermal Imager 16 Hd01dd8c4ca6849d9a98646b137949027h](https://ae01.alicdn.com/kf/Hd01dd8c4ca6849d9a98646b137949027h.jpg)
![UNI-T UTI320E Thermal Imager 17 He3b8d641c62842769f259686b60e695dn](https://ae01.alicdn.com/kf/He3b8d641c62842769f259686b60e695dn.jpg)
![UNI-T UTI320E Thermal Imager 18 H5596866388484e398c7b71435c9014acT](https://ae01.alicdn.com/kf/H5596866388484e398c7b71435c9014acT.jpg)
![UNI-T UTI320E Thermal Imager 19 H6dd34d76cdd6459eb1e874122b3a1944y](https://ae01.alicdn.com/kf/H6dd34d76cdd6459eb1e874122b3a1944y.jpg)
