UNI-T UTP1306 Switching DC Power Supply 110V

UNI-T UTP1306 Switching DC Power Supply 110V

UTP1306 mini DC power supply is a single set of output, high precision double display switching DC power supply. It’s single channel linear DC power supply with low ripple/noise, overload protection and constant voltage/current features for Input Voltage AC 110V use

Features:

1.It is an economical switching DC stabilized voltage supply with single output.
2.highly efficient, low ripple, small volume, light weight,3 groups data storage.
3.Voltage stabilization, excellent performance indicator, simple operation.
4.Temperature control fan heat dissipation, low noise.
5. Short circuit prevention with fuse.

Description:
1.Complete operating protection function.

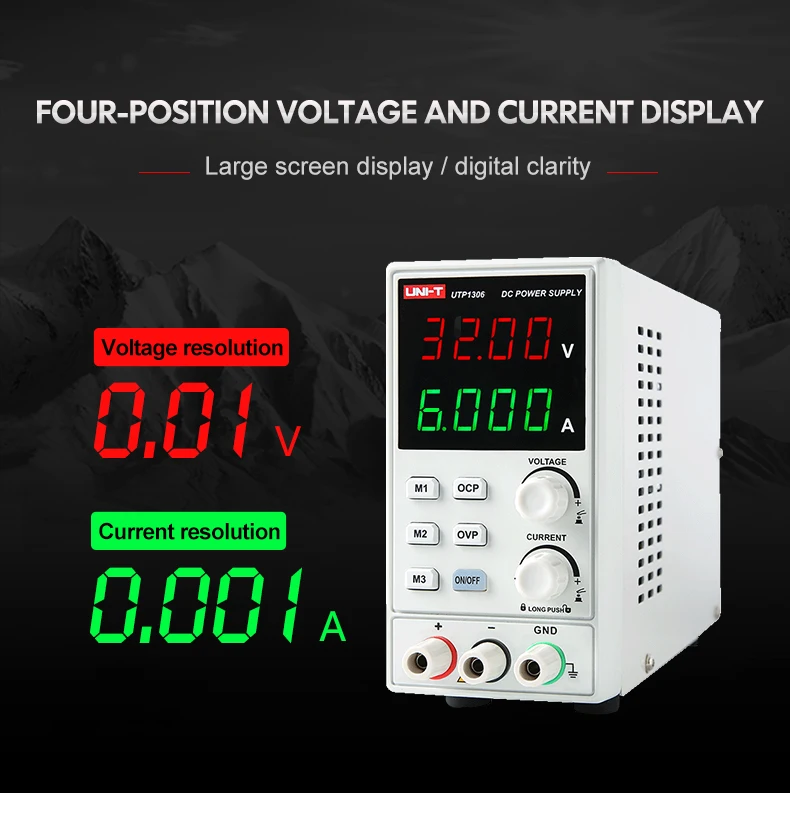

2.Double display voltage, current.
3.Widely used for mobile electric repairing,lab, factory etc.

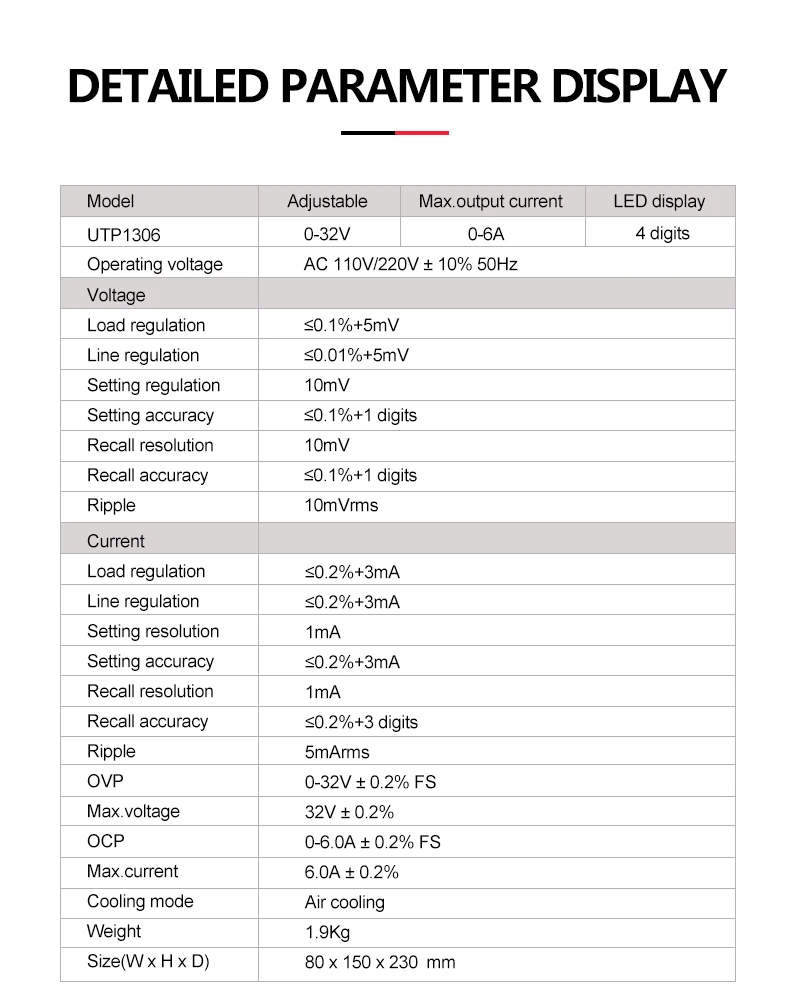

Specification:

LED Display:4 digits
Input voltage:110V/220V(can shift)±10%
Plug Type:AU/US/EU(optional)
Output voltage:0 ~ 32V
Output current:0 ~ 6A
Output Power: 192W
Load regulation rate  voltage:<0.5%+10mV
Load regulation rate  current:<0.5%+3mA
Power regulation rate voltage:<0.3%+5mV
Power regulation rate current:<0.5%+3mA
Set resolution voltage:10mV
Set resolution voltage current:1mA
Readback resolution voltage:10mV
Readback resolution current:1mA
Setting accuracy current:<0.5%+3mA
Ripple and noise voltage:10mVrms
Ripple and noise current:5mArms
OVP:0-32V±0.2%FS
OCP:0-6A±0.2%FS
Operating environment:0-40°,<80%RH
Storage environment:-15-70°,<80%RH
