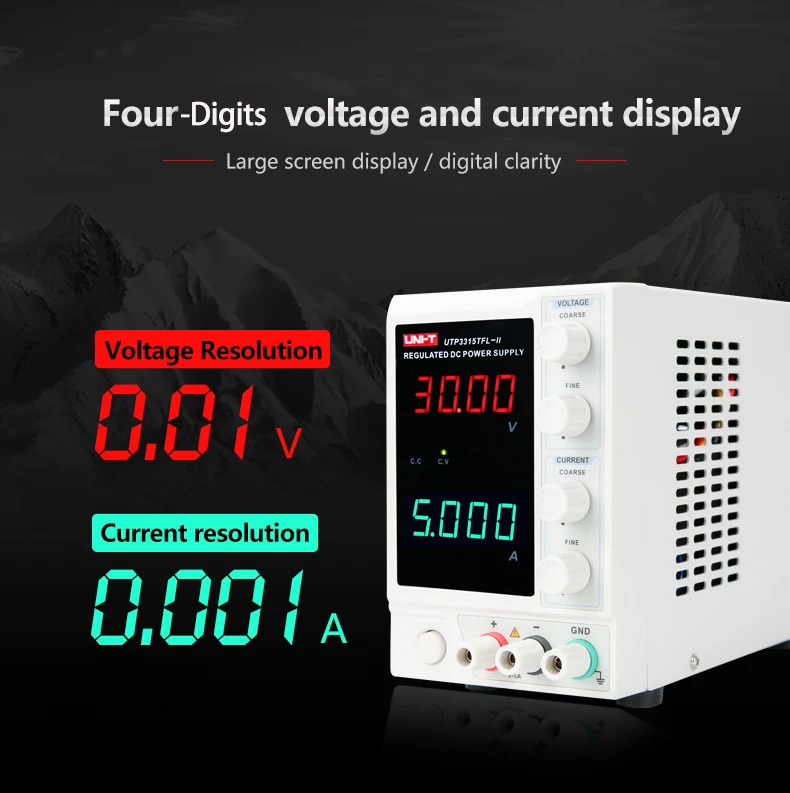

UNI-T UTP3313TFL-II / UTP3315TFL-II Reugulator Power Supply
- Power Supply: AC
- Dimensions: 105mm*155mm*210mm
- Operating Temperature: 0-40 centigrade
- Display Type: Digital Only
- DIY Supplies: ELECTRICAL
- Brand Name: UNI-T
- Origin: Mainland China
- Certification: CE
- Model: UTP3313TFL-II UTP3315TFL-II
- Type: DC power supply
UTP3000TFL-II series single-channel linear DC power supplies are economical benchtop tools for DIY electronics hobbyists, electronics manufacturing and testing, and other applications.
| Specifications | |||
| Model |
UTP3313TFL-II |
UTP3315TFL-II |
|
| Output voltage | 0~30V | 0~30V | |
| Output current | 0~3A | 0~5A | |
| Output power | 90W | 150W | |
| Load regulation | CV≤0.01%+3mV, CC≤0.1%+5mA | CV≤0.01%+5mV, CC≤0.1%+10mA | |
| Accuracy (25℃±5℃) | Voltage | ＜0.5%+20mV | ＜0.5%+20mV |
| Current | ＜0.5%+5mA | ＜0.5%+10mA | |
| Ripple and noise | ≤1mVrms | ≤2mVrms | |
| Output regulation resolution | CV: 10mV (typical), CC: 1mA (typical) | ||
| Reliability | MTBF(e): ≥2000hrs | ||
| Display mode | LED voltage and current dual display | ||
| Feature | Auto conversion of constant voltage and current with current limit protection | ||
| General Characteristics | |||
| Power | Input voltage: 110V/220V±5% AC; frequency: 50Hz/60Hz | ||
| Product color | White and grey | ||
| Product net weight | 3kg (UTP3313TFL-II); 4kg (UTP3315TFL-II) | ||
| Product size | 105mm x 165mm x 249mm | ||
| Standard accessories | Power cord, output cables | ||
| Standard individual packing | Carton box, English manual | ||
