UT661A/B/C/D Series Pipeline Blockage Detector.

Model Number: UT661A UT661B
With LCD Screen Or Not: Yes
Power Type: Battery-Powered
DIY Supplies: ELECTRICAL
Brand Name: UNI-T
Origin: Mainland China
Certification: NONE
Maximum detection distance: 50cm
1cm distance test output sound: >93dB

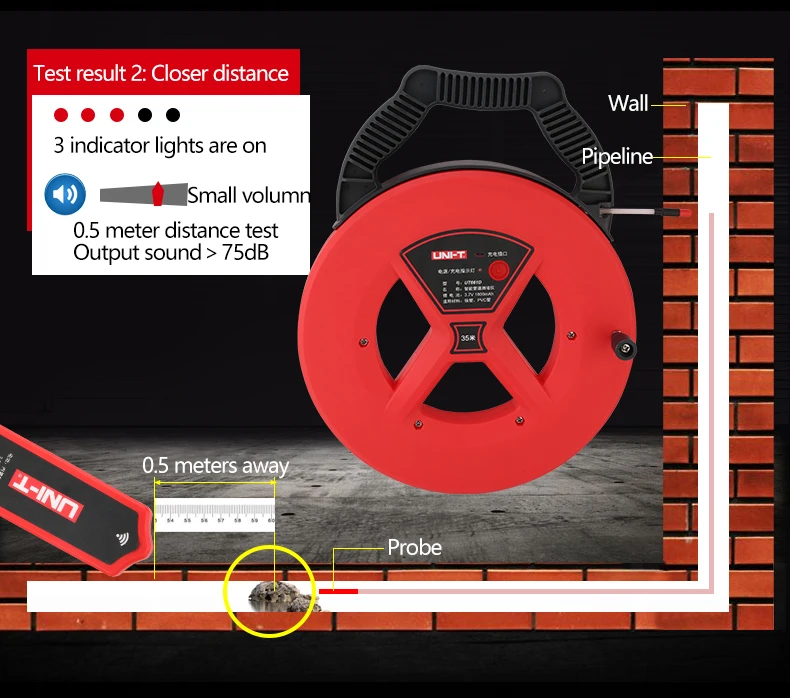

0.5m distance test output sound: >75dB
Measurable pipe material: Plastic pipes, metal pipes

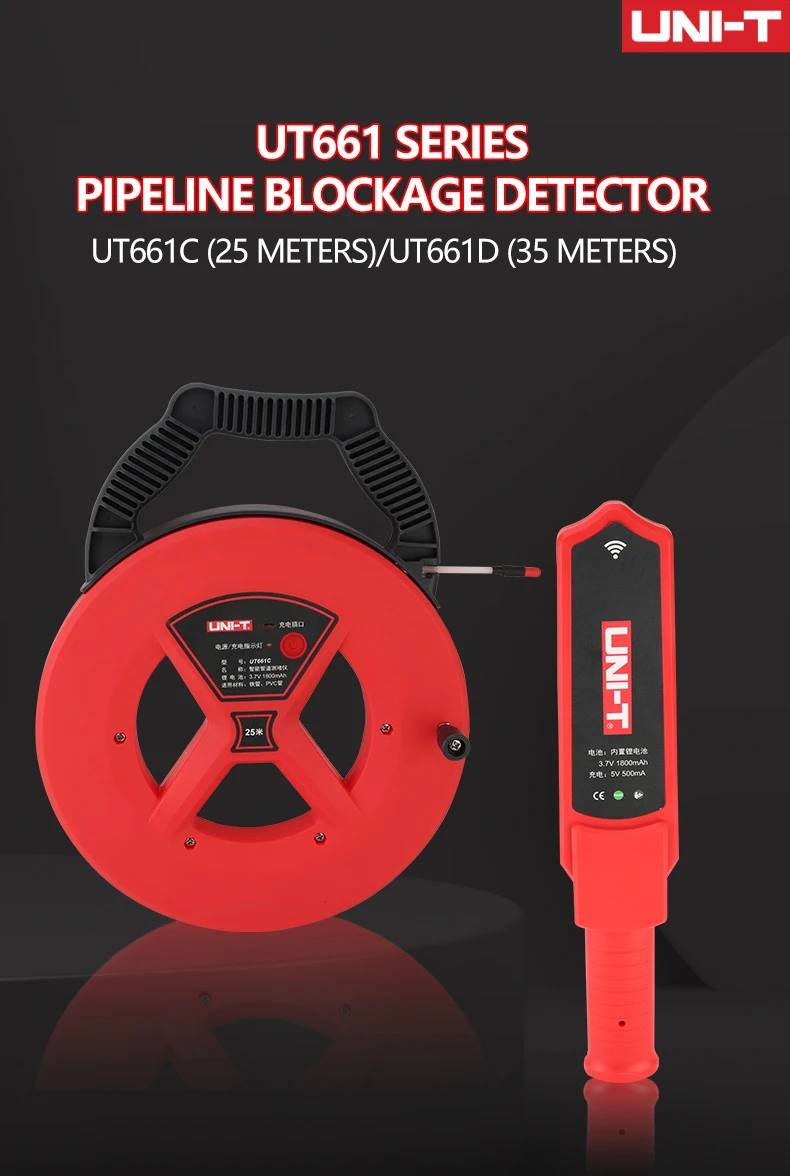

UT661 Series Pipeline Blockage Detector

The UT661 series pipeline blockage detector can quickly locate blockages clogging inside pipelines. It is able to detect pipes from a maximum distance of 50cm, the signal wire can be inserted into pipelines up to 25/35m for UT661C/D respectively. UT661 is easily operable, and be used to detect steel, iron, and pvc pipes.

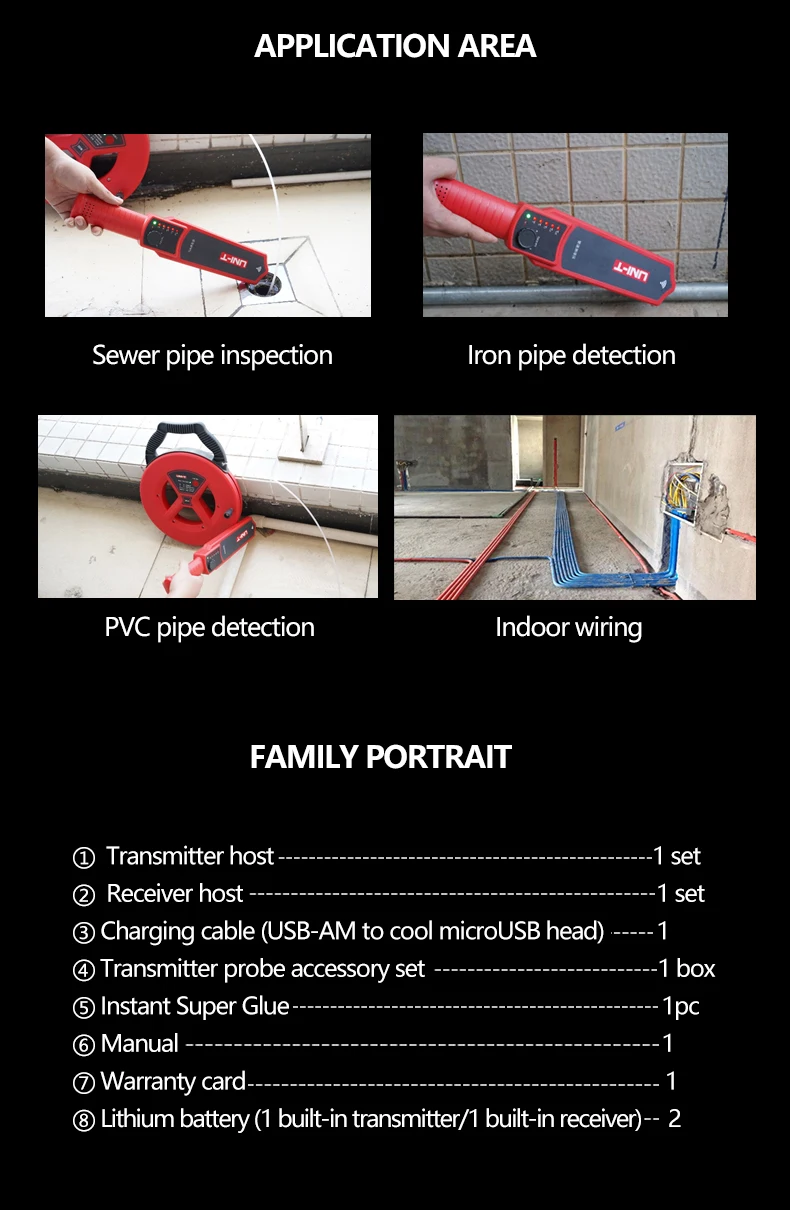

Applications:
Food, cement, chemical, construction maintenance and other industries.

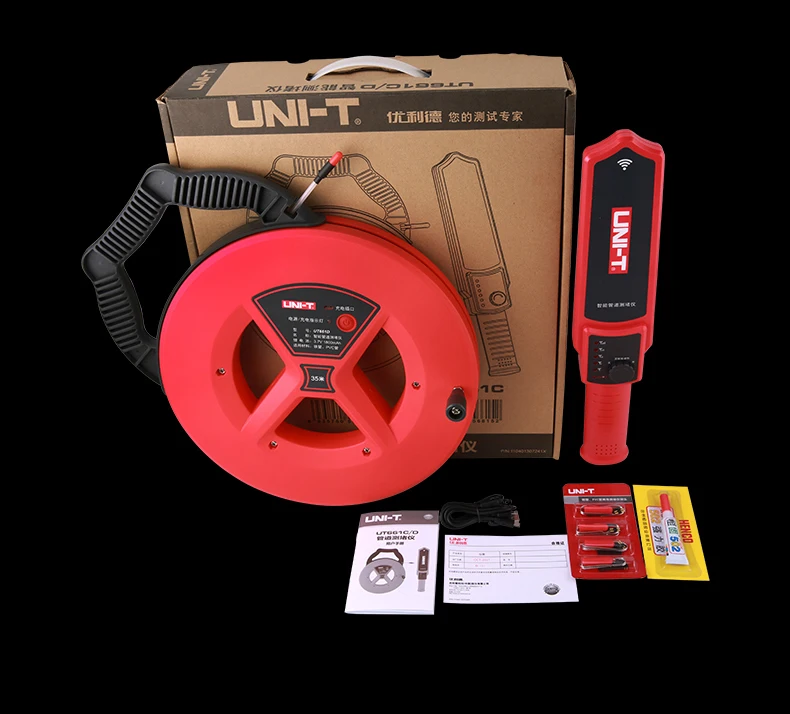

Package Included:

1 x Transmitter
1 x Receiver
1 x User Manual
1 x USB Cable
1 x Probe Set

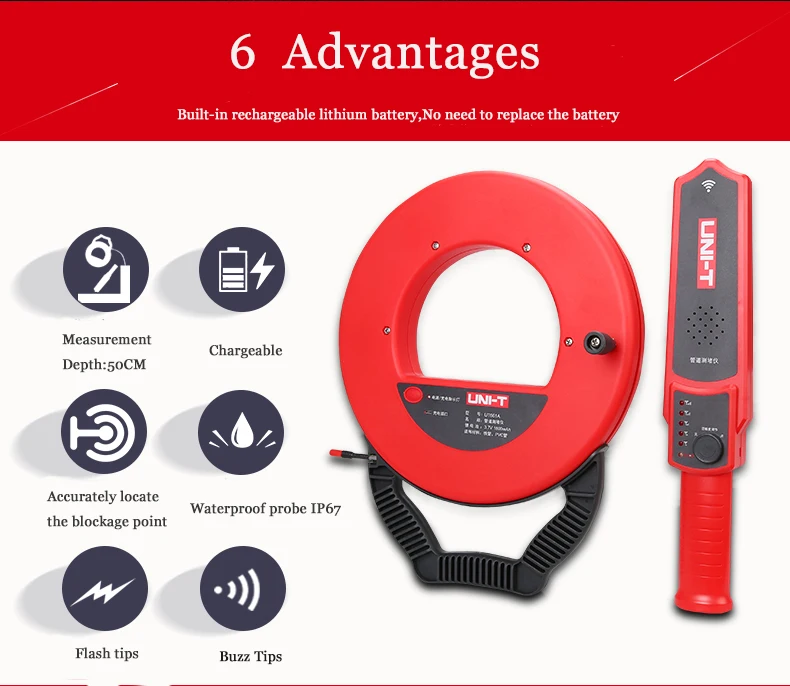

Features

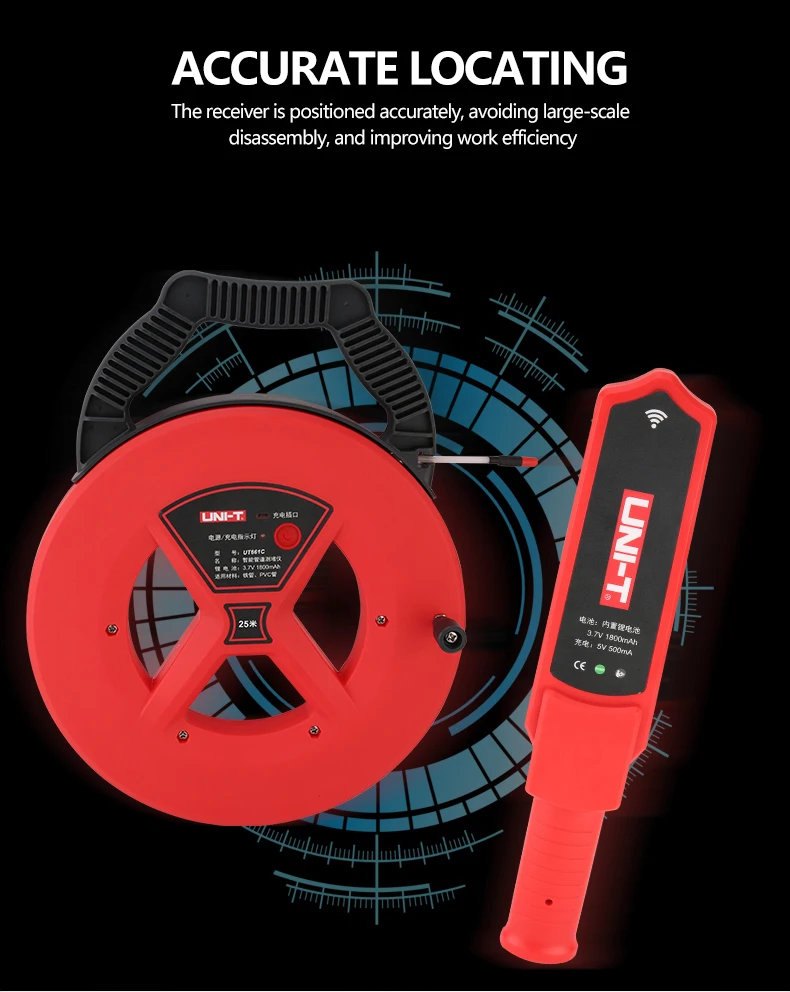

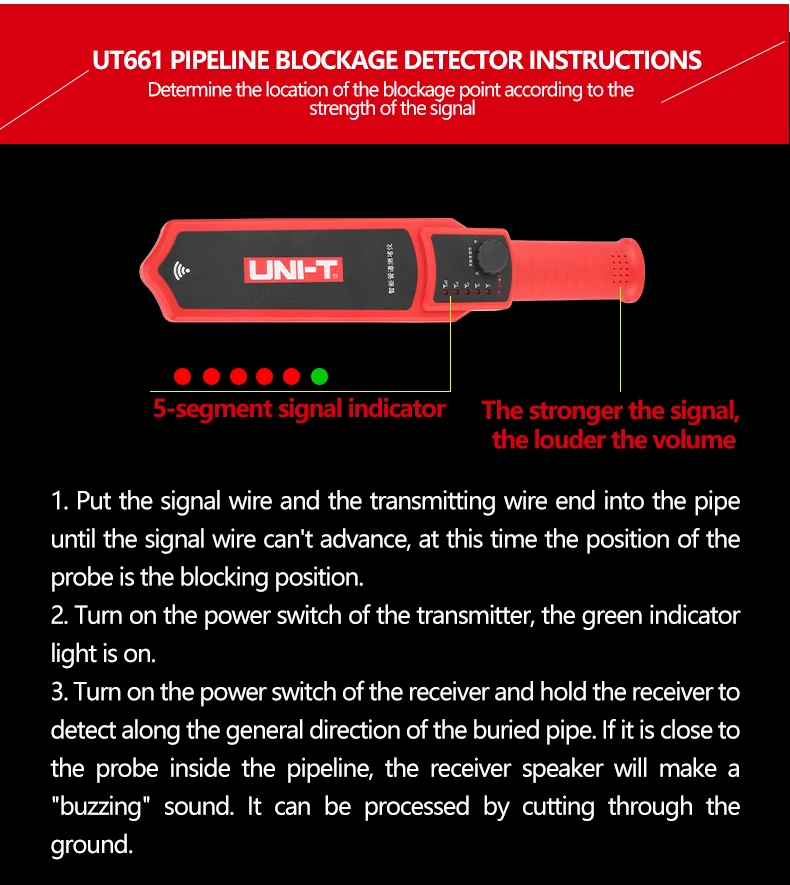

1. The location of the blockage in the pipe can be detected
2. Measurable pipe material: plastic pipes, metal pipes
3. Maximum detection distance(depth): 50cm

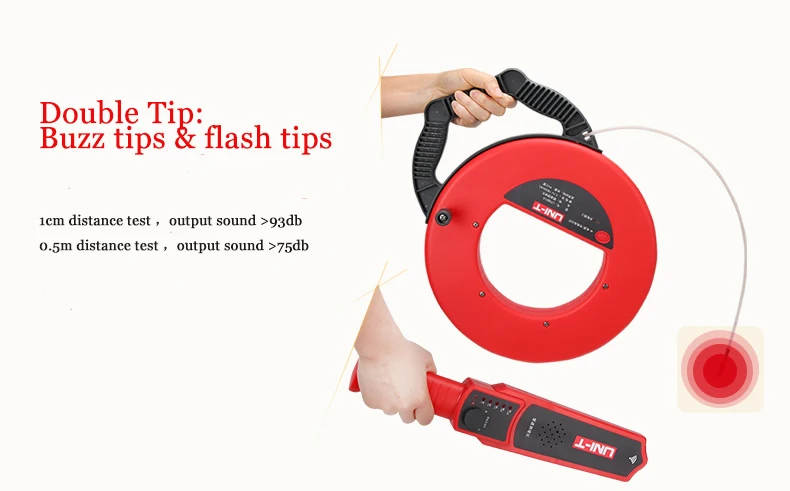

4. Buzzing prompt and Flash prompt

Parameter

Features	UT661A	UT661B	UT661C	UT661D
Transmitter	YES
Receiver	YES
Chargeable	YES
Signal Line Length	20m	30m	25m	35m
Maximum Detection Distance（Depth）	50cm	50cm	50cm	50cm
Transmitter Current	Shutdown current: <2uA, working current: 230~310mA
Receiver Current	Shutdown current <2uA, Standby current <40mA
	Maximum operating current 150~450mA (distance 1cm)
Recharging Current	450~550mA

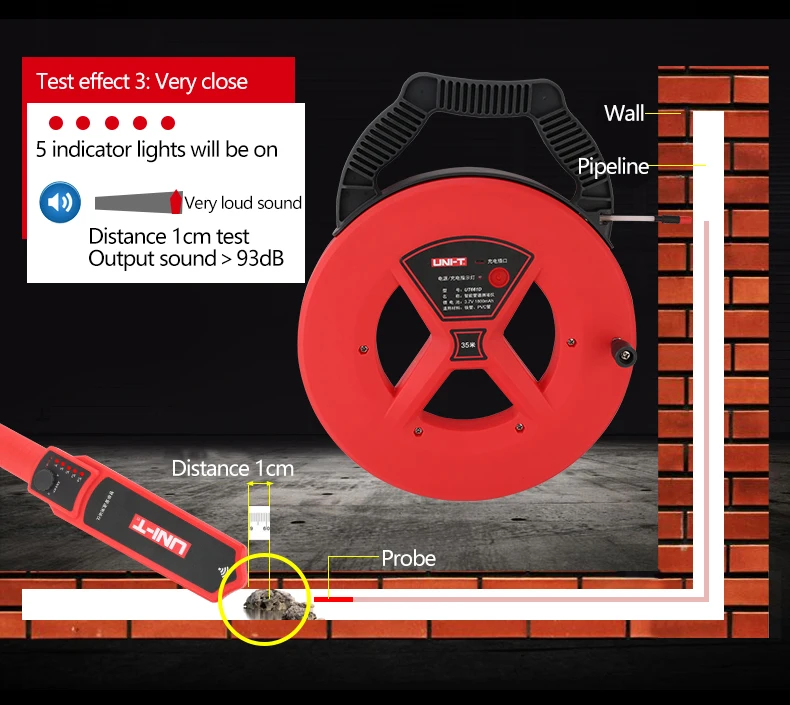

1cm Distance Test Output Sound	>93dB
0.5mDistance Test Output Sound	>75dB
Special Features
Battery Duration	10 hours
Operting Temperature And Humidity	-20°C~60°C, 10~80%RH
Measurable Pipe Material	Plastic pipes, metal pipes
Transmitter Battery	Built-in lithium battery(3.7V1800mAh)
Receiver Battery	Built-in lithium battery (3.7V 1800mAh)
Color	Red and Grey
Weight	Transmitter 1.10KG；Receiver 0.23KG	Transmitter 1.28KG；Receiver 0.23KG	Transmitter 1.24KG；Receiver: 0.26KG	Transmitter 1.42KG;Receiver: 0.26KG
External dimension	Tansmitter: 38x30x42mm；Receiver: 40x38x80mm
Standard accessories	Charging cable, Probe kit
