Vacuum Pump FY-1H-N 220V Refrigerant /Air Conditioning…

Name Product: Vacuum Pump FY-1H-N 220V Refrigerant /Air Conditioning…

Model: FY-1H-N

Mô tả
Đánh giá (0)

Vacuum Pump 220V Refrigerant /Air Conditioning…

Application: Vacuum pump
Theory: Vacuum Pump
Model Number: FY-1H-N
Standard or Nonstandard: Standard
Usage: Vacuum Pump
Pressure: 2Pa
Fuel: Electric
Power: 150W
Structure: Vacuum pump
Origin: China
Certification: NONE

Feature：

1. High ultimate vacuum, high pumping rate design, single-stage rotary vane design.
2. The pump body adopts the overall structure design.
3. Compulsory oil inlet structure design.
4. Anti-reflux structure design.
5. Gas ballast design to reduce the degree of condensation of suspicious vapor in the pumped gas in the pump.
6. Filter design, can filter oil mist moderately and reduce pollution.
7. The material of the whole machine adopts aluminum die-casting to reduce the weight of the whole machine.
8. The built-in protector of the motor makes the operation safer.

Product description：

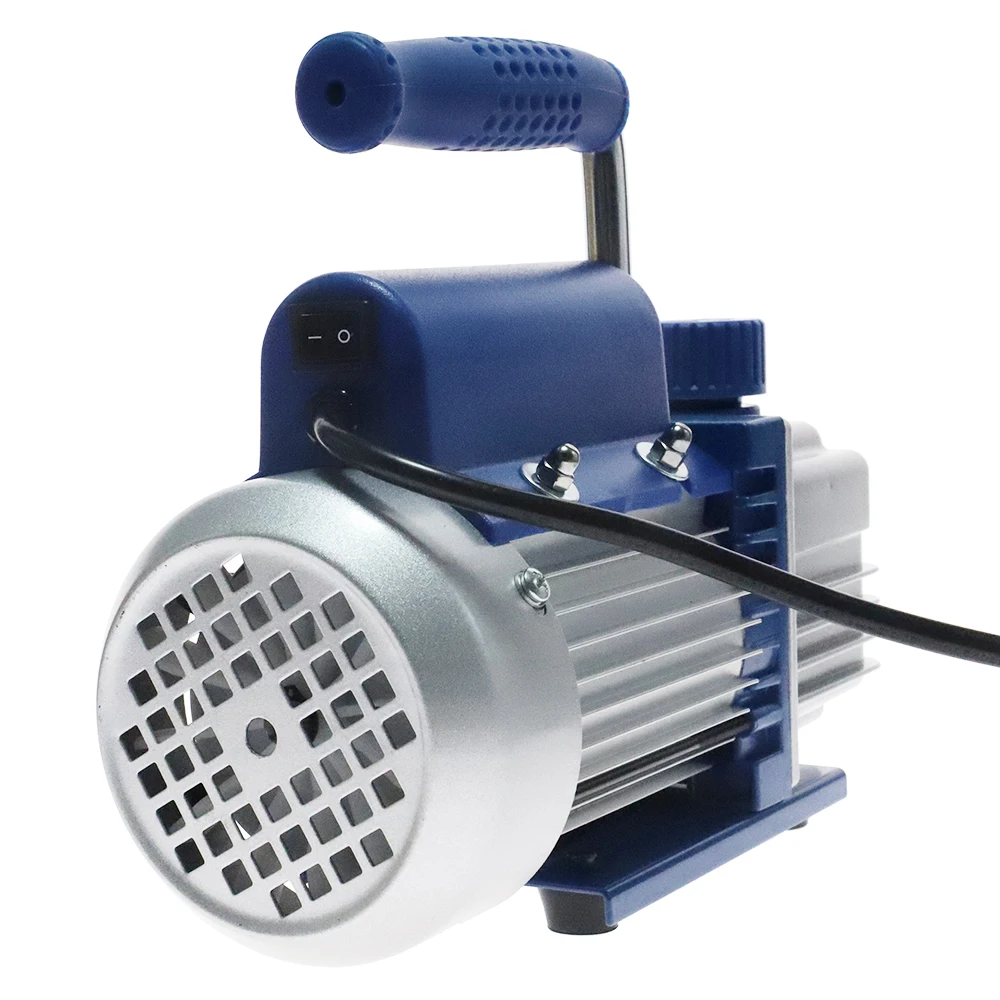

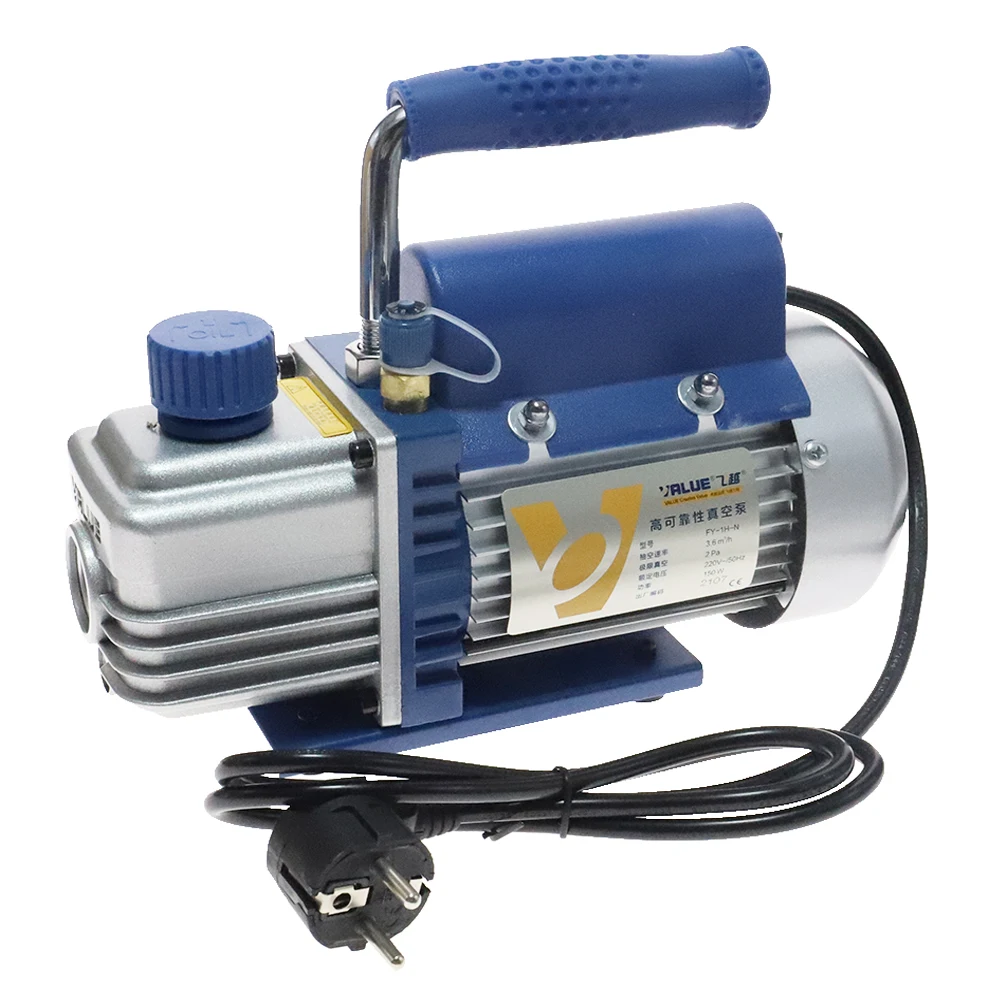

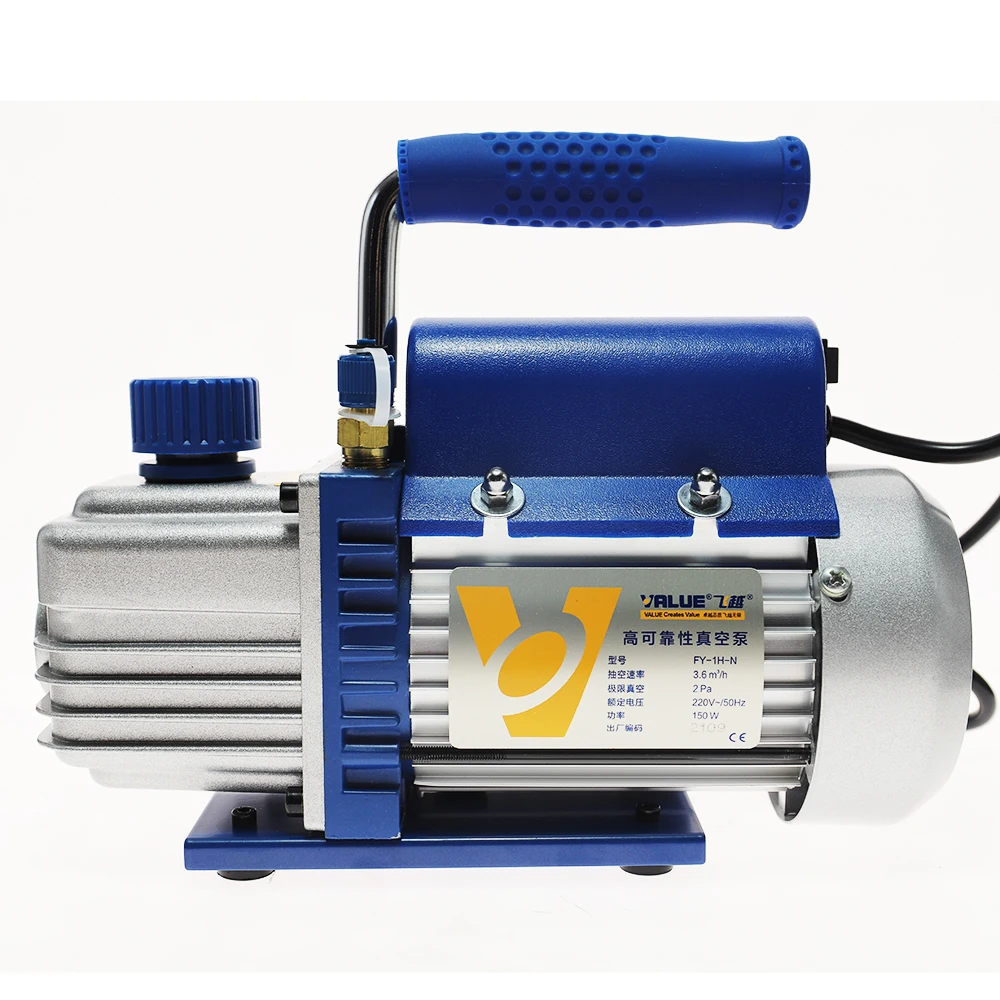

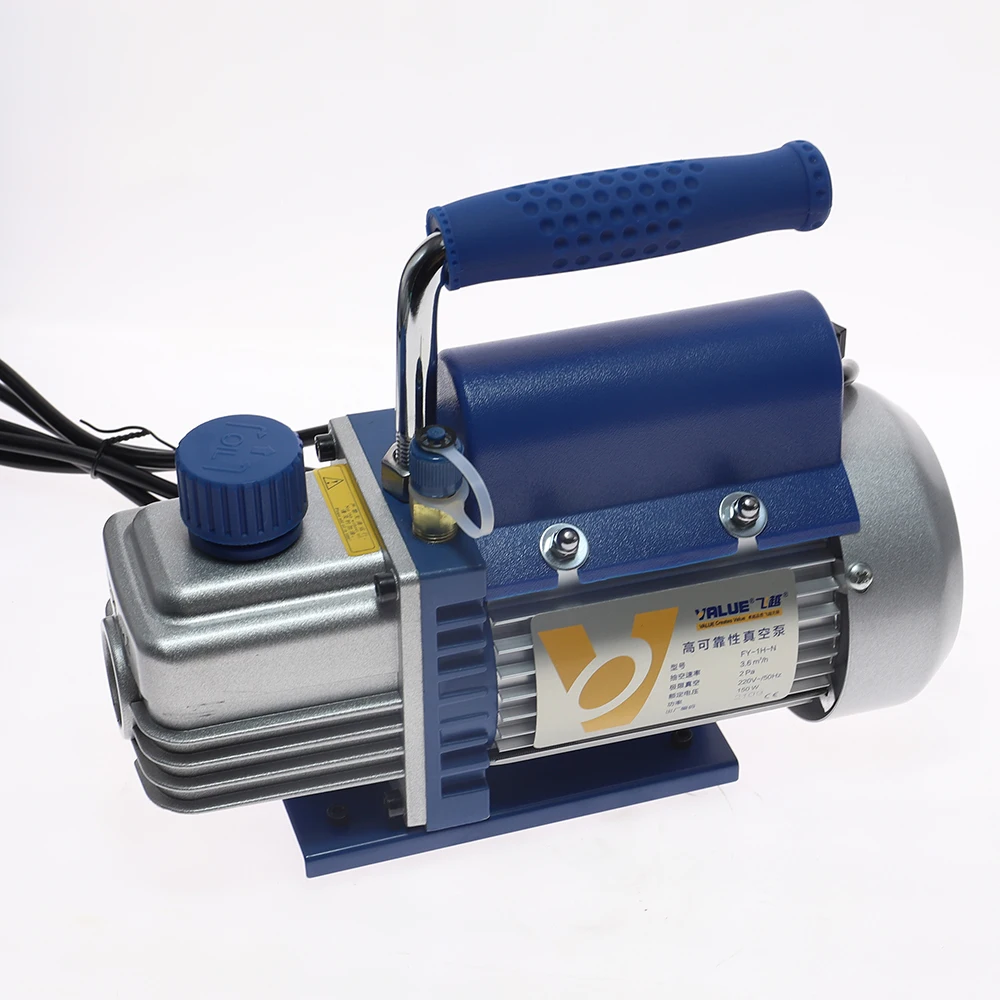

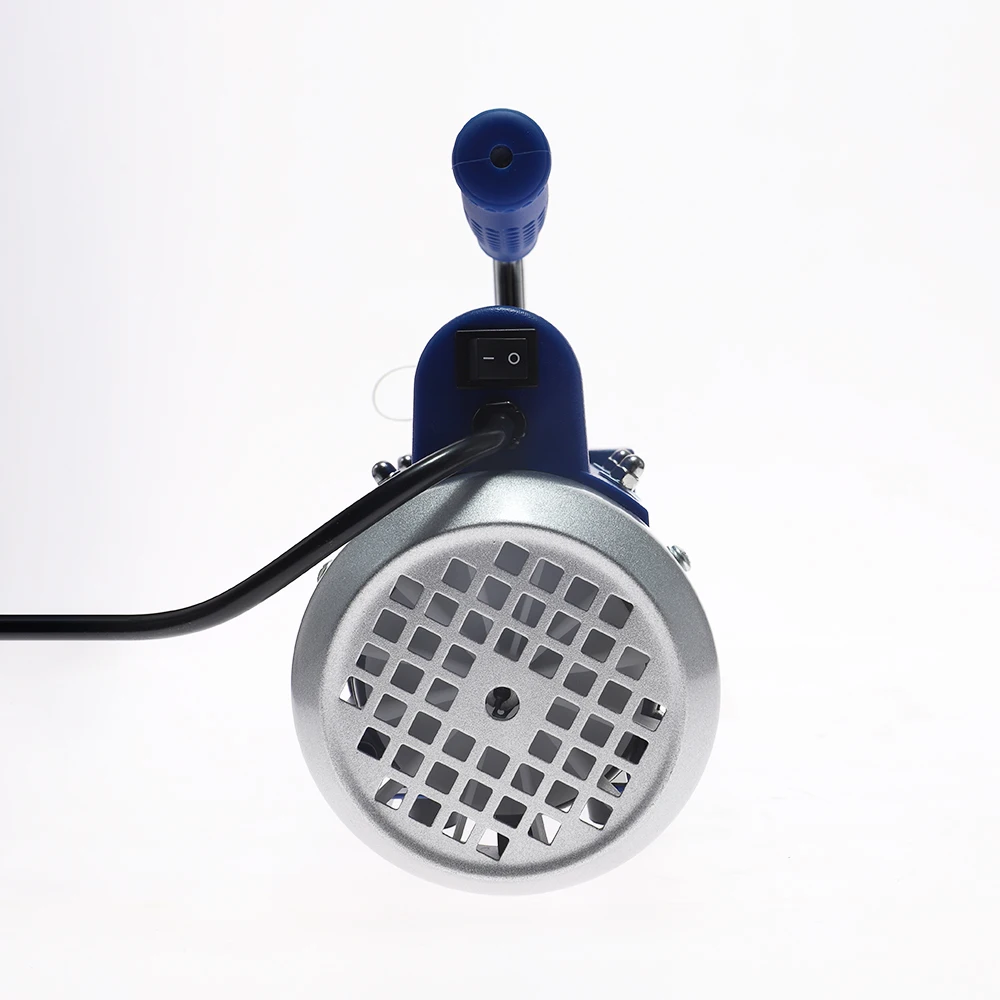

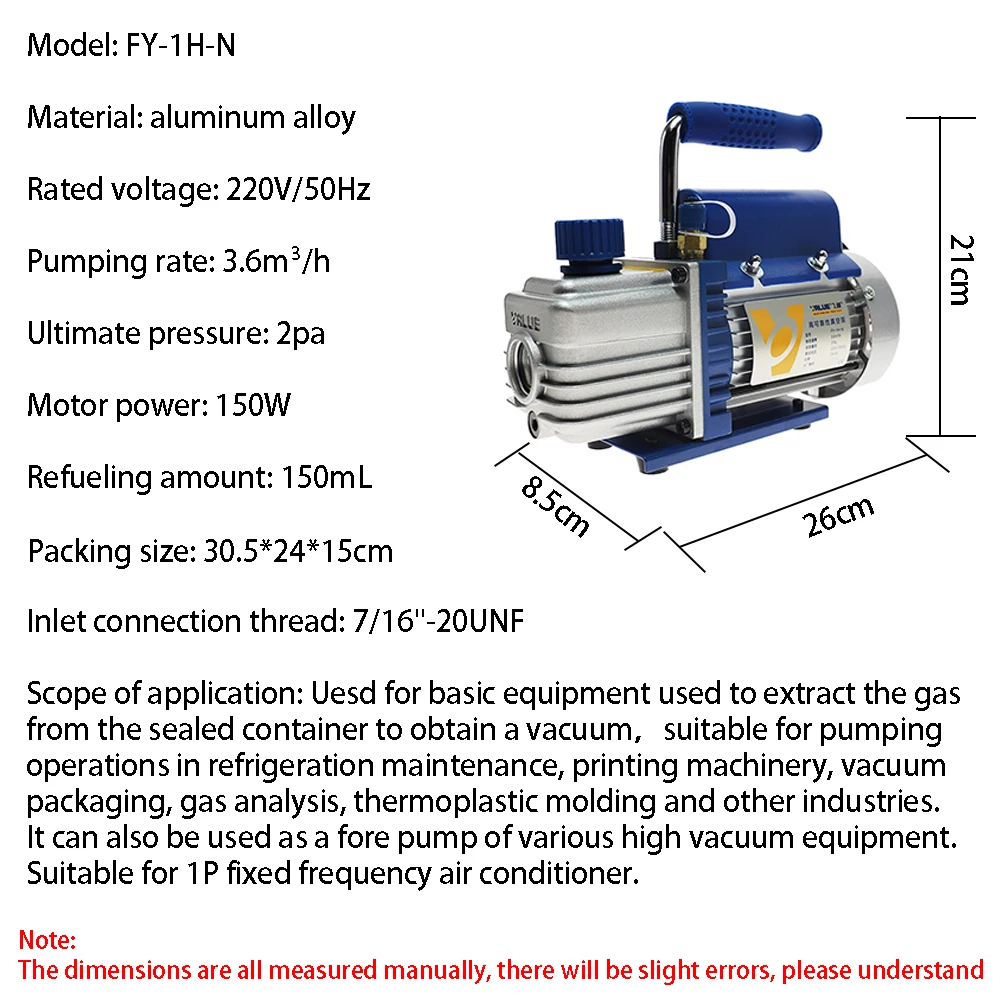

Product name: Air Conditioning Vacuum Pump
Model: FY-1H-N
Material: Aluminum alloy
Rated voltage: 220V/50Hz
Pumping rate: 3.6m³/h
Ultimate pressure: 2pa
Motor power: 150W
Refueling amount: 150mL
Dimensions: 255mm X 105mm X 202mm
Inlet connection thread: 7/16″-20UNF
Scope of application: Uesd for basic equipment used to extract the gas from the sealed container to obtain a vacuum，suitable for pumping operations in refrigeration maintenance, printing machinery, vacuum packaging, gas analysis, thermoplastic molding and other industries.
It can also be used as a fore pump of various high vacuum equipment.
Suitable for 1P fixed frequency air conditioner.

Package Included：

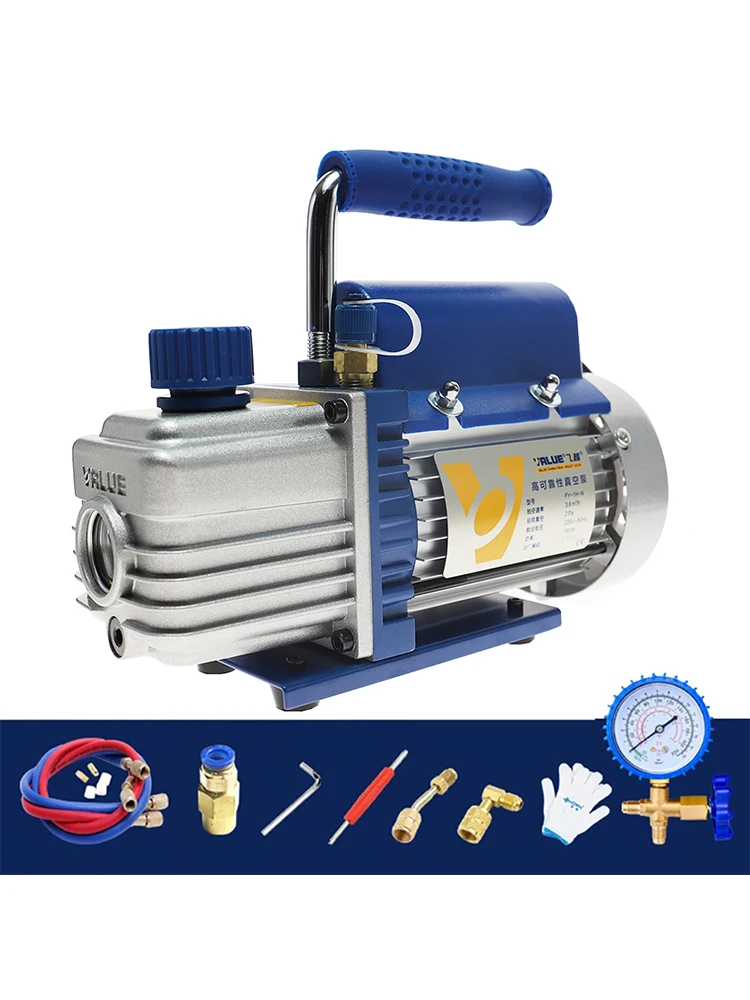

Package 1:
1pcs X Air Conditioning Vacuum Pump

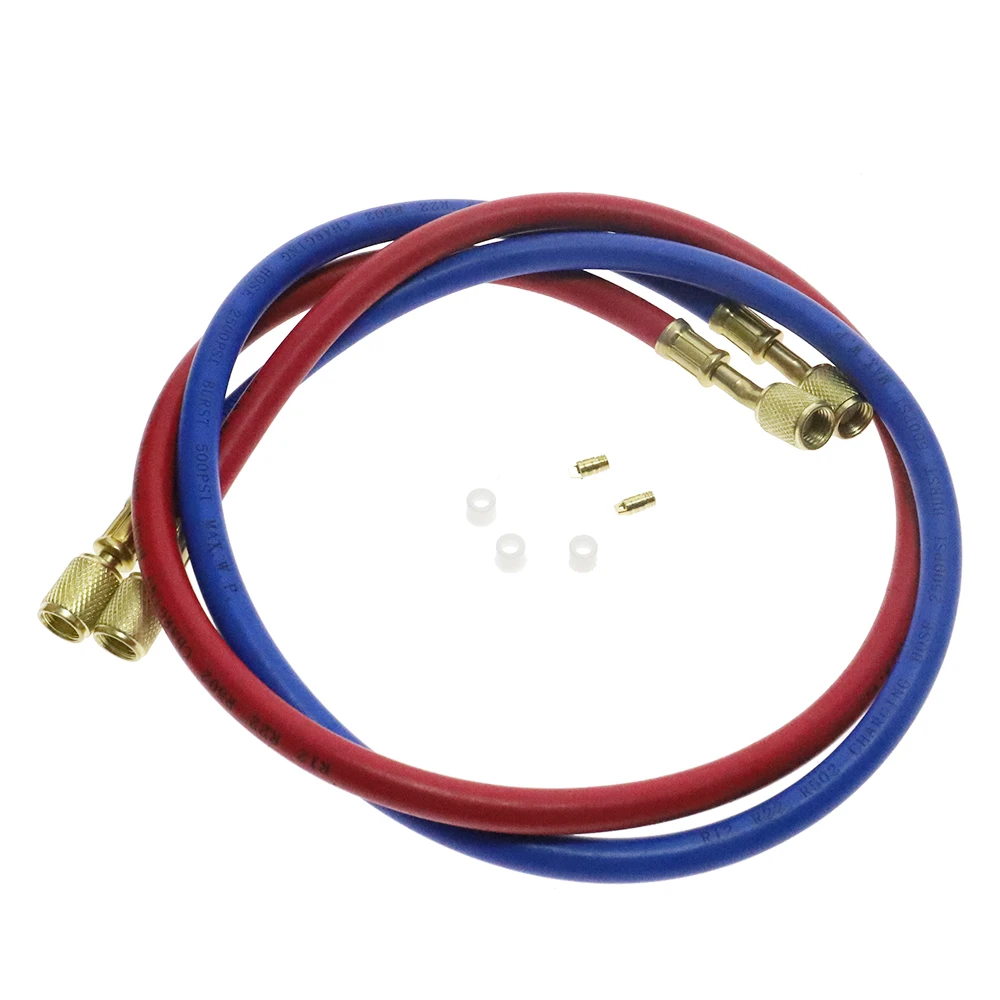

2pcs X Fluoride tube
2pcs X Thimble
3pcs X Tube gasket

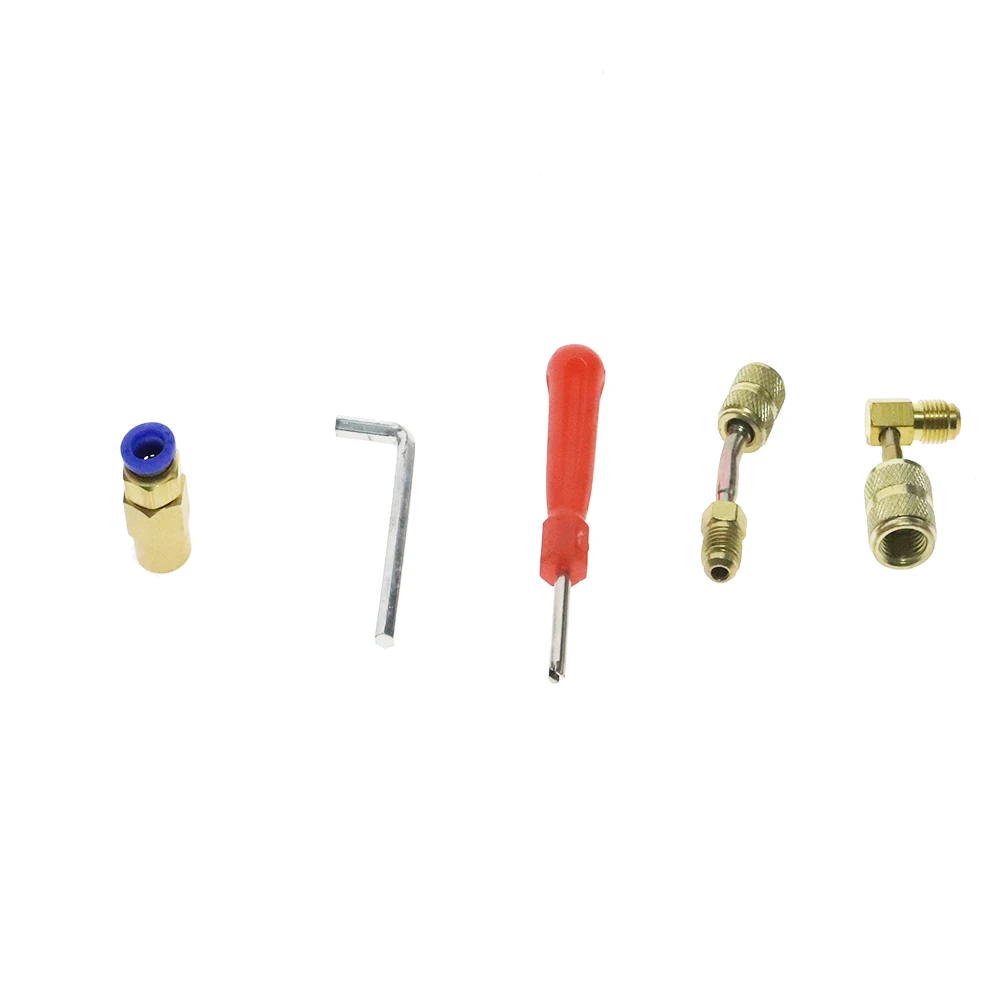

1pcs X 8mm quick plug
1pcs X Inner hexagon
1pcs X Valve core wrench
1pcs X Male connector
1pcs X 410 connector

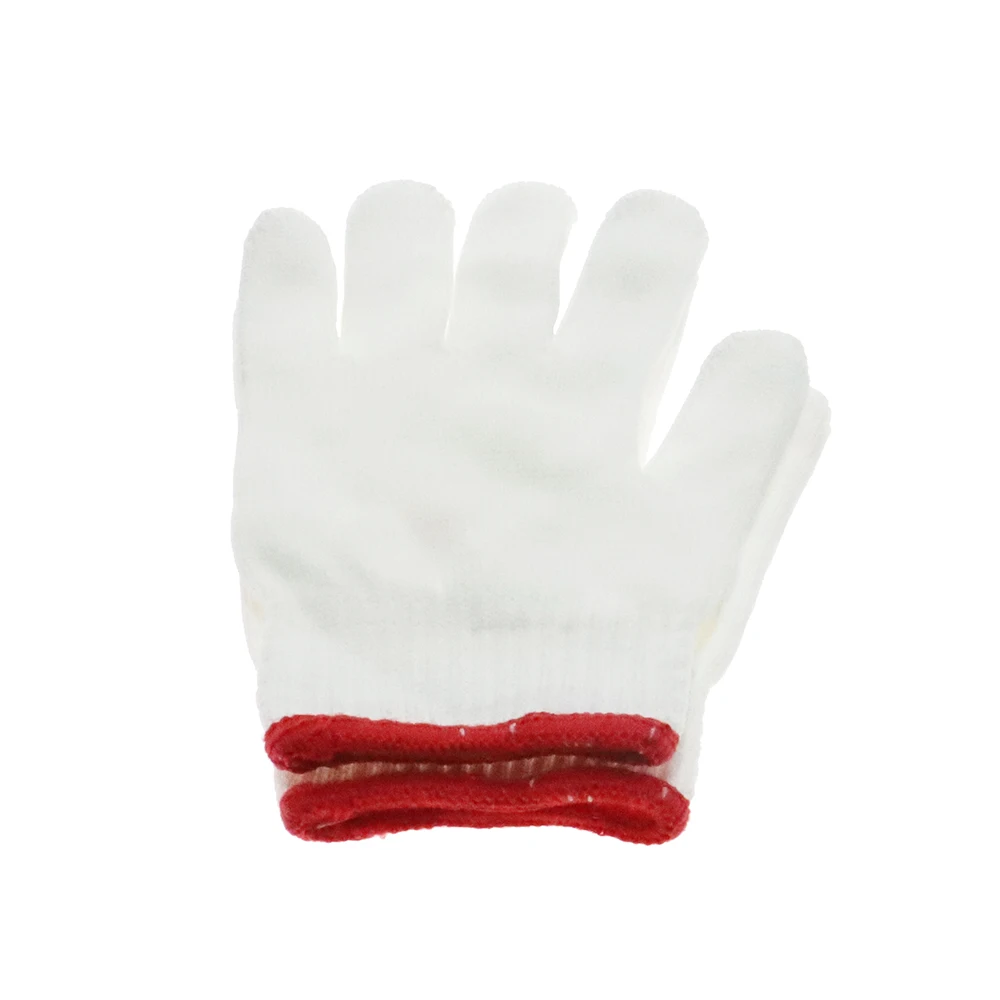

1pcs X Gloves

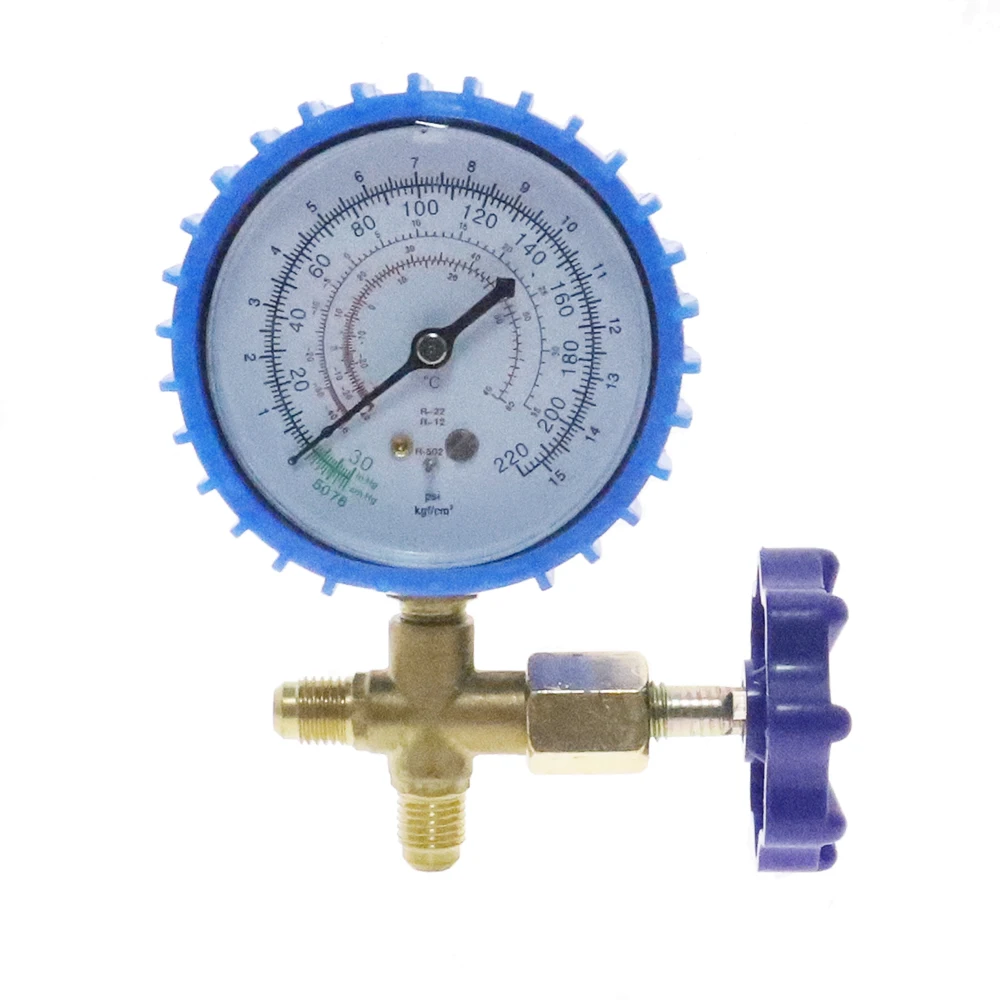

1pcs X Low pressure single meter valve

Package 2:
1pcs X Air Conditioning Vacuum Pump

Note: After receiving the package, please check the goods for damage as soon as possible. If there is damage, please ask the local logistics provider to issue a certificate of damage in time, and the platform can make compensation by submitting proof materials. Compensation cannot be made without proof.

The package contents are shown in the package options diagram and distributed according to the diagram.
