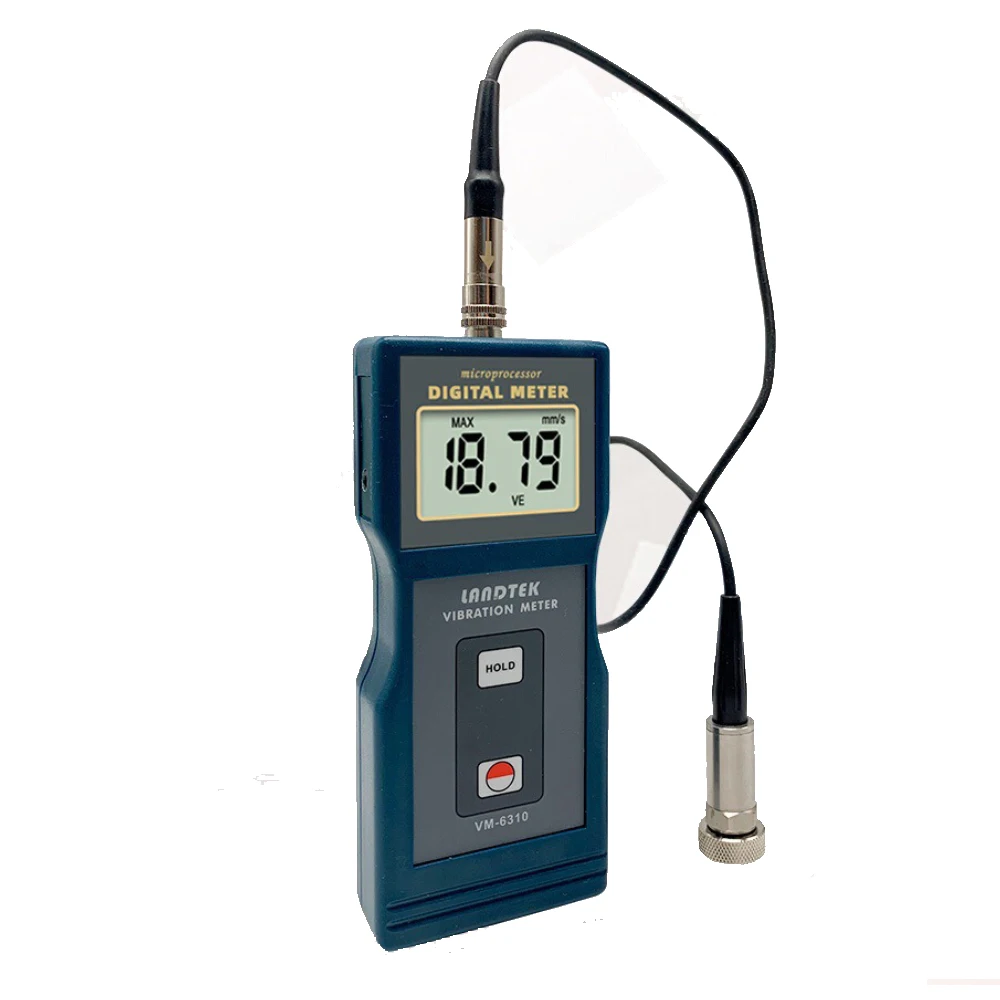

Landtek Vibration Detector VM-6310
- is_customized: Yes
- Model Number: VM-6310
- Origin: Mainland China
- Certification: CE
- Sensor: Piezoelectric Transducer
- Measuring Range: Velocity 0.01mm/s~199.9mm/s True RMS
- Frequency Range: Velocity 10Hz~1kHz
- Accuracy: 5% of Reading 2 digits
- Power Supply: 4×1.5V AA(UM-3)Battery
- Dimensions: 160mmx68mmx32mm
- Weight: 181g(Not Including Batteries)

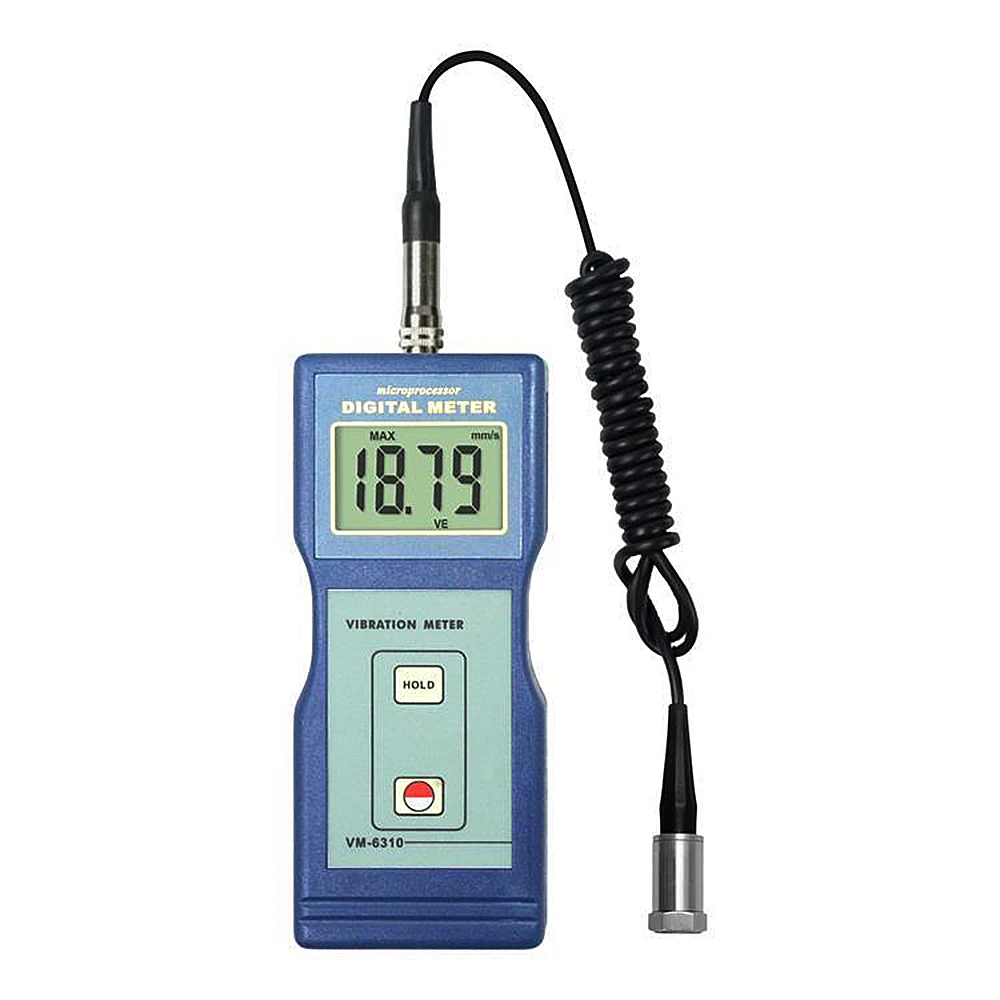

Vibration Meter VM-6310
Spec: Used for measuring periodic motionto check the imbalance and
deflecting of moving machinery.
Features
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality ccelerometer for accurate and repeatable measurements.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
Buy-this-product-on-Aliexpress
Specifications
| ISO/IS2373 Motor Quality Standard According As Vibration Velocity | ||||
| Quality Rank | Rev(rpm) | H:high of shaft(mm) Maximum vibration velocity rms(mm/s) |
||
| 80<H<132 | 132<H<225 | 225<H<400 | ||
| Normal | 600~3600 | 1.8 | 2.8 | 4.5 |
| Good(R) | 600~1800 | 0.71 | 1.12 | 1.8 |
| 1800~3600 | 1.12 | 1.8 | 2.8 | |
| Excellent(S) | 600~1800 | 0.45 | 0.71 | 1.12 |
| 1800~3600 | 0.71 | 1.12 | 1.8 | |
|
Sensor
|
Piezoelectric Transducer
|
|
|
Measuring Range
|
Acceleration
|
——–
|
|
Velocity
|
0.01mm/s~199.9mm/s True RMS
|
|
|
Displacement
|
——–
|
|
|
Frequency Range
|
Acceleration
|
——–
|
|
Velocity
|
10Hz~1kHz
|
|
|
Displacement
|
——–
|
|
|
Accuracy
|
5% of Reading+2 digits
|
|
|
Operating Conditions
|
Temperature
|
0ºC~50ºC
|
|
Humidity
|
<90%RH
|
|
|
Power Supply
|
4×1.5V AA(UM-3)Battery
|
|
|
Dimensions
|
160mmx68mmx32mm
|
|
|
Weight
|
181g(Not Including Batteries)
|
|
|
Standard Accessories
|
Main Unit
|
|
|
Piezoelectric Transducer
|
||
|
Powerful Rare Earth Magnet
|
||
|
Probe(Cone)&Probe(Spherical)
|
||
|
Carrying Case(B04)
|
||
|
Manual Book
|
||
|
Optional Accessories
|
Headset
|
|
|
RS-232C Data Cable with Software
|
||
|
Bluetooth Data Adapter with Software
|
||
