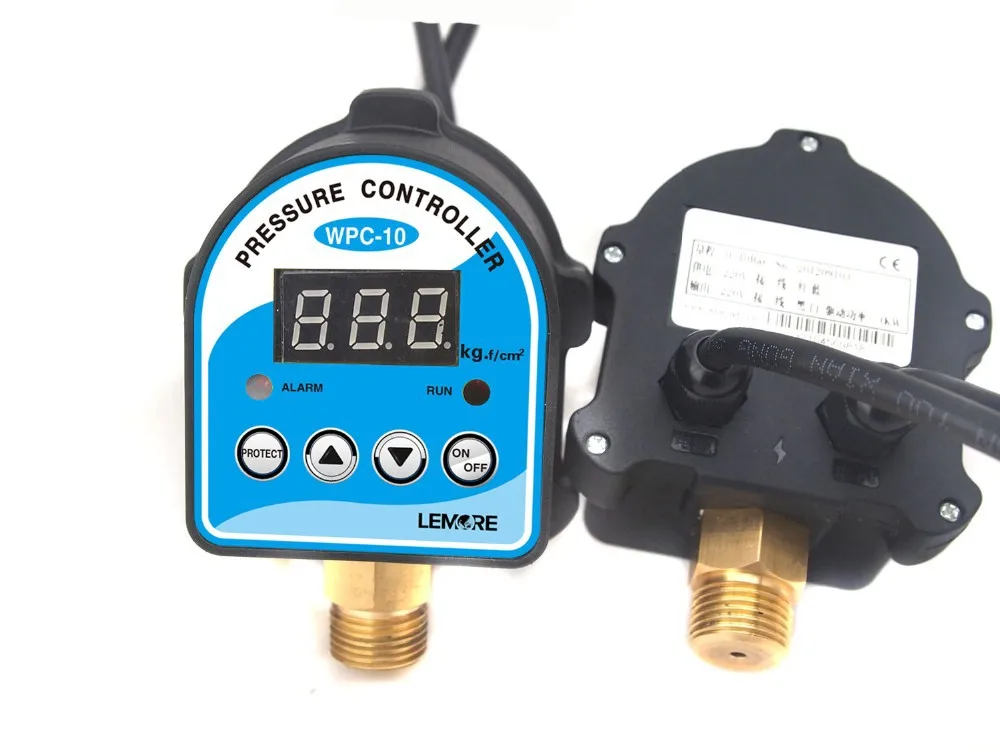

WPC-10 Digital Water Pressure Switch Digital
- Model Number: WPC-10
- Switch Type: Push Button Switch
- Warranty: 1 Year
- Certification: CCC,CCC
- Brand Name: EARUELETRIC
- Origin: Mainland China
- Item Type: Switches
- Item Type: Switches
- Unit Type: piece
- Package Weight: 0.350kg (0.77lb.)
- Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
1pc Digital Pressure Control Switch WPC-10 Digital Display WPC 10 Eletronic Pressure Controller for Water Pump With G1/2″Adapter
Buy-this-product-on-Aliexpress
Technical Parameter:
- Pressure Range
- 0-10KG/CM2
- Voltage Supply
- 220Vac(You require a 3 phase AC contactor with 380V pump)
- Technical Parameter:
- Pressure Range
- 0-10KG/CM2
- Voltage Supply
- 220Vac(You require a 3 phase AC contactor with 380V pump)
- Connection
- G1/2(Standard),it also can be customized
- Overload Capacity
- 220V,10A; Pump(≤1.5KW) can be started directly
Product Feature:
- environment-friendly:silent design
- Safe: IP65,water-proof case,water-shortage protection
- Intelligent: Preventing the pump automatically restart frequently
- Reliable: Electronic Design, long-life for using, more than 200,000 times operation,anti-vibration
- Widely application:Pipeline Pump,Booster Pump,Self-priming pump,Immersible Pump,Circulating Pump ect.,widely using for solar heat pump,air-source heat pump,WILO home booster pump,Grundfos hot water circulating pump and other relevant pumps.
Buy-this-product-on-Aliexpress
Description of Using:
- Water Supply from Upstairs to Downstairs
- Pressure relief valve
- The position of device
- Height
- the lowest outlet of water
- The Upper Value=The Max. Pressure of Pump -0.5KG
- The lower value=0.5KG
- Water shortage protection value=0.2KG
- Water Supply from Downstairs to Upstairs:
- the highest outlet of water
- The Upper Value=The Max. Pressure of Pump -0.5KG
- The lower value=H*0.1KG+0.5KG
- Water shortage protection value ≤H*0.1KG
- Immersible pump automatic control
- The position of device
- Height
- the highest outlet of water
- the surface location of water
- The Upper Value=(The Max. Pressure of Pump-H )*0.1KG-0.5KG
- The lower value=H1*0.1KG+0.5KG
- Water shortage protection value ≤H1*0.1KG
Buy-this-product-on-Aliexpress
REAR THE CODE
CODE
MEANING
HOW TO USE
H2.9
Upper value,stop 2.9KG
You can set it as instruction
L1.5
Lower Value,stop 1.5KG
You can set it as instruction
F0.2
Water shortage protection 0.2KG
You can set it as instruction
E-F
Water shortage protection
Press ON/OFF to restart or waiting for restart automatically
E-H
Error,over the pressure range or the sensor damaged
Check the pressure source
The wiring
Please see the back of the WPC-10 pressure control, the left is Chinese word “power”, you can supply 220Vac from here, the right is Chinese word “motor”, please connect it with the pump 220Vac supply terminal.
Description Of Using
- Water Supply from Upstairs to DownstairsImmersible pump automatic control
- The Upper Value=The Upper Value=
- The Max. Pressure of Pump -0.5KG(The Max. Pressure of Pump-H )*0.1KG-0.5KG
- The lower value=0.5KGThe lower value=H1*0.1KG+0.5KG
- Water shortage protection value=0.2KG Water shortage protection value≤H1*0.1KG
Water Supply from Downstairs to Upstairs
- The Upper Value=The Max. Pressure of Pump-0.5KG
- The lower value=H*0.1KG+0.5KG
- Water shortage protection value≤H*0.1KG
| Technical Parameter | |
| Pressure Range | 0-10KG f/CM |
| Voltage Supply | 220Vac(You require a 3 phase AC contactor with 380V pump) |
| Connection | G1/2(Standard),it also can be customized |
| Overload Capacity | 220V,10A; Pump(≤1.5KW) can be started directly |
| Read The Code | ||
| Code | Meaning | How To Use |
| H2.9 | Upper value,stop2.9KG | You can set it as instruction |
| L1.5 | Lower Value,stop1.5KG | You can set it as instruction |
| F0.2 | Water shortage protection 0.2KG | You can set it as instruction |
| E-F | Water shortage protection | Press ON/OFF to restart or waiting for restart automatically |
| E-H | Error,over the pressure range | Check the pressure source |
