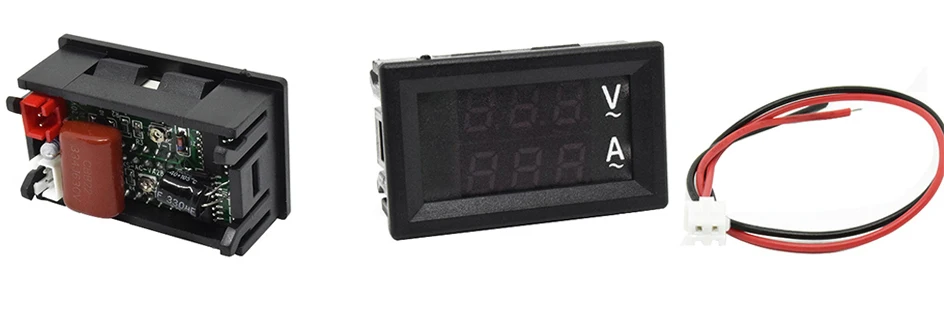

YIDI YD-22 Digital Voltmeter Ammeter
- Dimensions: 0.56inch
- Operating Temperature: -10~65’C
- Supply Voltage: DC 0-100V/AC 60-500V
- Accuracy Class: +-1%
- Model Number: YD-22
- Display Type: Digital Only
- DIY Supplies: ELECTRICAL
- Brand Name: YIDI
- Origin: Mainland China
- Certification: CE
- Mounting hold size: 46x27mm
- Product Dimension: 48x29x22mm
- LED Color: Red+Blue
- Input Voltage: DC 4-30V/AC 60-500V
- Detection Voltage: DC 0-100V/AC 60-500V
- Detection Current: 1A/10A/50A/100A
- Accuracy Class: +/- 1%
- Refesh Rate: 500mS/Time
- Cable Length: 15-20cm
- Working Current: under 20mA
Marking:
— Reading can be Calibrated

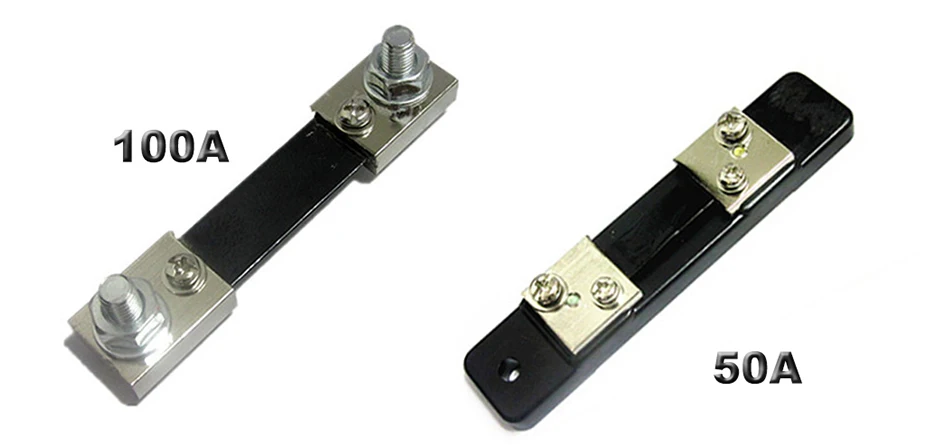

— For DC 50A and 100A, need extra shunt. Shunt is not included, please choose shunt while place order.
— For AC 10A and 100A, need extra Current Transformer(CT). Current Transformer is not included, please choose the CT when place order.

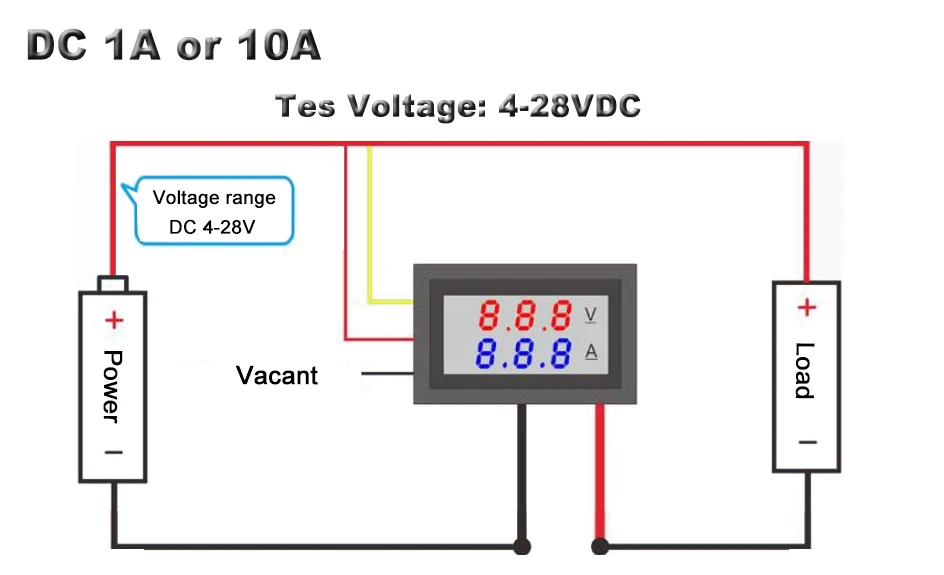

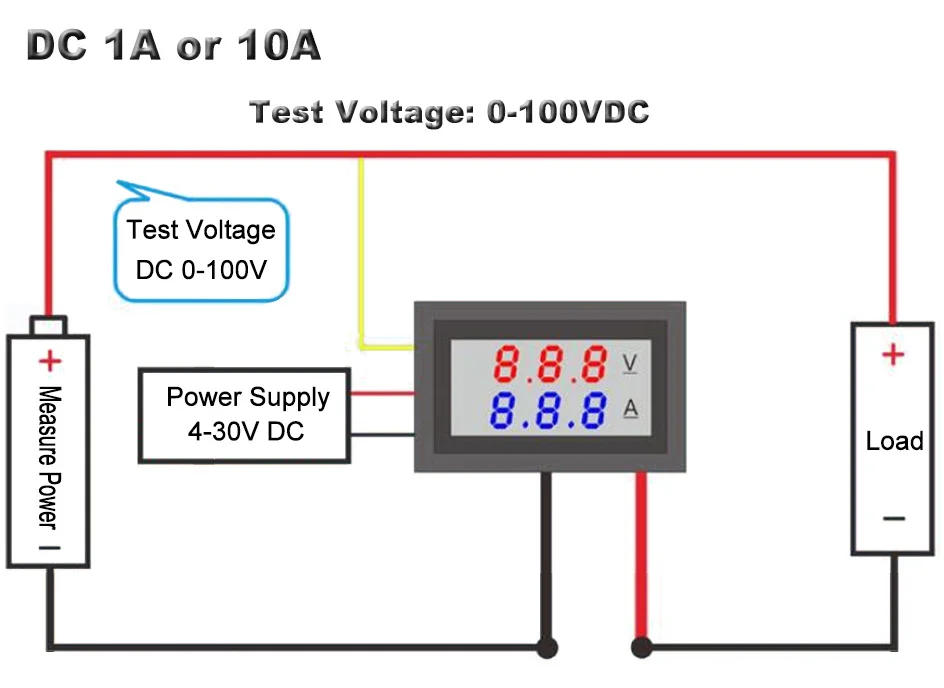

1. DC 0-1A 0-10A 0-100V Current Meter Voltmeter
- Input Voltage: DC 4-30V
- Detection Voltage: DC 0-100V
- Detection Current: 1A: 0-999mA / 10A:0-10A
- Refresh Rate: 350mS/Time
- Packing: Ampere Voltage Meterx1 + 2 set cables

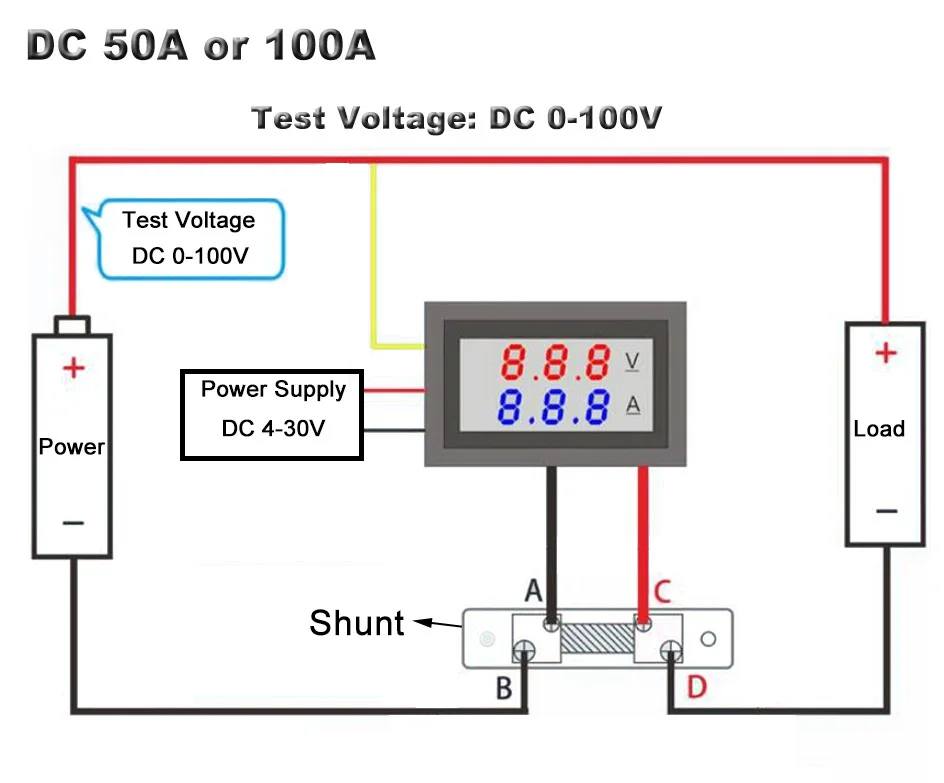

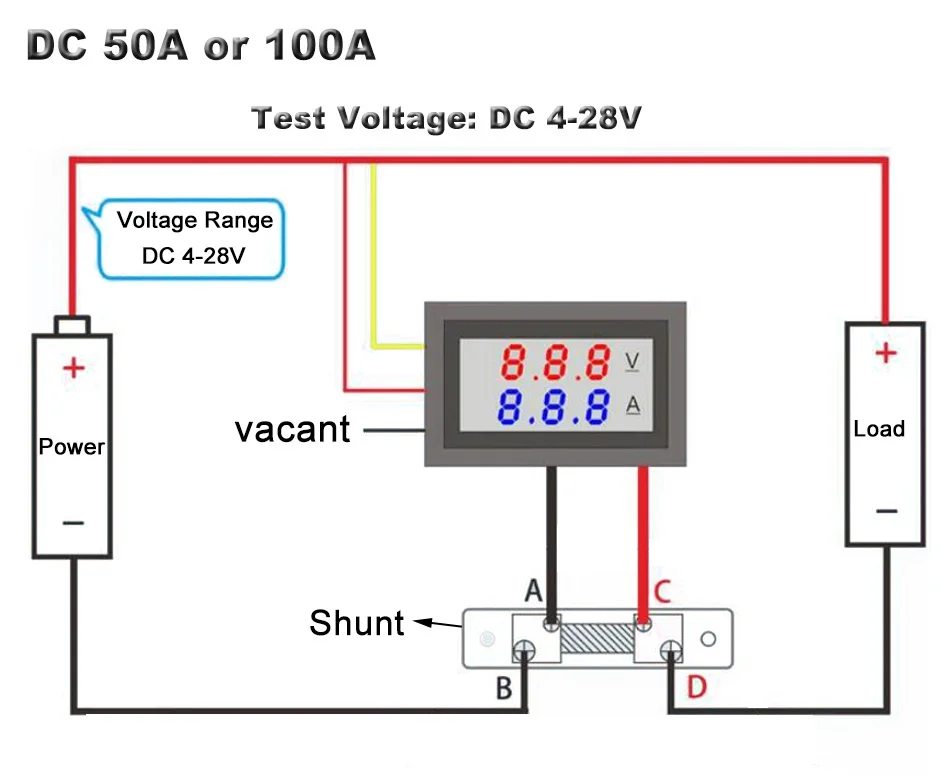

2. DC 0-50A 0-100A 0-100V Current Meter Voltmeter
Input Voltage: DC 4-30V
Detection Voltage: DC 0-100V
Detection Current: 50A: 0-50A / 100A:0-100A
Refresh Rate: 350mS/Time
Shunt: 75mΩ
Packing: 1pc Ampere Voltage Meter + 2 set cables
Shunt is not included

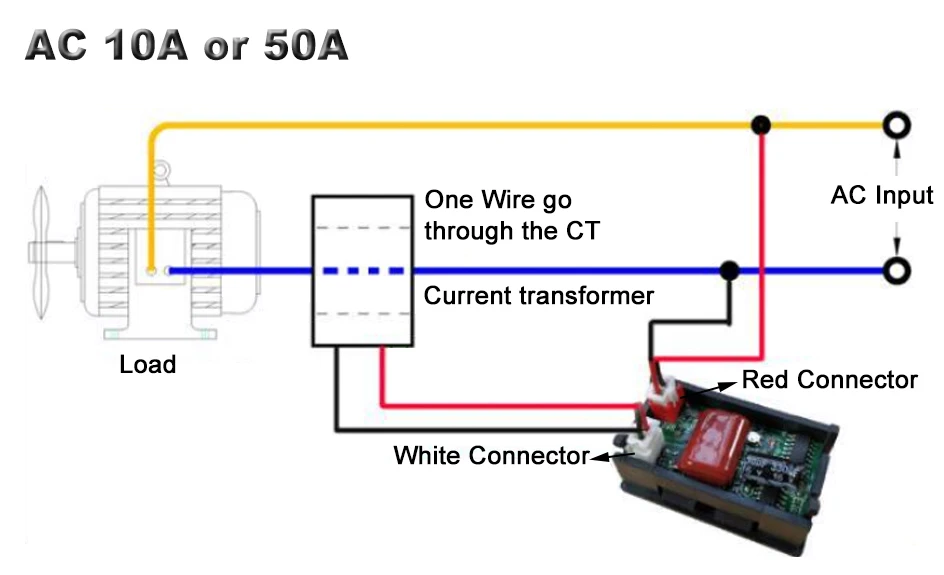

3. AC 0-10A 0-50A 60-500V Current Meter Voltmeter
- Input Voltage: 60-500V
- Detection Voltage: 60-500V
- Detection Current: 10A: 0-10A / 50A:0-50A
- Refresh Rate: 500mS/Time
- Packing: 1pc Ampere Voltage Meter + 2 set cables
- Current Transformer (CT) is not included. Should choose the CT option together when place order.

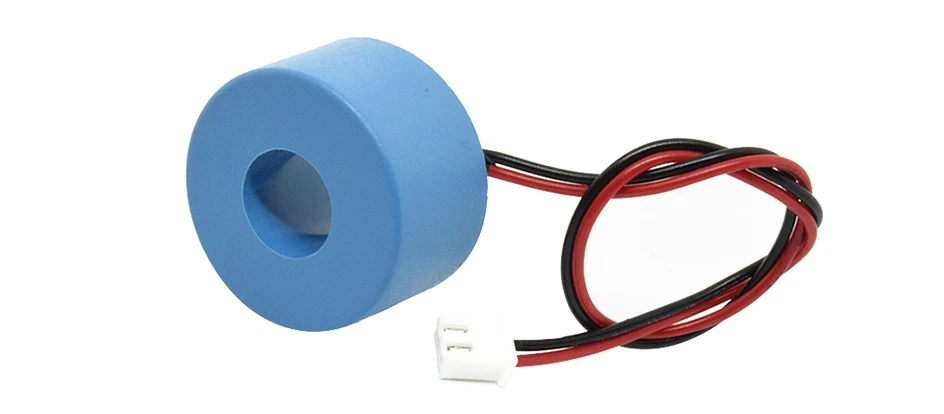

- Current Transformer Specification:
- One Input Voltage: 0 – 50A
- Senondary Output Voltage: 0 – 50mA
- Accuracy level: 0.2
- Ratio: 1000/1
- Load ≥ 50Ω
- Phase shift (δ): ＜20′
